Specifications
Equipped With

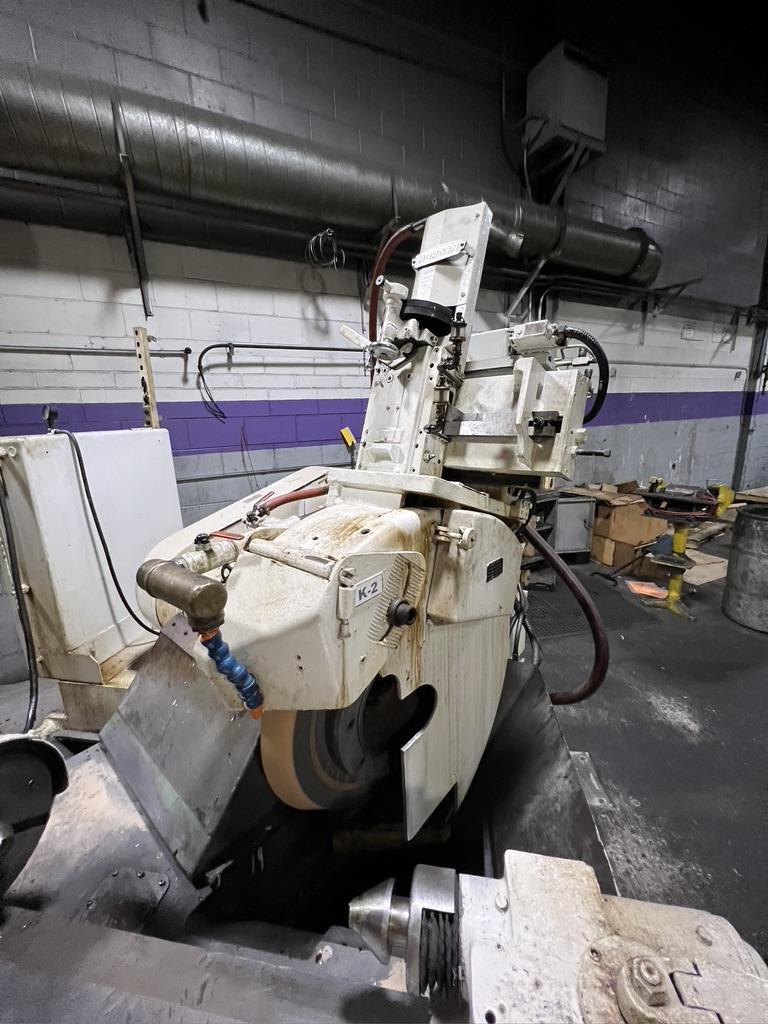

10 X 36 CV4 NORTON 30 DEGREE ANGLE HEAD
PLAIN CYLINDRICAL GRINDER
Year: 1955

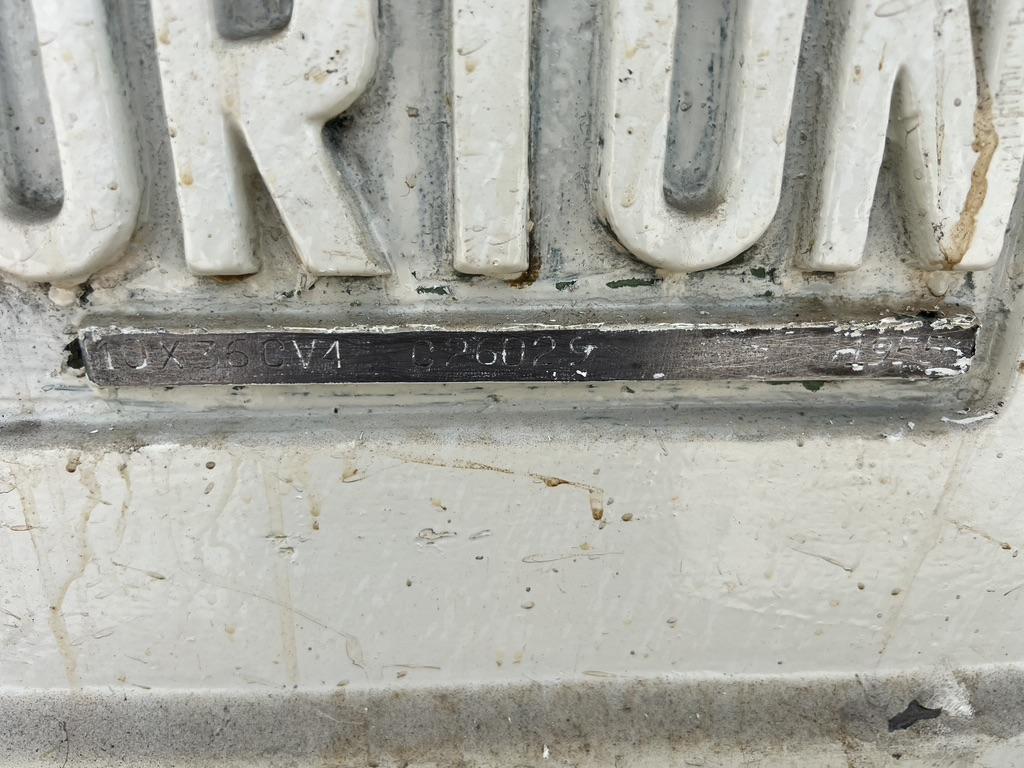

SERIAL NUMBER C26029
STANDARD CATALOG SPECIFICATIONS
Actual swing over table ................................ 10"
Distance between centers .............................. 36"
Hydraulic plunge in feed
Wheel mount to accept 30" x 12" I.D. x 3" wide
Hydraulic operated tail stock
Hydraulic table travel
15 HP, 400/3/50, 1445 RPM
1 HP, 400/3/50 motorized head stock
EQUIPPED WITH
Behind wheel guard mounted hydraulic diamond dresser
Electric panel

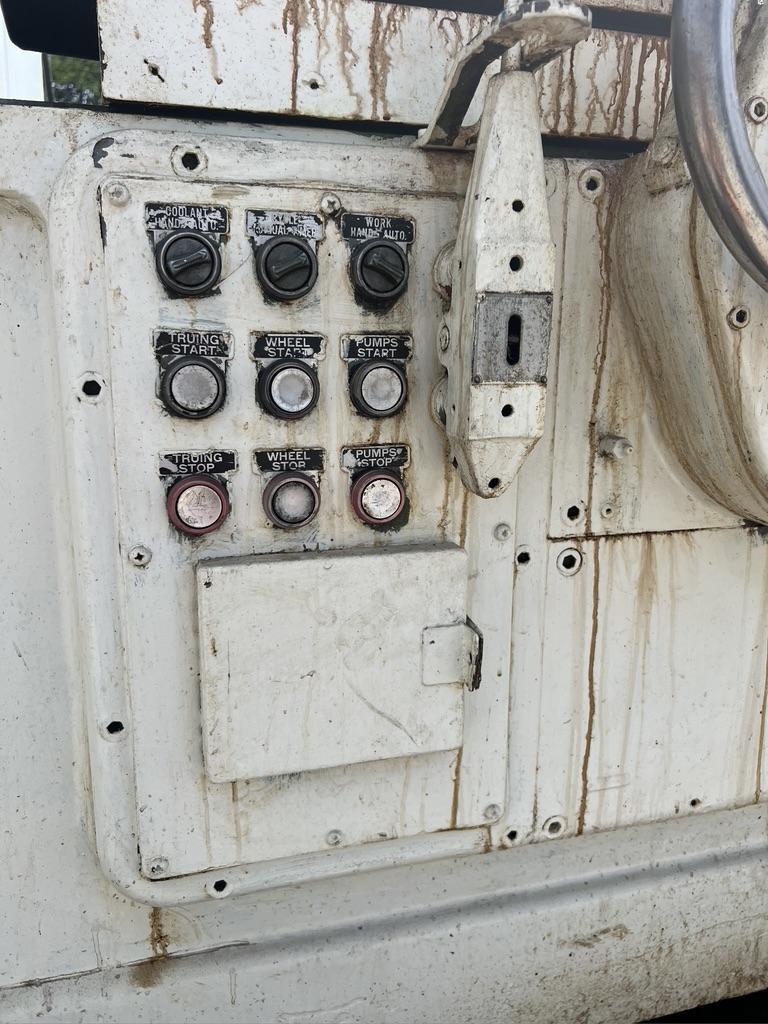

Push button controls
Coolant pump and tank
Spark out with timer
Coolant in base
Hydraulic tailstock
Hydraulic table travel
DIMENSIONS & FLOOR SPACE
131" length x 102" wide
Approximate shipping weight: 11,350#

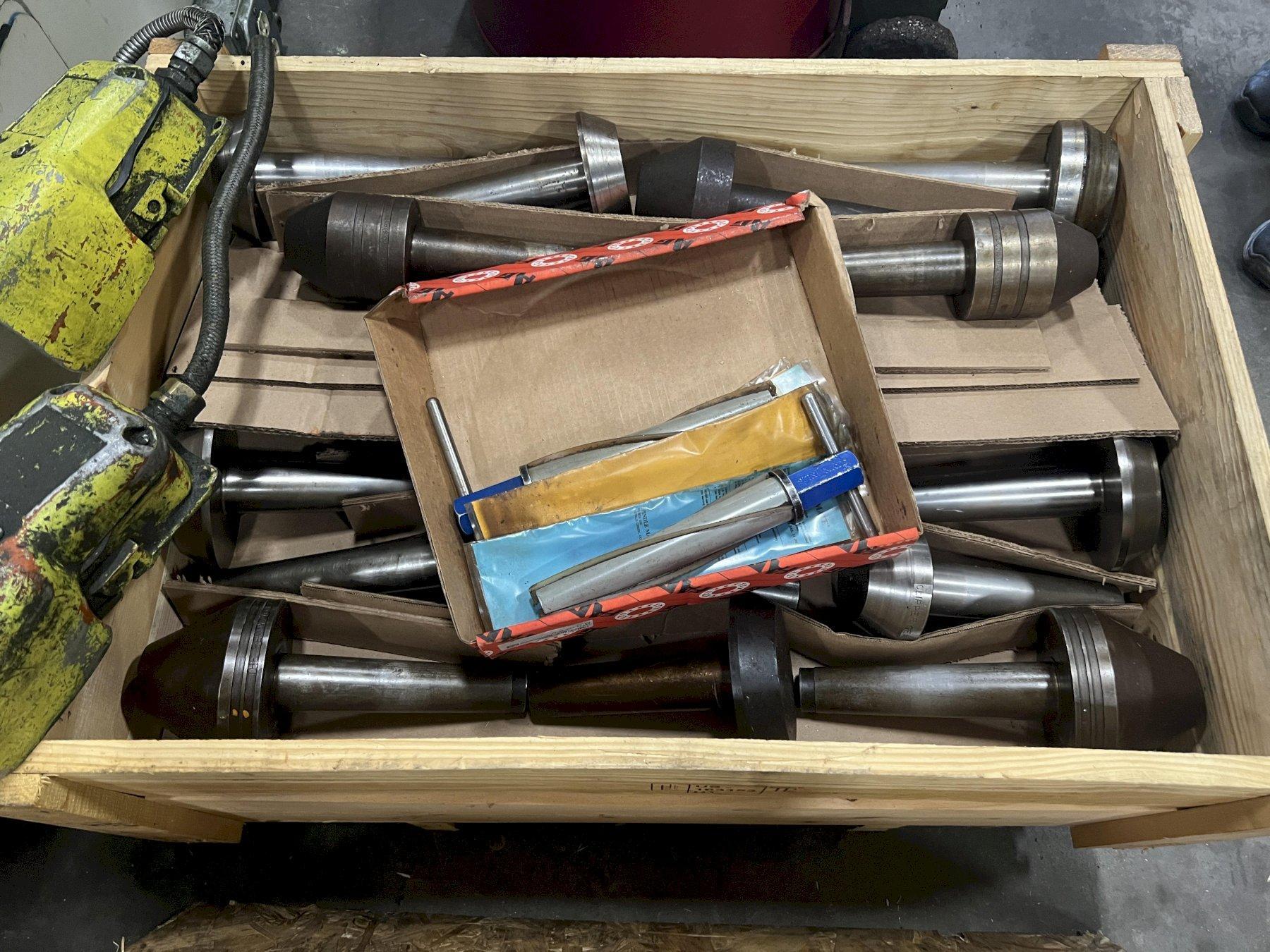

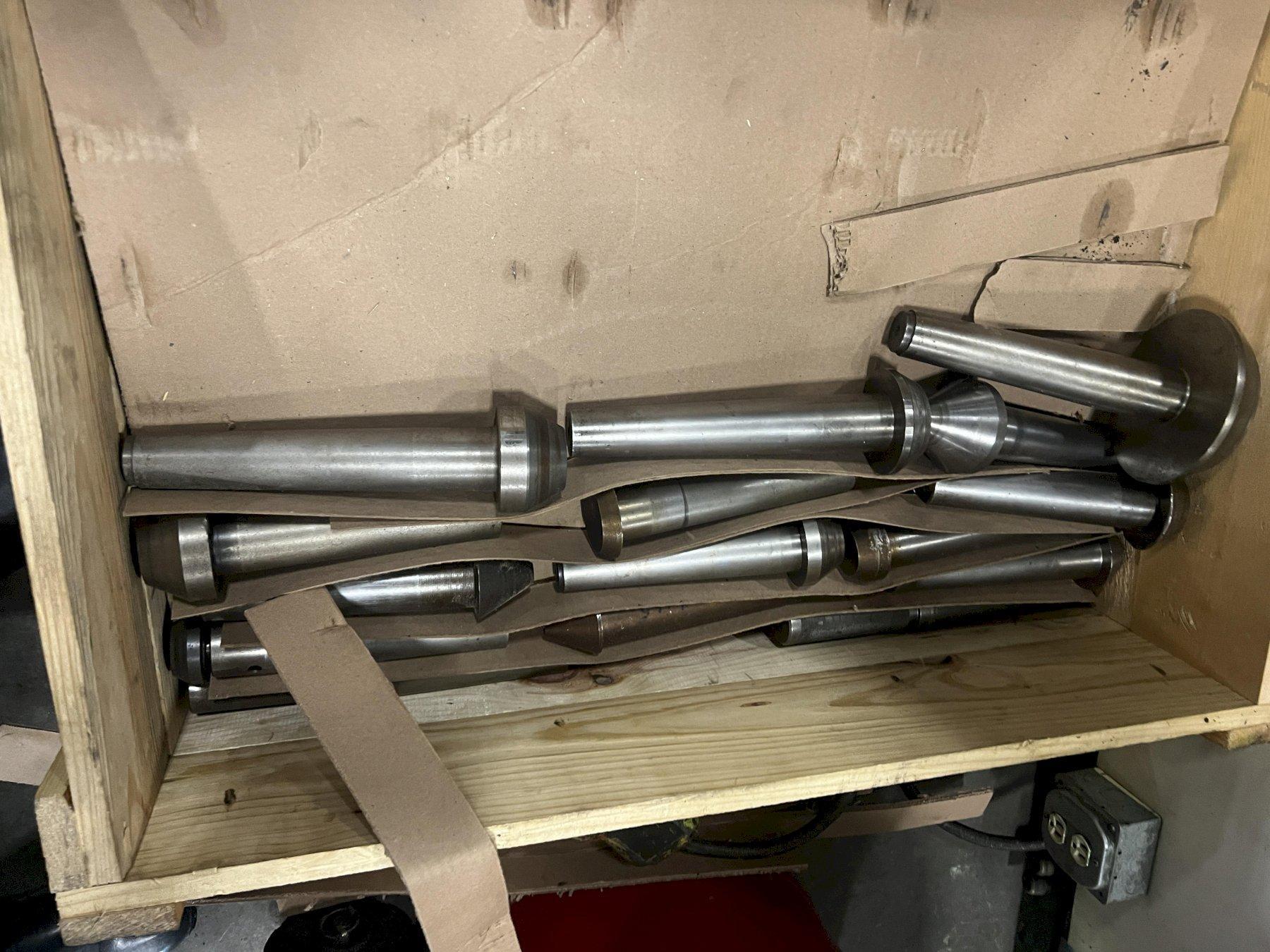

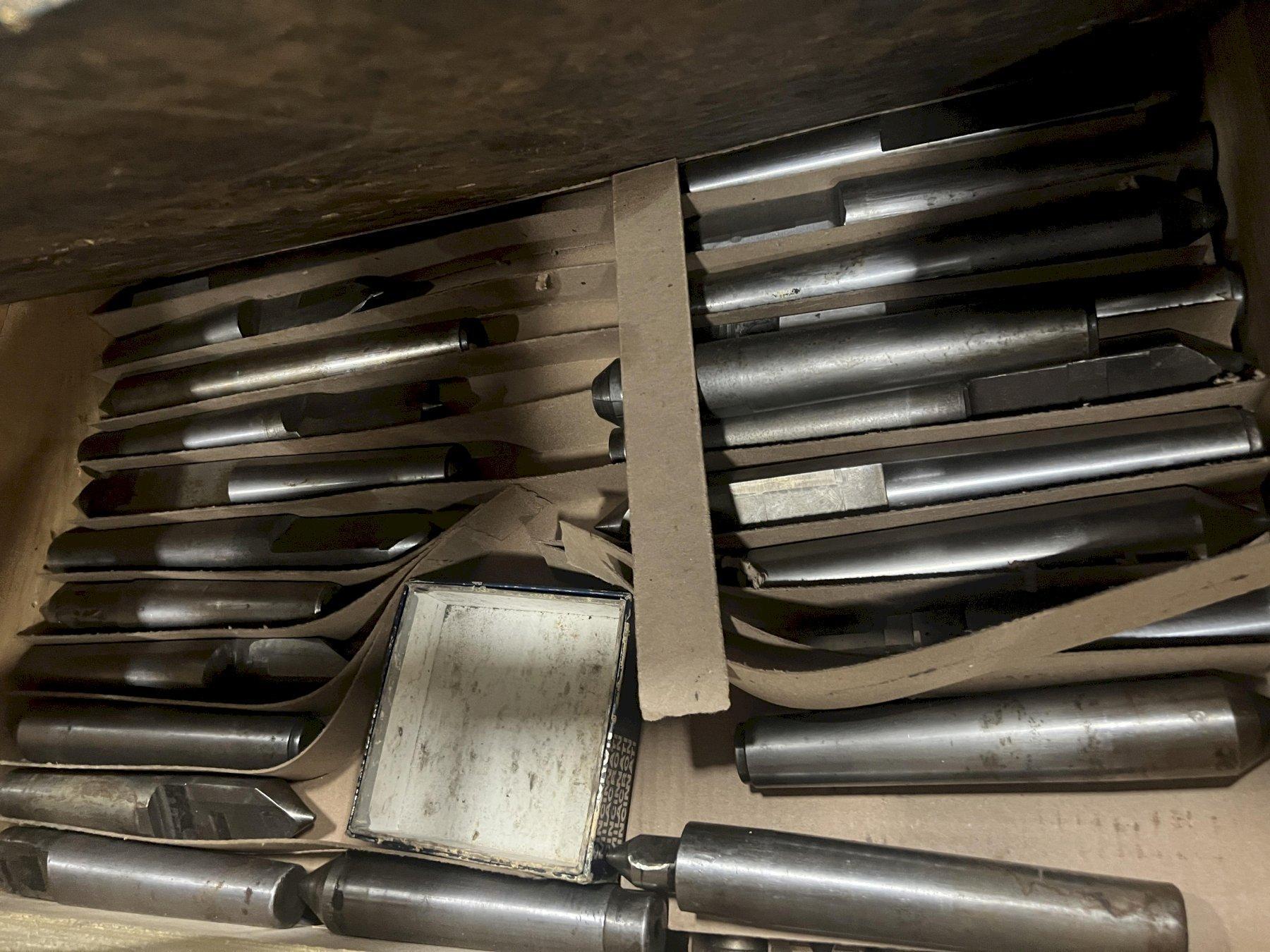

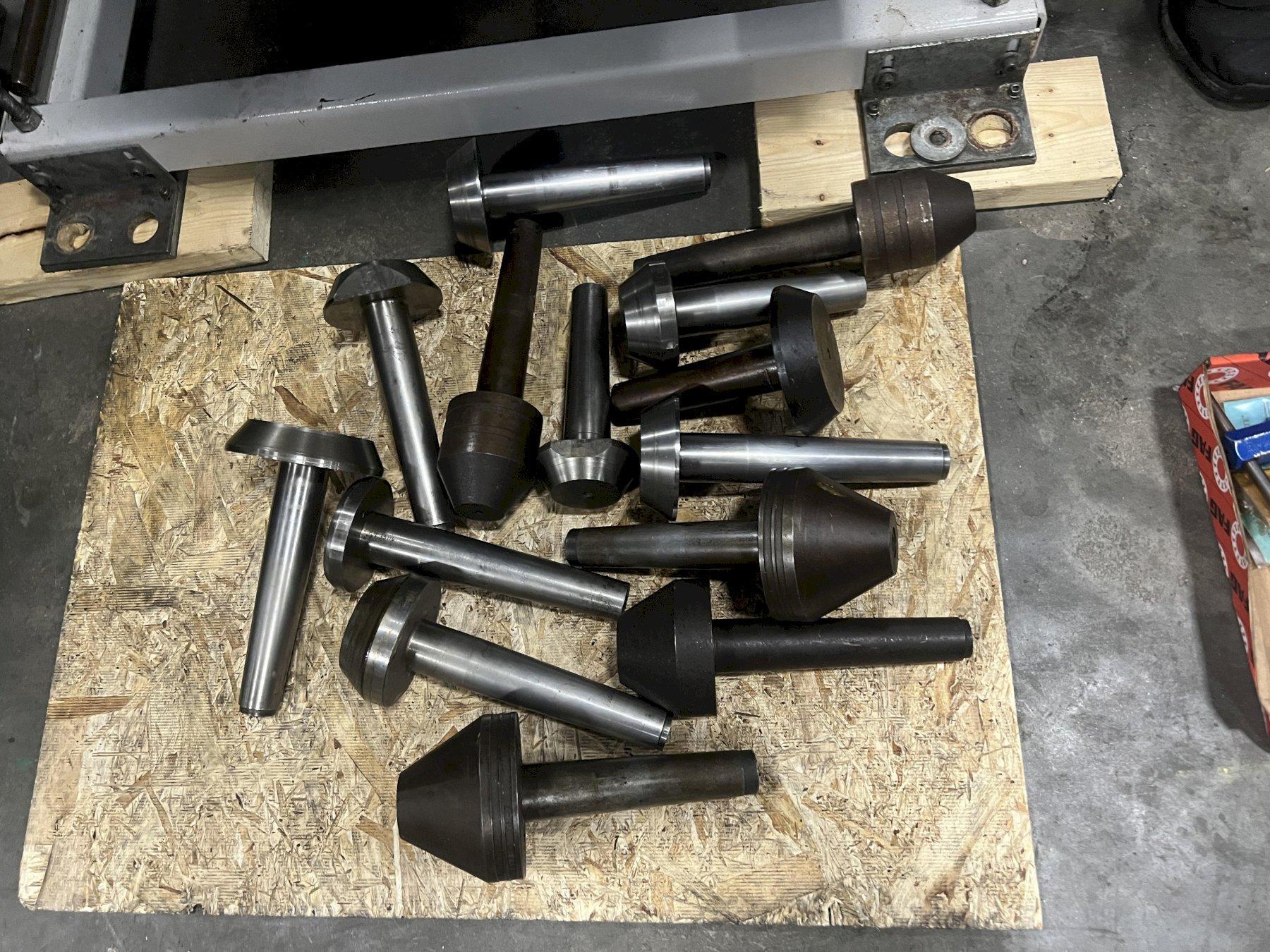

Misc. Tooling and Manuals included.
