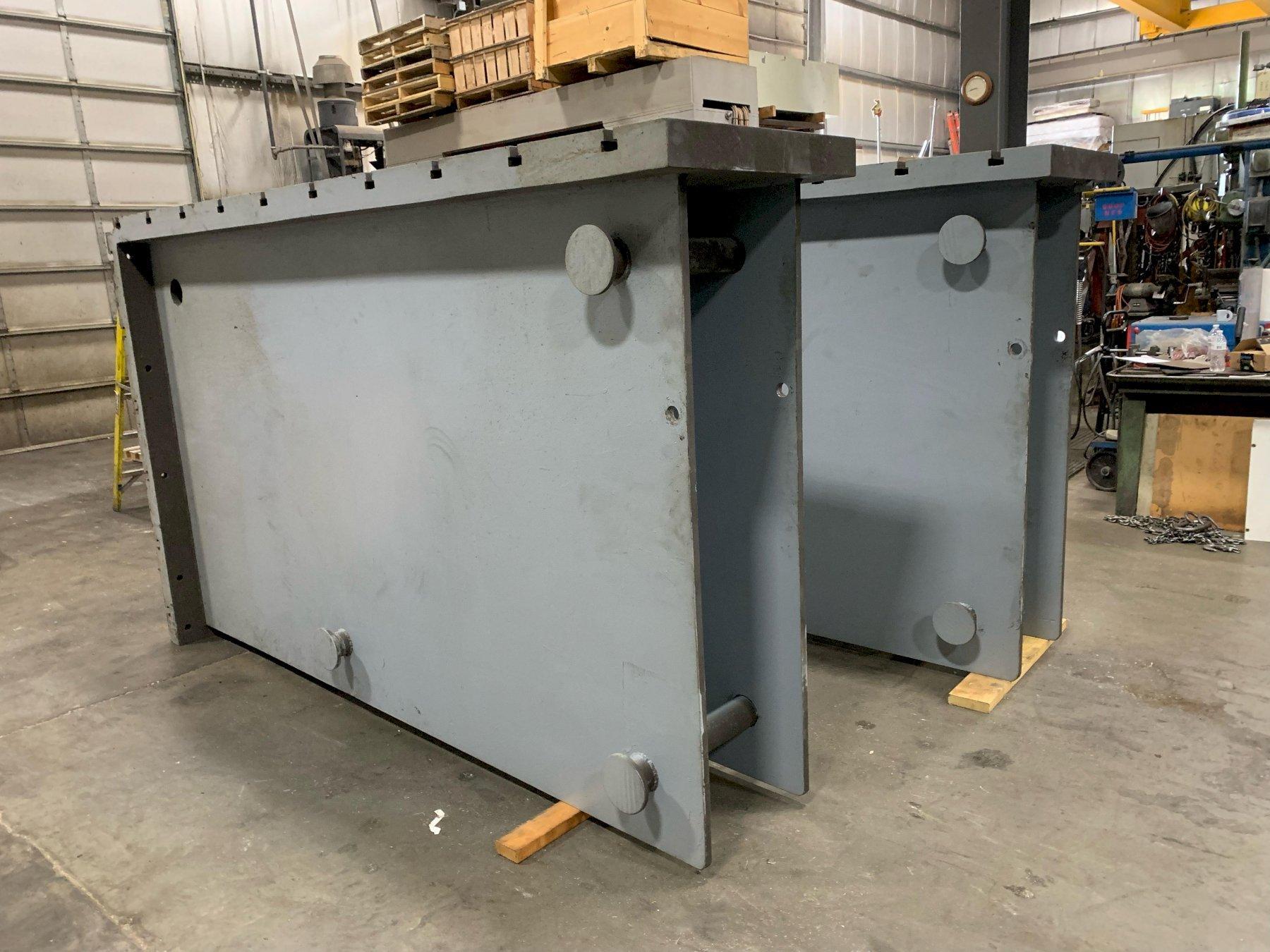

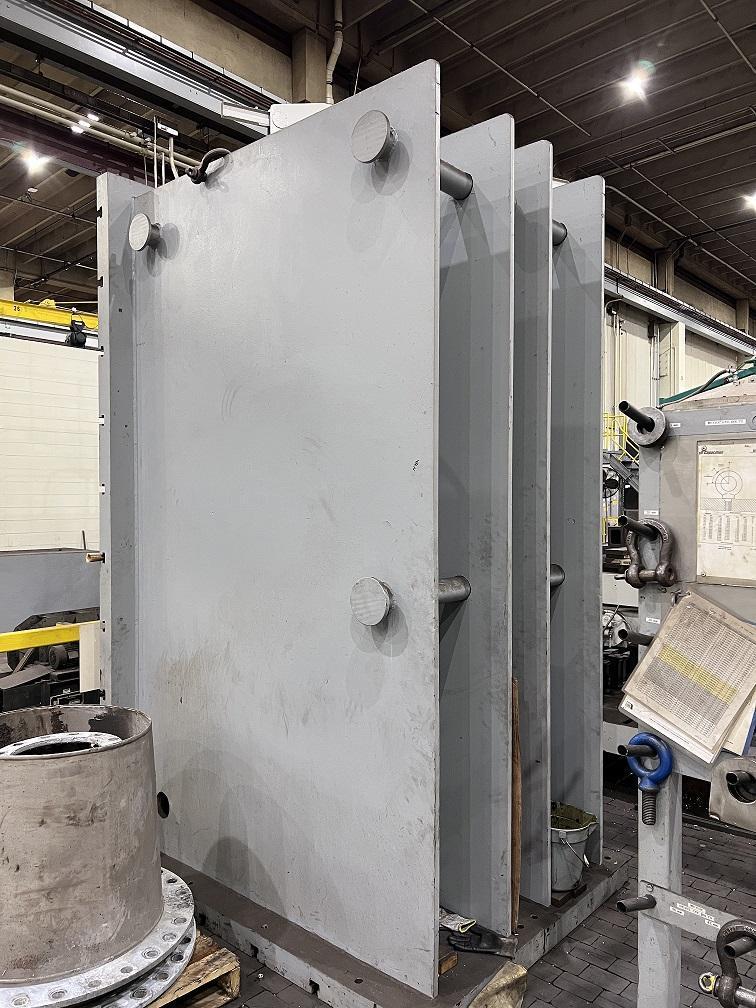

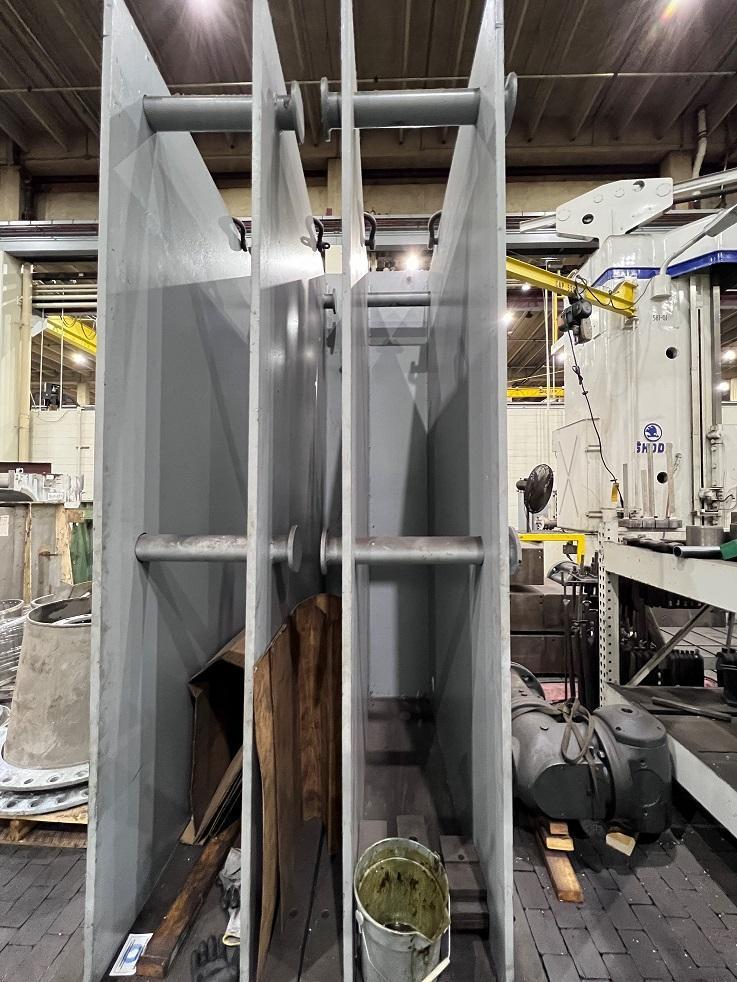

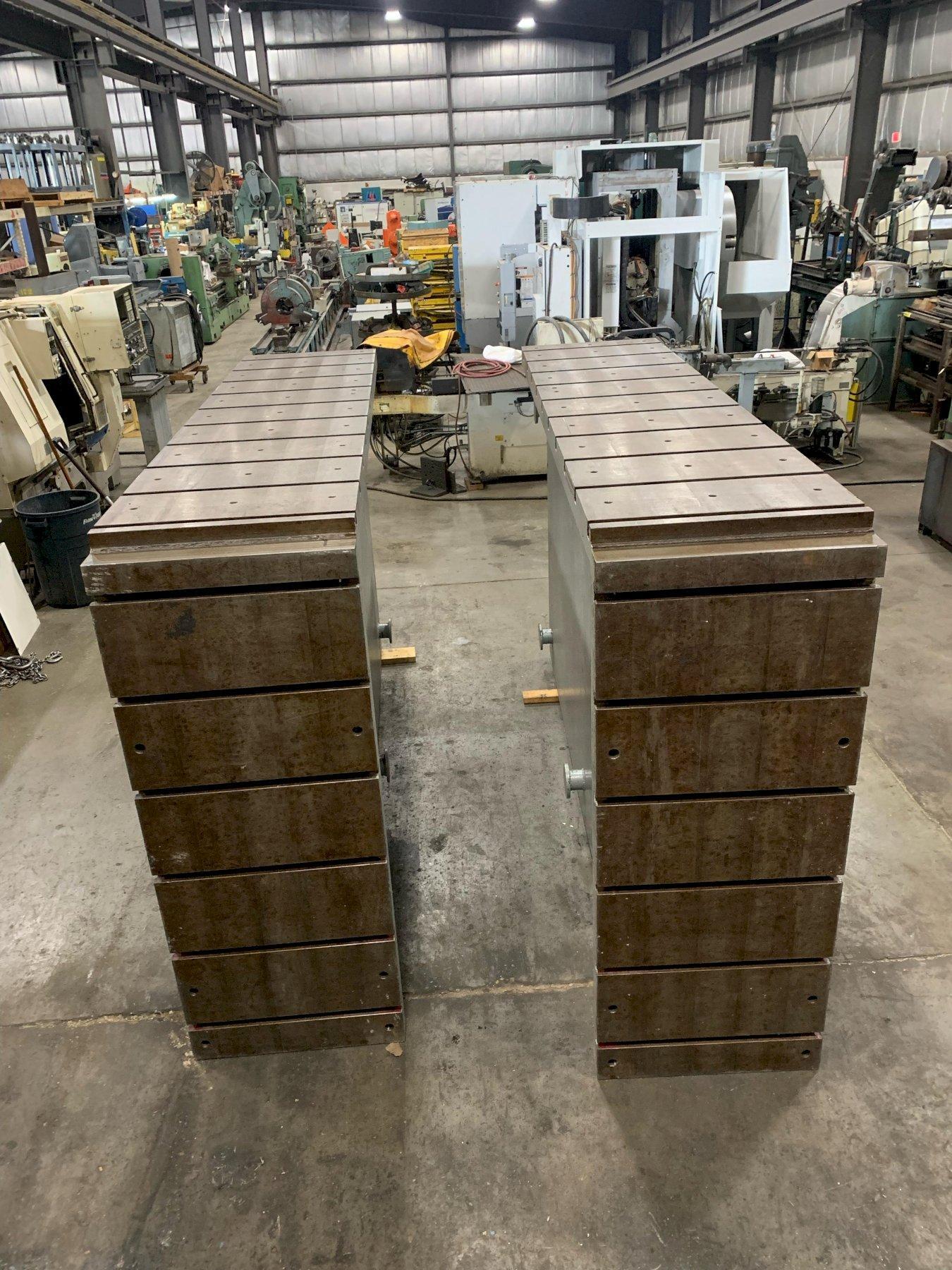

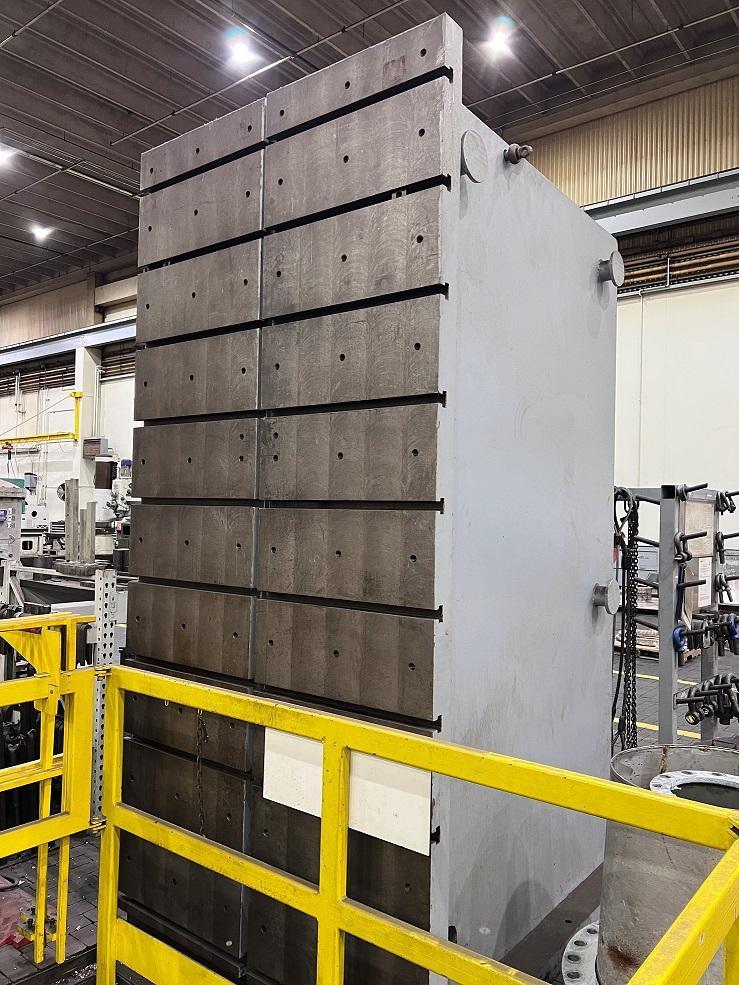

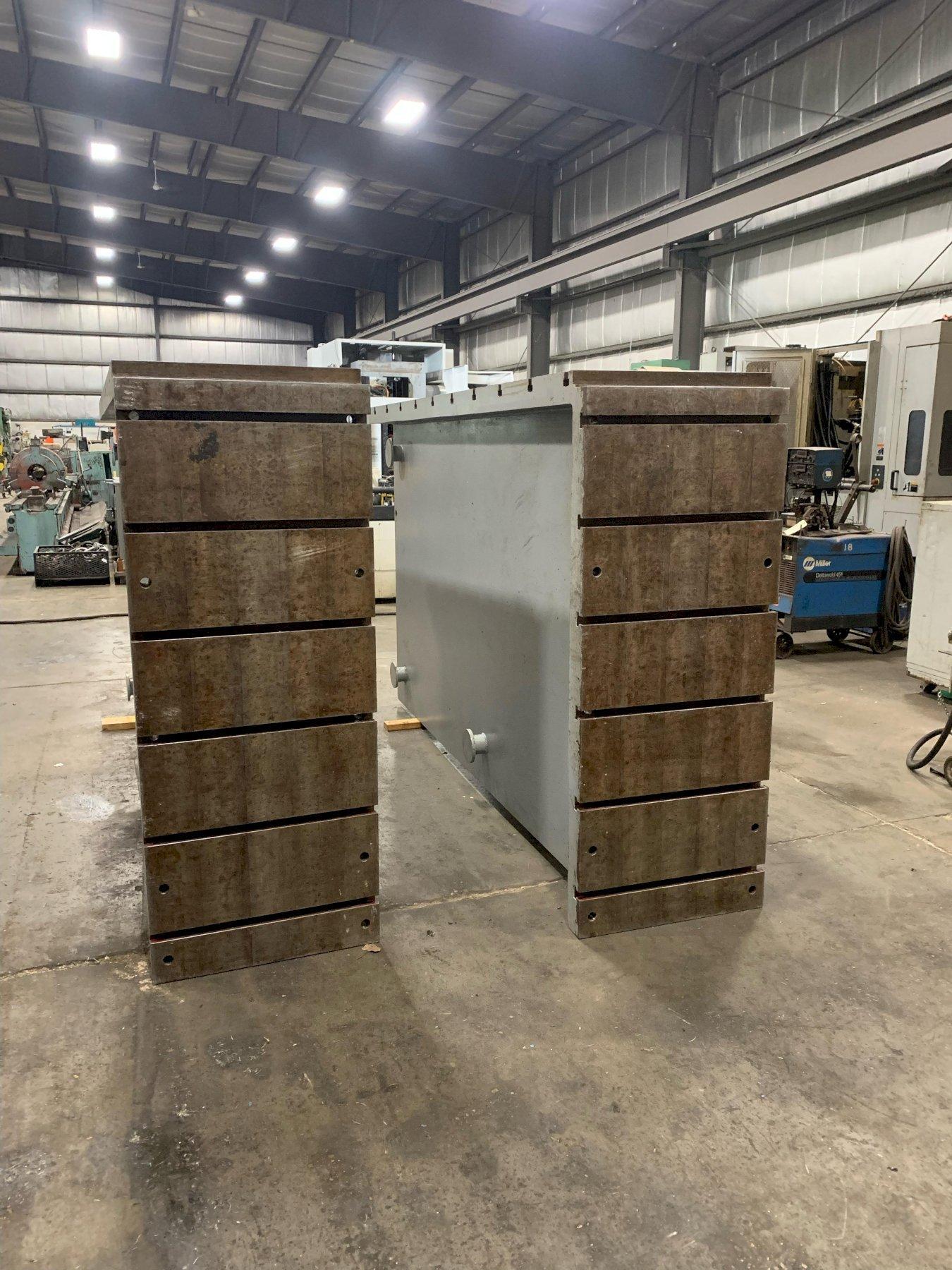

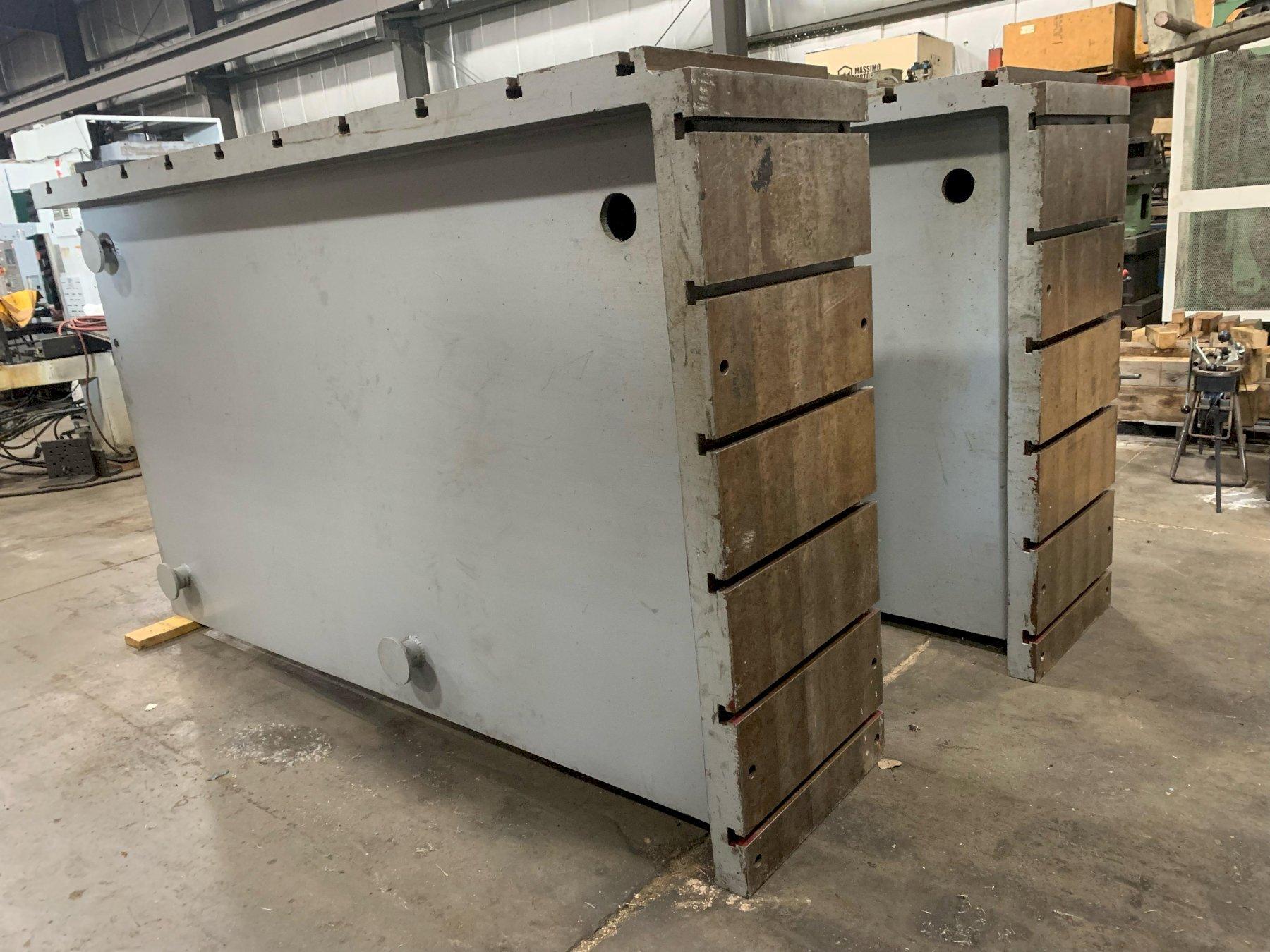

120 3/8" H x 27 3/4" W x 71 3/4" DEEP ANGLE PLATES, T-SLOTS ON TWO FACES

Model

Stock #
10693

Condition
Used

Year

Specifications

Equipped With

GENERAL SPECIFICATIONS:
STANDING VERTICAL DIMENSIONS:
   OVERALL HEIGHT.................... 120.375"
   OVERALL WIDTH..................... 27.75"
   OVERALL DEPTH..................... 71.75"
   NUMBER OF T-SLOTS, CROSS.......... 10
   T-SLOT DISTANCE CENTER TO CENTER.. 12"

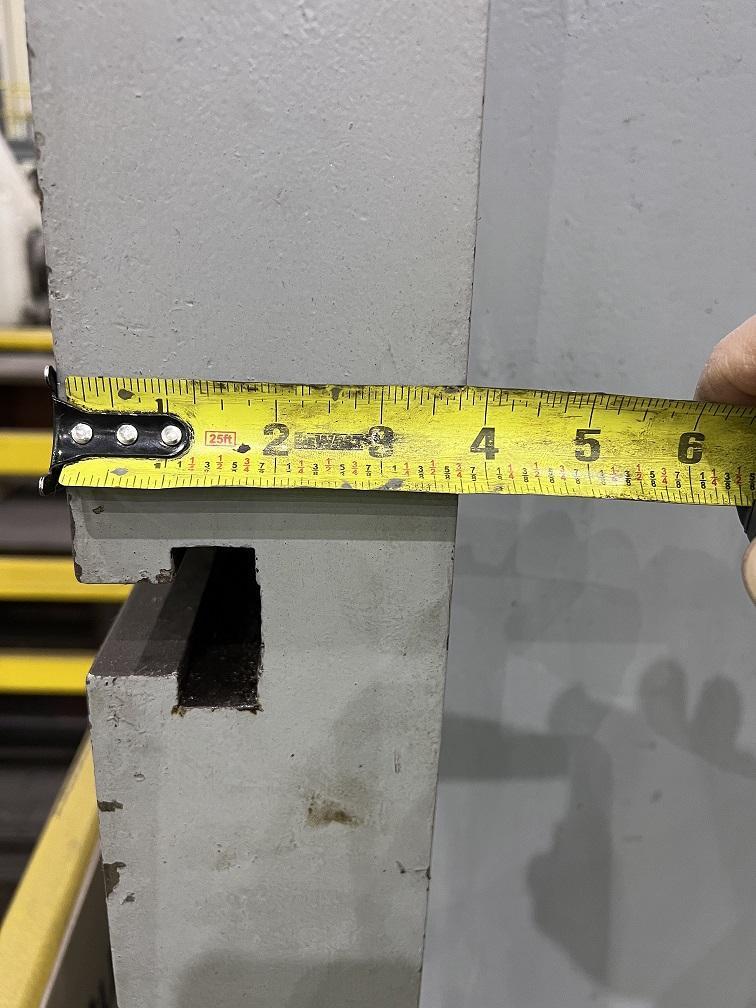

   T-SLOT DIMENSIONS................. 1" X 1.75"
LAYING ON FACE DIMENSIONS:
   OVERALL HEIGHT.................... 47.5"
   OVERALL WIDTH..................... 27.75"
   OVERALL DEPTH..................... 120.375"
   NUMBER OF T-SLOTS, CROSS.......... 6
   T-SLOT DISTANCE CENTER TO CENTER.. 12"
   T-SLOT DIMENSIONS................. 1" X 1.75"
APPROXIMATE WEIGHT OF PLATES......... 10,000 lbs EACH

EQUIPPED WITH:
T-SLOTS ON TWO SIDES
4 LIFTING LUGS PER PLATE
