Specifications
Equipped With
GENERAL SPECIFICATIONS:

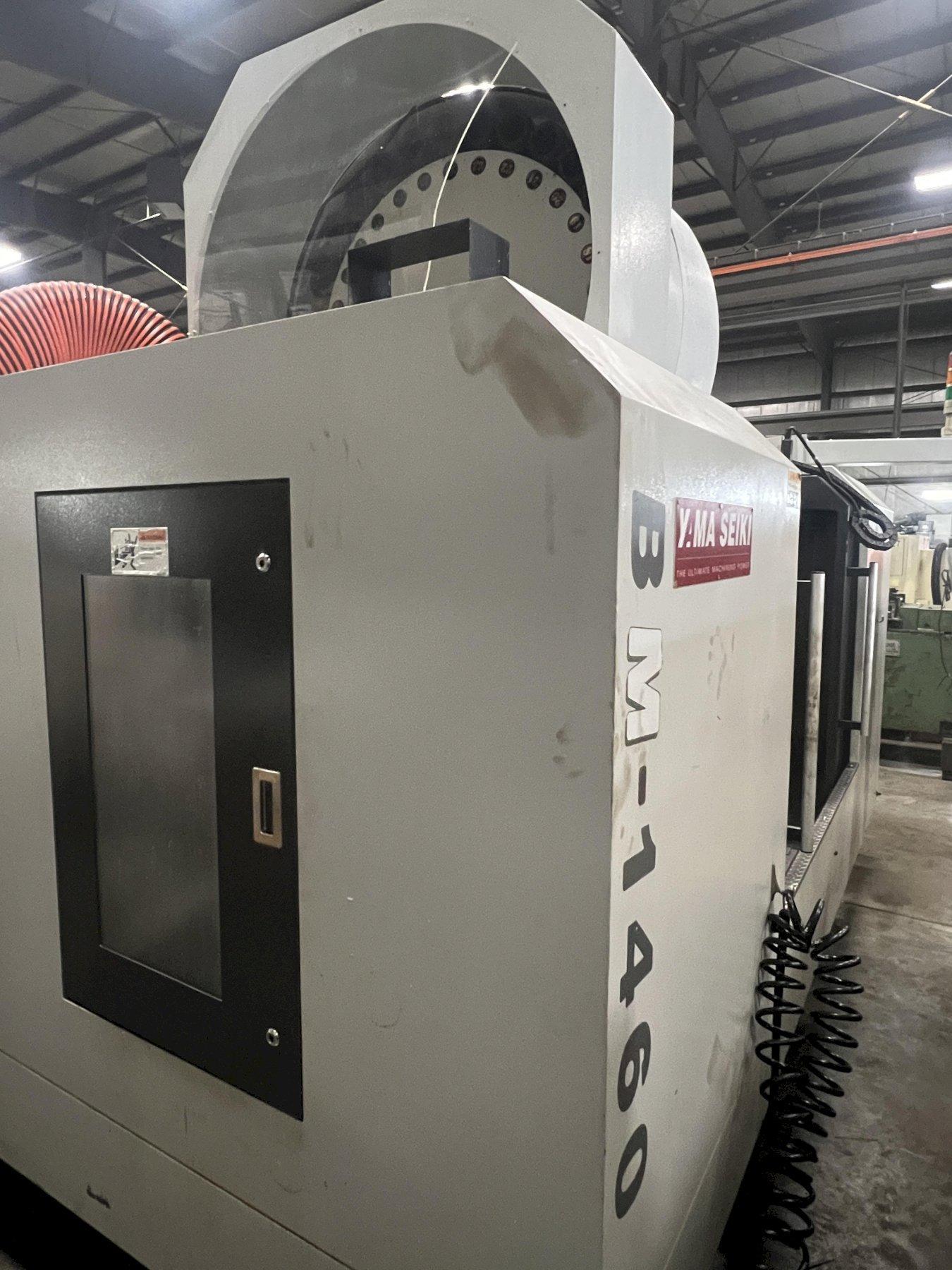

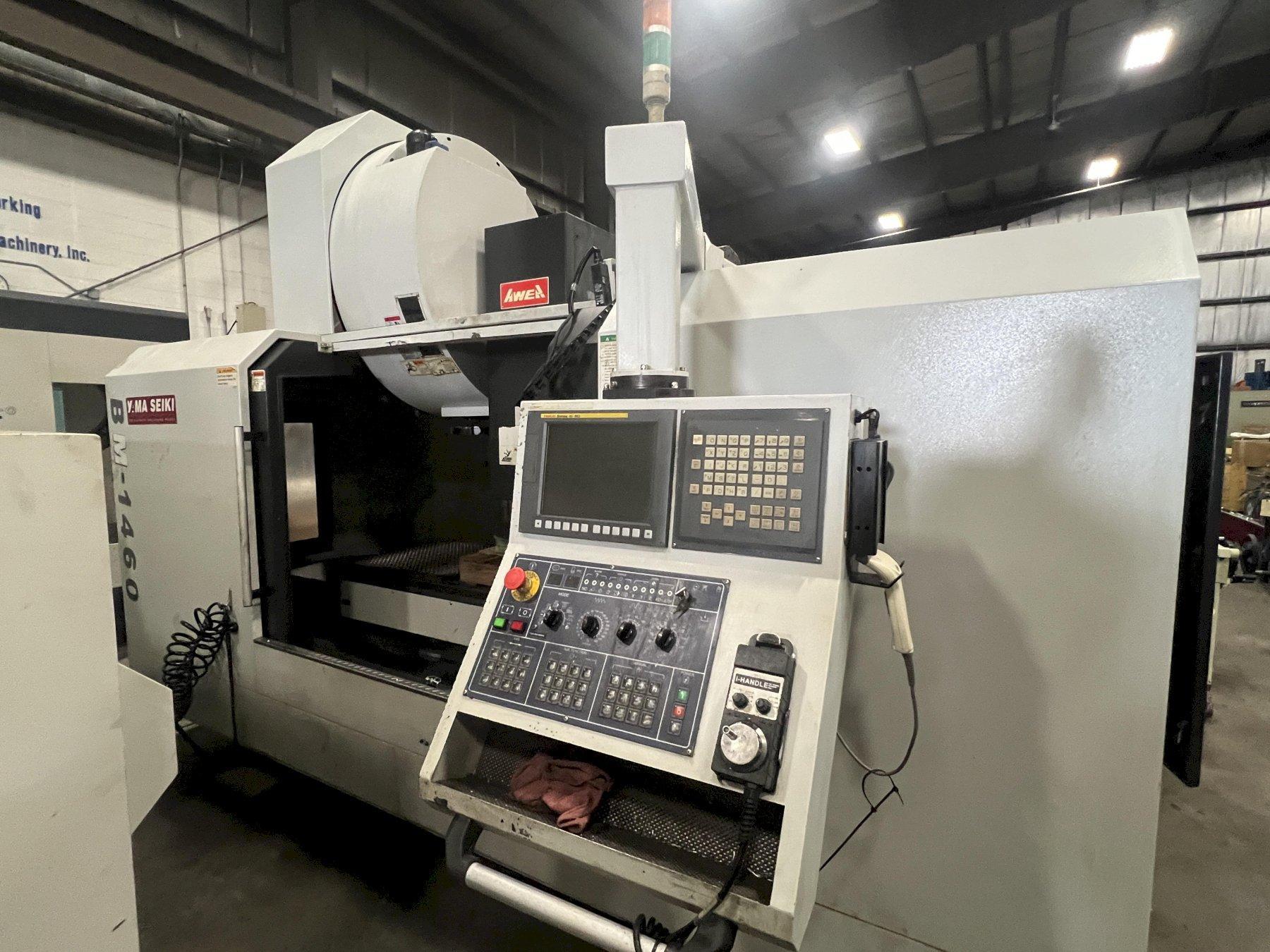

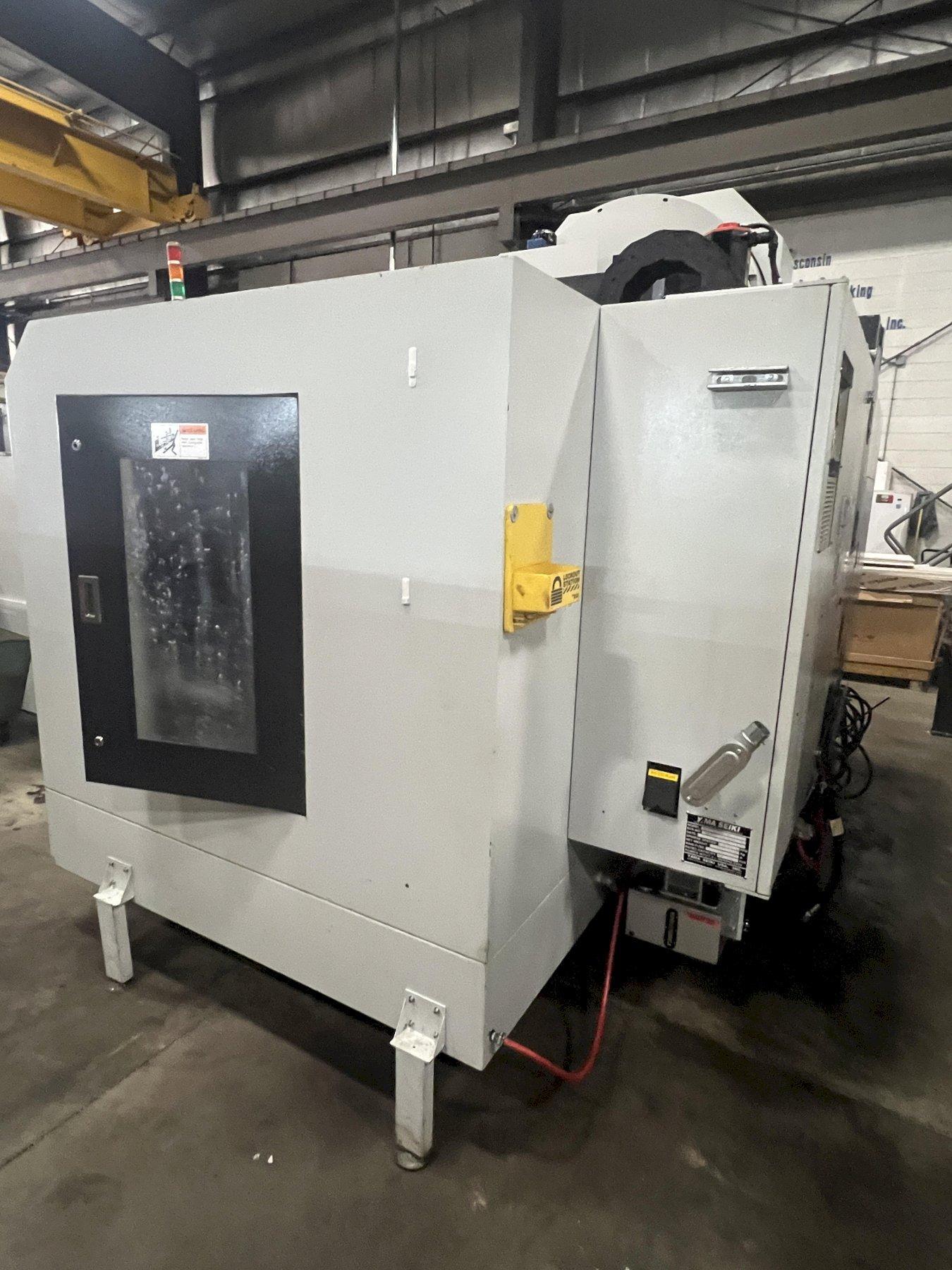

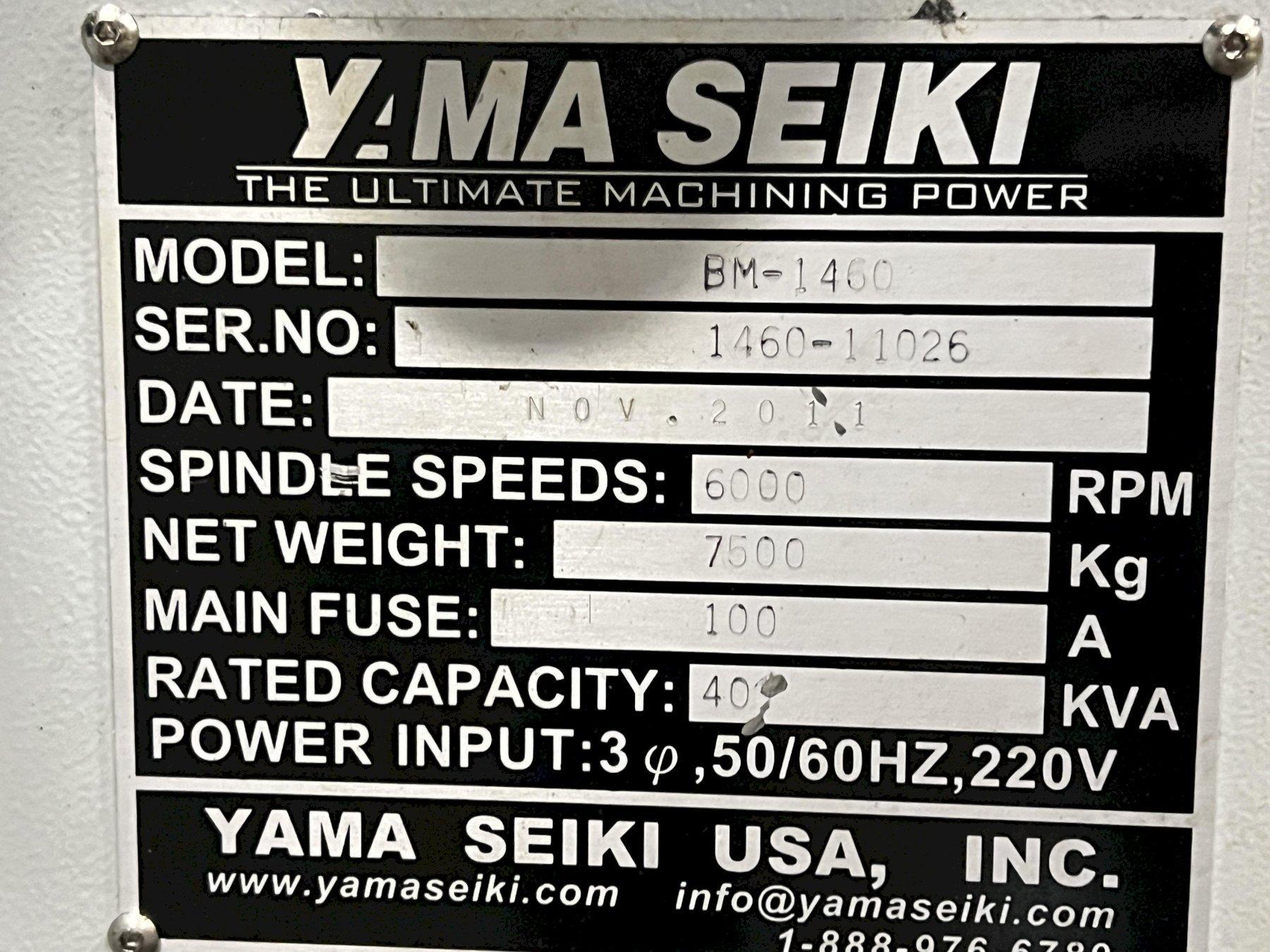

MAKE..................... YAMA SEIKI
MODEL.................... BM-1460
SERIAL NUMBER............ 11026
AGE (YEAR)............... 2011
X AXIS TRAVEL............ 55.1" (1400 MM)
Y AXIS TRAVEL............ 23.6" (600 MM)
Z AXIS TRAVEL............ 23.6" (600 MM)

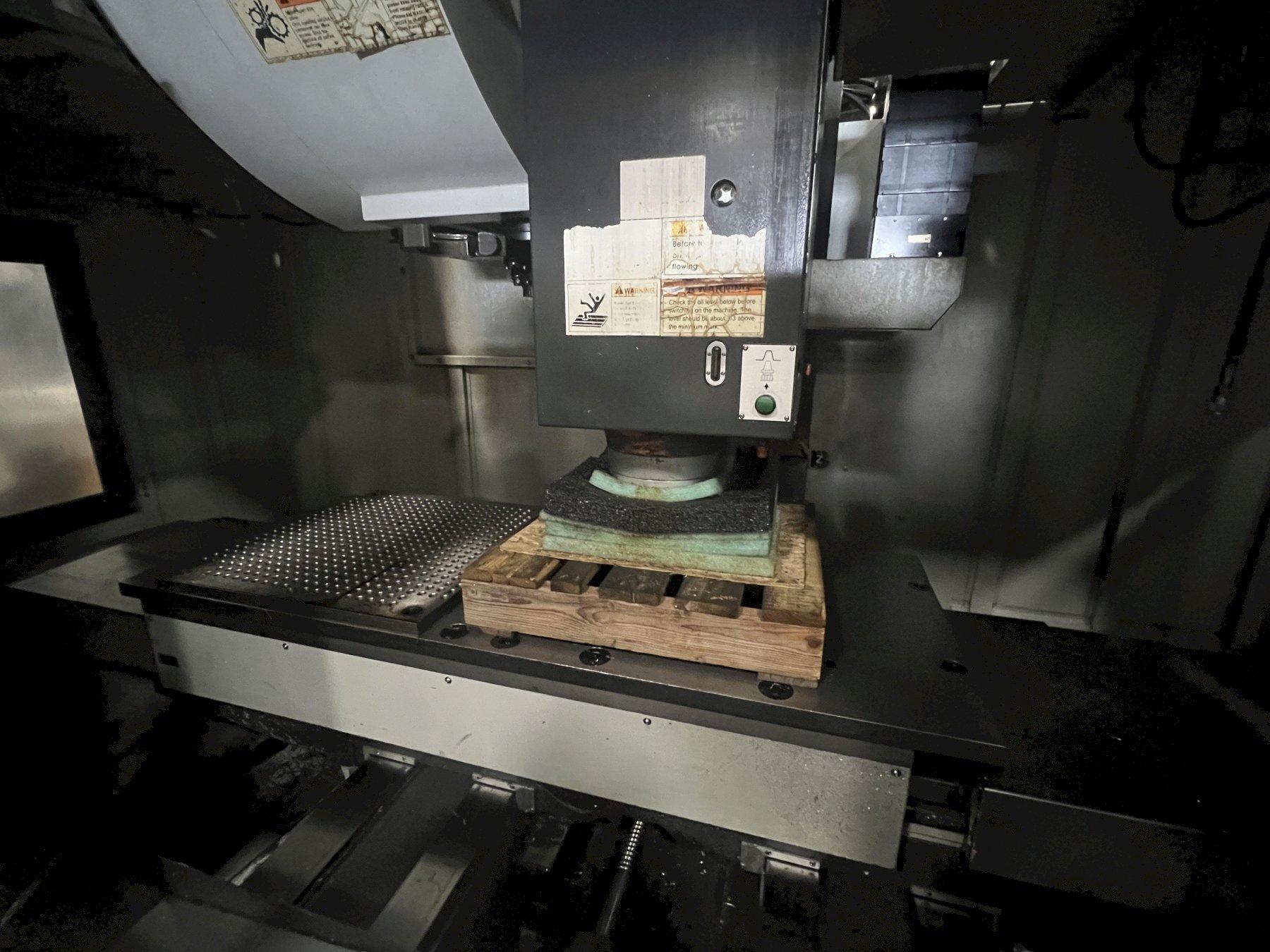

TABLE SIZE............... 59.1" X 25.6"
(1,500 MM X 650 MM)
TABLE TOP TO FLOOR....... 35.4"
TABLE LOAD............... 3080 LBS.
SPINDLE TAPER............ CAT 50
SPINDLE NOSE TO TABLE.... 4.9" - 28.5"
SPINDLE MOTOR............ 25HP (30 MIN)
DRIVE SYSTEM............. 2 SPEED GEARBOX
SPINDLE SPEED LOW........ 65-1500 RPM
SPINDLE SPEED HIGH....... 1500 - 6000 RPM
TOOL CHANGER............. 30 ATC
ELECTRICS................ 220V / 3PH
DIMENSIONS............... 169" X 89" X 108" H
WEIGHT................... 16,500 LBS
EQUIPPED WITH:

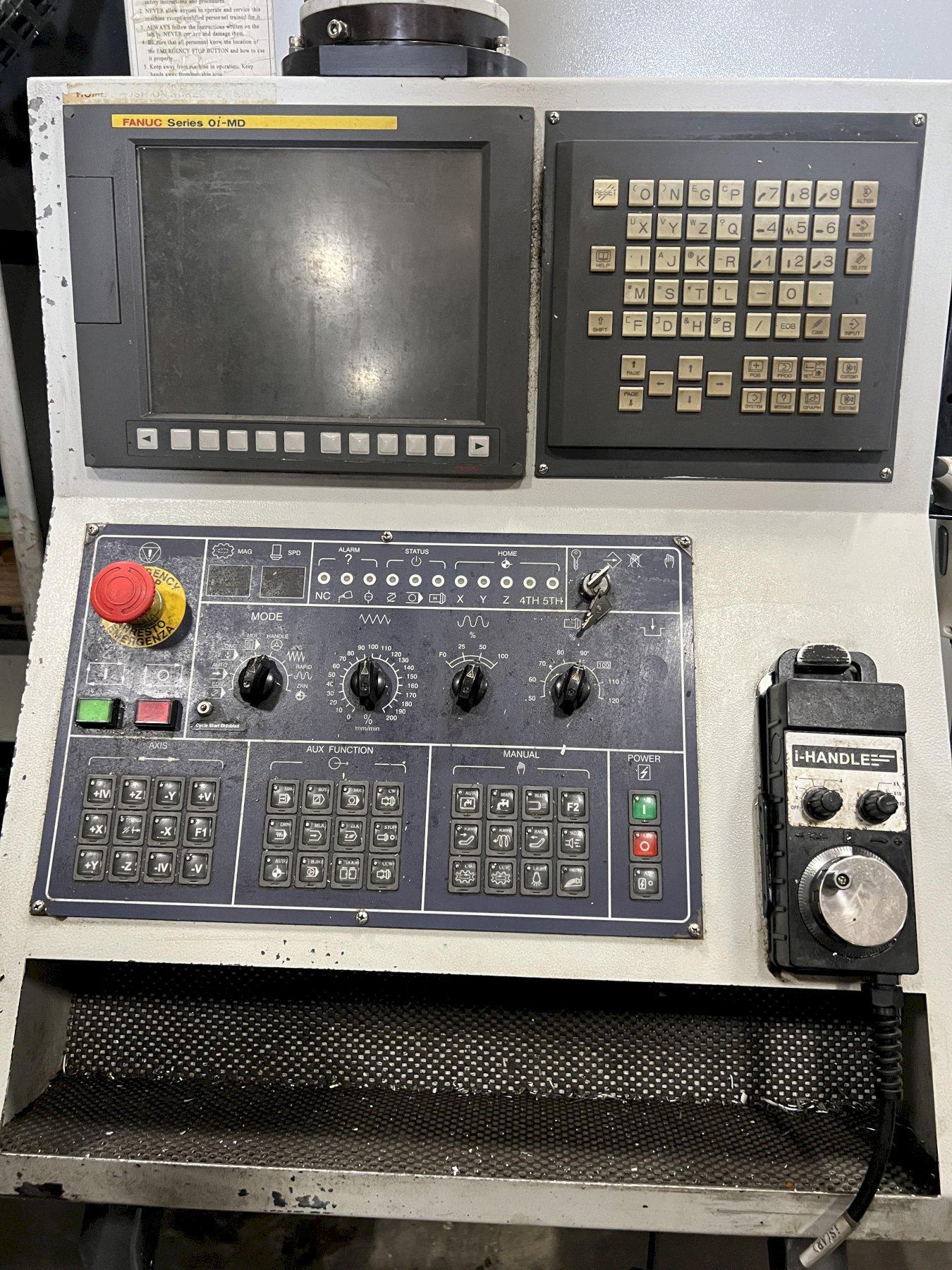

FANUC Oi-MD CNC CONTROL
4TH AXIS ROTARY TABLE
SPECIFICATIONS SUBJECT TO VERIFICATION
