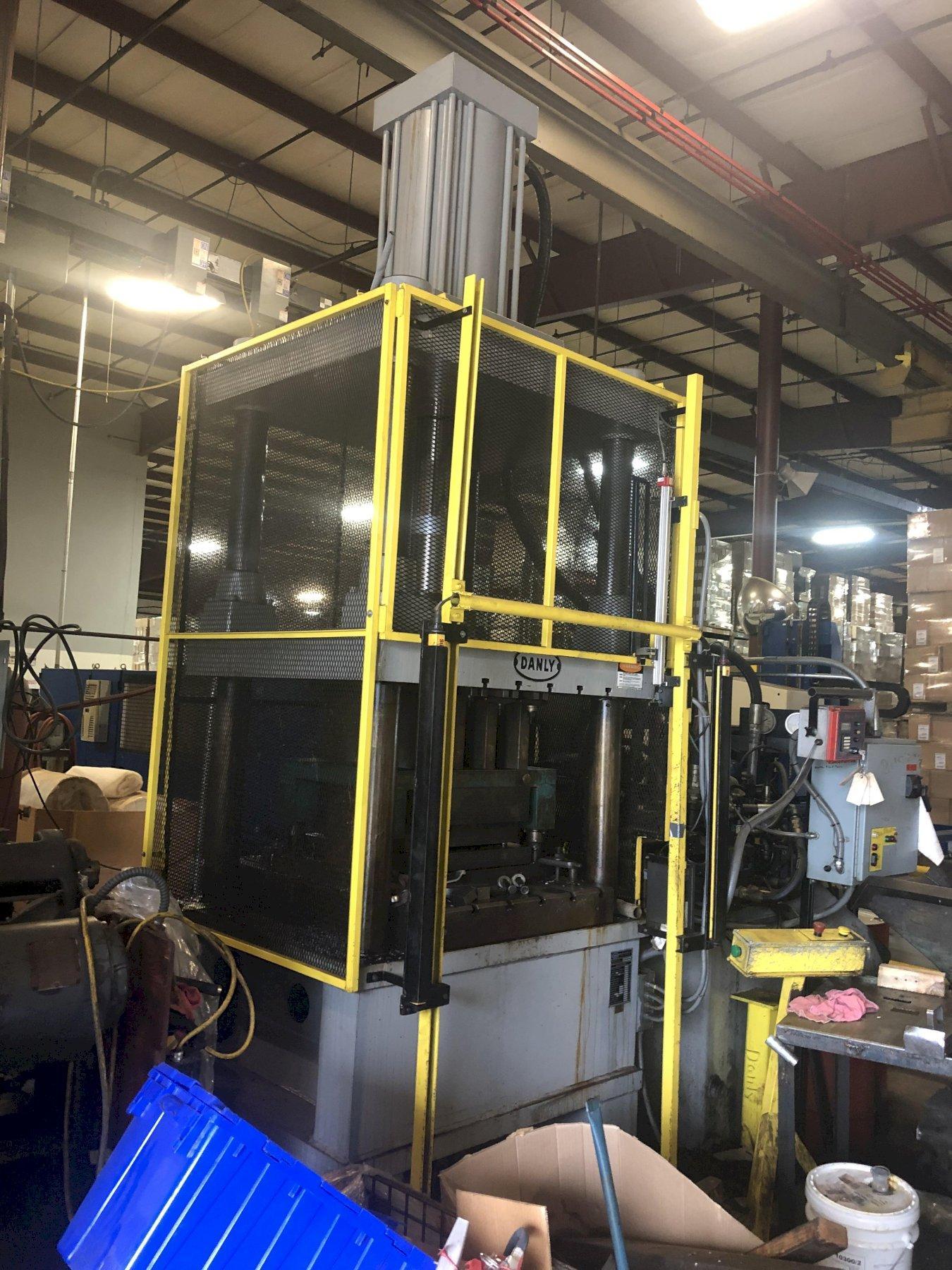

GENERAL SPECIFICATIONS:
MANUFACTURER......................... DANLY
MODEL................................ CH-200-36-44
SERIAL............................... 62173301
TONNAGE.............................. 200
BED AREA............................. 36" X 44"
BOLSTER AREA......................... 36" X 44" X 5"
BED OPENING.......................... 29" X 29"
CUSHION CAPACITY..................... 50 TONS
SLIDE AREA........................... 36" X 44"
STROKE............................... 24"
DAYLIGHT............................. 53"
SPEEDS
RAPID ADVANCE..................... 129 IPM
PRESSING.......................... 44 IPM
RETURN............................ 172 IPM
HEIGHT WITH CYLINDER REMOVED......... 120"
RUNNING HEIGHT....................... 164"
EQUIPPED WITH:
CUSHION

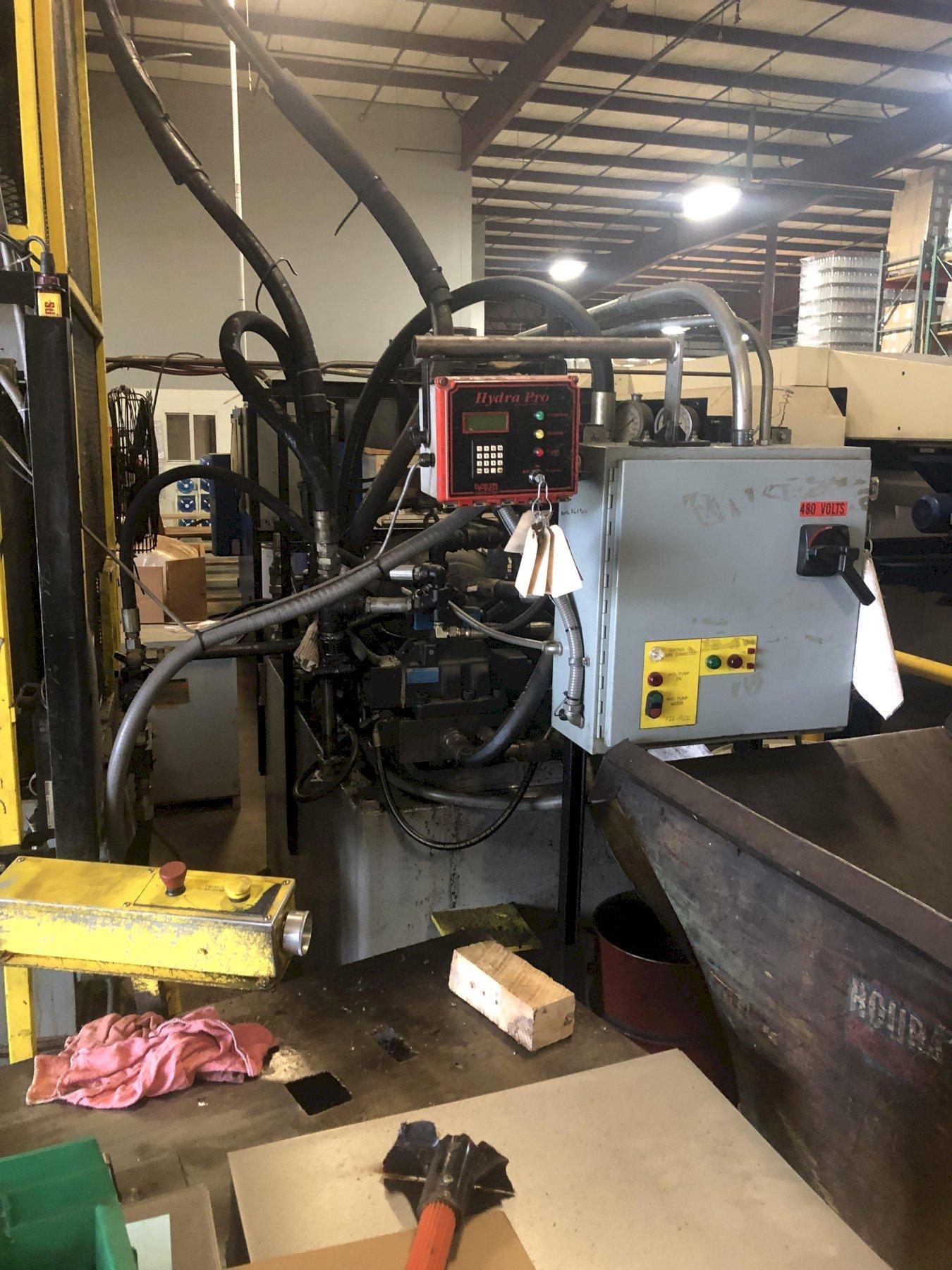

HYDRAPOWER CONTROL
FLUSH FLOOR MOUNT
APPROX. WEIGHT IS 25,000 LBS
