GENERAL SPECIFICATIONS:
GENERAL SPECIFICATIONS:

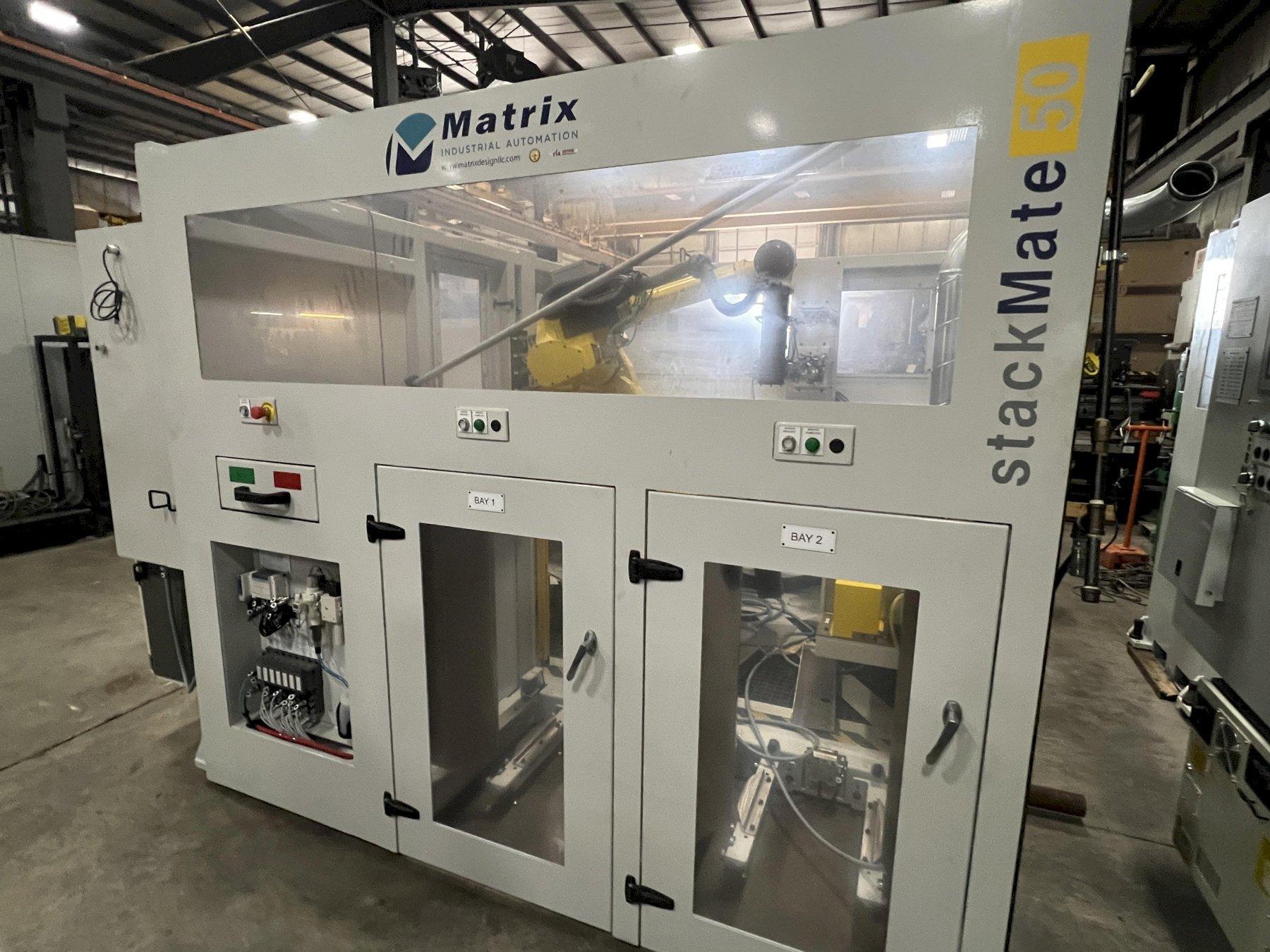

MAKE........................ MATRIX
MODEL....................... STACKMATE 50
YEAR........................ 2019
SERIAL NUMBER............... 352-19-05
SYSTEM TYPE................. ROBOTIC AUTOMATION CELL
ROBOT MAKE.................. FANUC
ROBOT MODEL................. M-710iC/50
ROBOT CONTROL............... R-30iB PLUS
ROBOT SPECIFICATIONS:
ROBOT CONFIGURATION......... 6-AXIS
MAXIMUM PAYLOAD............. 50 KG (110 LBS)
MAXIMUM REACH............... APPROX. 2,050 MM

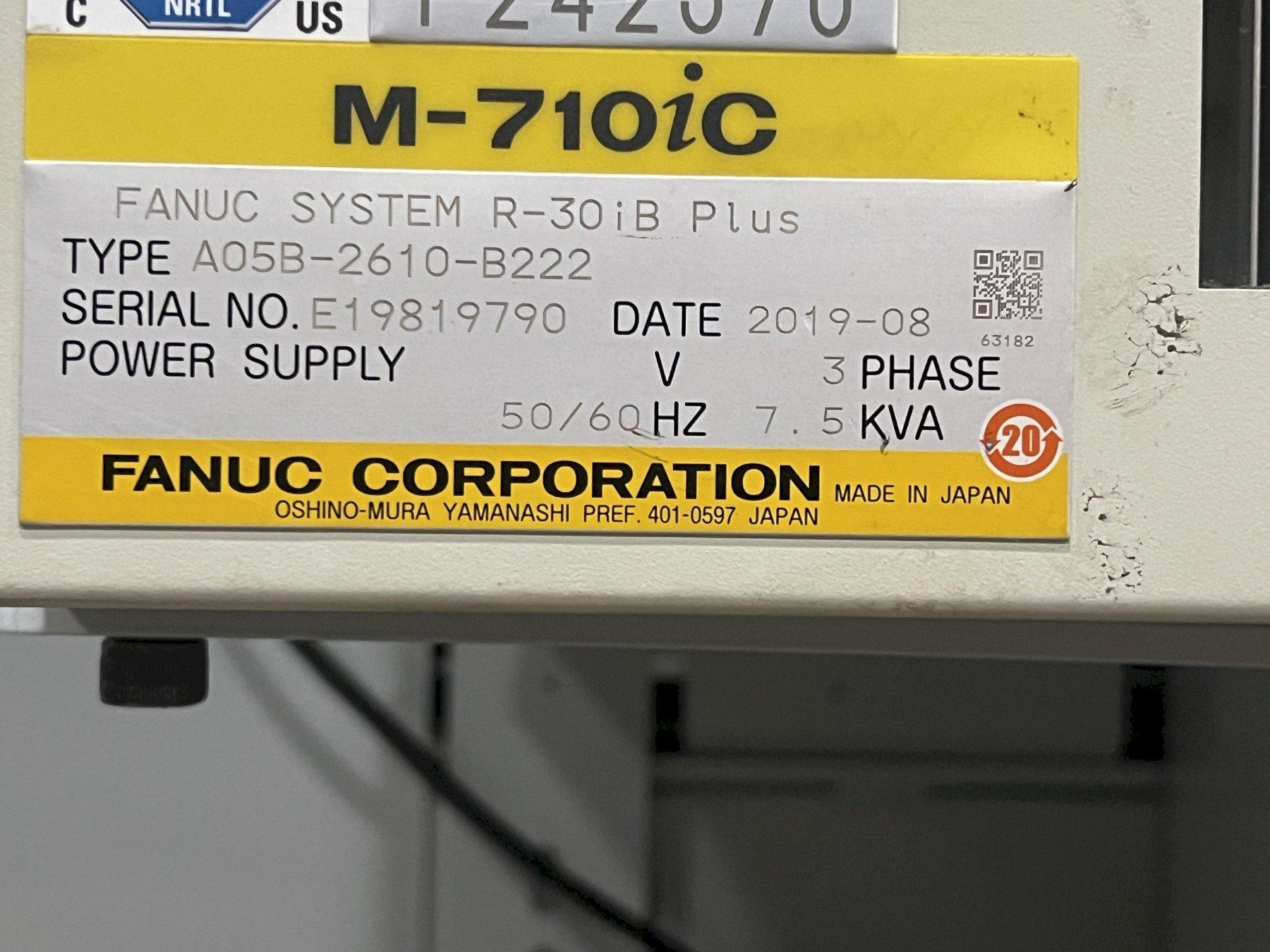

ROBOT CONTROLLER TYPE....... A05B-2610-B222
CONTROLLER SERIAL NUMBER.... E19819790
CONTROLLER DATE............. 2019-08

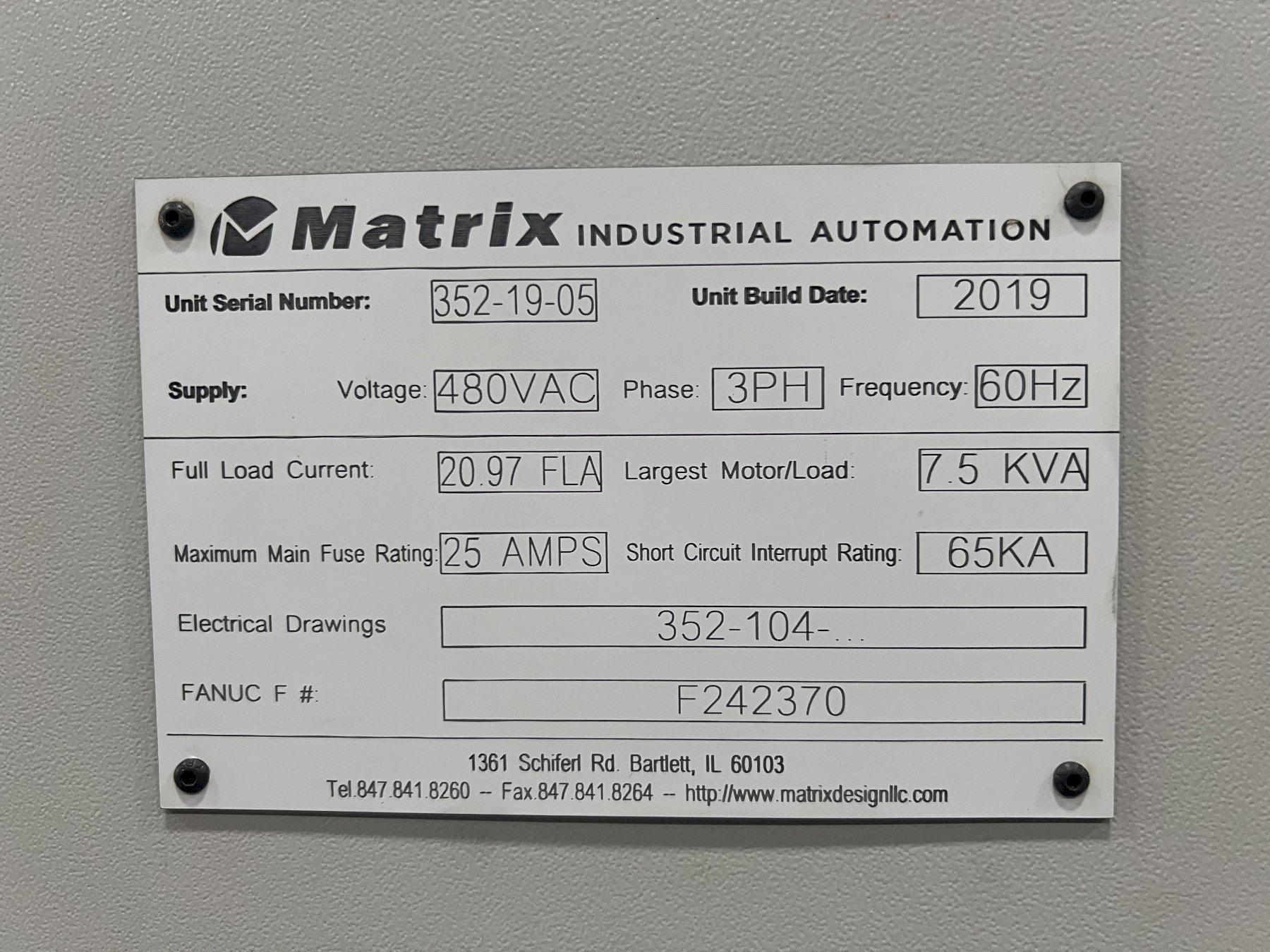

ELECTRICAL SPECIFICATIONS:

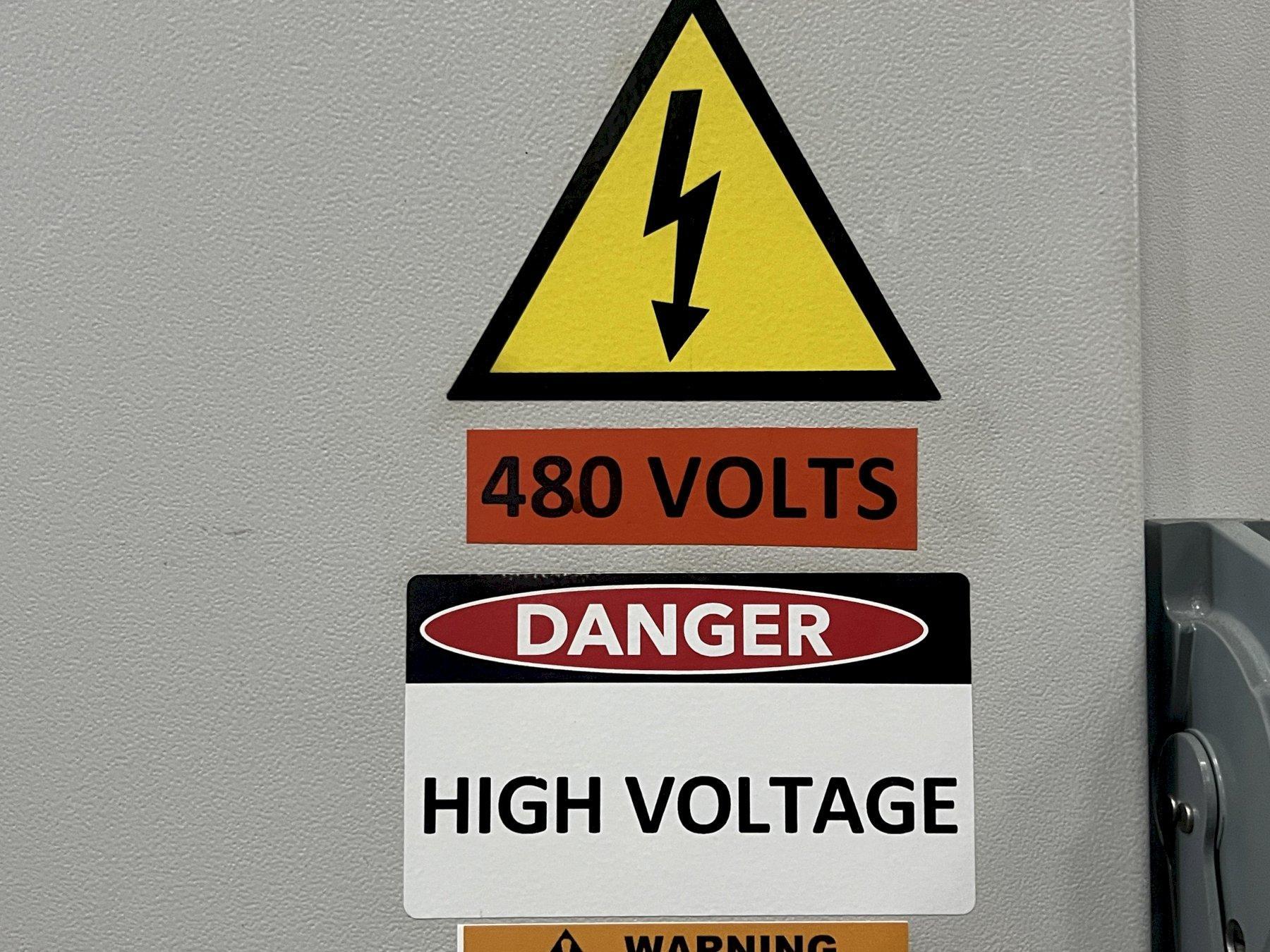

VOLTAGE..................... 480 VAC
PHASE....................... 3
FREQUENCY................... 60 HZ
FULL LOAD CURRENT........... 20.97 AMPS
LARGEST MOTOR/LOAD.......... 7.5 KVA
MAXIMUM MAIN FUSE........... 25 AMPS
SHORT CIRCUIT RATING........ 65 KA
CELL FOOTPRINT.............. 126" x 177"
EQUIPPED WITH:

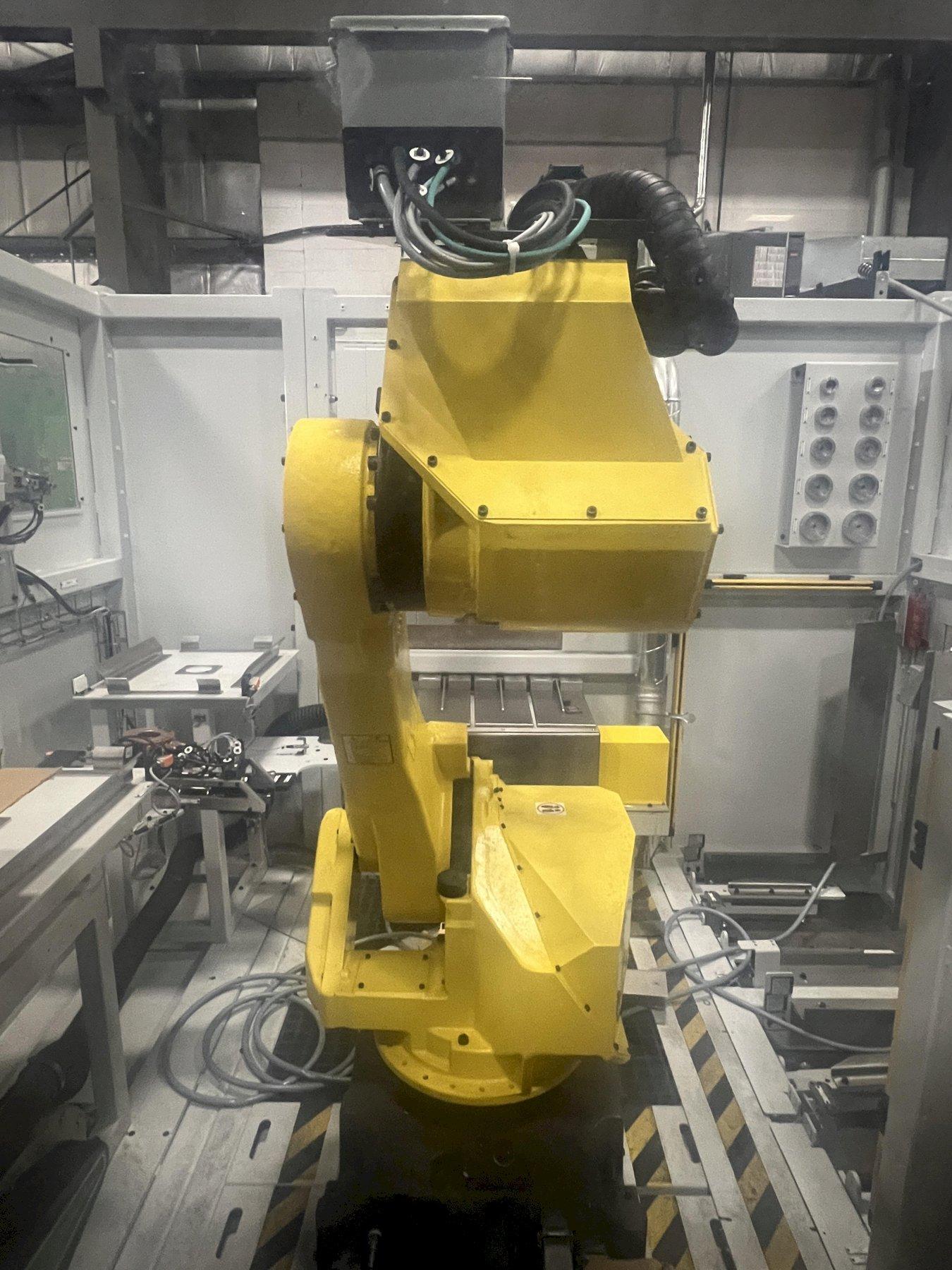

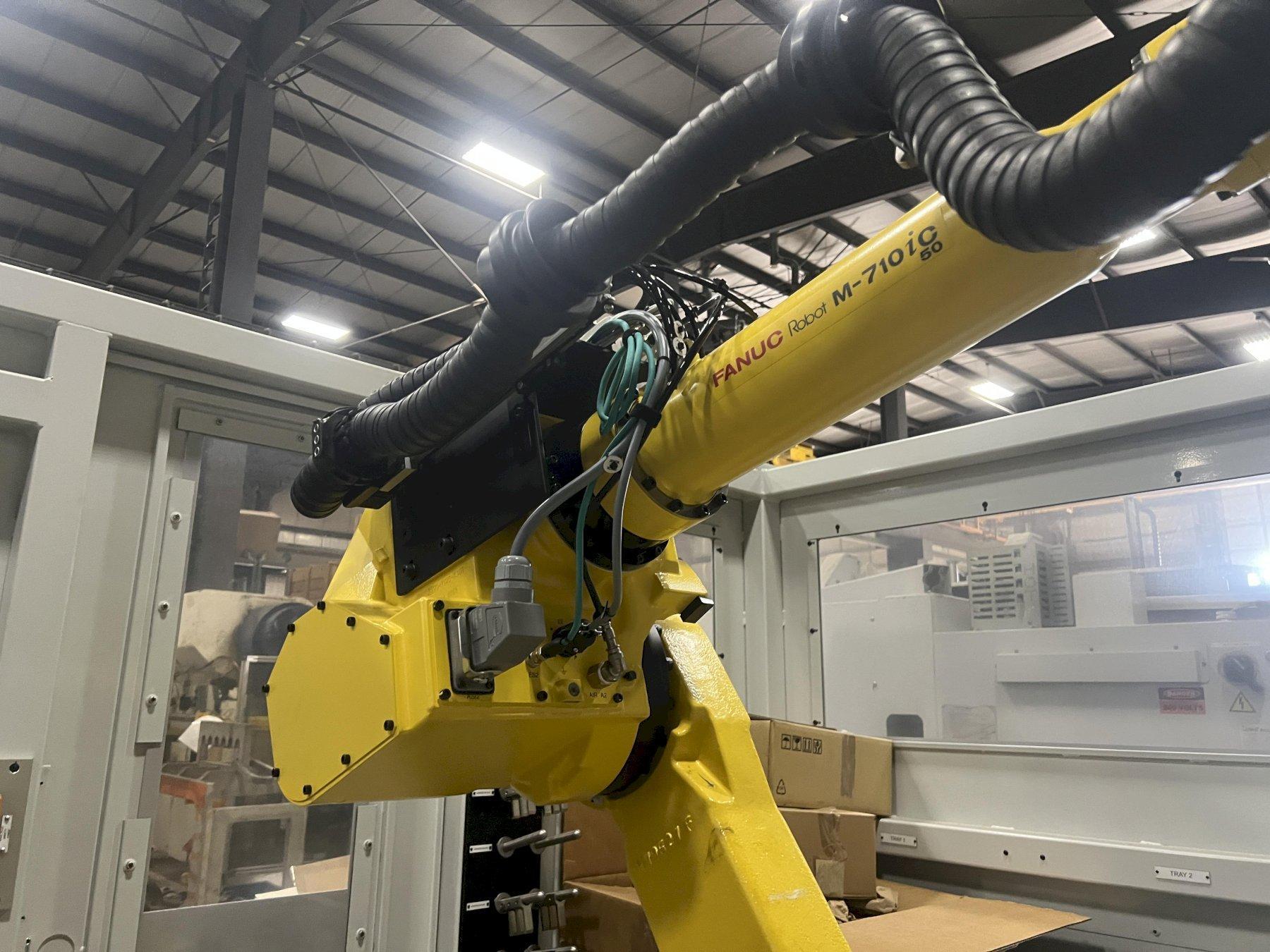

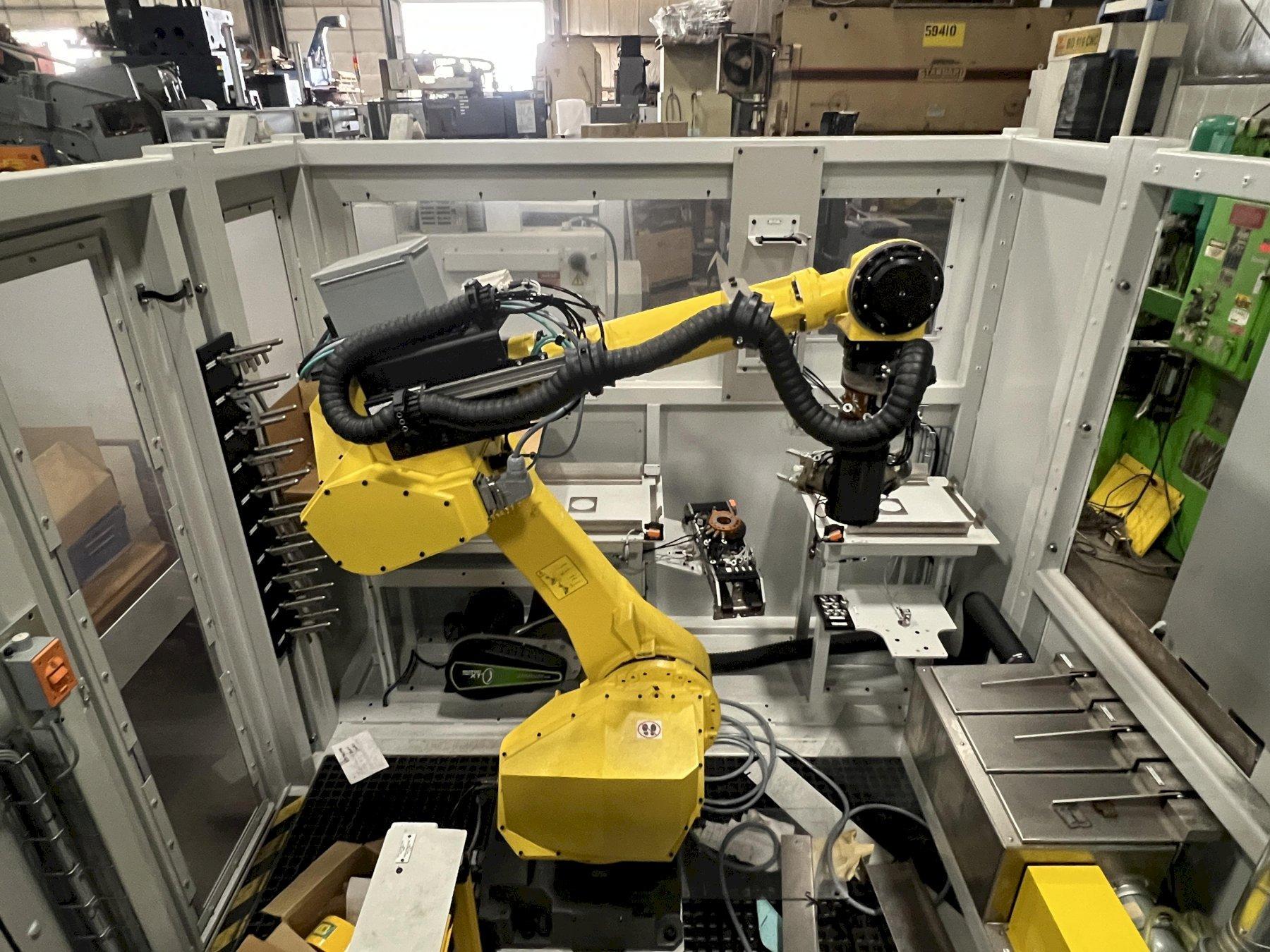

FANUC M-710iC/50 ROBOT

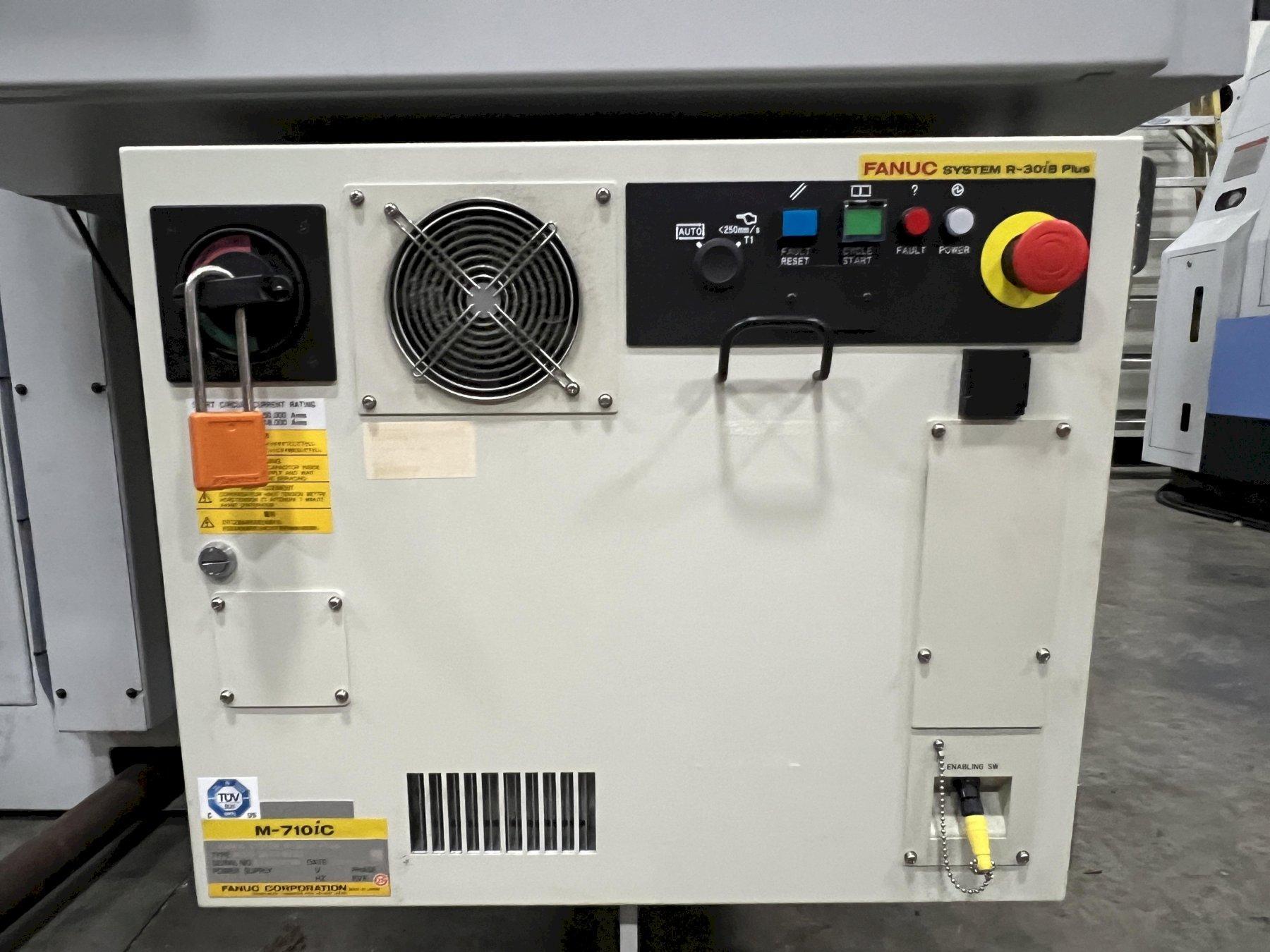

FANUC R-30iB PLUS CONTROL

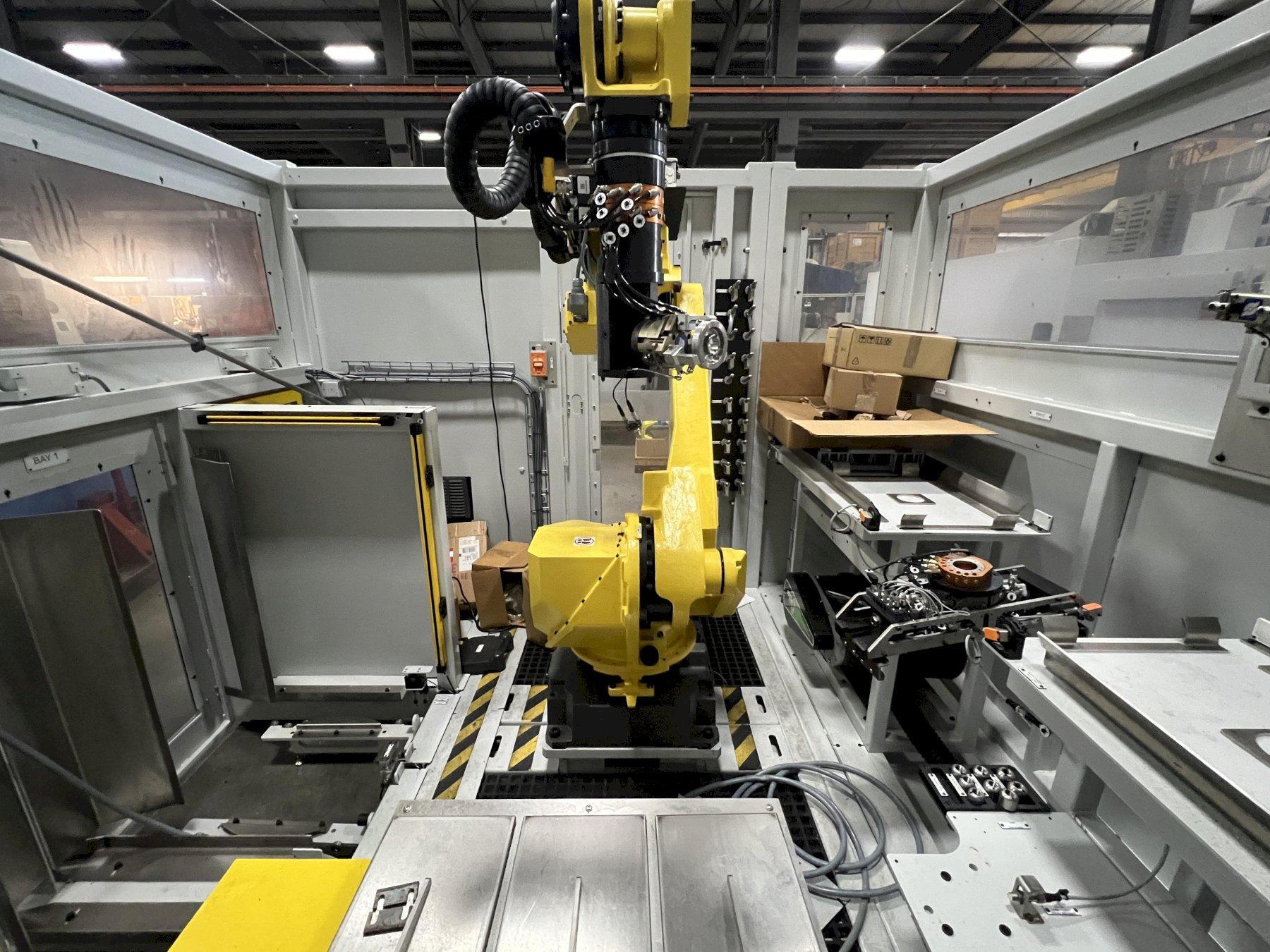

TWO LOADING/UNLOADING BAYS
AUTOMATED PART HANDLING
ROBOT END-OF-ARM TOOLING

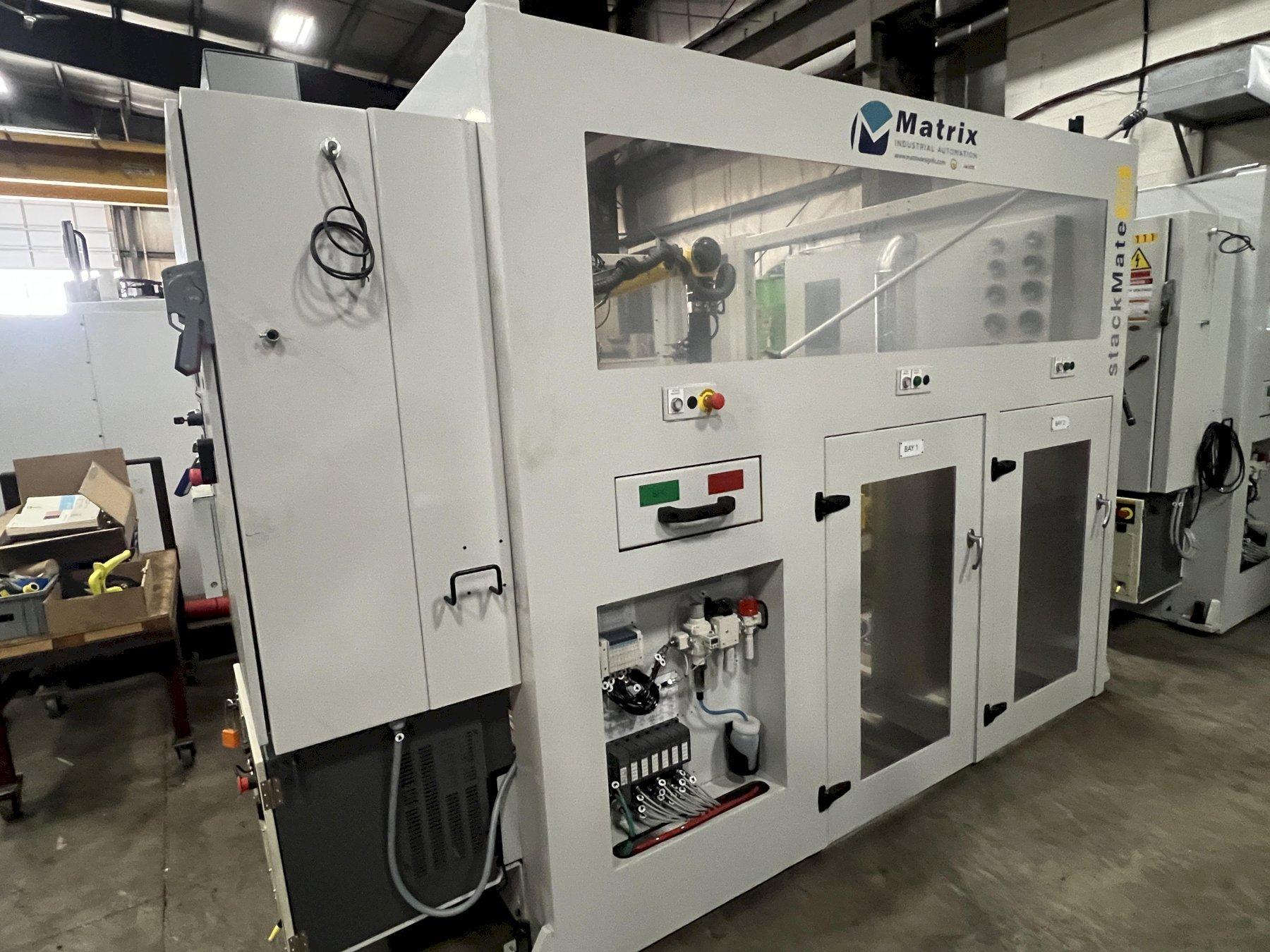

ENCLOSED SAFETY GUARDING

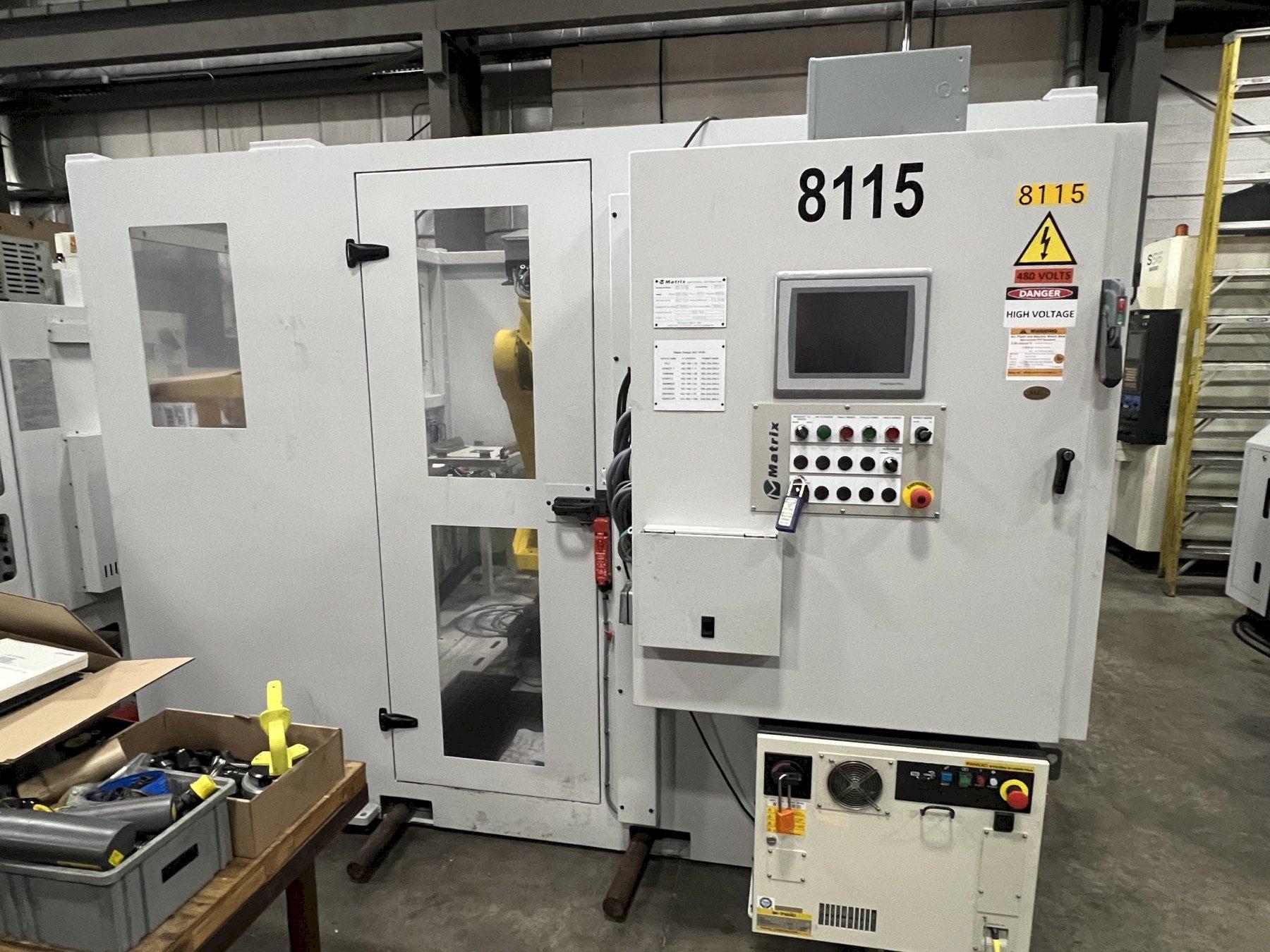

OPERATOR CONTROL PANEL
PNEUMATIC CONTROL SYSTEM
SPECIFICATIONS SUBJECT TO VERIFICATION
