GENERAL SPECIFICATIONS:
GENERAL SPECIFICATIONS:
MAKE........................ MATRIX
MODEL....................... STACKMATE 50
YEAR........................ 2019
SERIAL NUMBER............... 352-19-02
TYPE........................ ROBOTIC MACHINE TENDING SYSTEM
ROBOT MANUFACTURER.......... FANUC
ROBOT MODEL................. M-710IC/50
ROBOT CONTROLLER............ FANUC R-30IB PLUS
ROBOT F NUMBER.............. F232767
ROBOT SPECIFICATIONS:
NUMBER OF AXES.............. 6
MAXIMUM PAYLOAD............. 50 KG (110 LBS)
MAXIMUM REACH............... 2,050 MM (80.7")
REPEATABILITY............... +/- 0.07 MM
ROBOT MOUNTING.............. FLOOR MOUNTED

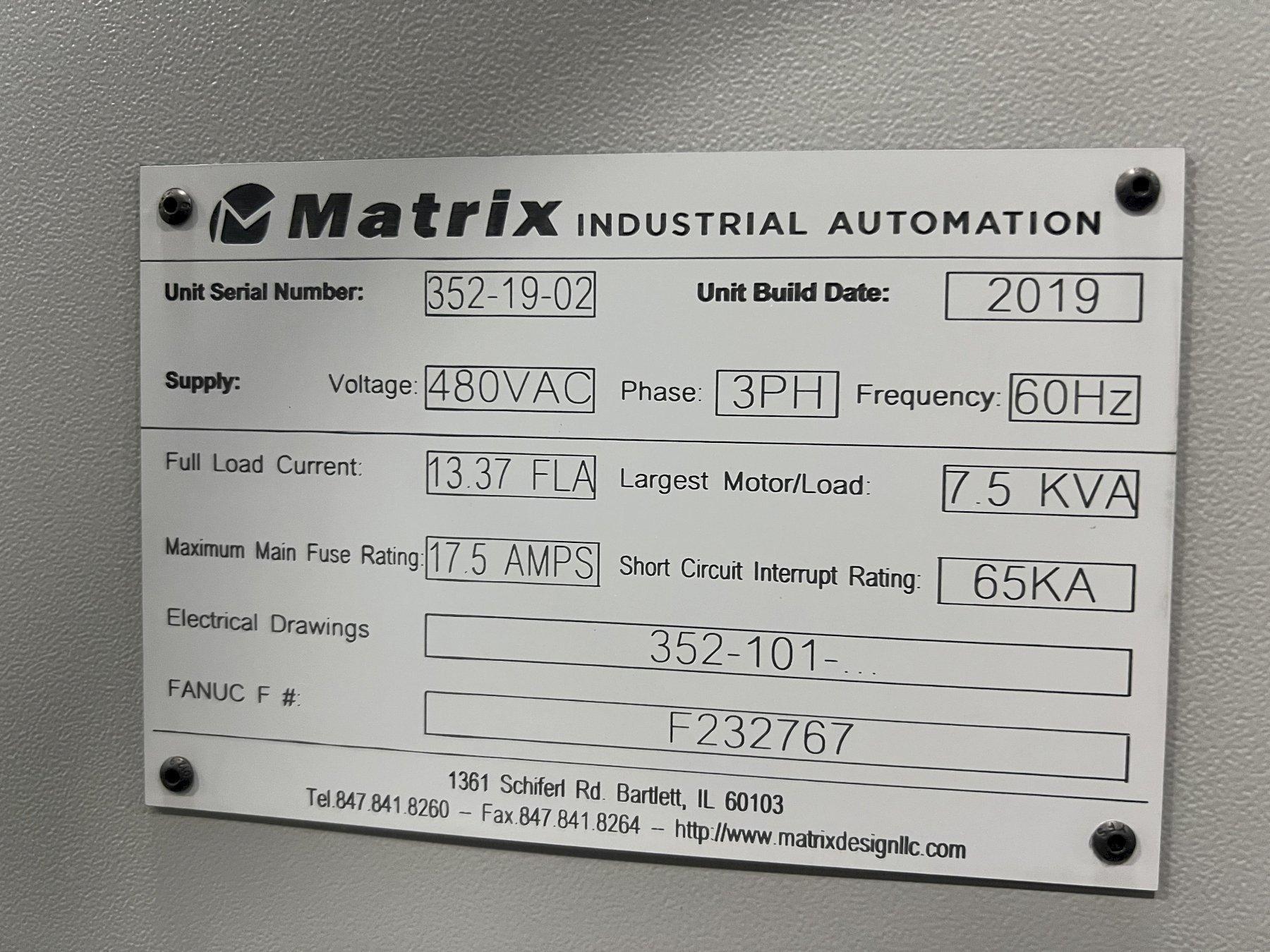

ELECTRICAL SPECIFICATIONS:
INPUT VOLTAGE............... 480 VAC
PHASE....................... 3
FREQUENCY................... 60 HZ
FULL LOAD CURRENT........... 13.37 AMPS
LARGEST MOTOR/LOAD.......... 7.5 KVA
MAXIMUM MAIN FUSE........... 17.5 AMPS
SHORT CIRCUIT RATING........ 65 KA

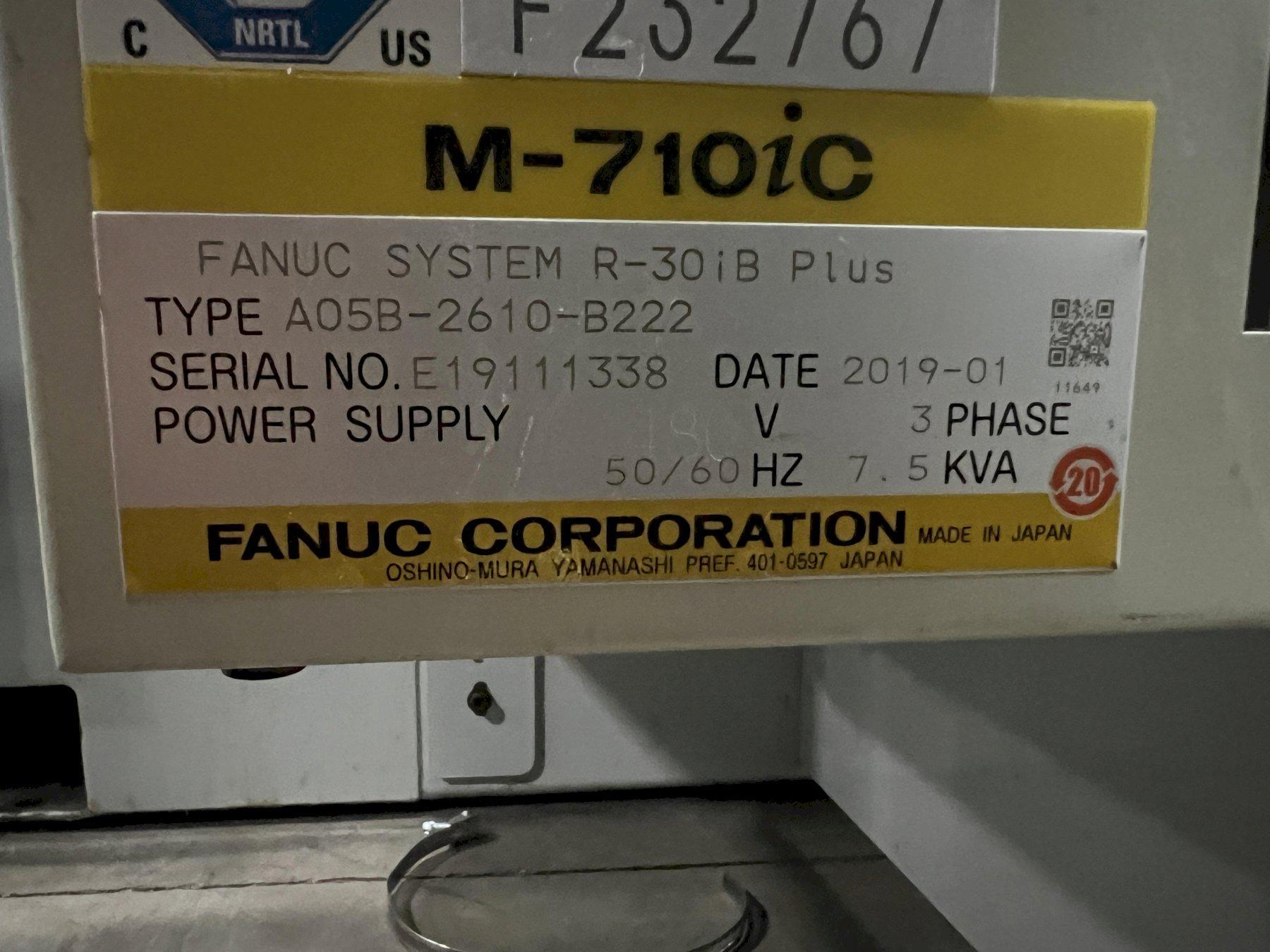

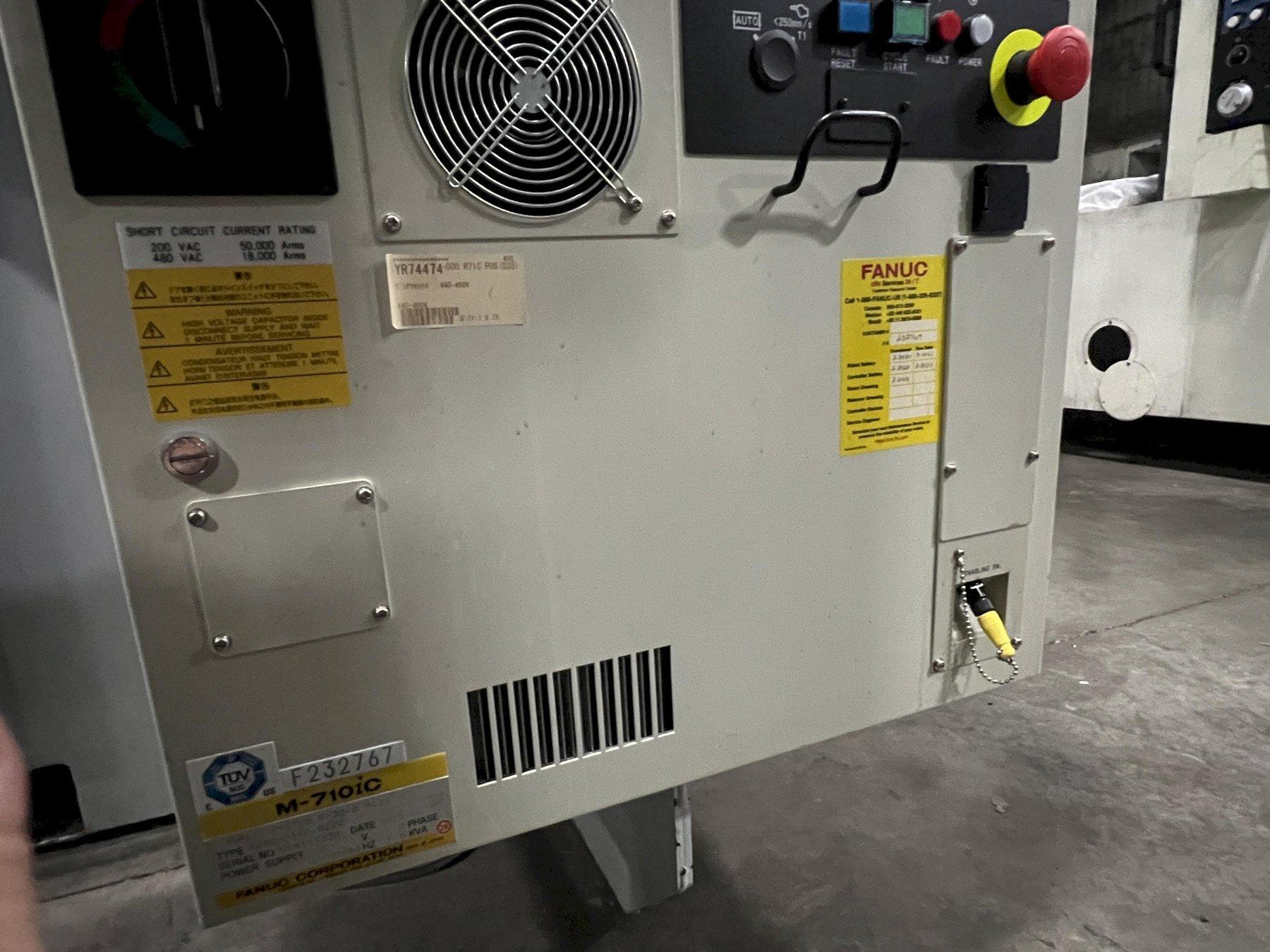

ROBOT CONTROLLER:
MANUFACTURER................ FANUC
MODEL....................... R-30IB PLUS
TYPE........................ A05B-2610-B222
SERIAL NUMBER............... E19111338
MANUFACTURE DATE............ JANUARY 2019
RATED POWER................. 7.5 KVA
EQUIPPED WITH:

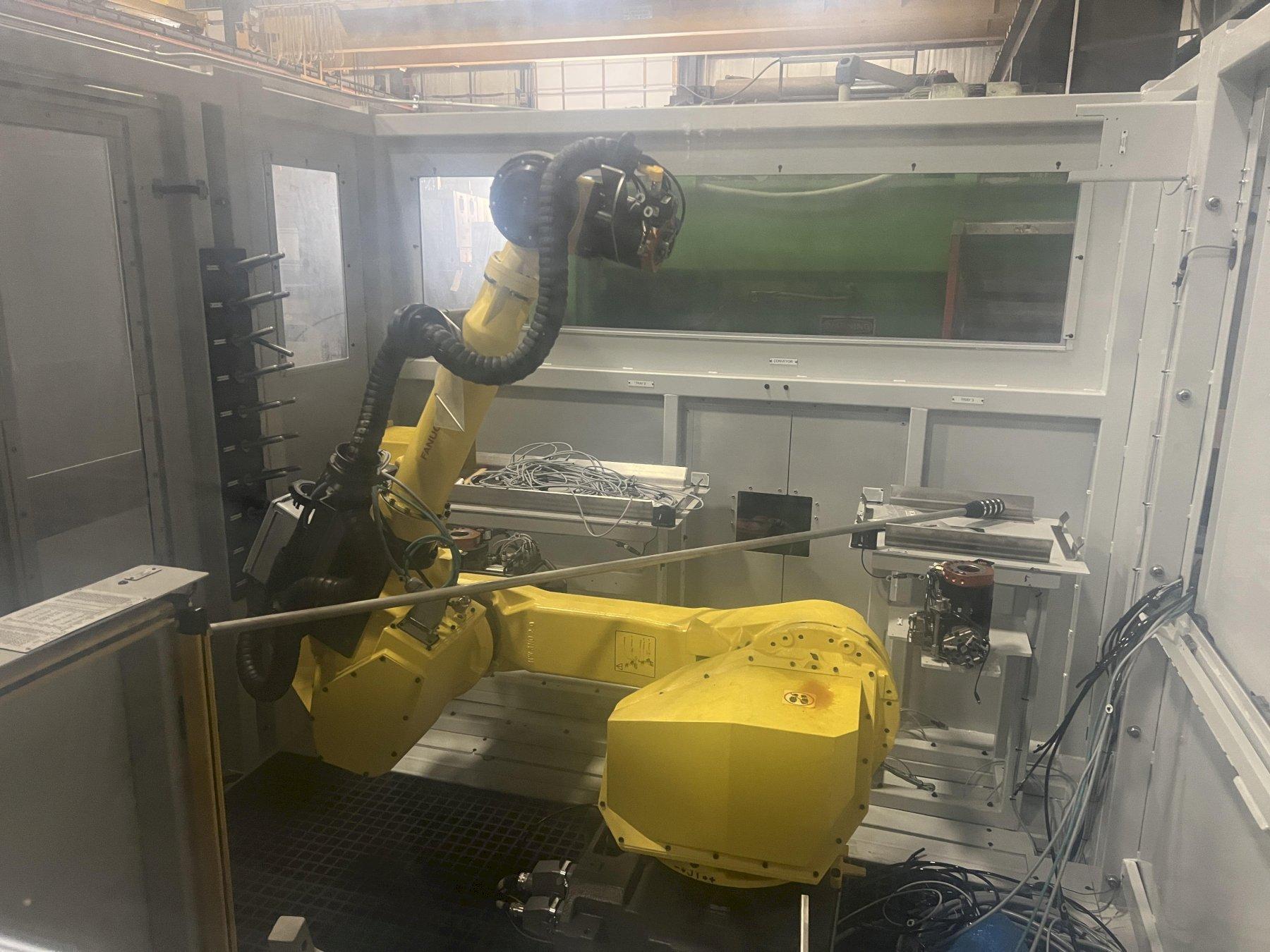

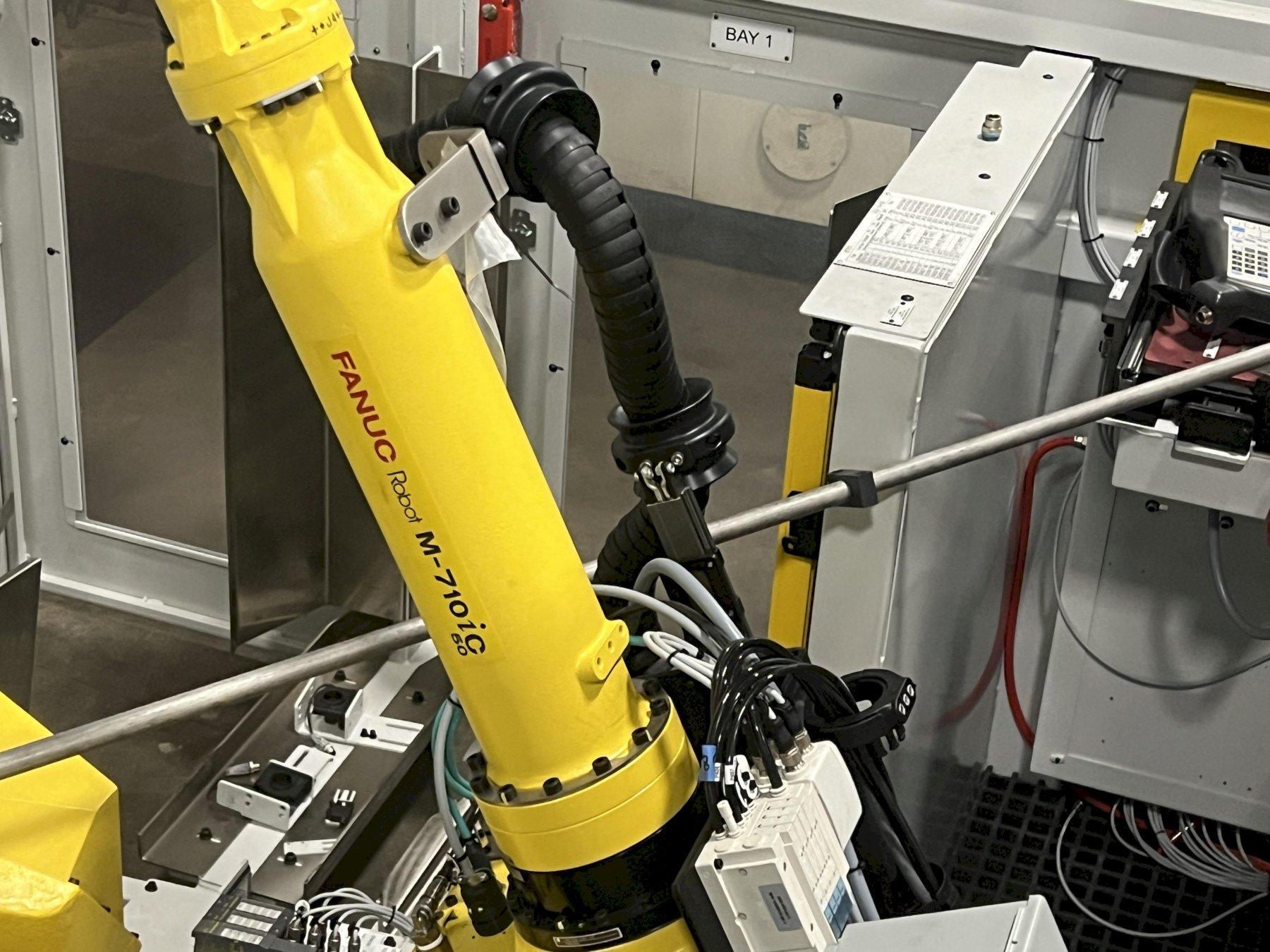

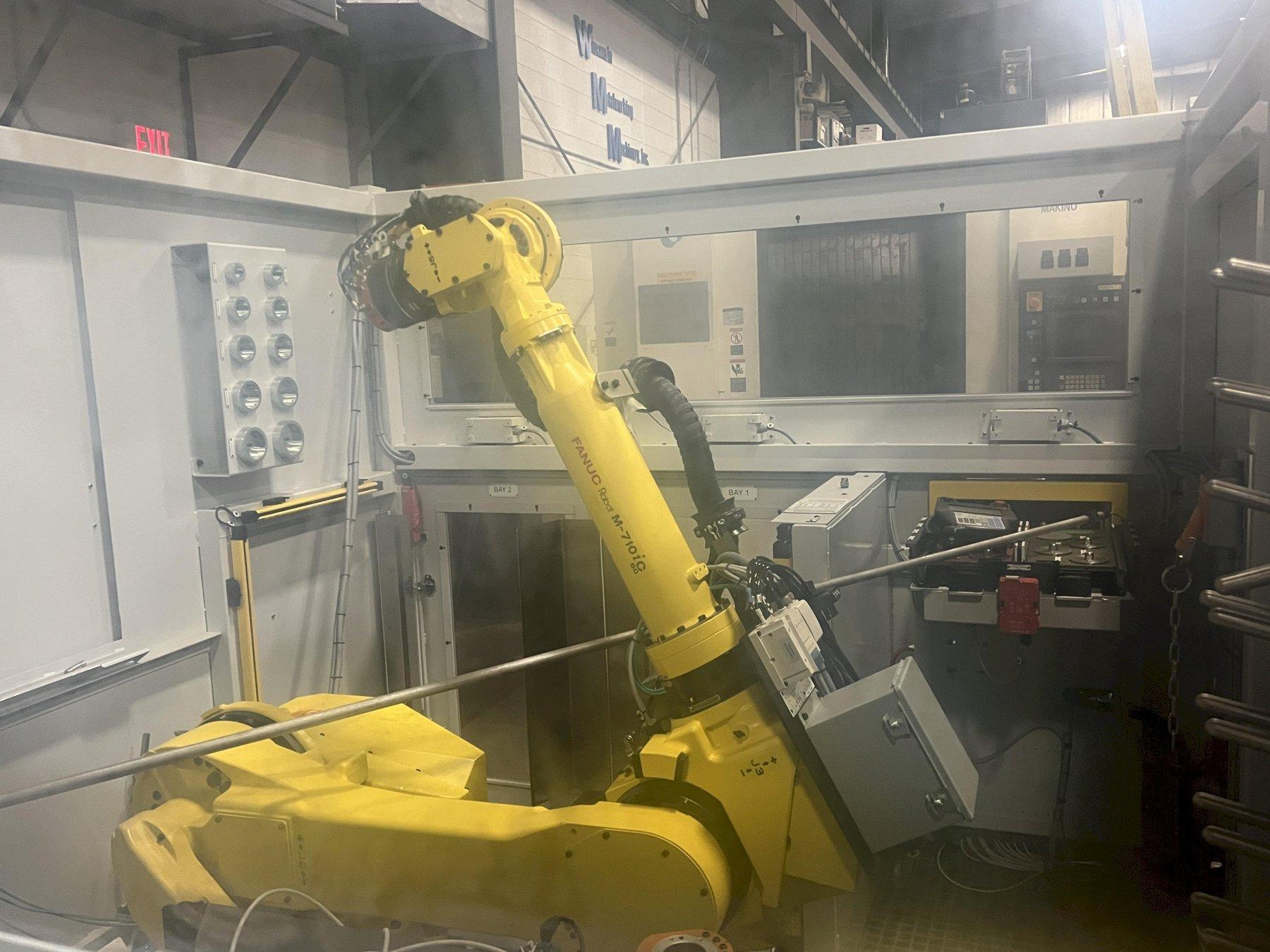

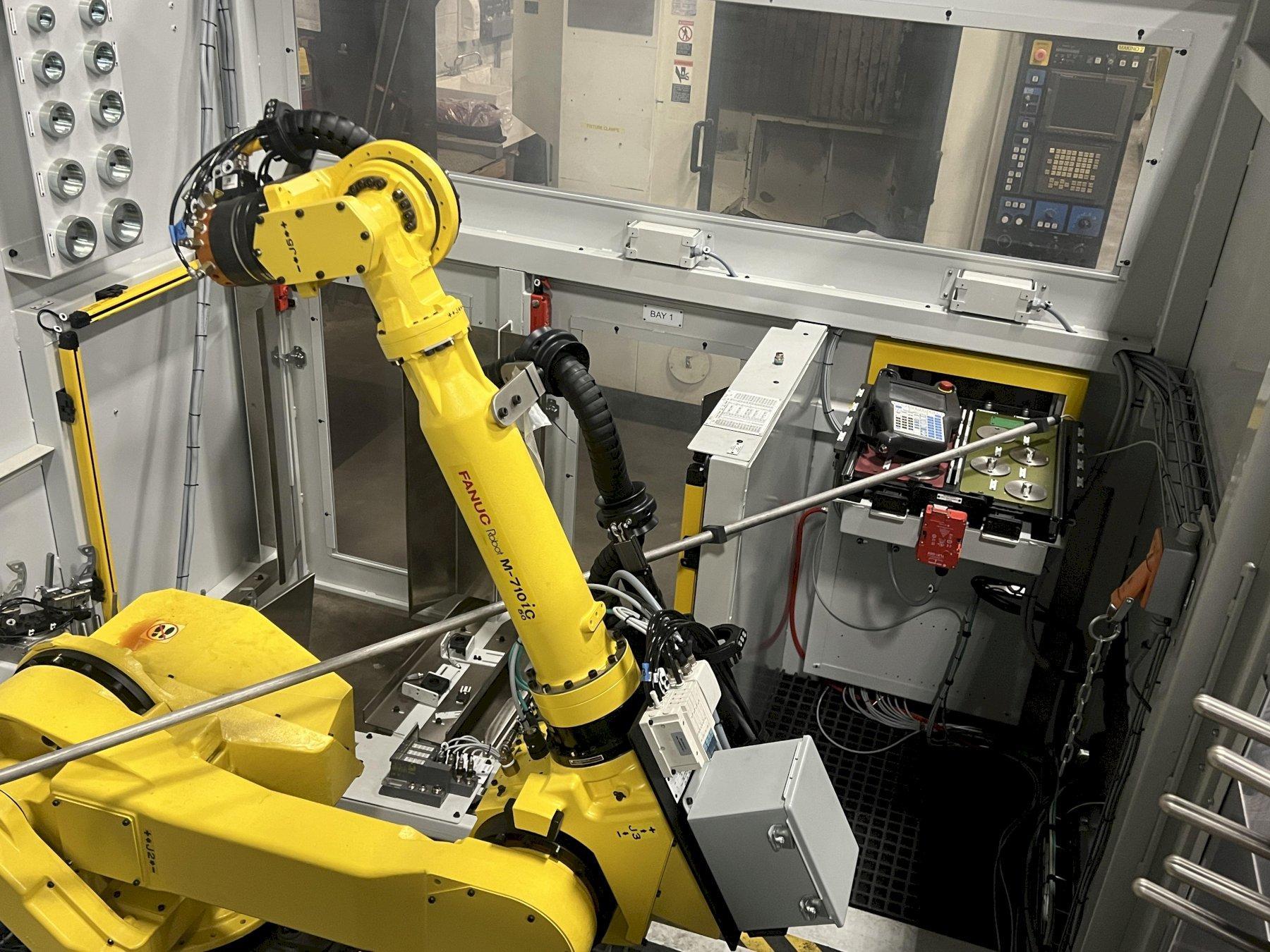

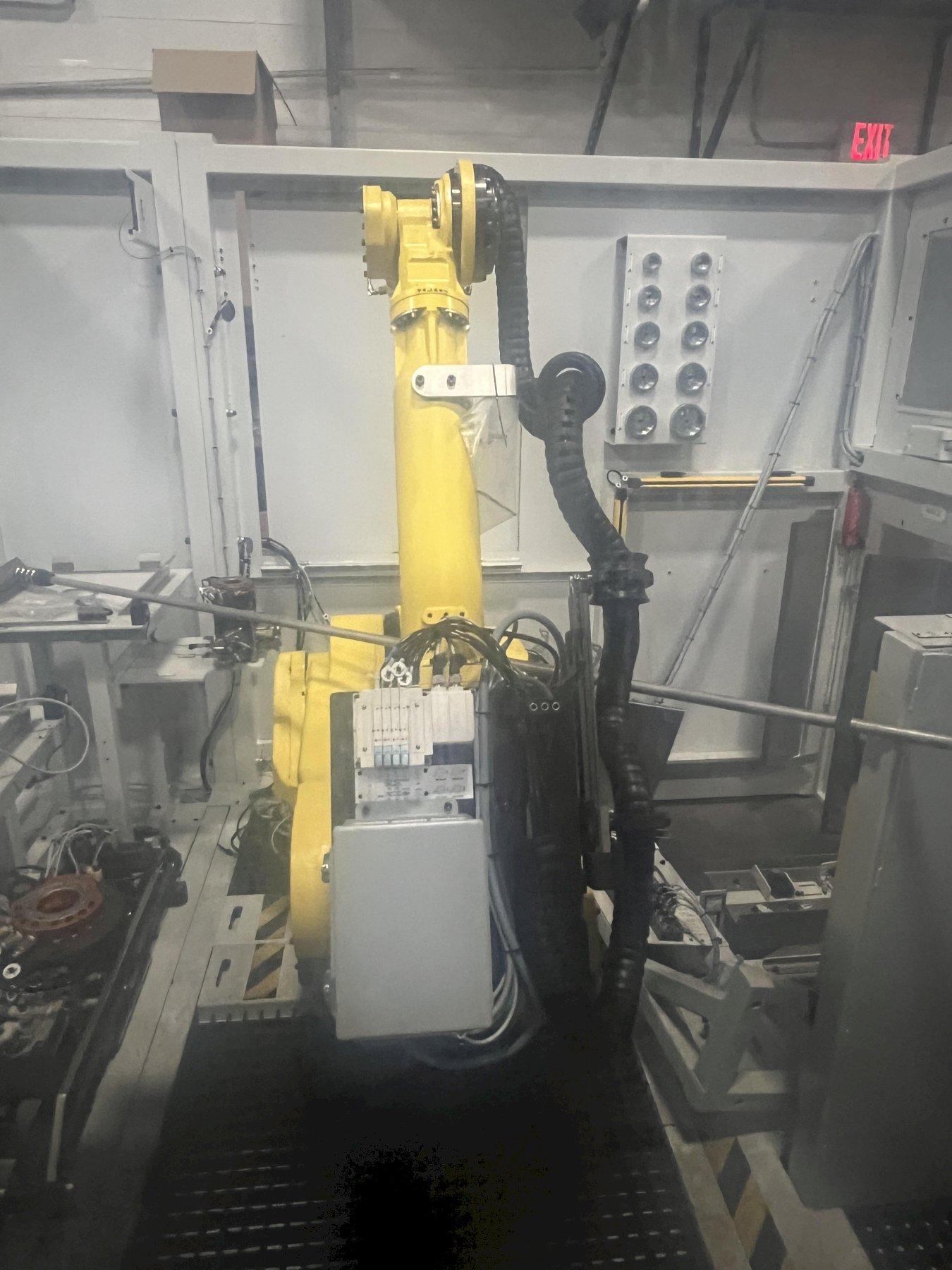

FANUC M-710IC/50 ROBOT

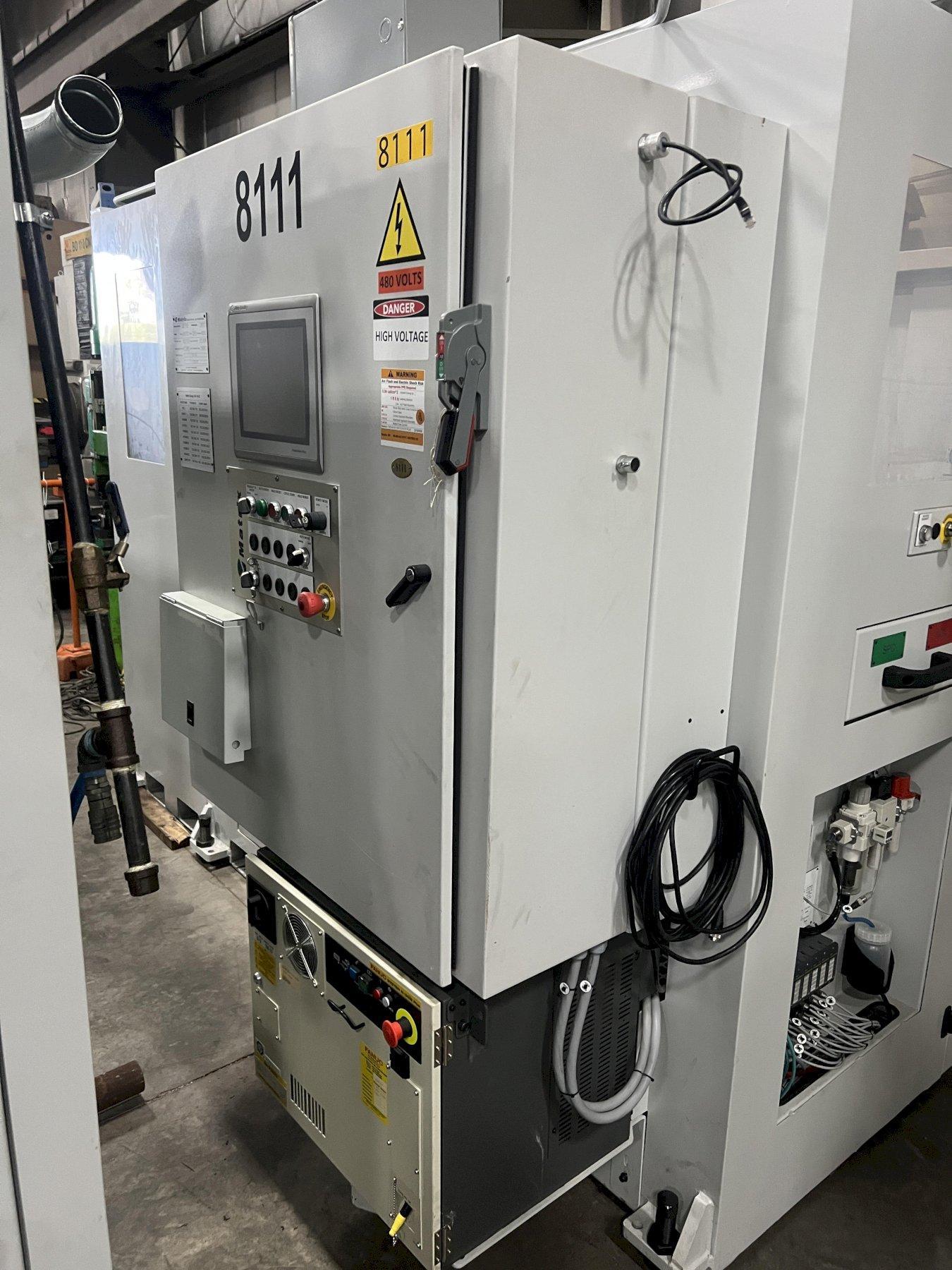

FANUC R-30IB PLUS CONTROLLER

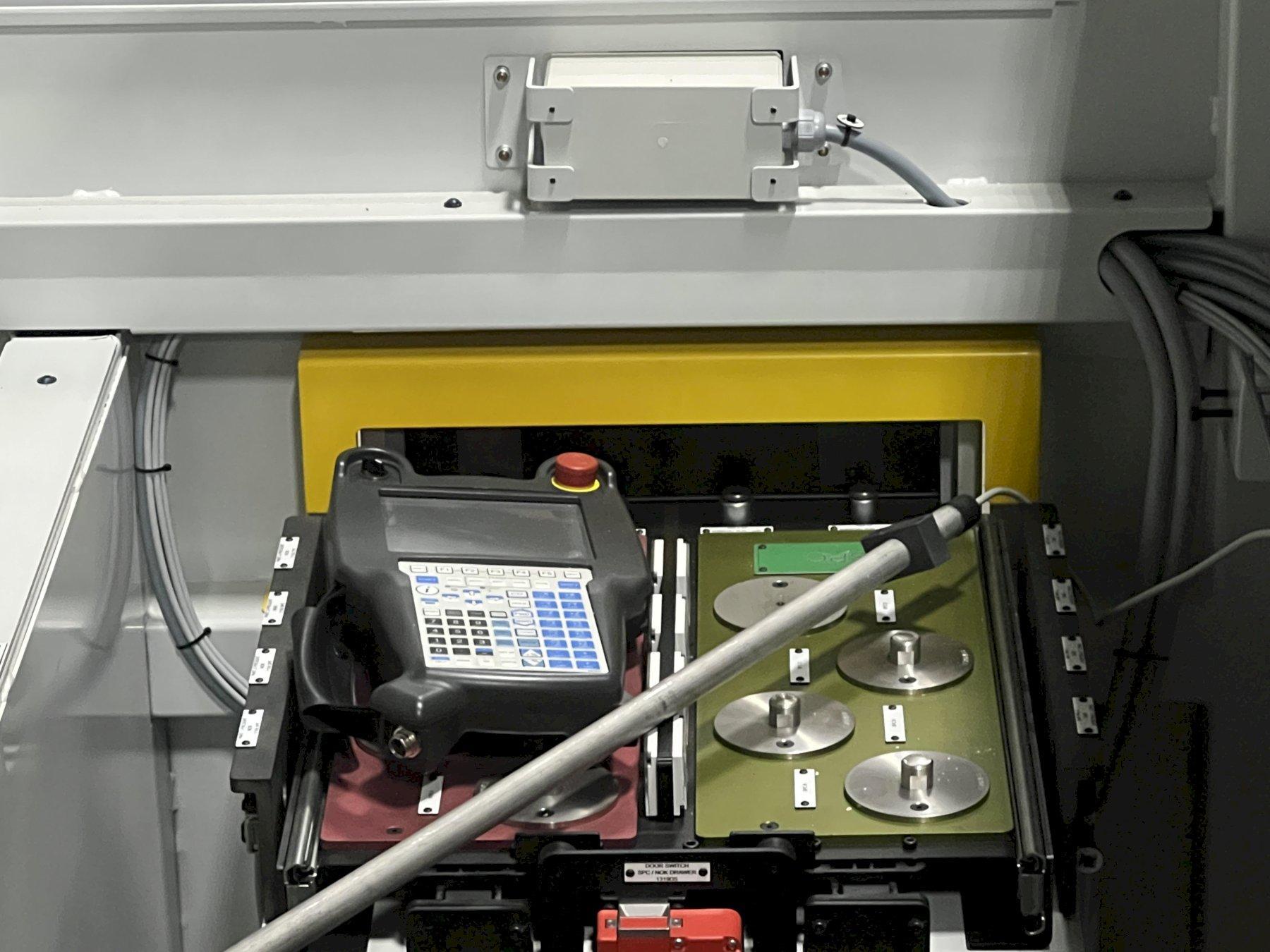

FANUC TEACH PENDANT
ALLEN-BRADLEY PANELVIEW PLUS HMI
DUAL PART LOADING BAYS

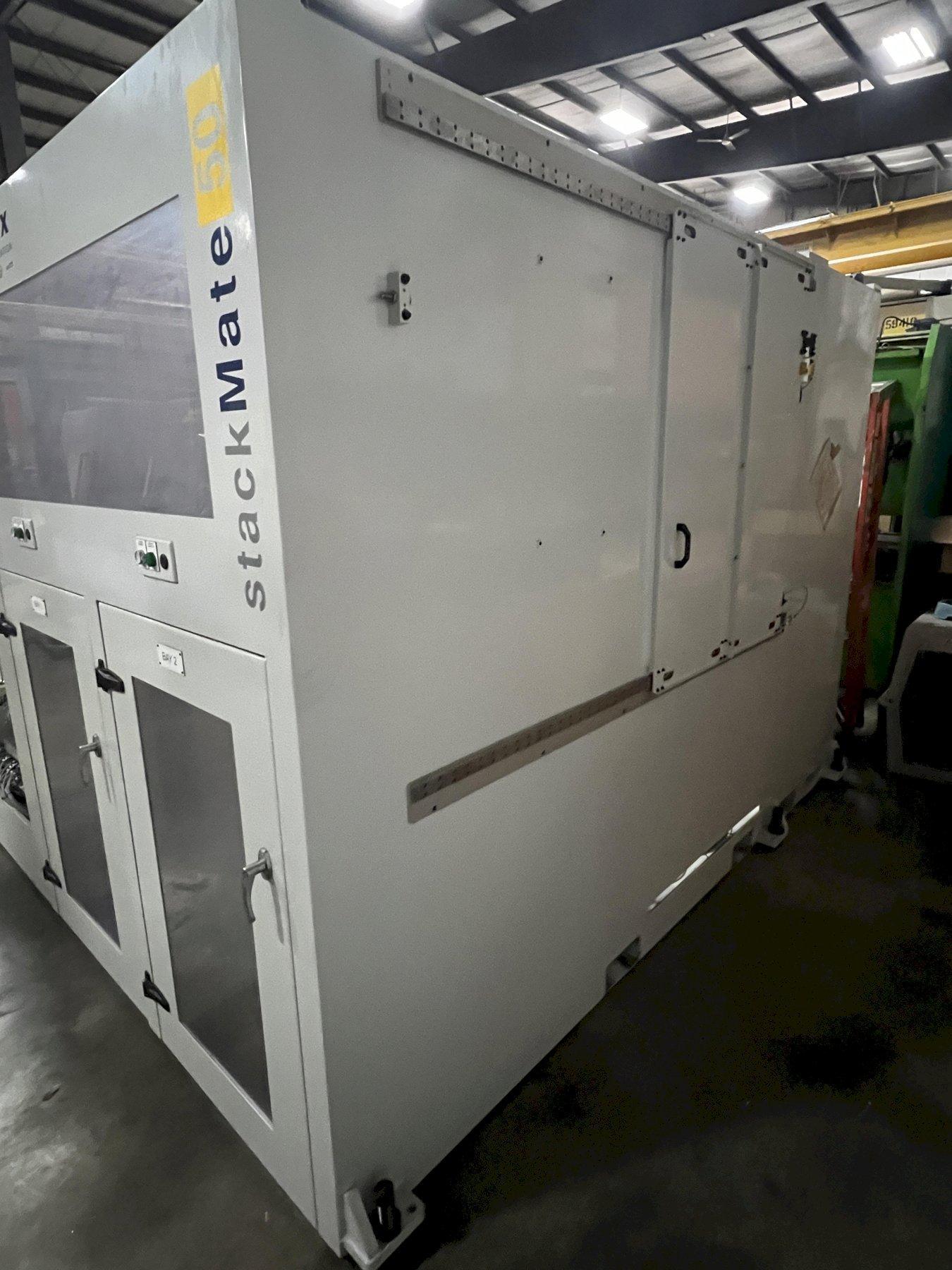

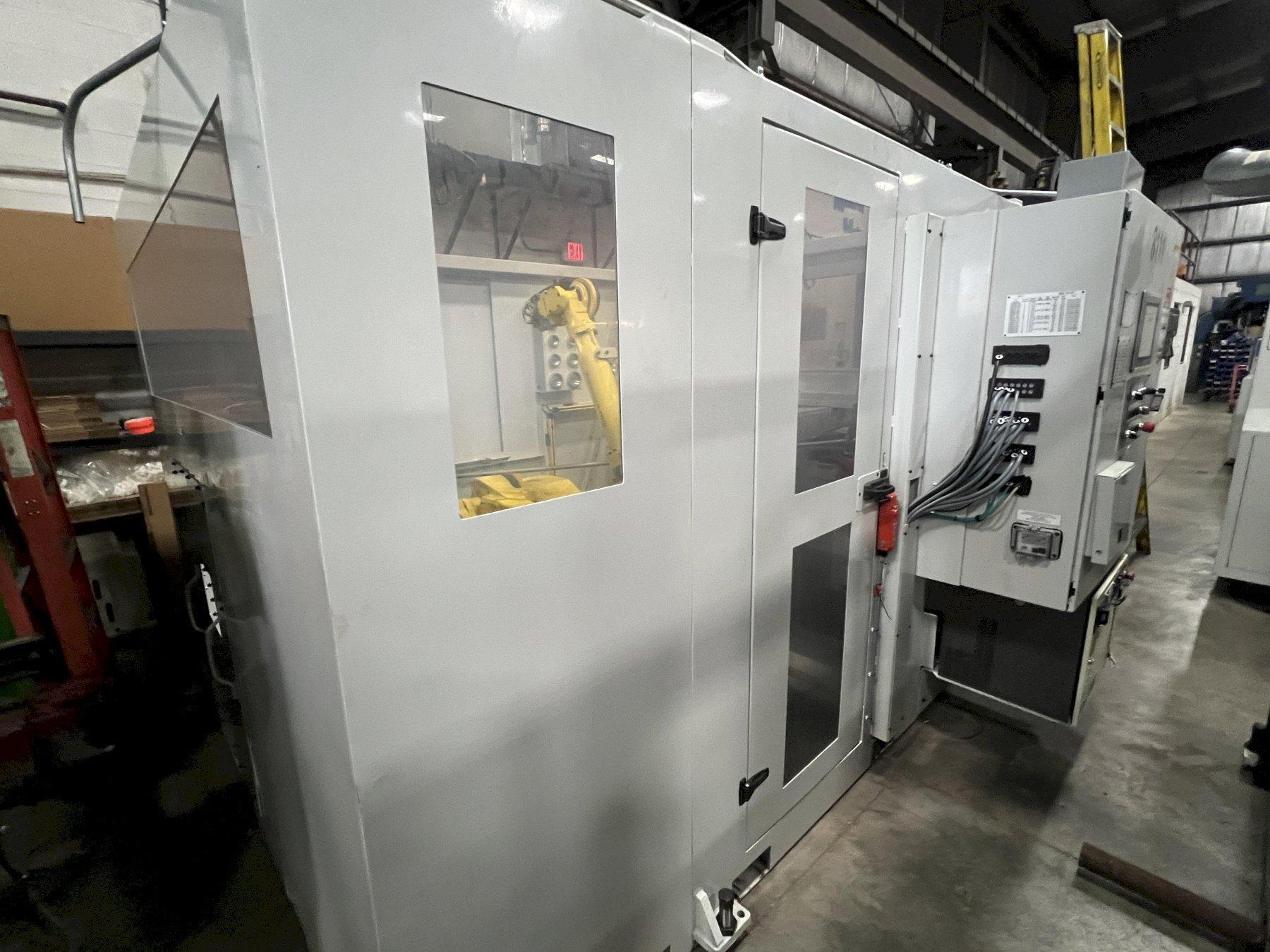

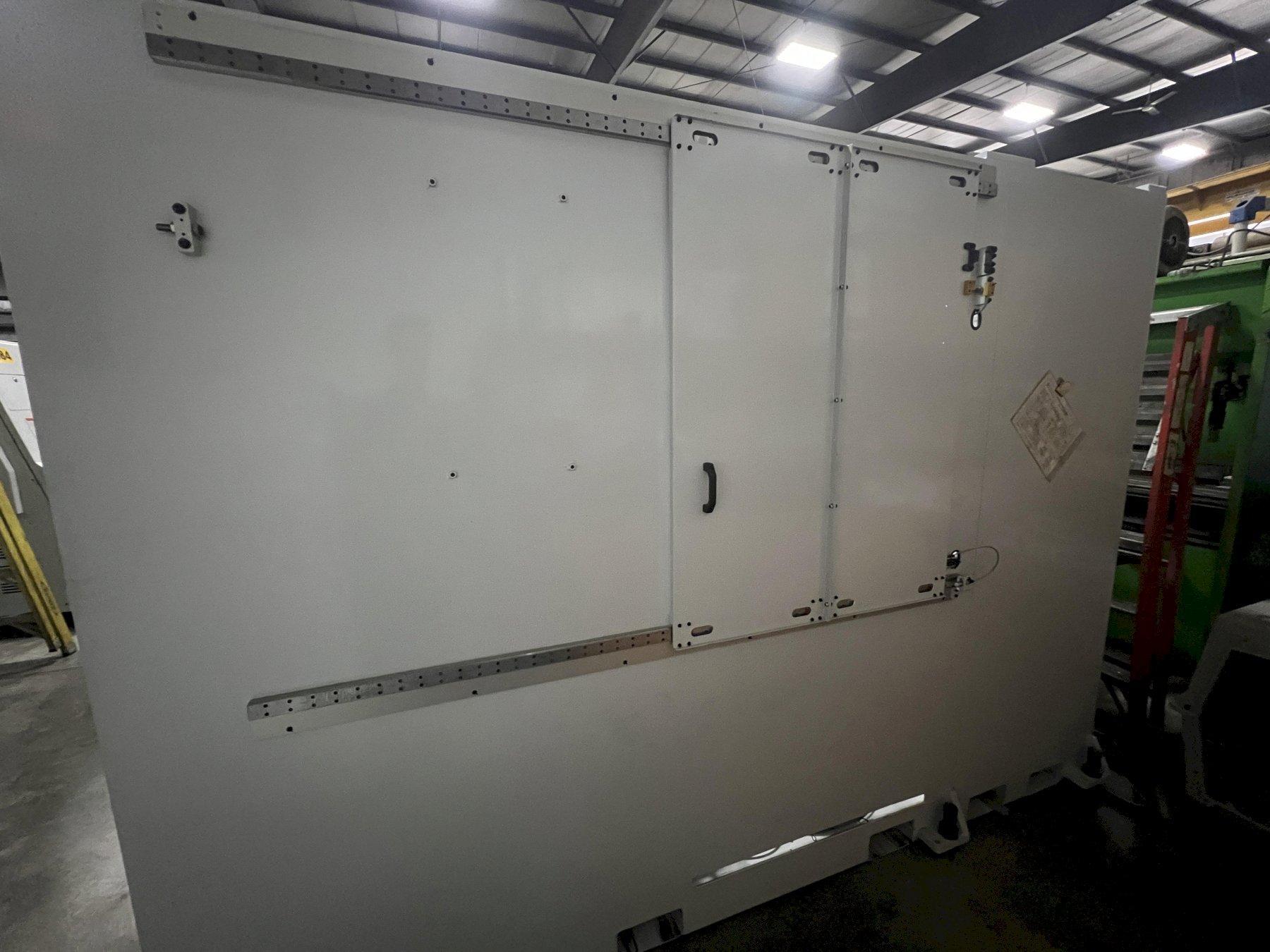

ENCLOSED SAFETY GUARDING
INTERLOCKED ACCESS DOORS

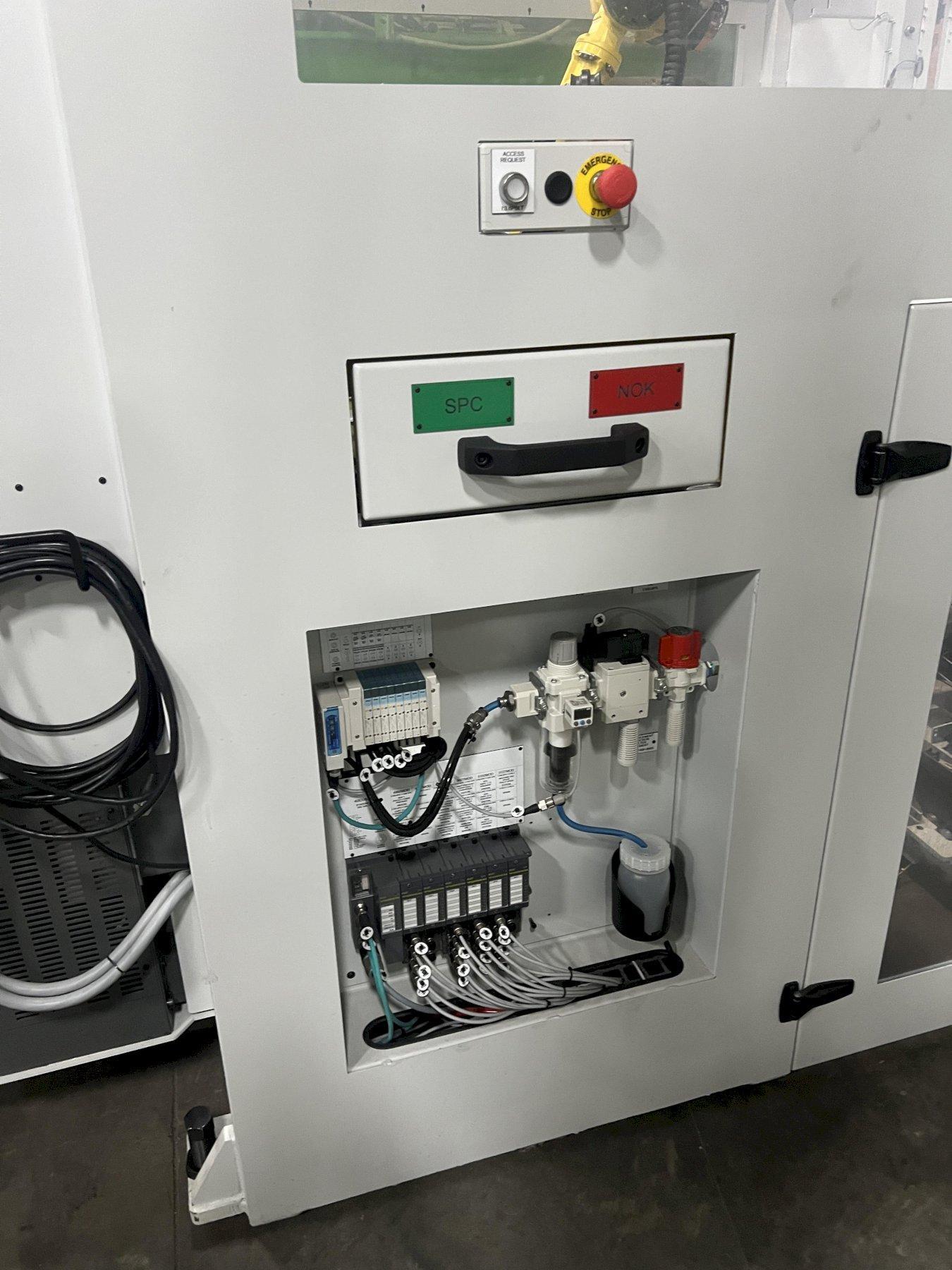

PNEUMATIC CONTROL SYSTEM
PART HANDLING FIXTURES
SPC / REJECT PART ACCESS

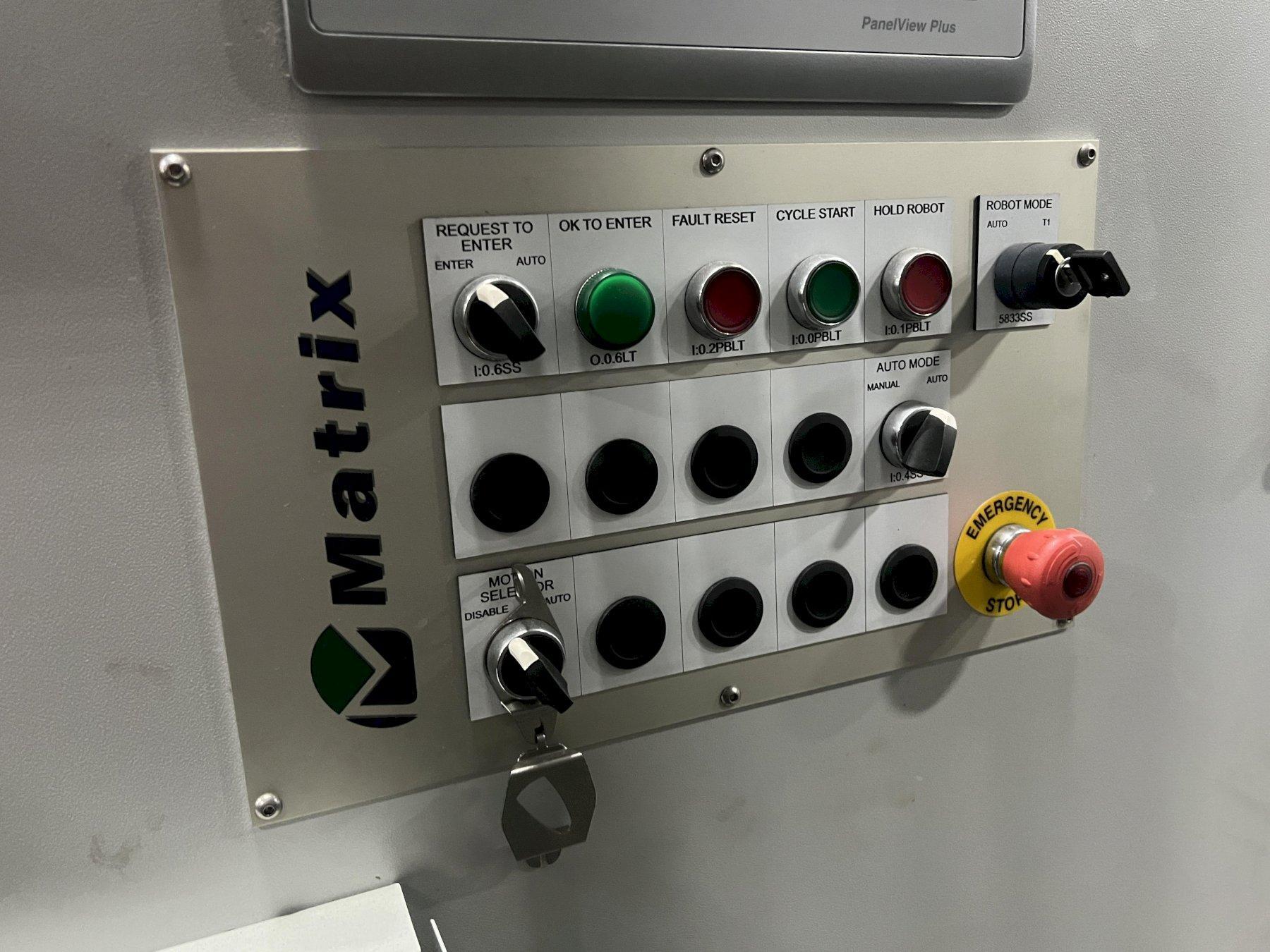

EMERGENCY STOP CONTROLS
