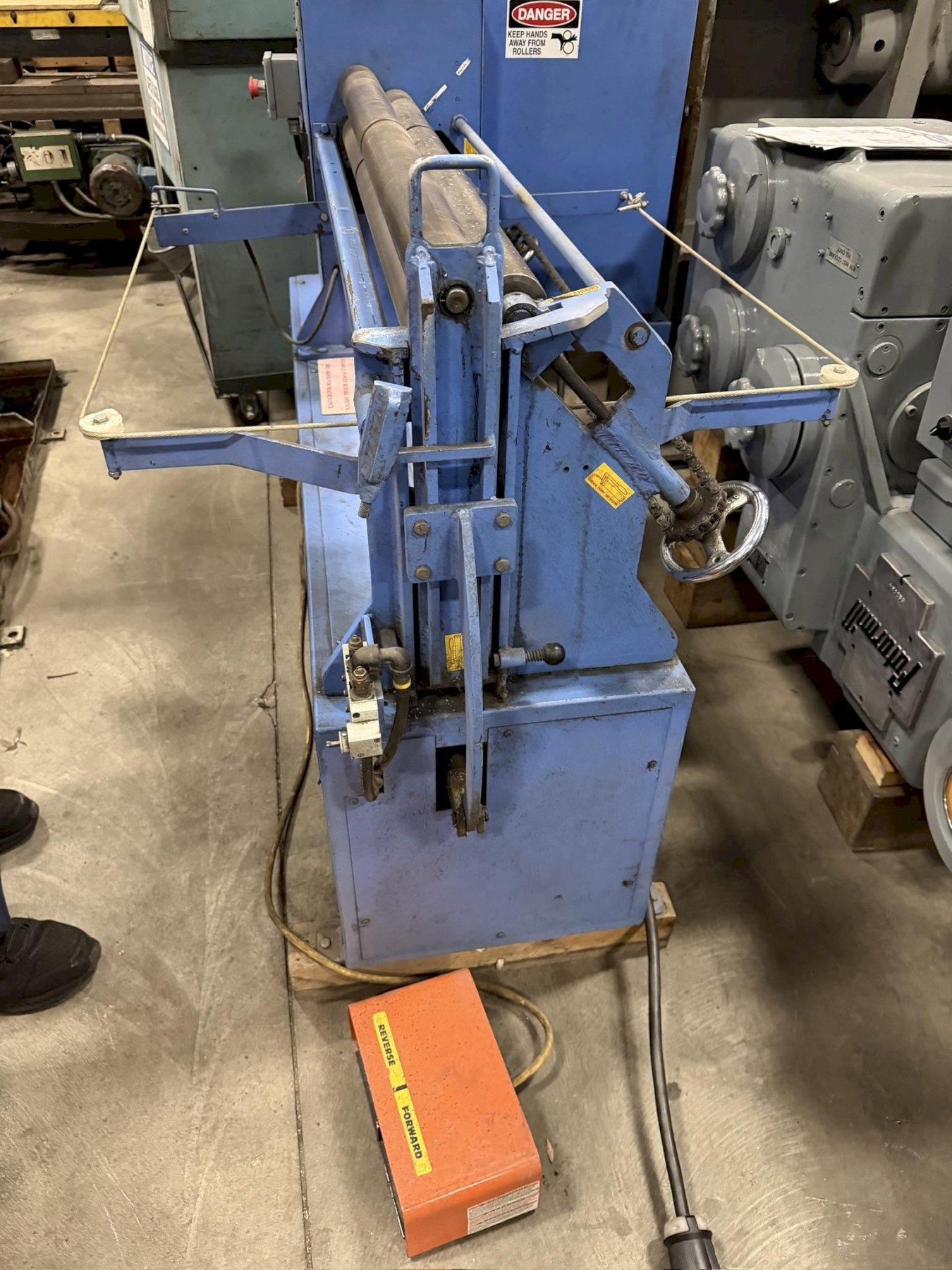

22 gauge x 36" New Dimension Initial Pinch Power Roll, Model MP3.048. Air drop end
22 gauge x 36" New Dimension Initial Pinch Power Roll, Model MP3.048. Air drop end
22 gauge x 36" New Dimension Initial Pinch Power Roll, Model MP3.048. Air drop end
22 gauge x 36" New Dimension Initial Pinch Power Roll, Model MP3.048. Air drop end
22 gauge x 36" New Dimension Initial Pinch Power Roll, Model MP3.048. Air drop end
  • 22 gauge x 36" New Dimension Initial Pinch Power Roll, Model MP3.048. Air drop end
  • 22 gauge x 36" New Dimension Initial Pinch Power Roll, Model MP3.048. Air drop end
  • 22 gauge x 36" New Dimension Initial Pinch Power Roll, Model MP3.048. Air drop end
  • 22 gauge x 36" New Dimension Initial Pinch Power Roll, Model MP3.048. Air drop end
  • 22 gauge x 36" New Dimension Initial Pinch Power Roll, Model MP3.048. Air drop end

22 gauge x 36" New Dimension Initial Pinch Power Roll, Model MP3.048. Air drop end

Brand
NEW DIMENSION

Model
MP3.048

Type
Rolls, Plate Bending (incld Pinch)

Stock #
11315

Condition
Used

Year

Request a Quote

Specifications

Length of Rolls 36 inches
Max Thickness (by gauge) 22
# Rolls 2.5
Hyd/Mech pneumatic
Roll Diameter 3 inches

Equipped With

GENERAL SPECIFICATIONS:
MANUFACTURER..................... NEW DIMENSION
MODEL............................ MP3 .048

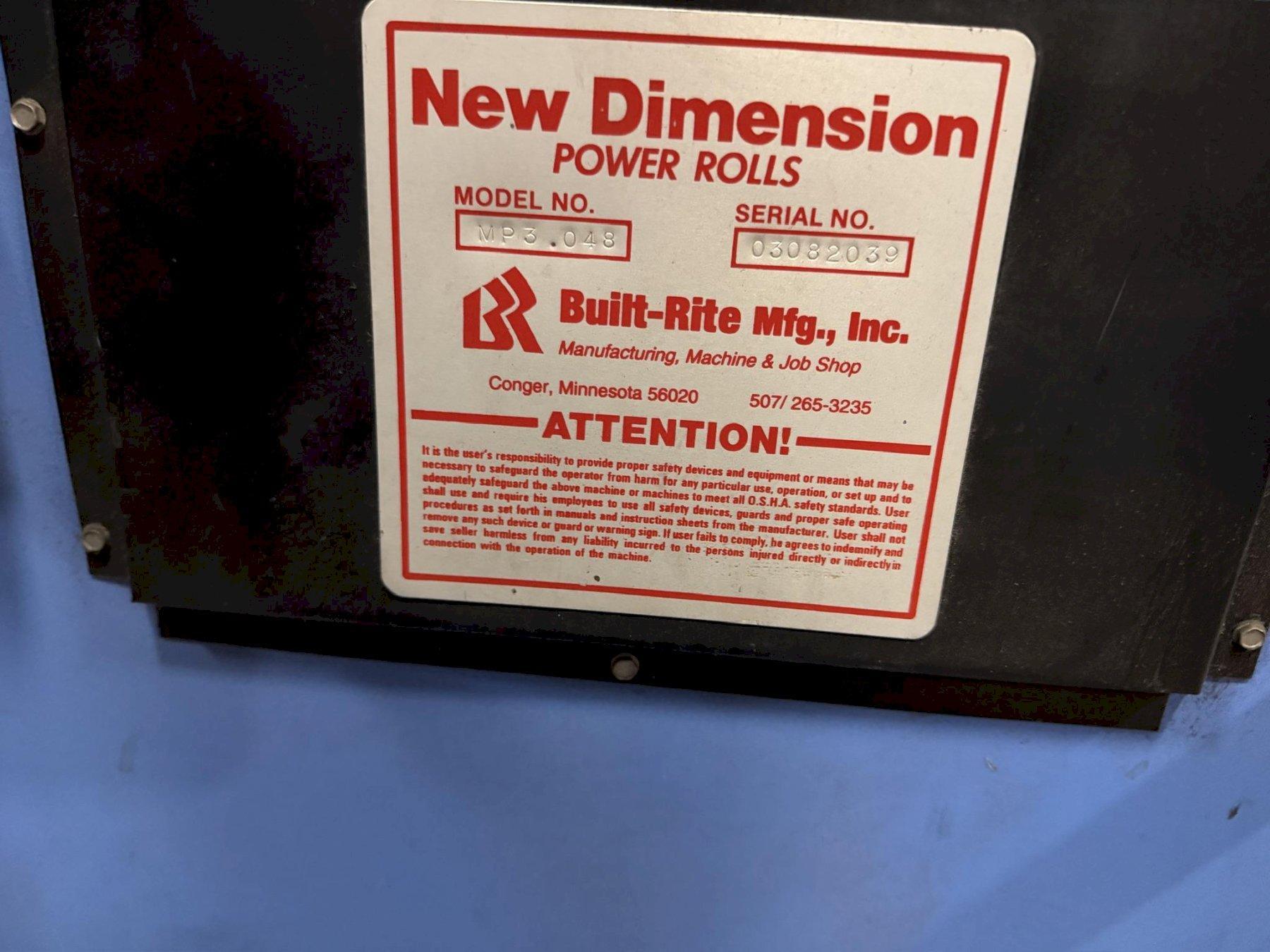

SERIAL NUMBER.................... 03082039
CAPACITY......................... 3' X 20 GAUGE
ROLL DIAMETER.................... 2.5"
SURFACE FEET PER MIN............. 18
WORKING AREA..................... 37"
STANDARD PINCH ROLL OPENING...... 1/4"
WORKING HEIGHT................... 34"
ELECTRICS........................ 440V / 3PH
FLOOR SPACE...................... 25" X 53"
WEIGHT........................... 600 LBS

EQUIPPED WITH:
INITIAL PINCH DESIGN
AIR OPEN END
DUAL VOLTAGE 220/440/3 CURRENTLY WIRED 440V
ALL ROLL DRIVE
MANUAL ADJUSTMENT OF ROLL SPACING
CIRCULAR WIRE GROOVES
