SPECIFICATIONS:

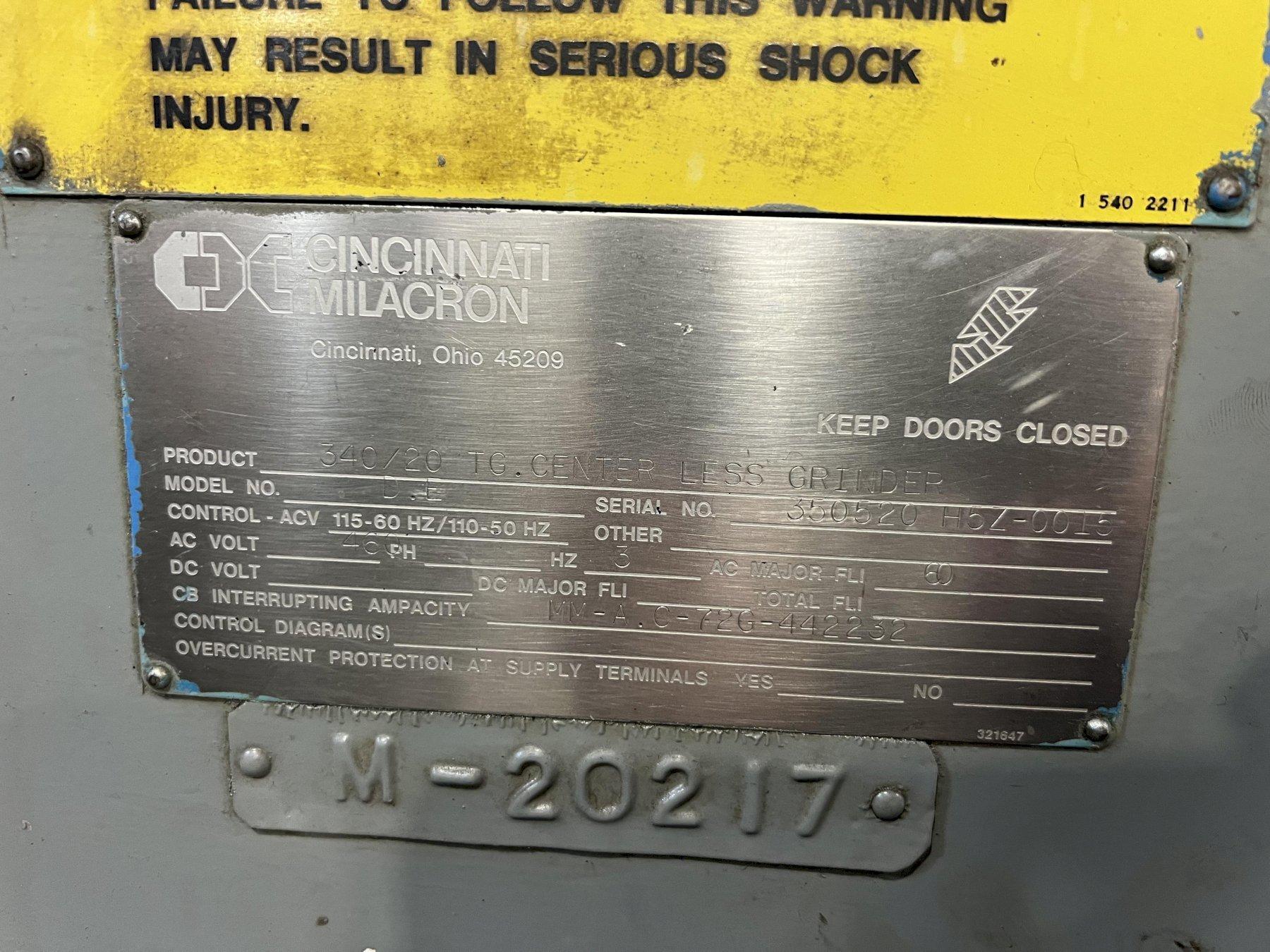

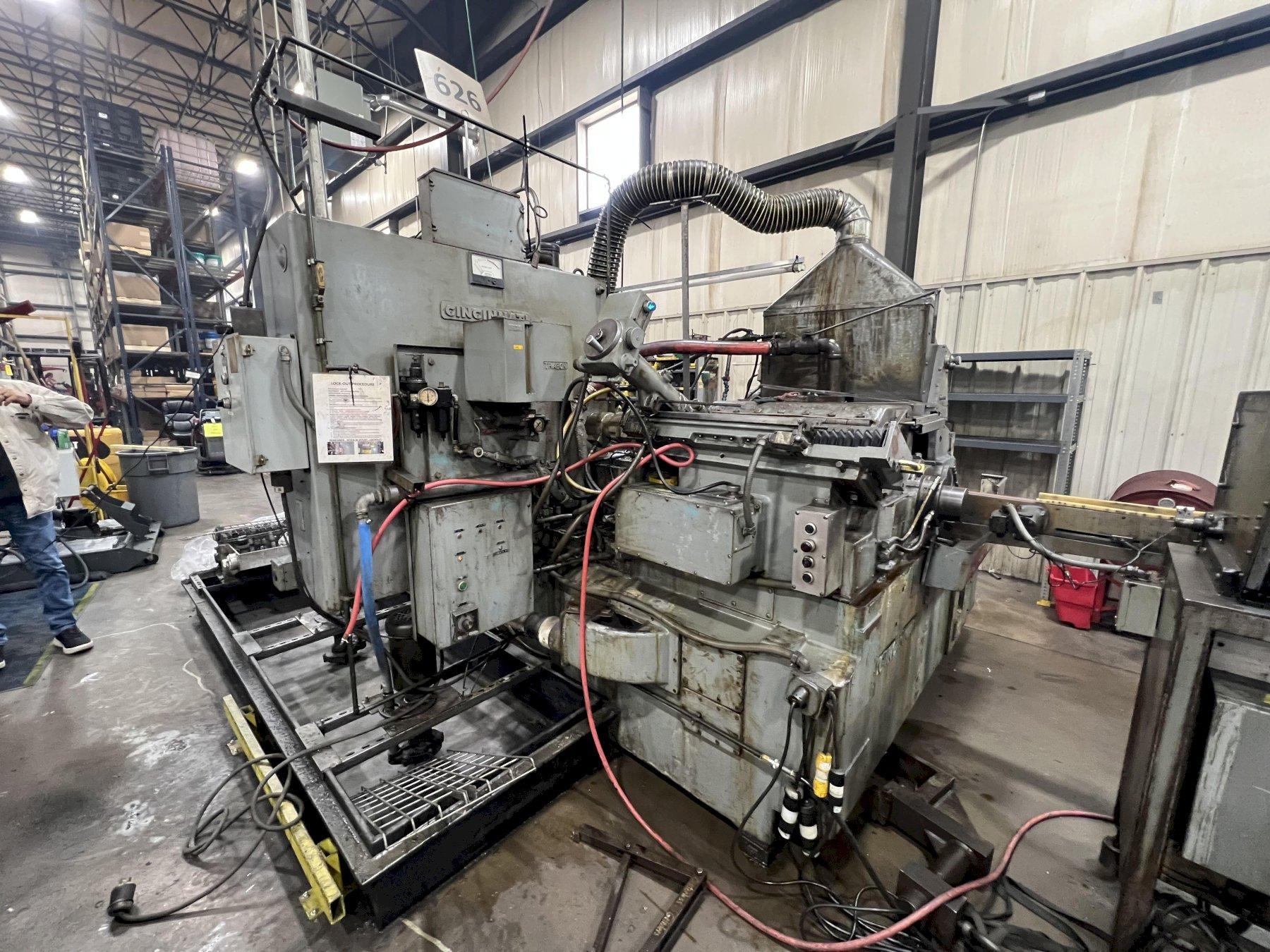

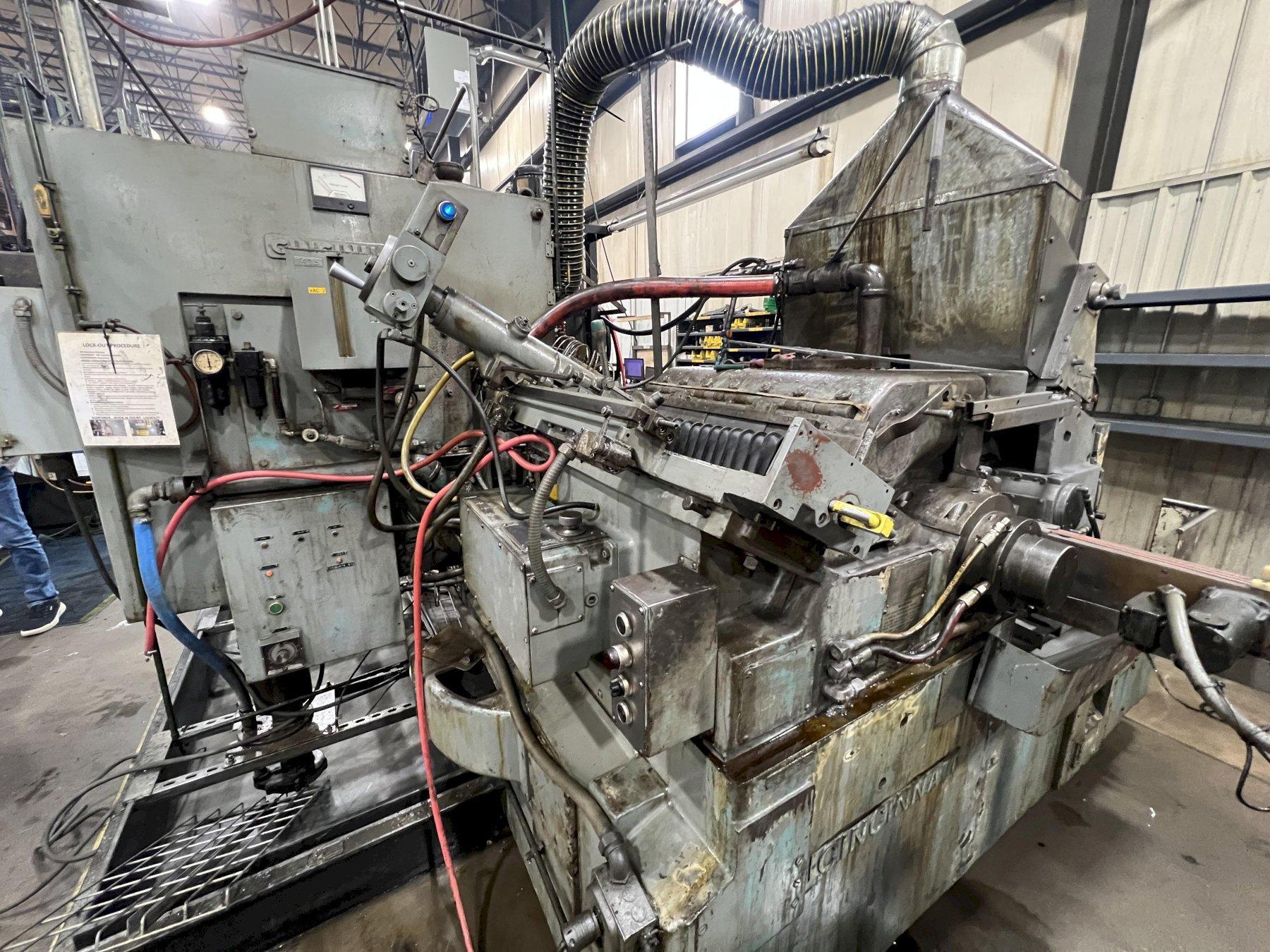

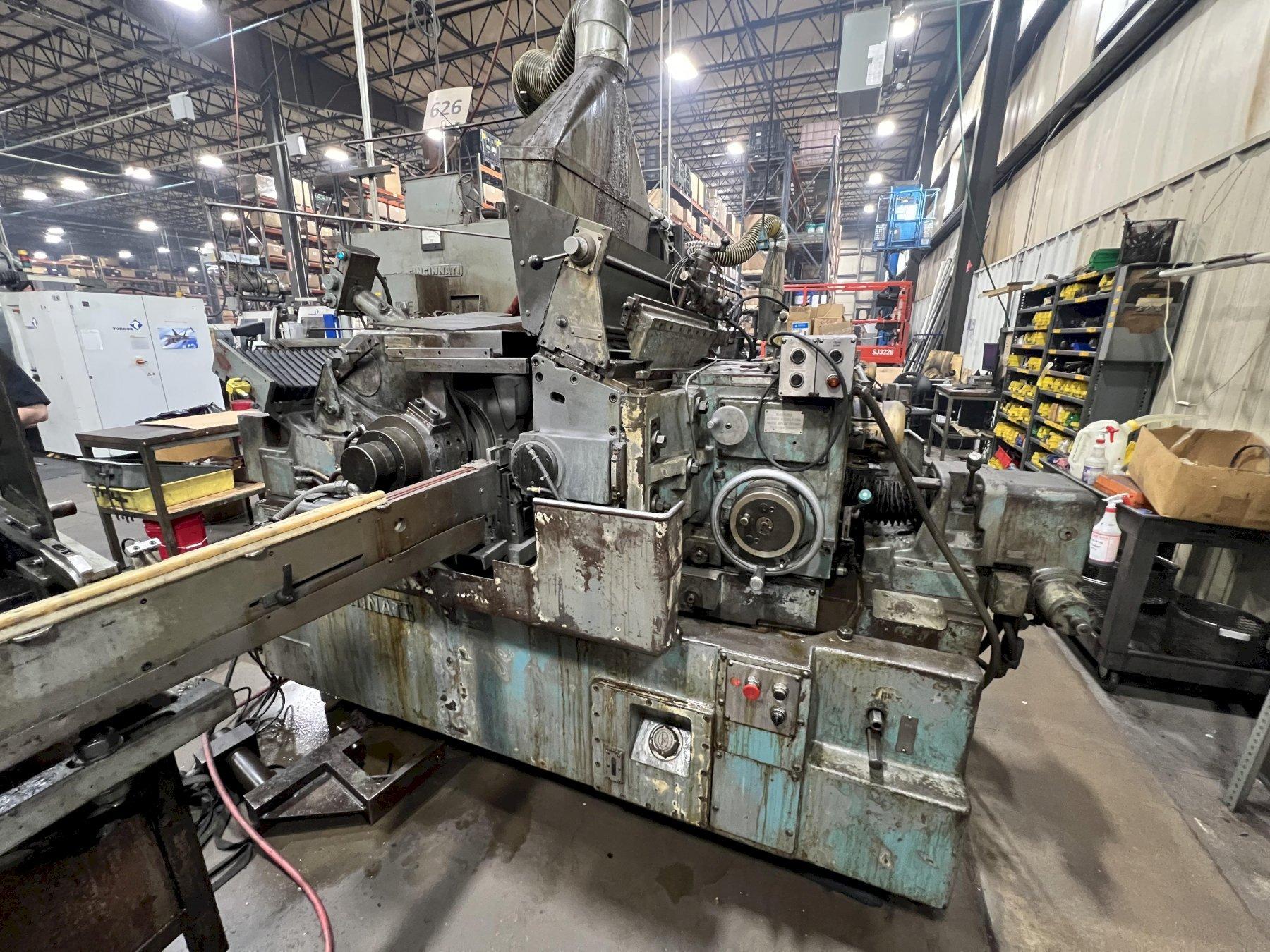

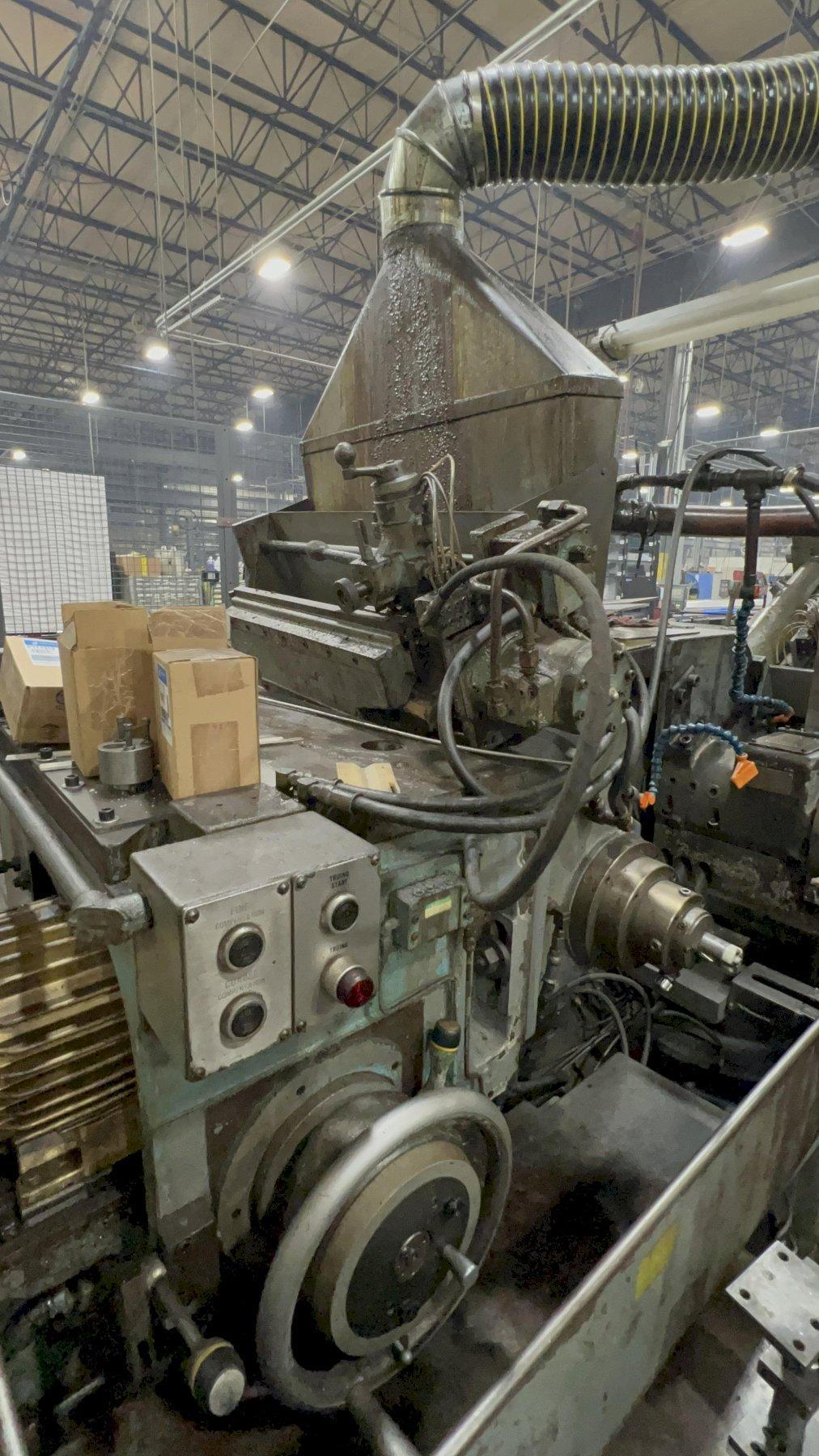

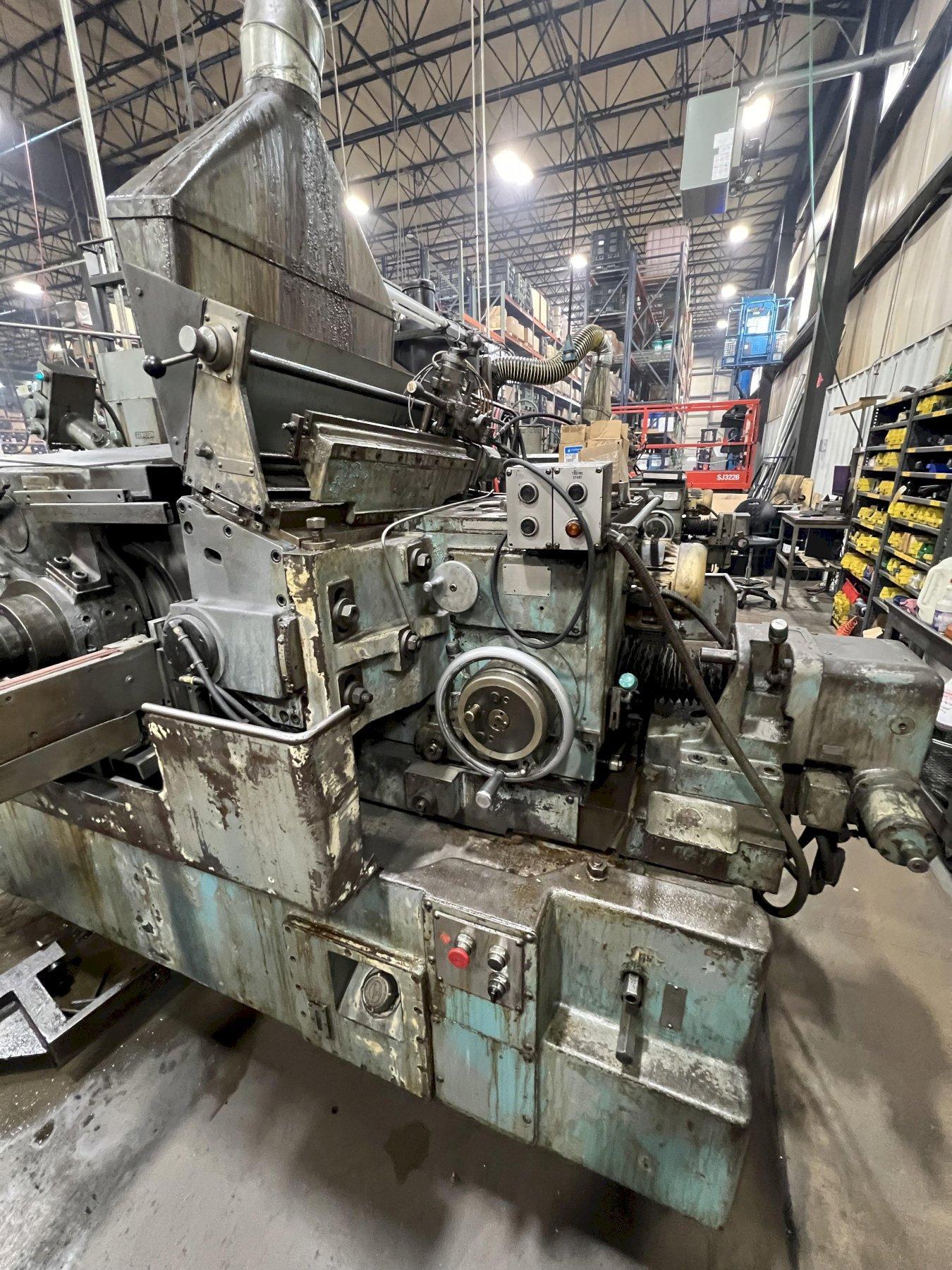

MANUFACTURER............................................. CINCINNATI
MODEL.................................................... 340-20DE
SERIAL NUMBER............................................ 350520H5Z-0015
AGE...................................................... 1972
Grinding Diameter - Maximum With Special Rest............ 6"
Grinding Diameter with Standard Thru Feed Work Rest...... 1/2" - 3"
Grinding Wheel - Hole.................................... 12"
Grinding Wheel - Maximum Diameter........................ 24"
Grinding Wheel - Minimum Diameter........................ 17"
Grinding Wheel - Width................................... Up to 20"
Regulating Wheel - Hole.................................. 6"
Regulating Wheel - Maximum Diameter...................... 14"
Regulating Wheel - Minimum Diameter...................... 10-1/2"
Regulating Wheel - Width................................. Up to 20"
Regulating Wheel Speeds - Low Range...................... 12 - 56 RPM
Regulating Wheel Speeds - High Range..................... 56 - 300 RPM

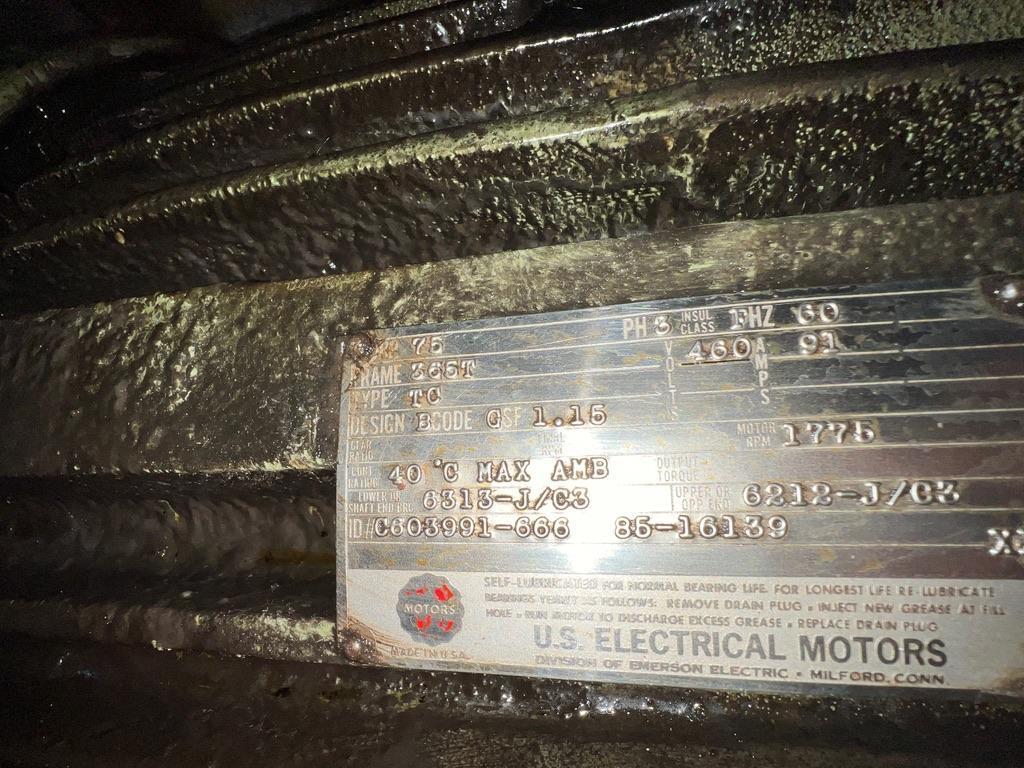

Grinding Wheel Drive..................................... 75HP
Regulating Wheel Drive................................... 2 HP
Hydraulic Pump........................................... 1 HP
Actual Dimensions........................................ 170"L X 80"W X 95"H
Approximate Weight....................................... 18,900 Lbs.
EQUIPPED WITH:

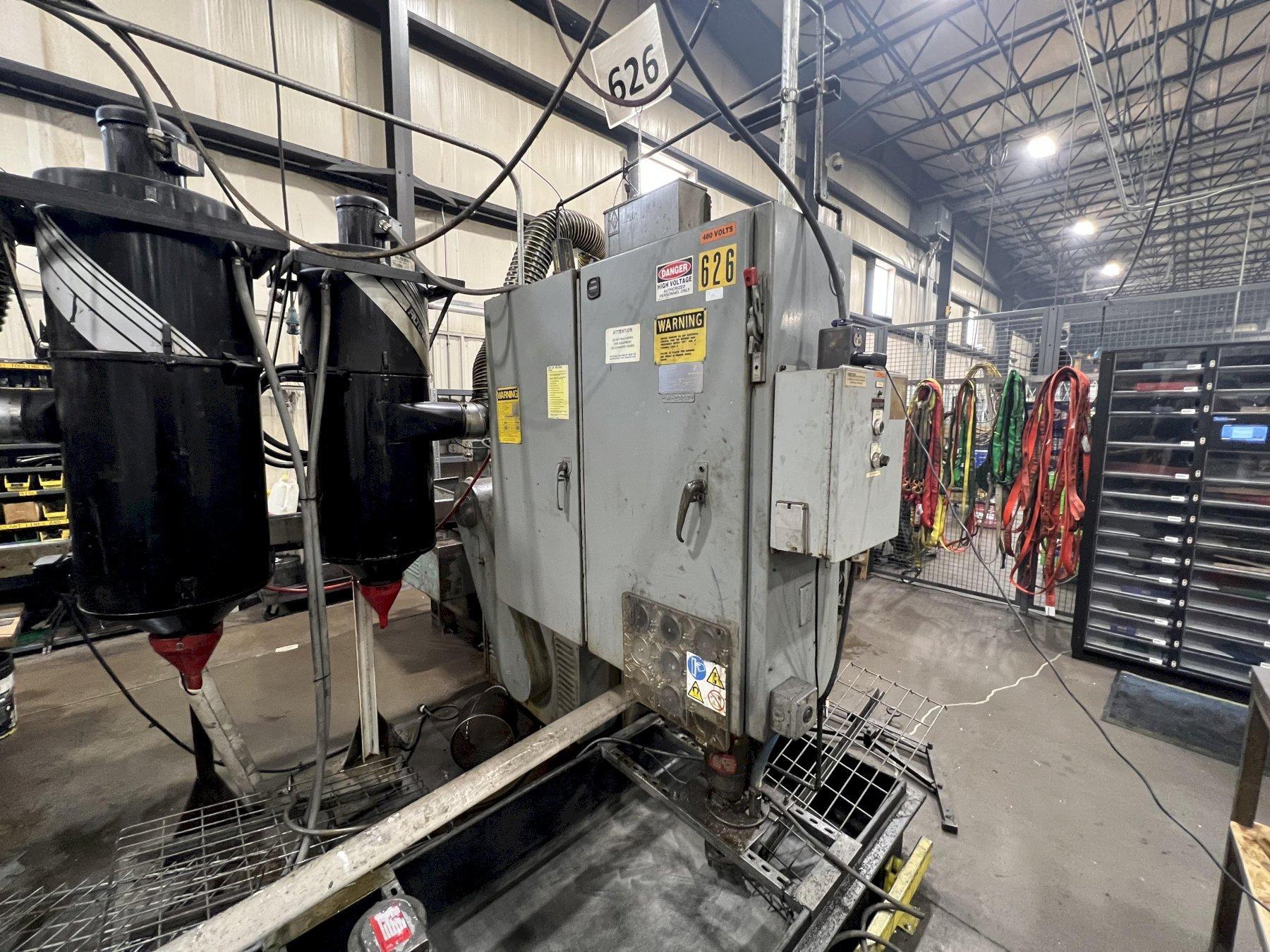

COOLANT SYSTEM WITH DUST COLLECTOR

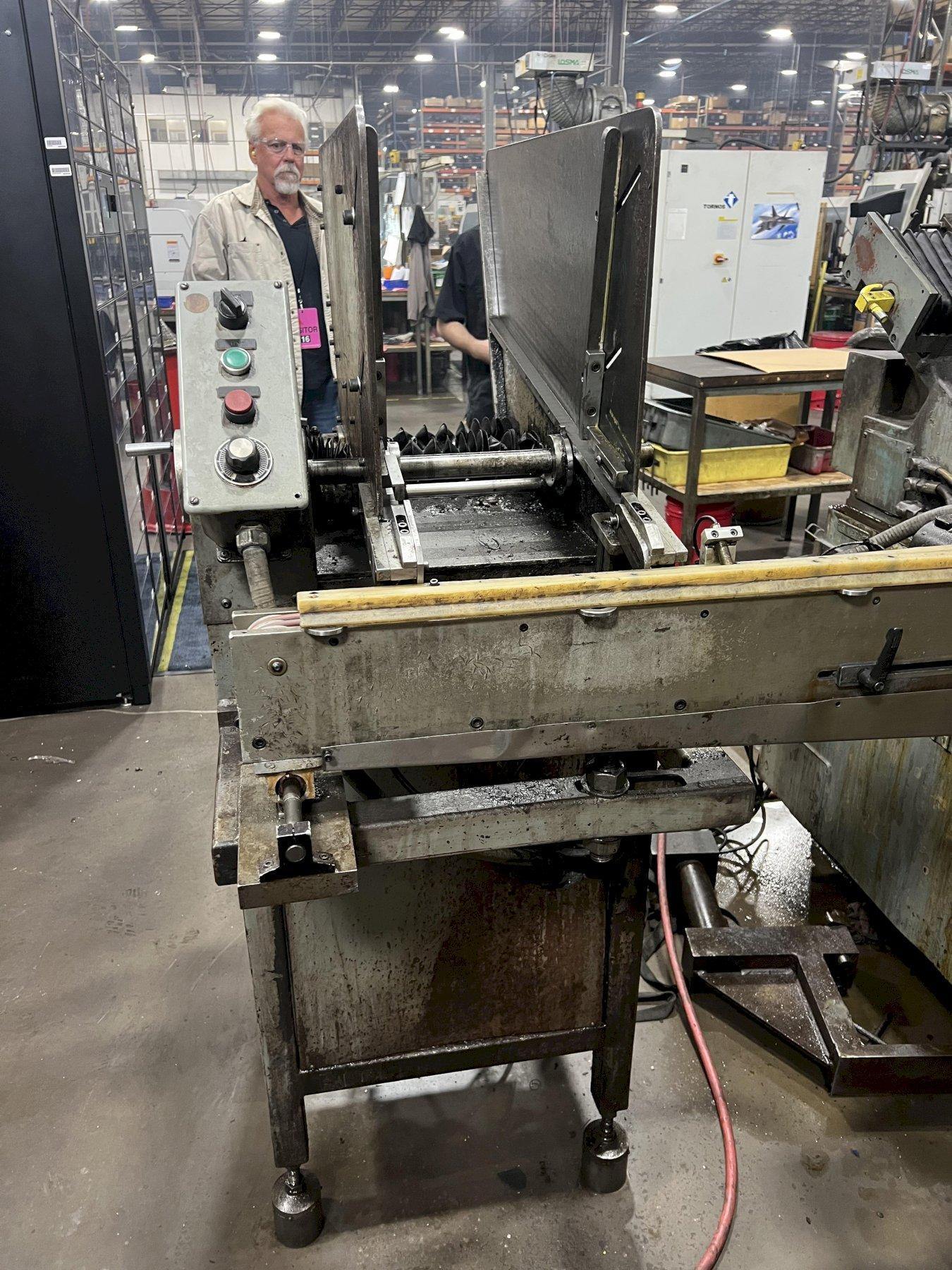

FEED HOPPER
INFEED CONVEYOR
