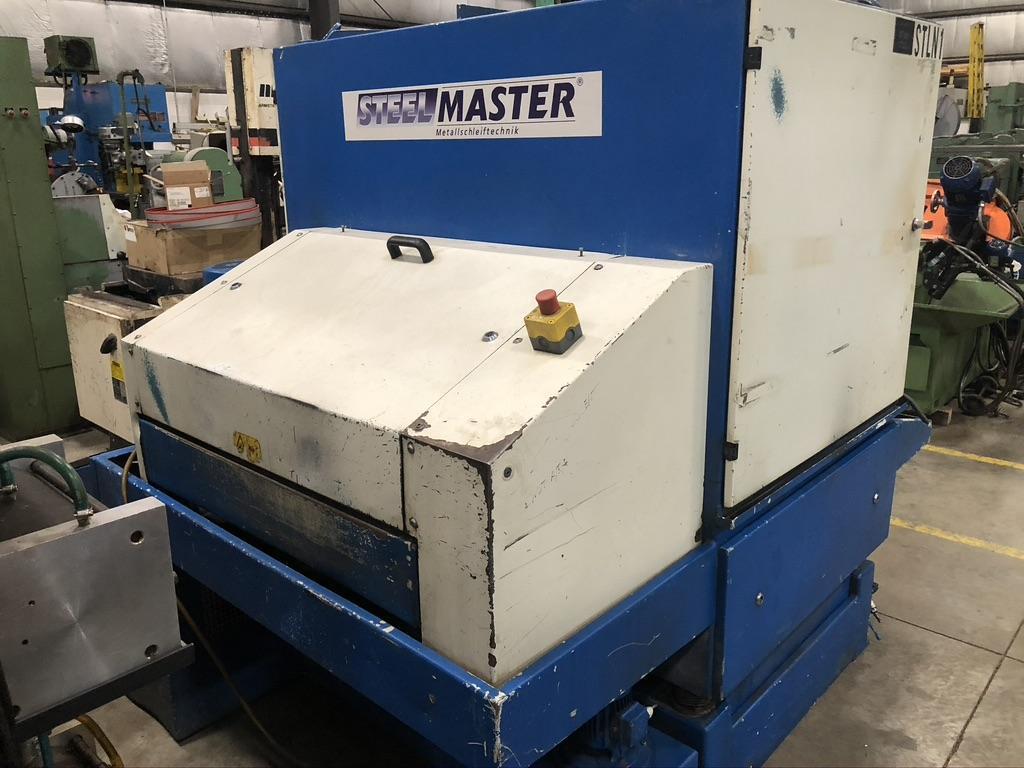

37" STEELMASTER PRIMA 2KB-9W WET TYPE DEBURRER

Model
PRIMA 2KB-9W

Type
Sanders

Stock #
10430

Condition
Used

Year
2000

Specifications

Equipped With

GENERAL SPECIFICATIONS
MANUFACTURER....................... STEELMASTER

MODEL.............................. PRIMA 2KB-9W
SERIAL NUMBER......................... 51079

AGE................................ 2000
NUMBER OF HEADS.................... 2
TYPE OF HEADS...................... BRUSH AND SANDER
Maximum Abrasive Belt Width........ 37.4″
Maximum Working Width.............. 37.4″
Work Piece Thickness............... 0.01962 - 4.72"
Abrasive Belt Length............... 129"
Abrasive Belt Drive................ 16 HP
Conveyor Speed..................... 29 FPM TO 59 FPM
DIAMETER OF BRUSH ROLLER........... 7.87"
BRUSH DRIVE........................ 17 HP
BRUSH SPEED........................ 59 FPM
FEED DRIVE......................... 2 HP

Approximate Machine Dimensions: 126″ L x 92″ W x 83″ H
Approximate Machine Weight: 10,720 Lbs

Equipped With:
Abrasive Sanding Head
Brush Head
Variable Speed Motor
Electronic Height Adjustment

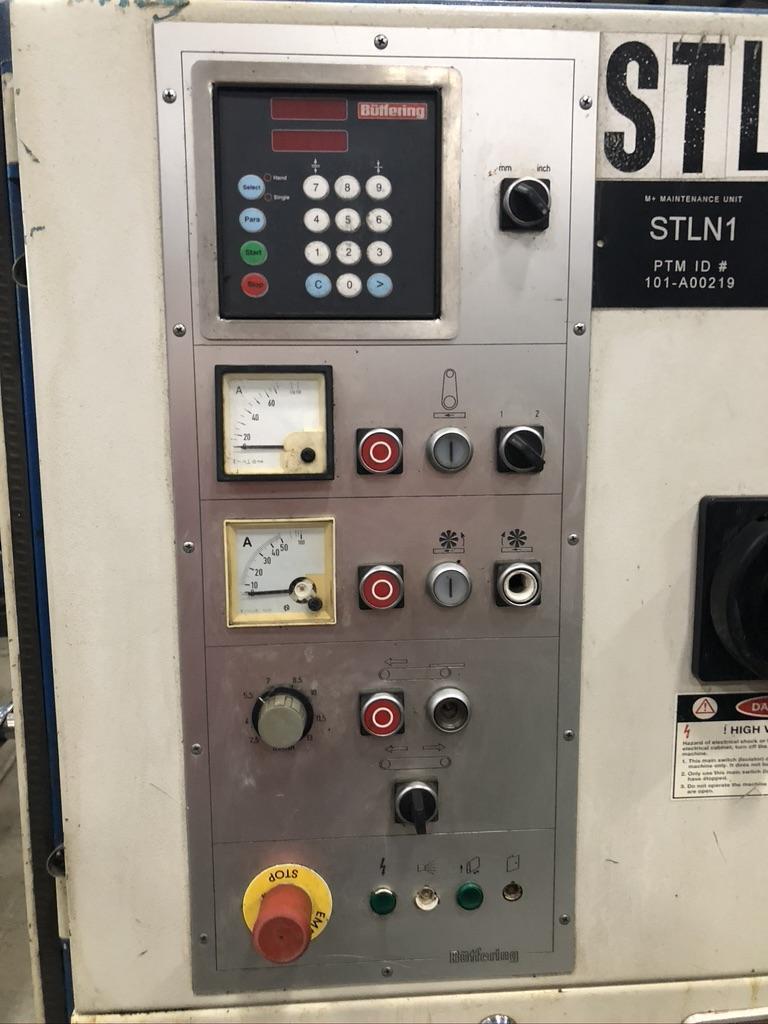

PLC Programmable Control with Touch Pad
230/460v currently running 460 volts
Total connected load 19 kw
