GENERAL SPECIFICATIONS:

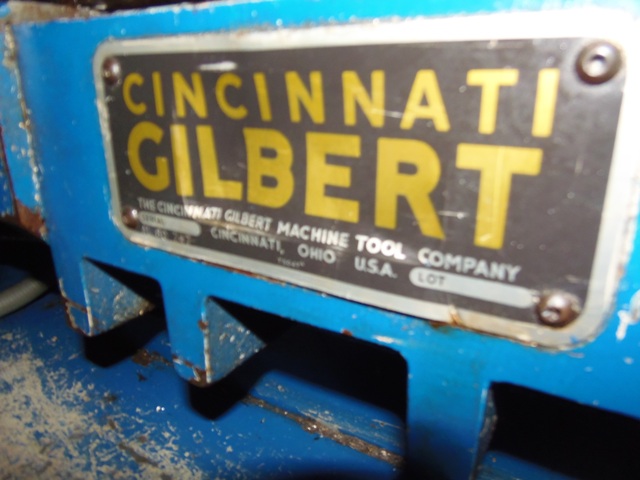

MANUFACTURER........................ CINCINNATI GILBERT
MODEL#.............................. AL 60
SERIAL#............................. AL 60 747
NEW................................. 1981

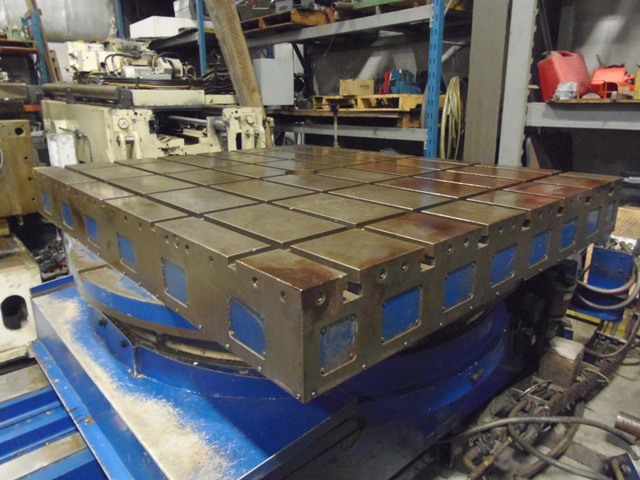

TABLE SIZE.......................... 72" X 60"
RATED TABLE CAPACITY................ 20,000 LBS
RATED SUB BASE CAPACITY WITH TABLE.. 40,000 LBS
RUNWAY WIDTH........................ 45"
TRAVEL OF SLIDE..................... 72"
SUBSLIDE FEED RATE.................. .050 TO 100 IPM
FLOOR TO TOP OF TABLE............... 44"
EQUIPPED WITH:
SERVO MOTOR ON CROSS SLIDE GE FANUC 30S RED CAP
POSITIVE INDEX BRACKET WITH TEN INDEX STOPS AT 0, 45, 90, 120, 150, 210, 240, 270, AND 315 DEGREES
TABLE CLAMPING BY SPRING STEEL BAND THAT ACTS ON A NUMBER OF SEGMENTED SHOES AROUND THE TABLE
TOP GRADUATED TO READ IN 1/2 DEGREES

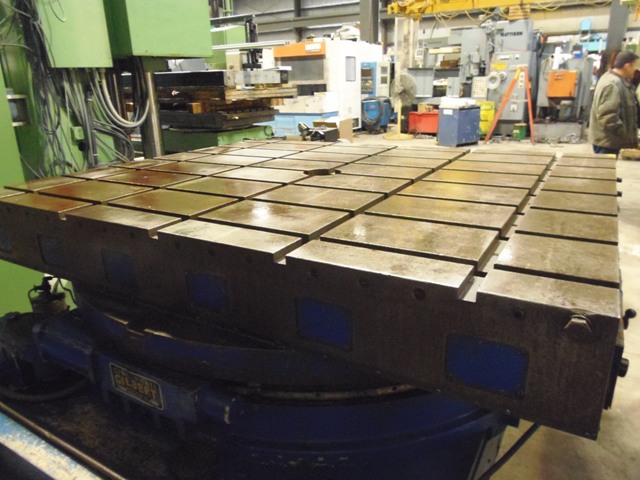

7 T-SLOTS 8.5" ON CENTER, FIRST T SLOT 4.5" FROM EDGE
HAND CONTROL LEVERS
TABLE REFURBISHED 2014
