Specifications
Equipped With
GENERAL SPECIFICATIONS

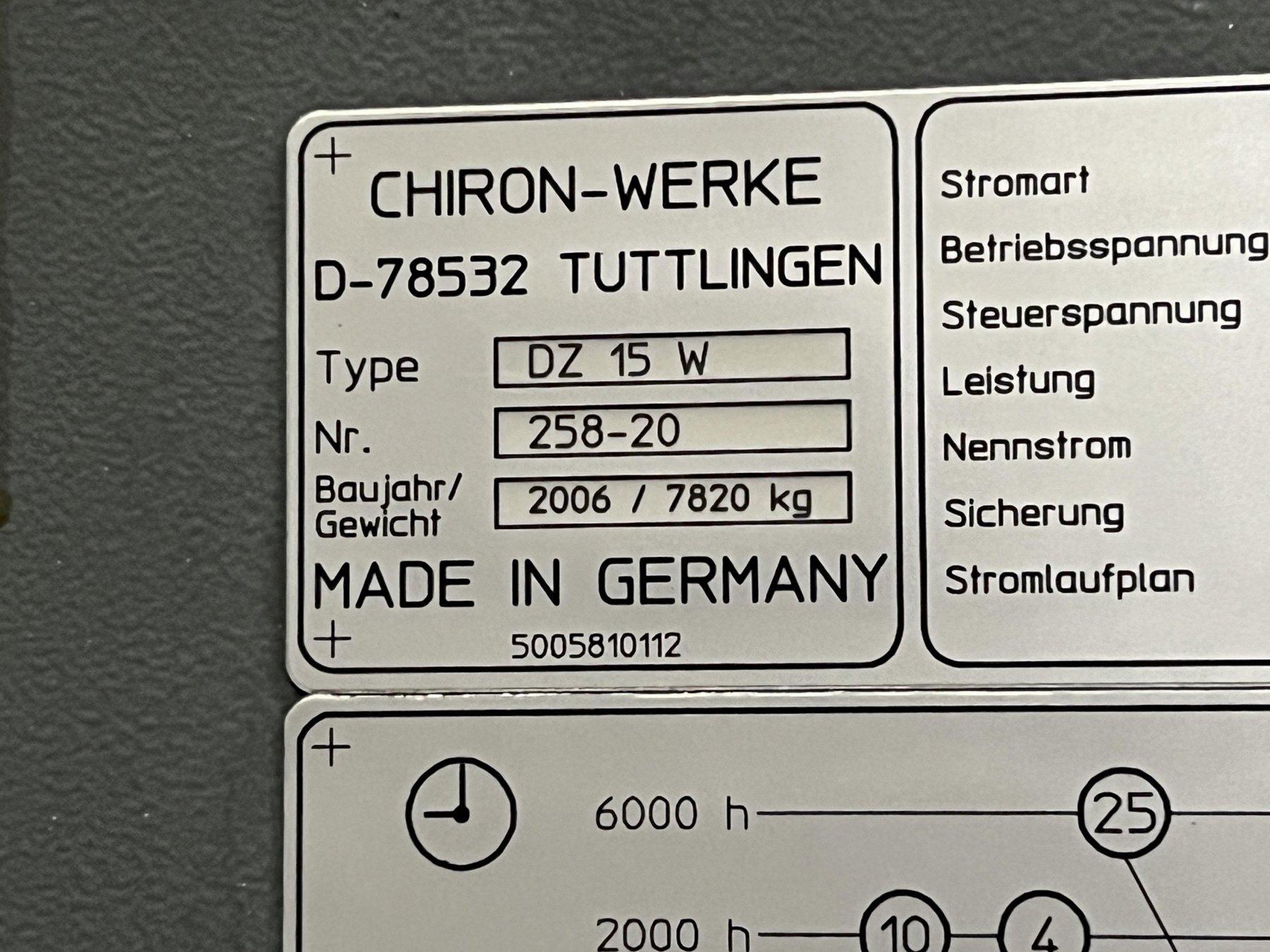

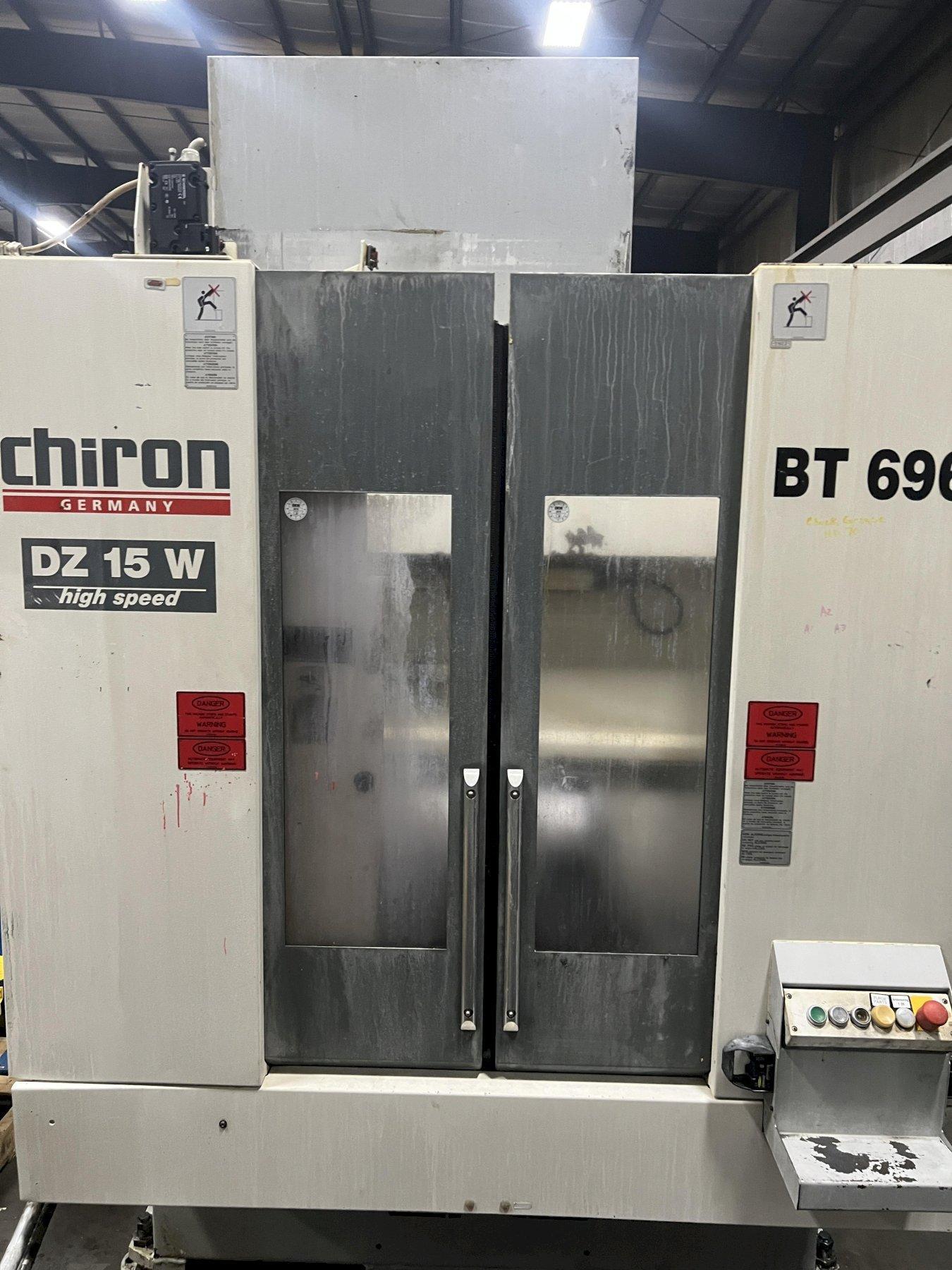

MAKE...................... CHIRON
MODEL..................... DZ 15 W HIGH SPEED
SERIAL NUMBER............. 258-20
AGE (YEAR)................ 2006
X AXIS TRAVEL............. (300 MM)
Y AXIS TRAVEL............. (400 MM)
Z AXIS TRAVEL............. (425 MM)
NO. OF SPINDLES........... 2
SPINDLE TAPER............. CAT 40
SPINDLE SPEEDS............ 12,000 RPM
SPINDLE MOTOR............. 18 HP (14 KW)
TOOL CHANGER.............. 2 X 12
DIMENSIONS................
WEIGHT.................... 16,000 LBS. 7220 KG
EQUIPPED WITH:

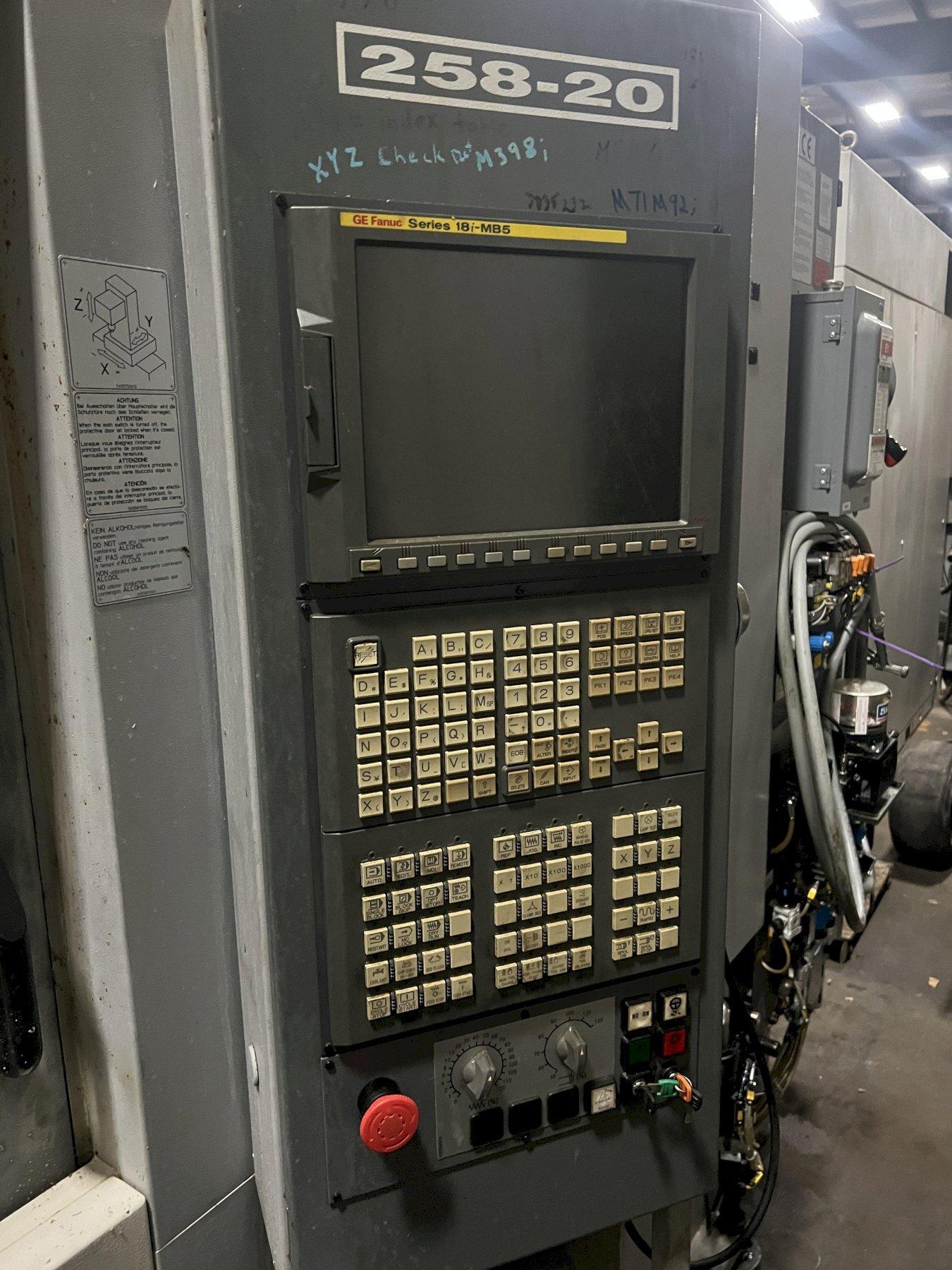

FANUC 18i-MB5 CNC CONTROL

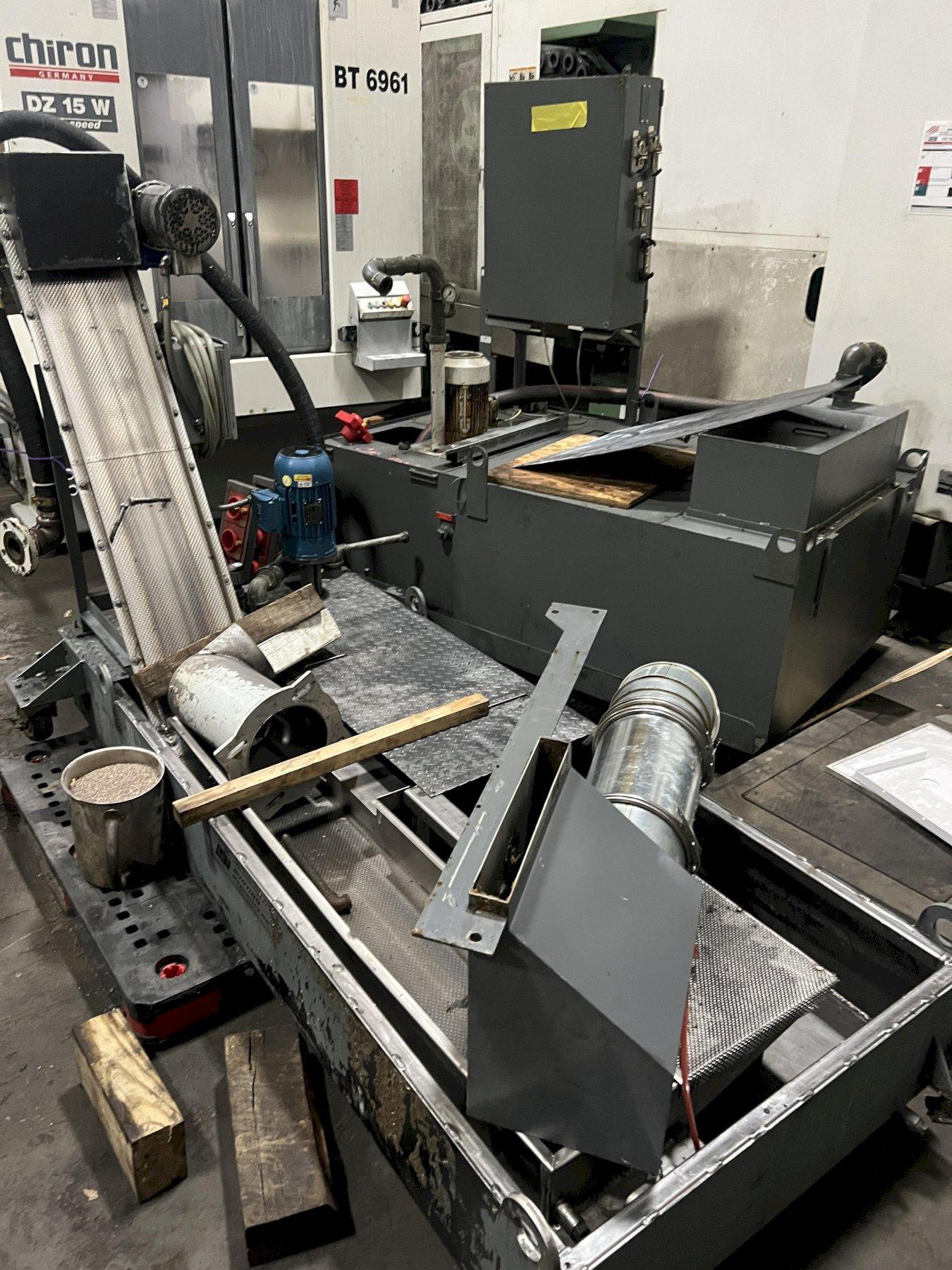

CHIP CONVEYOR
SPECIFICATIONS SUBJECT TO VERIFICATION
