GENERAL SPECIFICATIONS:
MANUFACTURER............................ CLAUSING KONDIA
MODEL................................... FV-300
SERIAL # ............................... AB582
TABLE SIZE.............................. 11" x 58"
TRAVEL (X).............................. 34"
TRAVEL (Y).............................. 15"
TRAVEL (KNEE)........................... 15"
TRAVEL (QUILL) ......................... 5"
TRAVEL (RAM)............................ 23"
SPINDLE MOTOR........................... 3 HP
SPINDLE TAPER .......................... R8
SPINDLE SPEED........................... 60-4000 RPM
WEIGHT (APPROX.) 3,700 LBS.
EQUIPPED WITH:

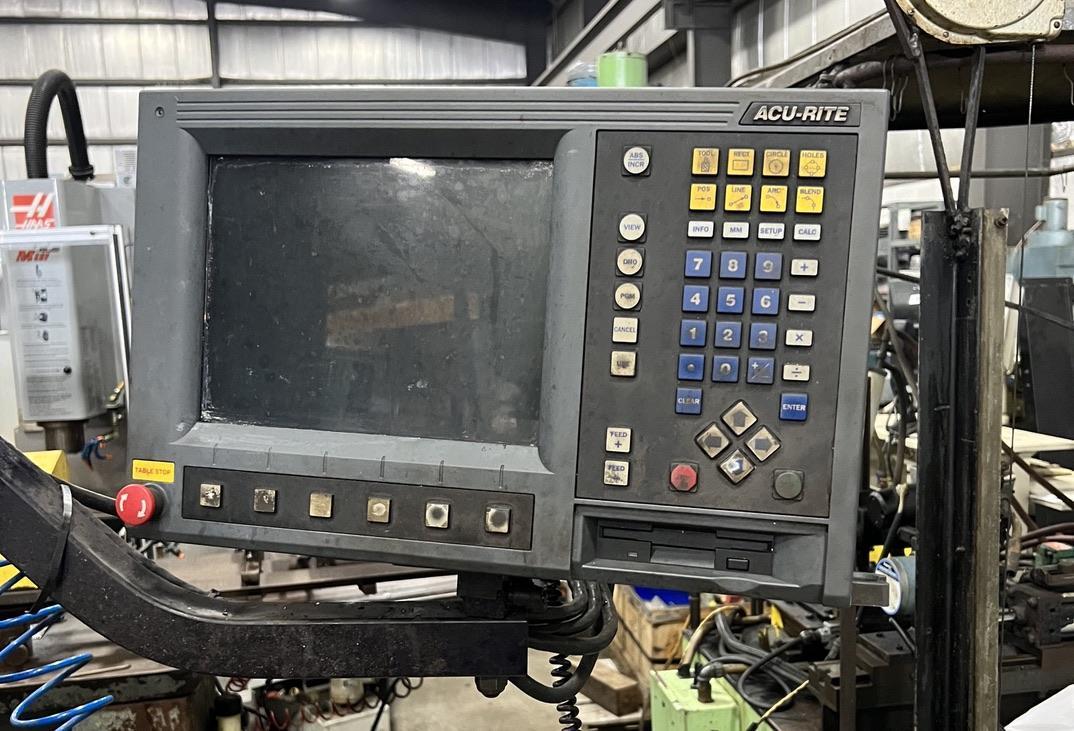

ACU-RITE MILPWR 3 AXIS CNC CONTROL AND READOUT
GLASS SCALES, 10" COLOR DISPLAY, CONVERSATIONAL PROGRAMMING
CONTROL AND MILL MANUALS
WAY COVERS
TEMPORARY SPECIFICATIONS SUBJECT TO VERIFICATION
