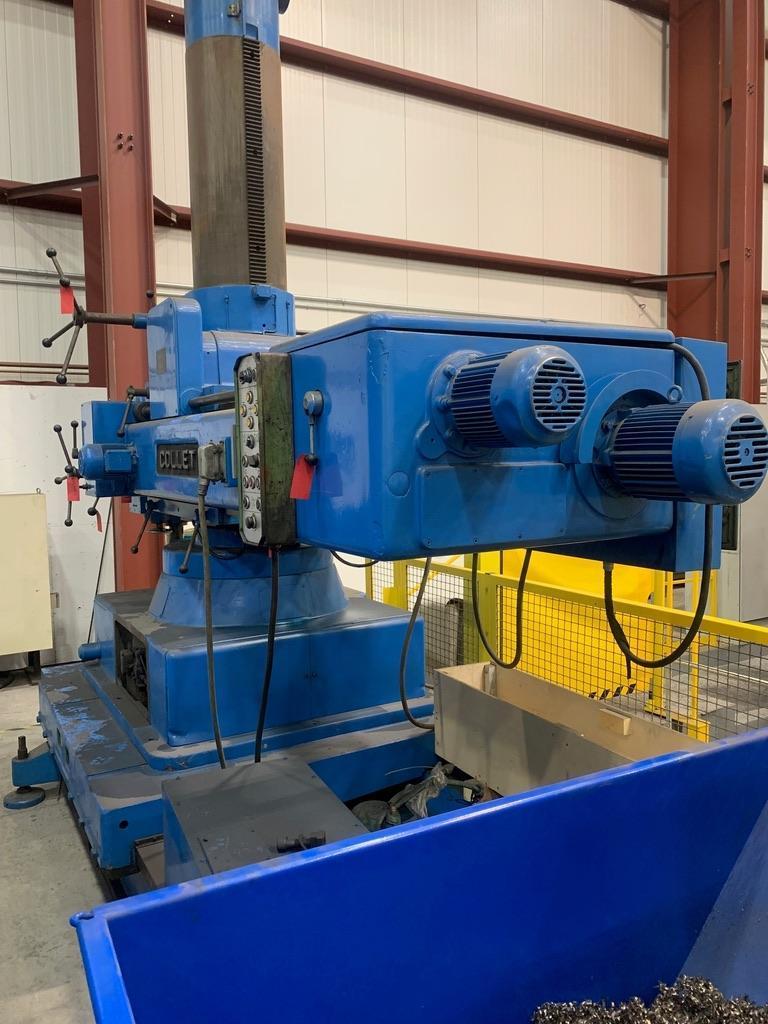

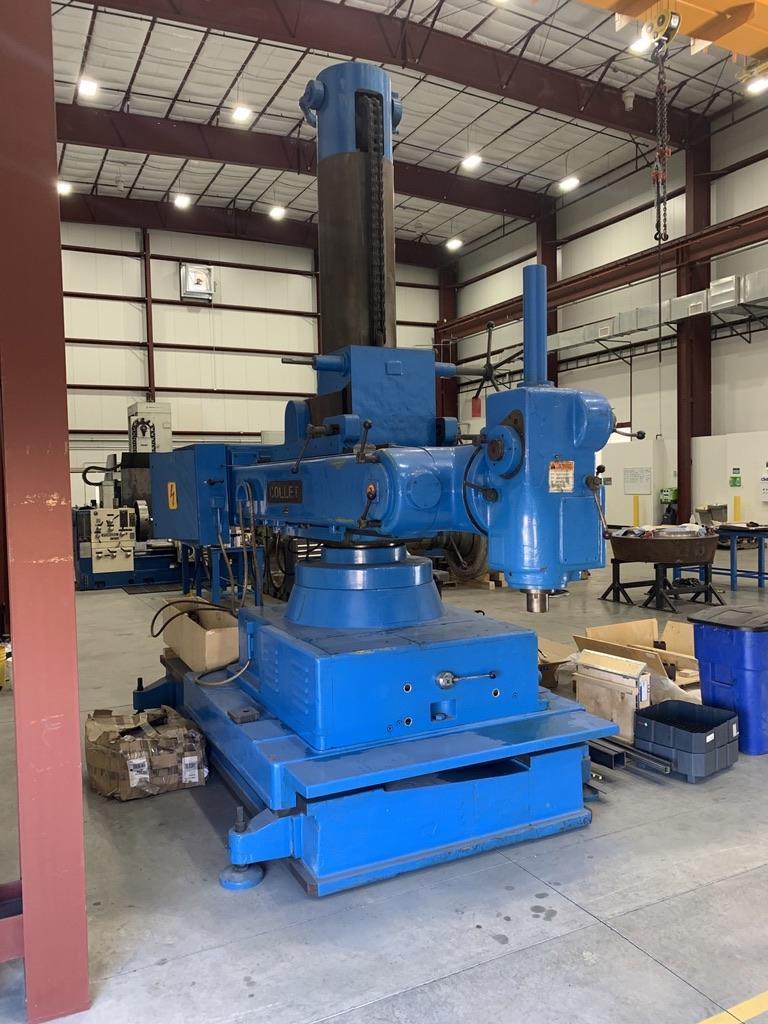

COLLET PORTABLE DRILL, MODEL BUV2000, MORSE 5 TAPER, DRILLING HEAD CAN BE ROTATED, SWIVELLED, AND TRAVERSED

MAKE................................... COLLET
MODEL.................................. BUV2000
SERIAL NUMBER.......................... 11897
AGE (YEAR)............................. 1969
SPINDLE TAPER.......................... MORSE 5
QUILL FEED............................. 14" GEAR FEED
SPINDLE SPEEDS......................... 18-900 RPM

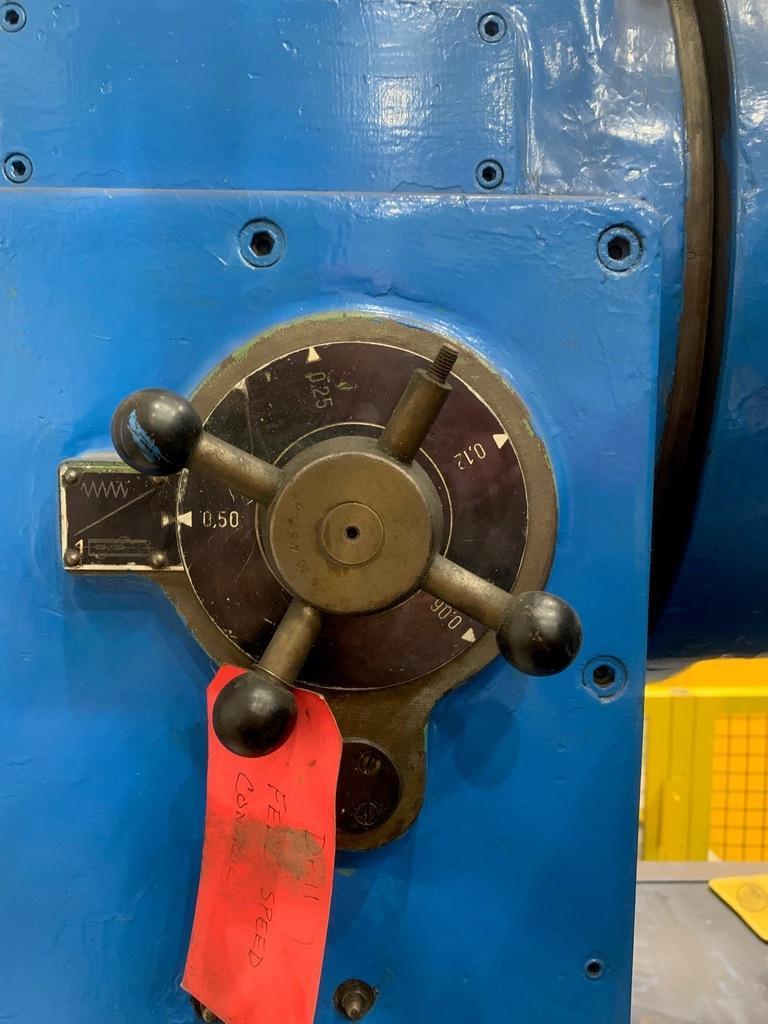

FEEDS.................................. .06/.12/.25/.50
VERTICAL TRAVEL OF ARM................. 40"
DISTANCE FROM SPINDLE FACE TO FLOOR
   MIN
     QUILL RETRACTED................... 50"
     QUILL FULL EXTENSION.............. 36"
   MAX
      QUILL RETRACTED.................. 90"
BASE TRAVELS ON SQUARE WAYS............ 60"
COLUMN BEAM HORIZONTAL TRAVELS......... 48"
OVERALL HEIGHT
   ON BOX WAYS......................... 14'
   OFF BOX WAYS........................ 12'8"
HEAD ROTATION.......................... 360 DEGREES
FORWARD TILT OF HEAD................... +/- 90 DEG.
SPINDLE MOTOR.......................... 7.3 HP (5.5 KW)
FEED MOTOR............................. 4 HP (3 KW)
MACHINE NET WEIGHT..................... 36,000 LBS

EQUIPPED WITH:

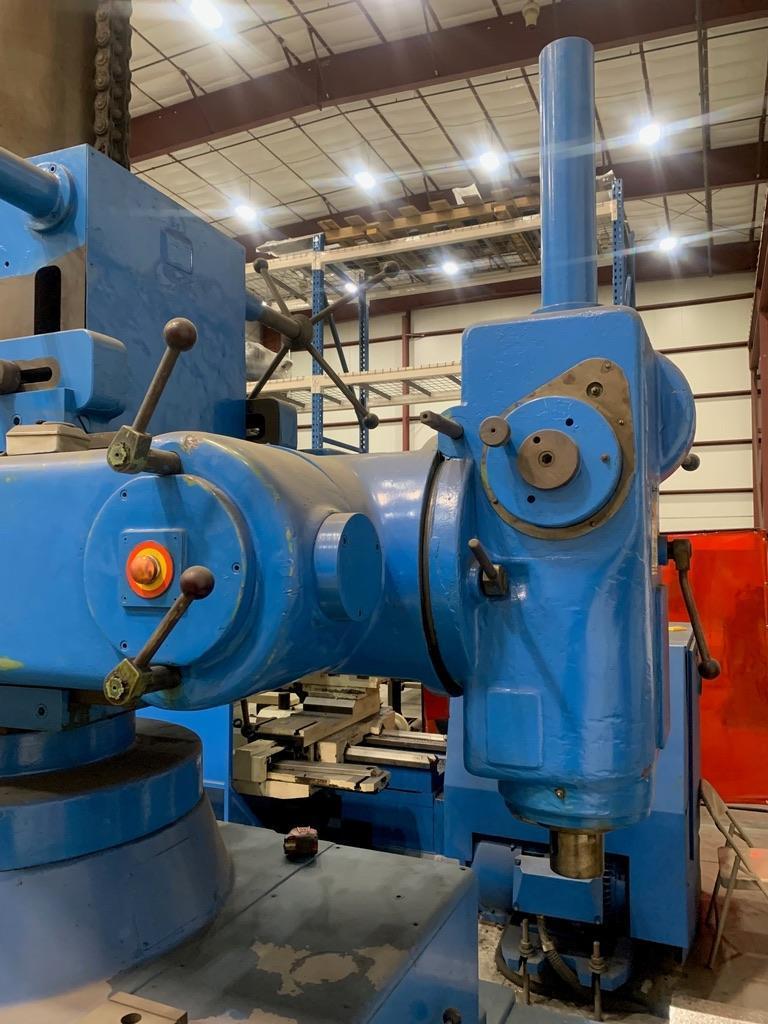

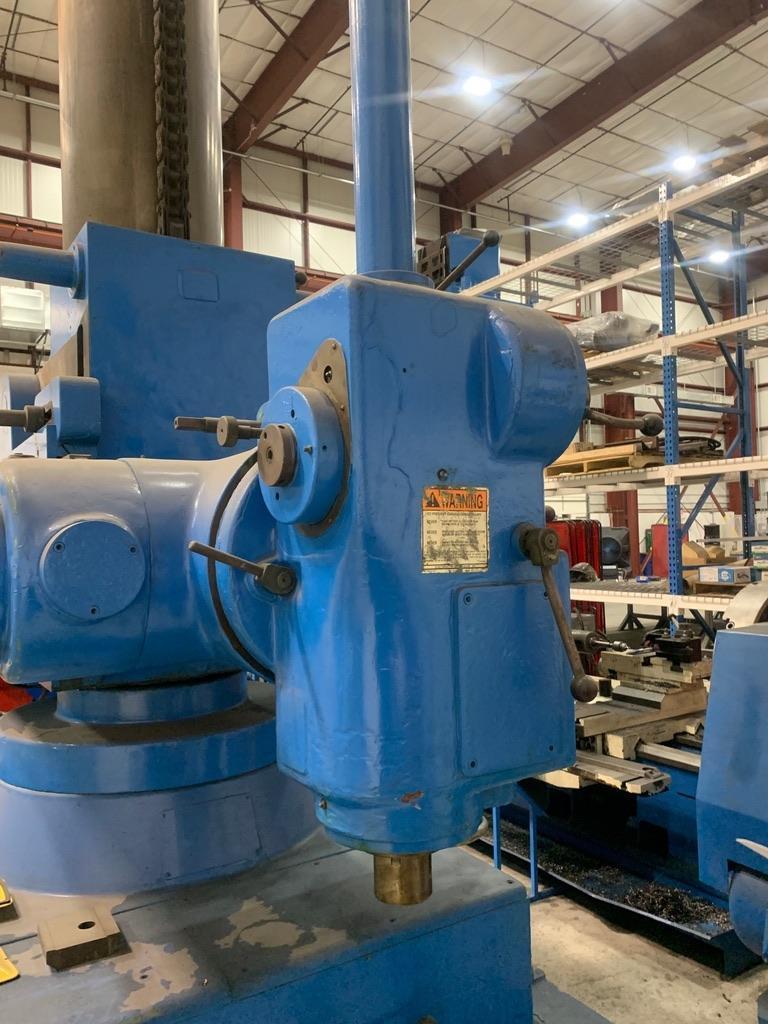

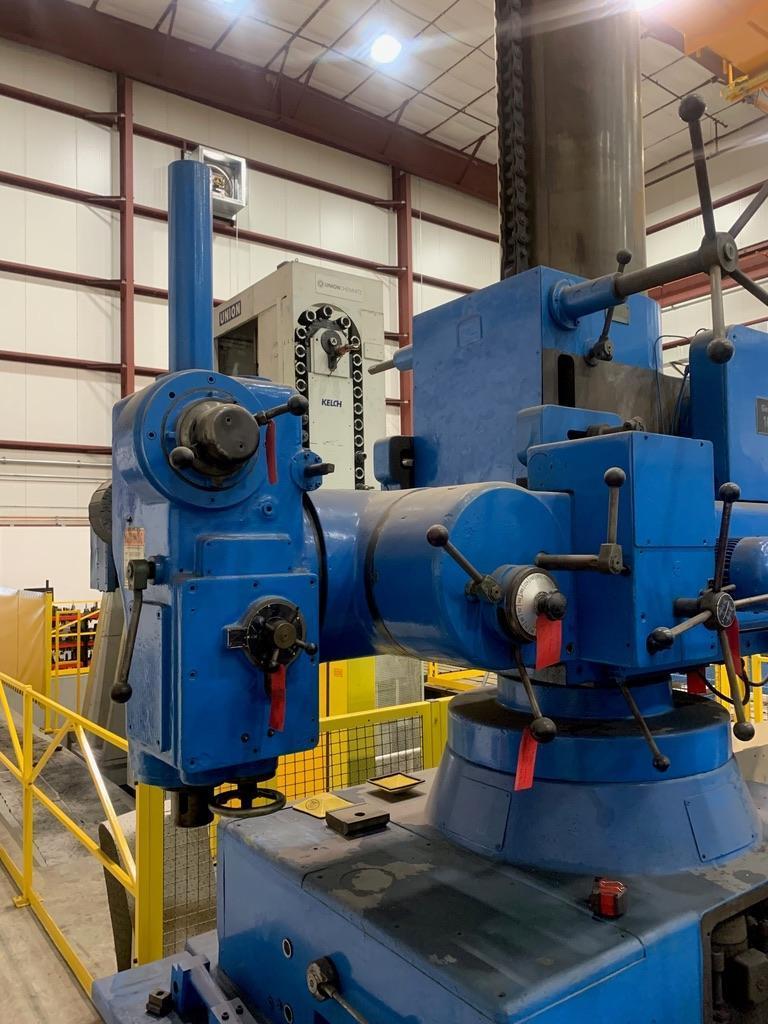

DRILLING HEAD CAN BE ROTATED, SWIVELLED, AND TRAVERSED
BUILT IN BAIL TO FACILITATE LIFTING OF MACHINE BY CRANE
SHIPPING DIMENSIONS
BASE 12' X 9' X 5' TALL 8,200 LBS
MACHINE 13' X 8' X 12' 4" TALL 27,800 LBS.

SPECIFICATIONS SUBJECT TO VERIFICATION
