Specifications
Equipped With
GENERAL SPECIFICATIONS:

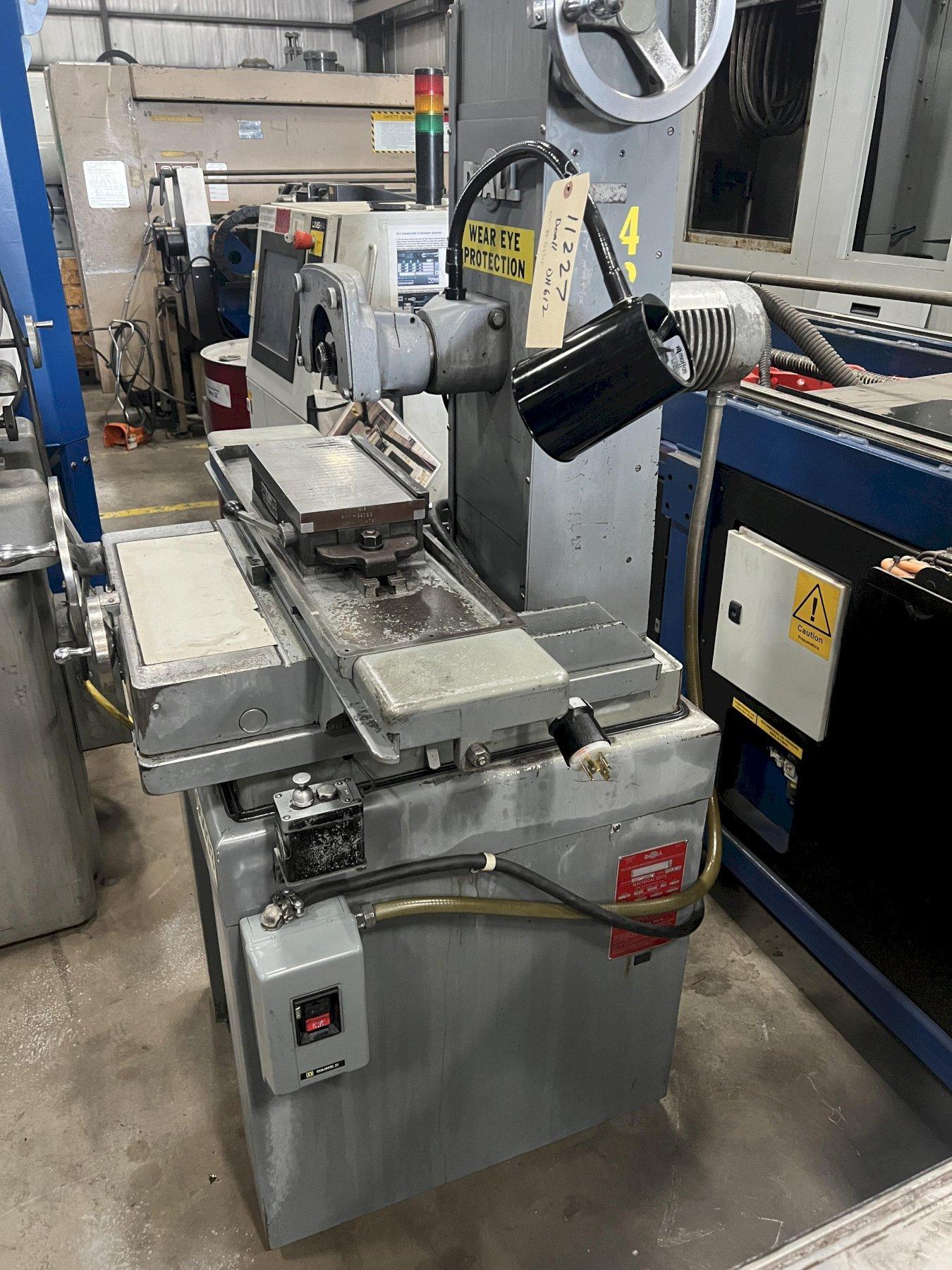

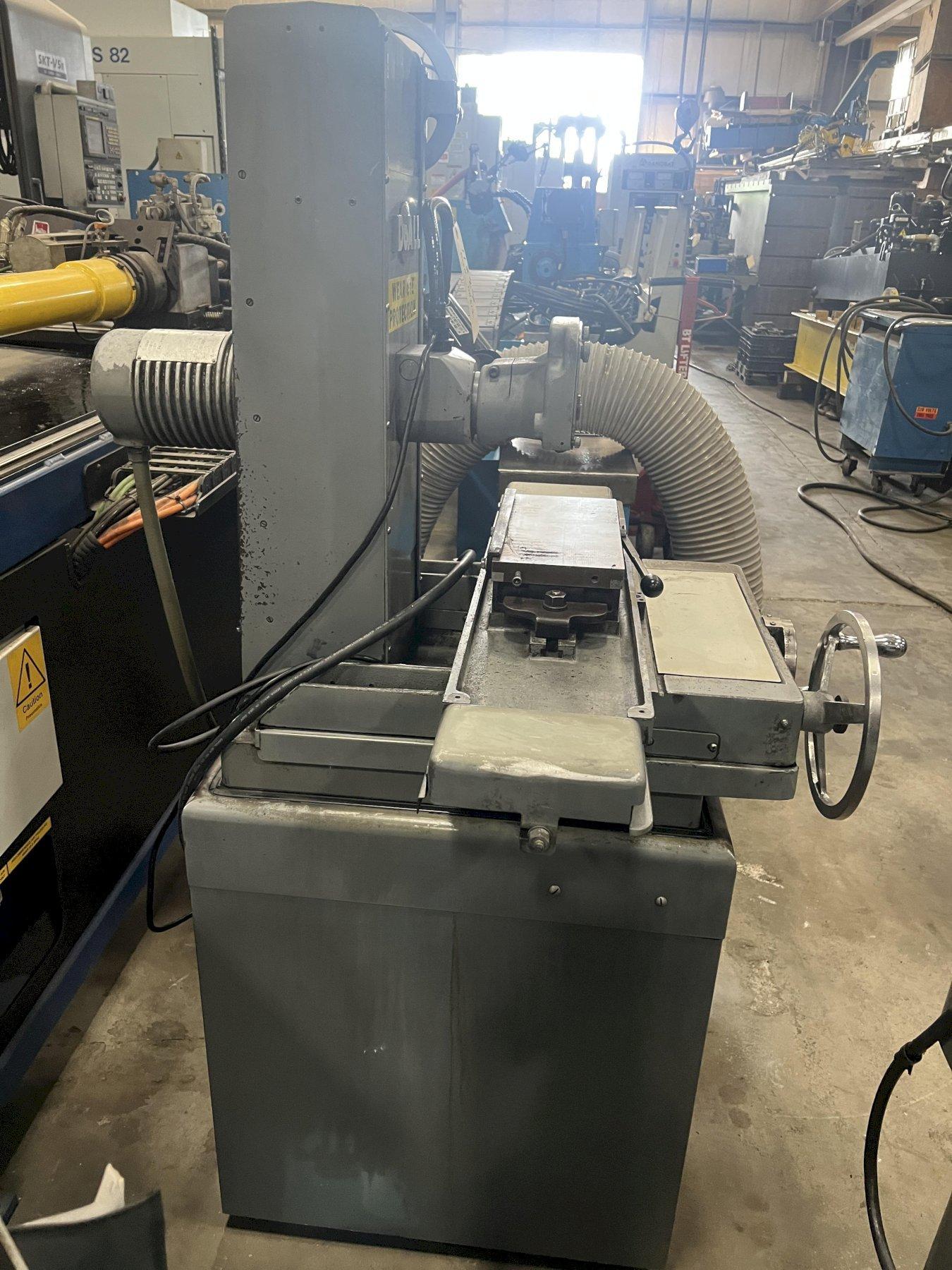

MAKE.................... DOALL
MODEL................... DH-612
SERIAL NUMBER........... B8-703305
AGE (YEAR).............. 1970
CHUCK SIZE.............. 6" X 12"
TABLE SIZE.............. 6" X 12"
GRINDING WHEEL SIZE..... 7.5" X .5" X 1.25"
TABLE TRAVERSE.......... 7" X 13"
WORK HEIGHT CAP......... 12.5"
TABLE SPEED............. 5-60 FPM
HAND TRANSVERSE FEED.... .0005"
VERTICAL WHEEL HEAD ADJ. .0001"
WHEEL SURFACE SPEED..... 6000 FPM
SPINDLE MOTOR........... 1 HP
HYDRAULIC PUMP.......... 3 GAL
FLOOR SPACE............. 43" X 53" X 76" H
WEIGHT.................. 900 LBS
EQUIPPED WITH:
MANUAL TRANSVERSE SPEED
SPECIFICATIONS SUBJECT TO VERIFICATION
