Specifications
| CNC Control |
yes |
| Chuck Size |
18 inches |
| Center Distance |
40 inches |
| Turret Capacity |
12 |
| Tailstock |
yes |
Equipped With
GENERAL SPECIFICATIONS:

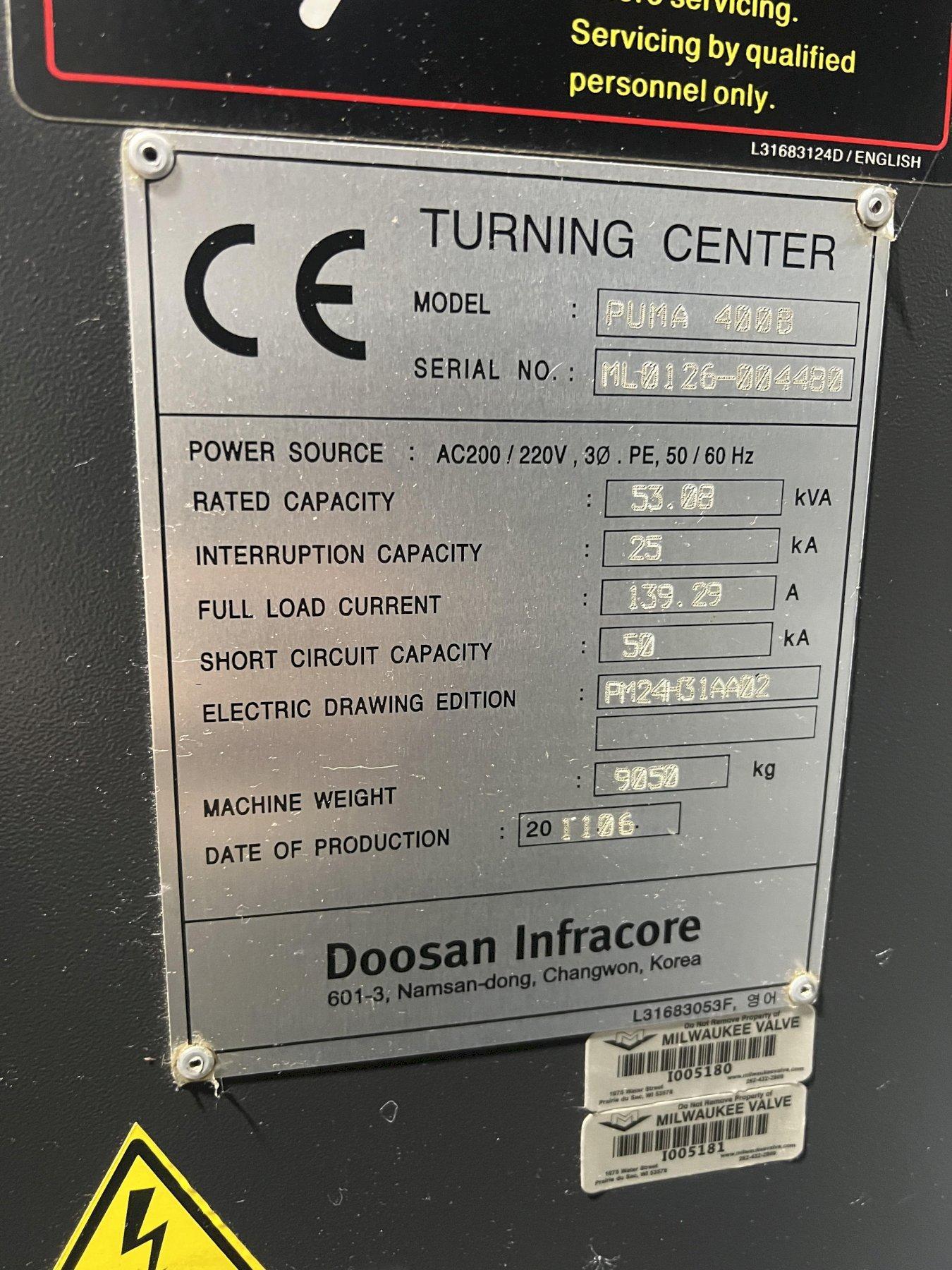

MAKE................. DOOSAN
MODEL................ PUMA 400 B
SERIAL NUMBER........ ML 0126-004480
AGE (YEAR)........... 2011
SWING OVER BED ...... 27.5" (700 MM)
SWING OVER SADDLE.... 23.2" (590 MM)
MAX MACHINING DIA.... 21.6" (550 MM)
MAX. WORK LENGTH..... 41" (1,043 MM)
DRAW TUBE DIA........ 4.62" (117.5 MM)
TRAVELS X-AXIS...... 14.25" (362 MM)
TRAVELS Z-AXIS...... 43.5" (1105 MM)
SPINDLE SPEEDS....... 20-2000 RPM
SPINDLE NOSE......... A2-11
SPINDLE BORE......... 5.19" (132 MM)
SPINDLE MOTOR........
CHUCK SIZE........... 18"

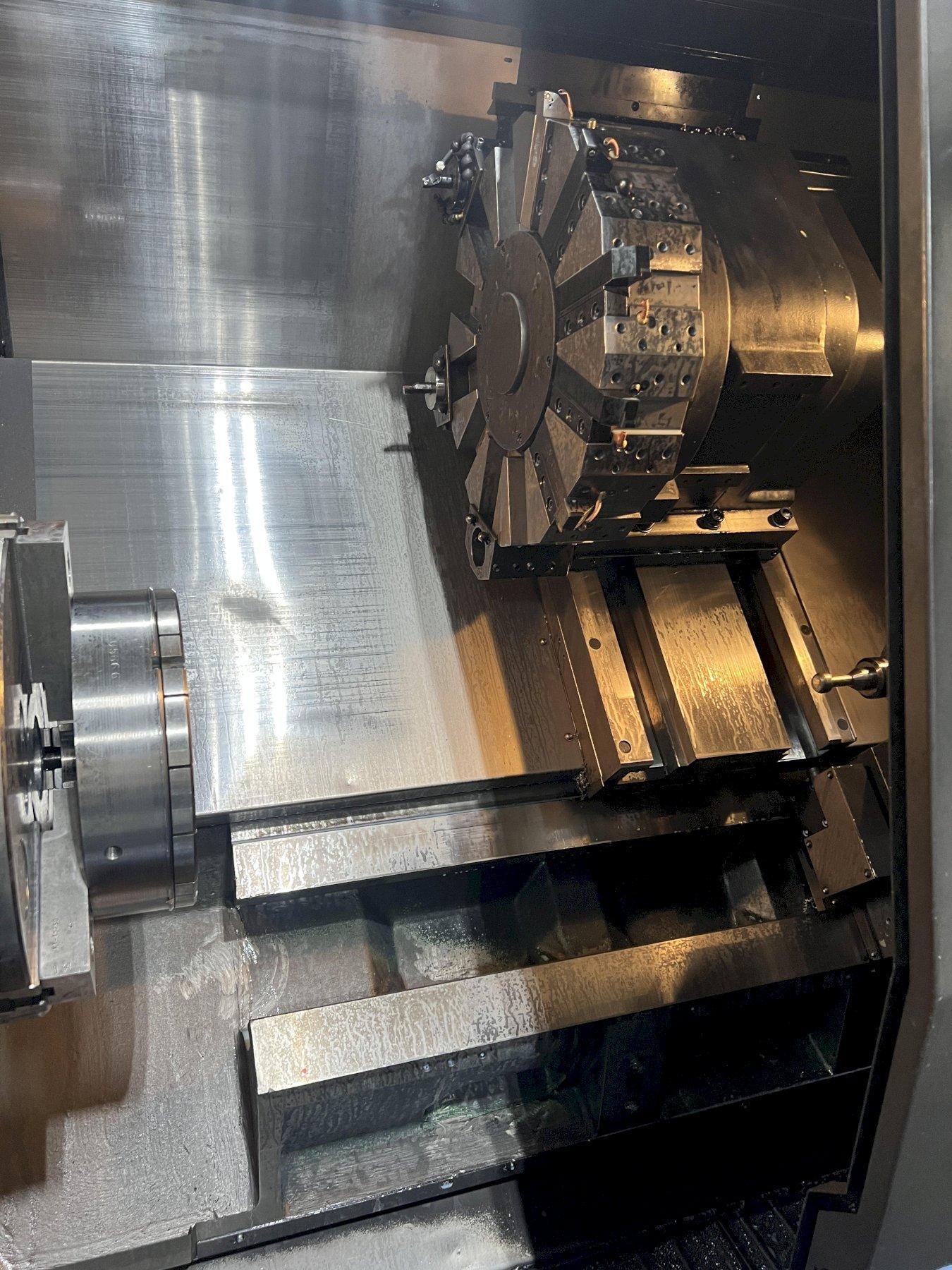

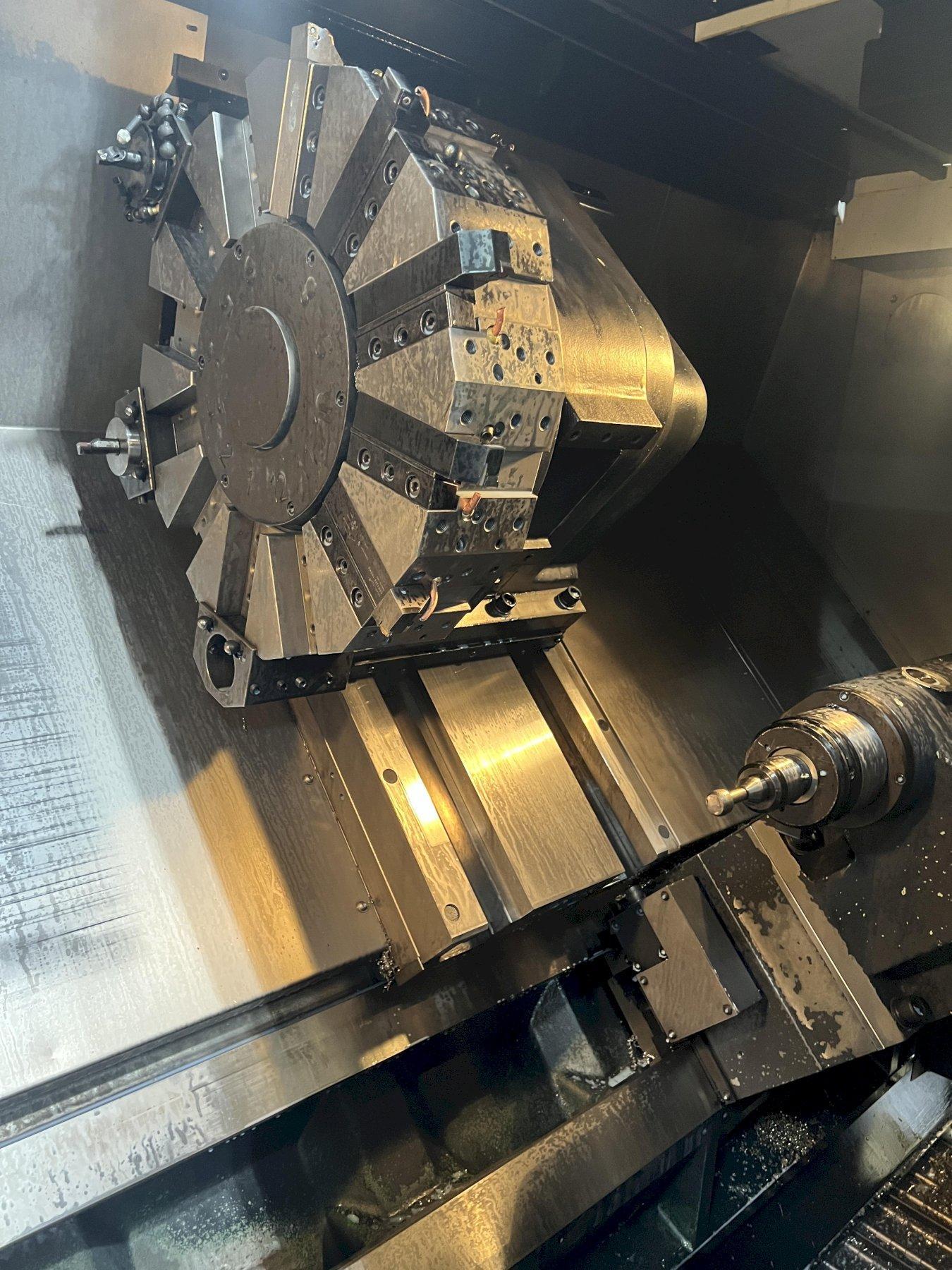

TOOL CHANGER......... 12 ATC
ELECTRICS............
WEIGHT............... 19,000 LBS.
DIMENSIONS........... 166" X 86" X 90" H
EQUIPPED WITH:

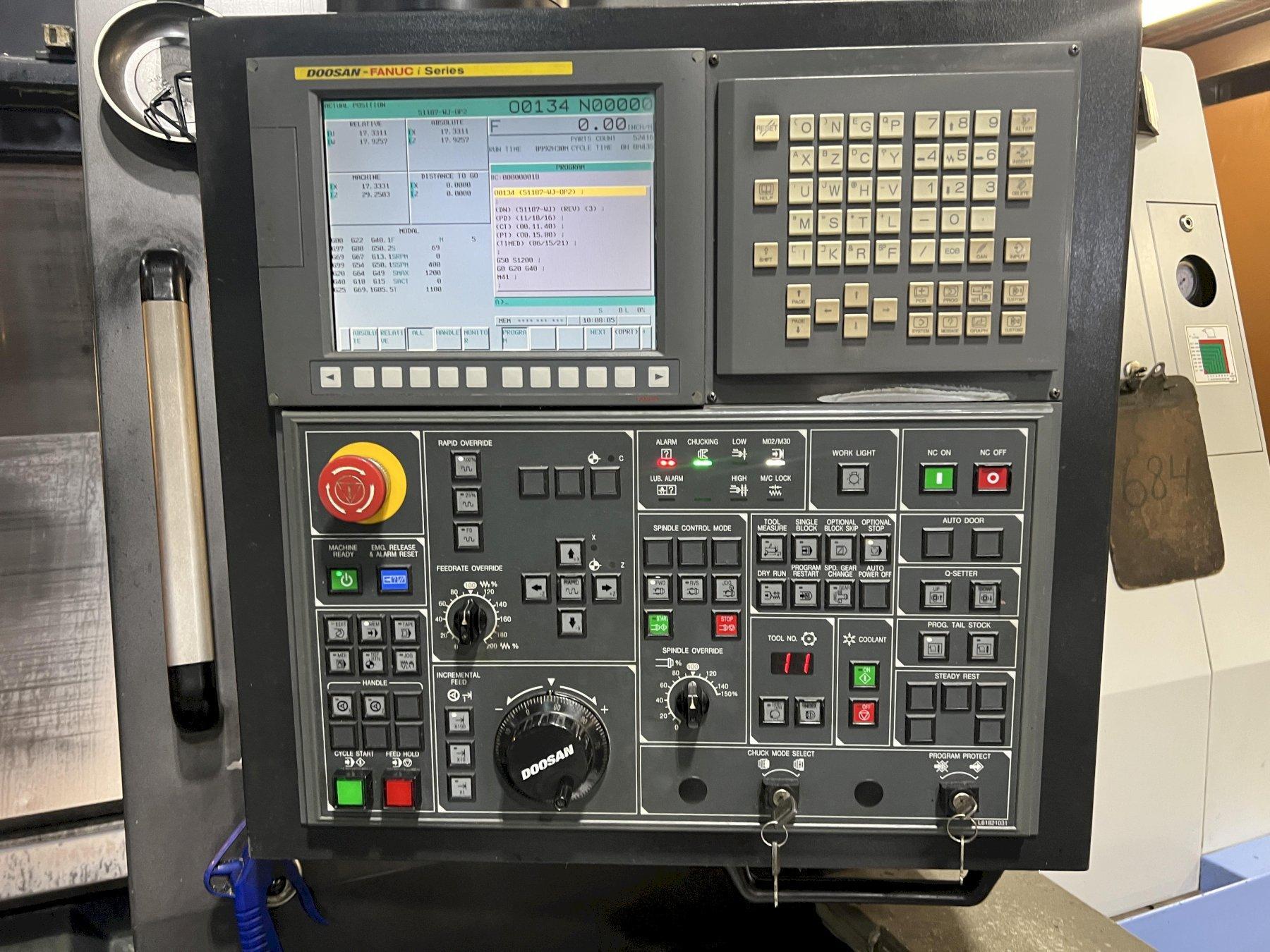

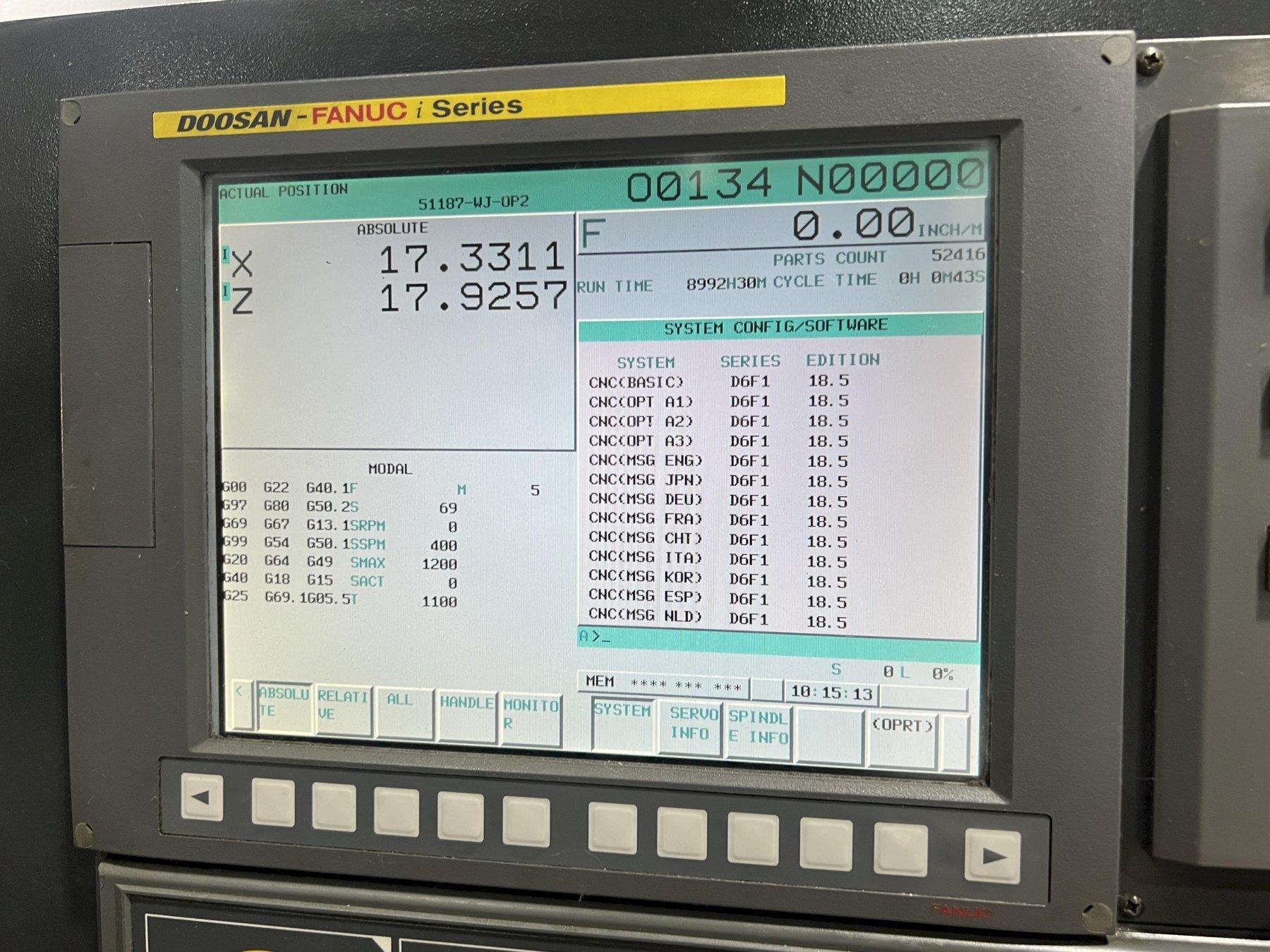

DOOSAN FANUC SERIES CNC CONTROL (21i-TB)

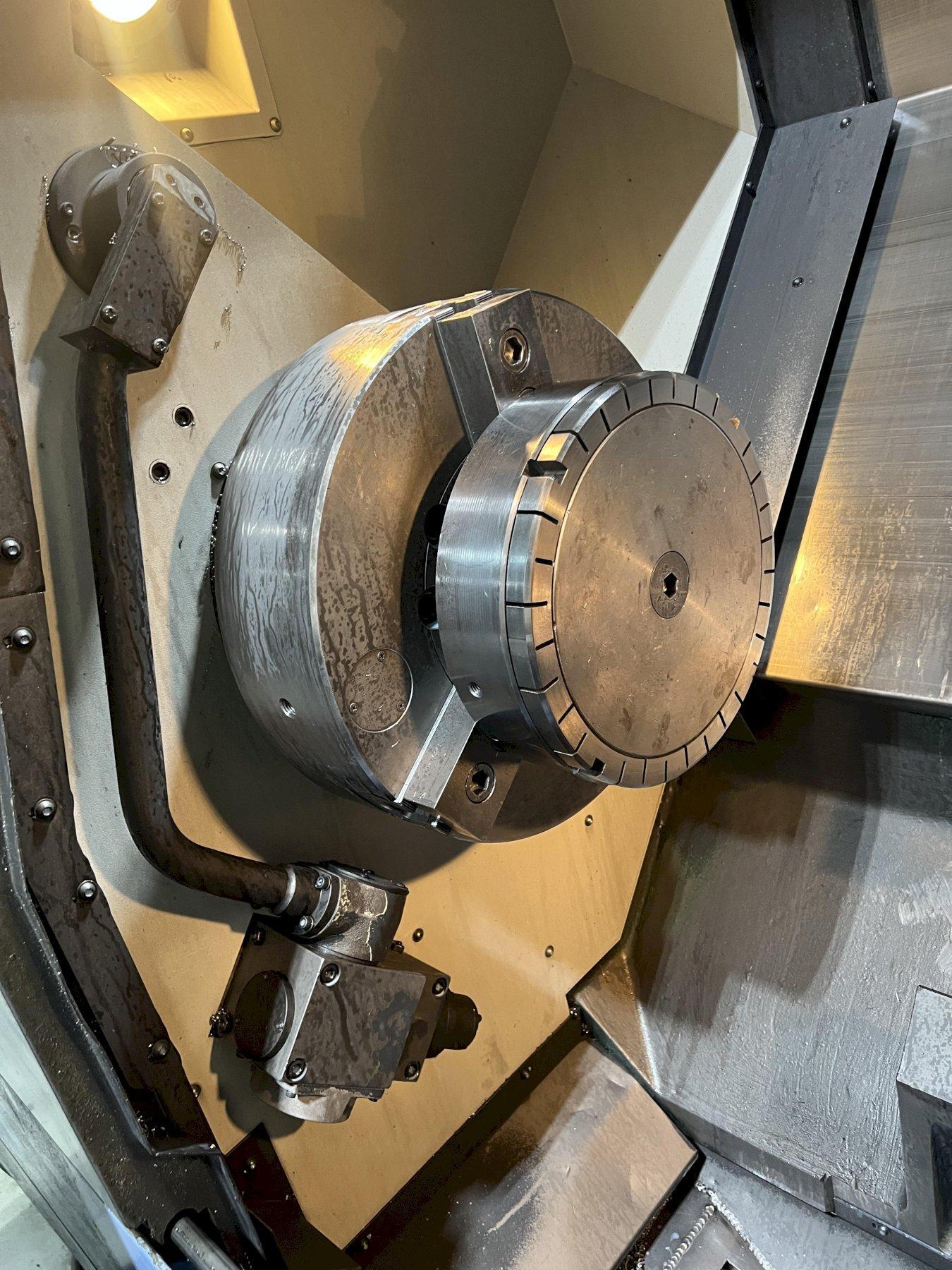

KITAGAWA B-18 3 JAW CHUCK
TAILSTOCK
SPECIFICATIONS SUBJECT TO VERIFICATION
