Fanuc Robodrill, Model T14-ID with Fanuc 16iMb control

Brand
FANUC

Model
ROBODRILL T14-iD

Stock #
10721

Condition
Used

Year
2004

Specifications

Equipped With

GENERAL SPECIFICATIONS:

MAKE................. FANUC

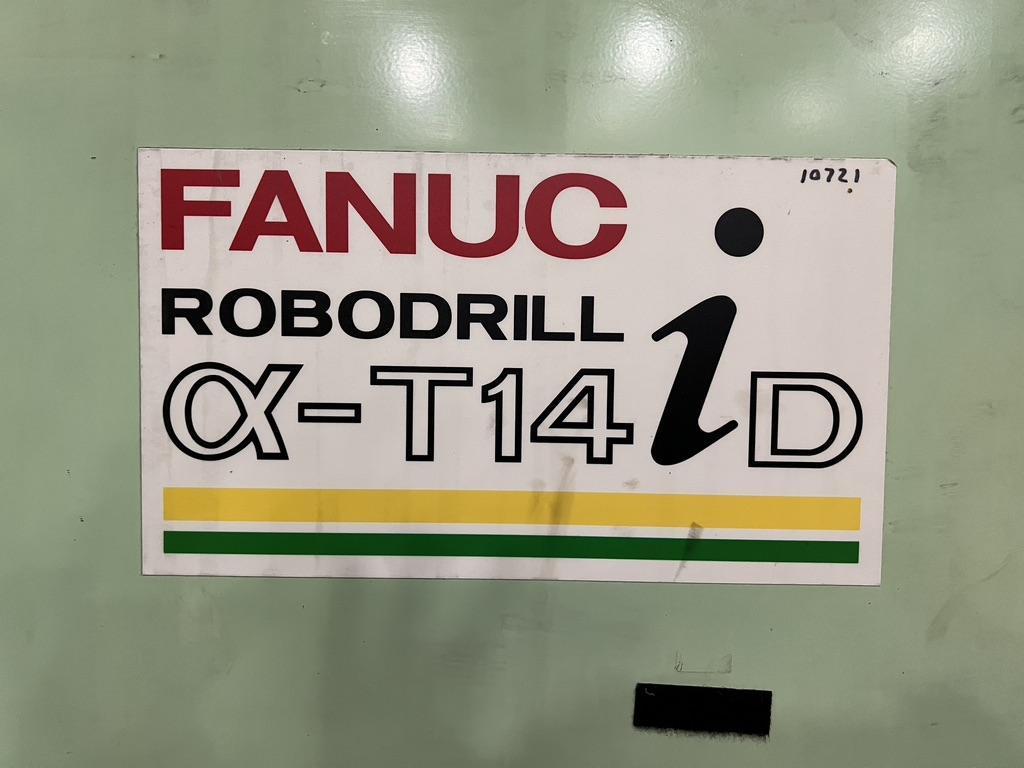

MODEL................ ROBODRILL ALPHA T14-iD
SERIAL NUMBER........ P046UG875
TYPE #............... A04B-0080-B114#BB
AGE (YEAR)........... 2004
TABLE SIZE........... 24.8" X 13"
TABLE WEIGHT CAP..... 660 LBS. APPROX
TRAVELS (X).......... 11.8" (300 MM)
TRAVELS (Y).......... 11.8" (300 MM)
TRAVELS (Z).......... 13" (330 MM)
RAPIDS............... 2125 IPM
SPINDLE MAX SPEED.... 10,000 RPM
SPINDLE TAPER........ 30
VOLTAGE.............. 220 VOLTS

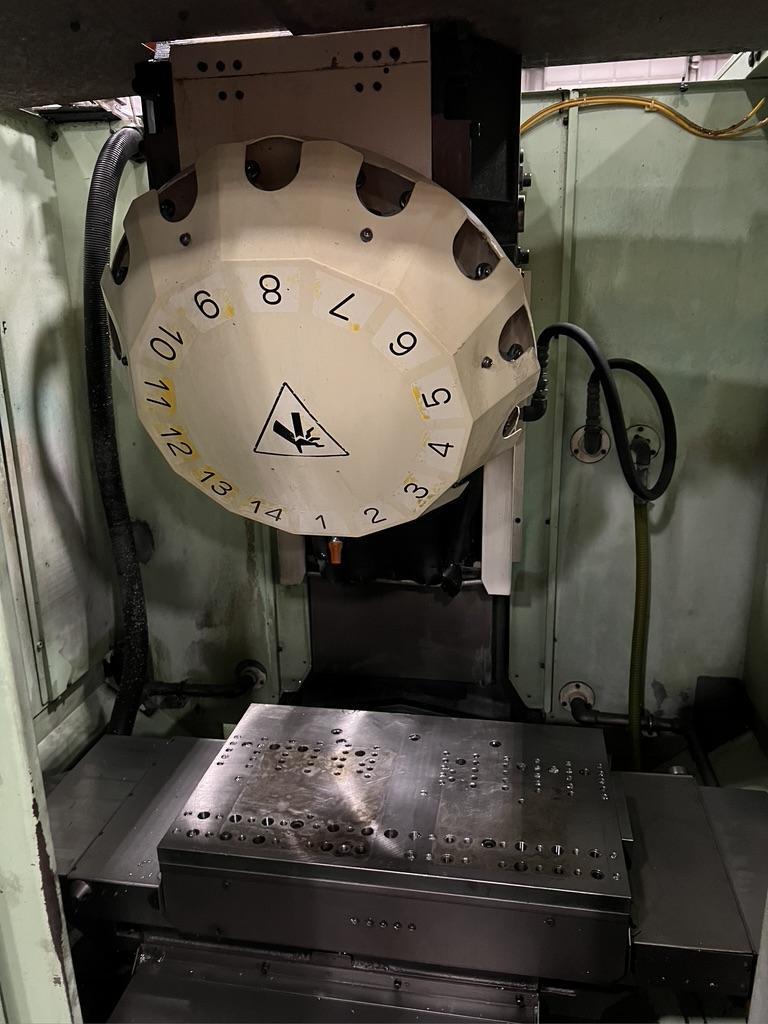

TURRET............... 14 STATIONS

EQUIPPED WITH:
FANUC 16iMB CNC CONTROL

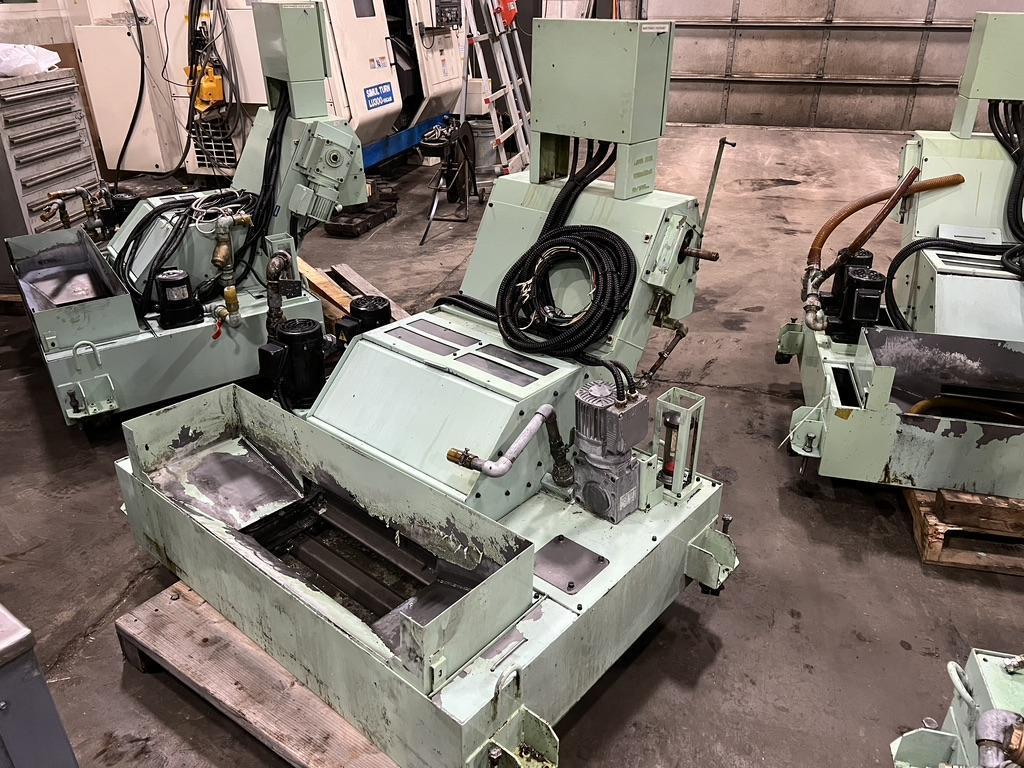

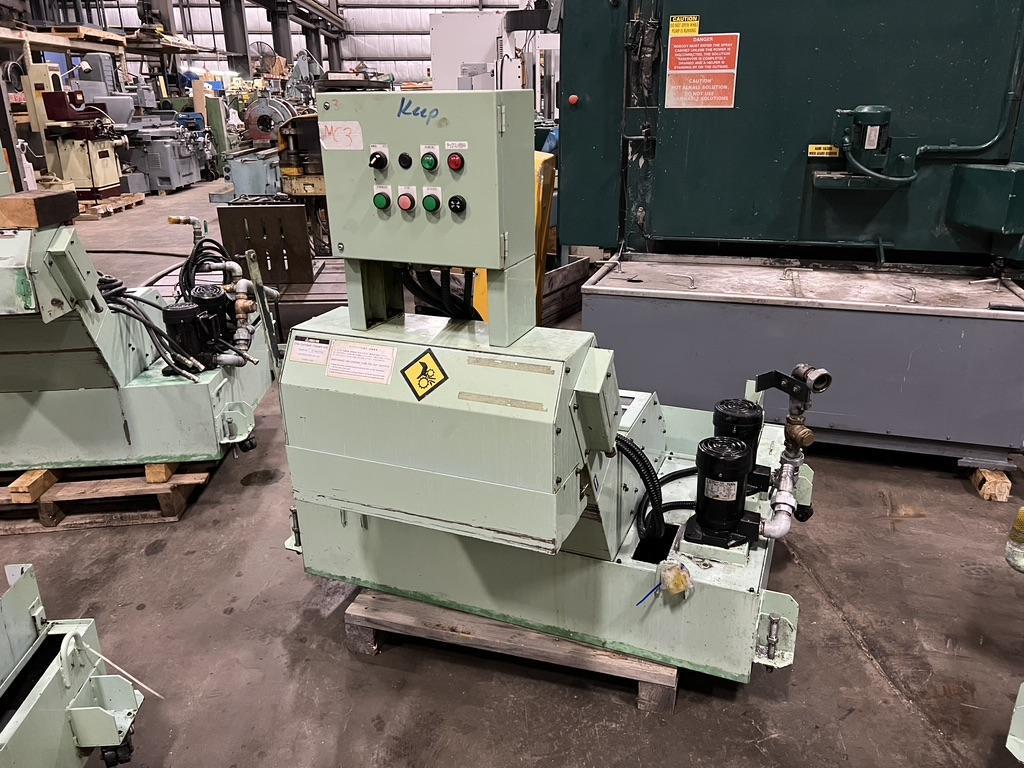

COOLANT/CHIP CONVEYOR
