Specifications
Equipped With

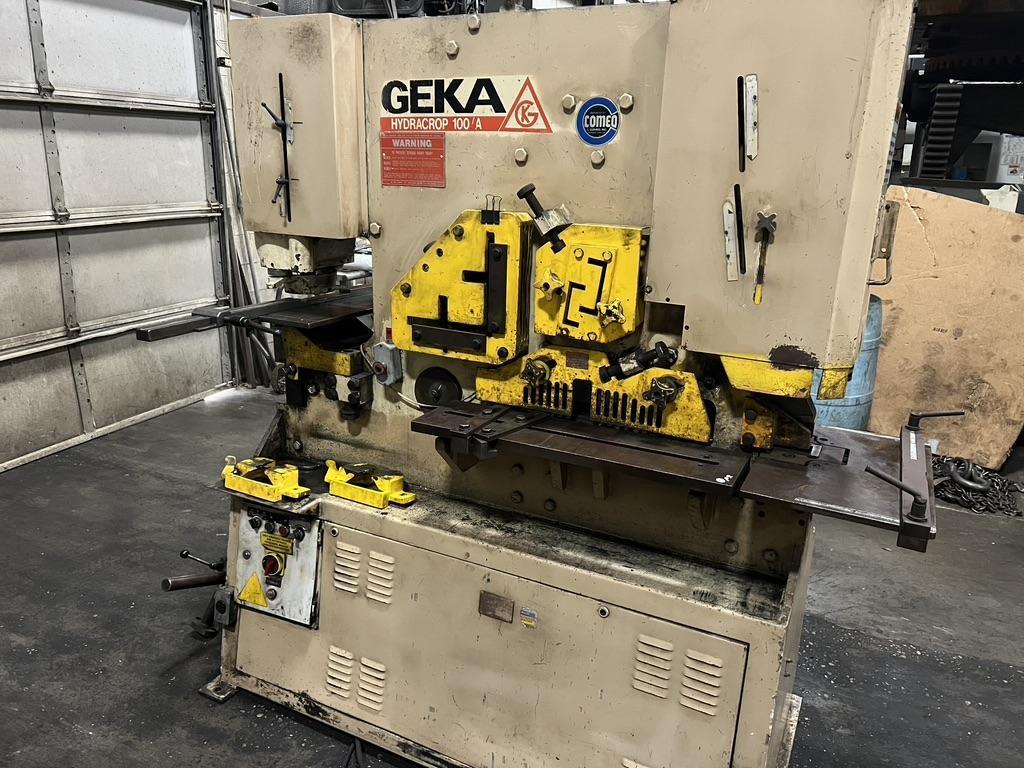

GENERAL SPECIFICATIONS:
MANUFACTURER.............. GEKA
MODEL..................... 100A
SERIAL NUMBER............. 15211
POWER..................... 100 TON
MAXIMUM CAPACITY.......... 1-3/16" X 1"
DEPTH OF THROAT........... 12"
LENGTH OF ADJUSTABLE STROKE-MAX. 3"
WORKING HEIGHT FROM FLOOR 44"
ELECTRICS.................. 440V / 3PH

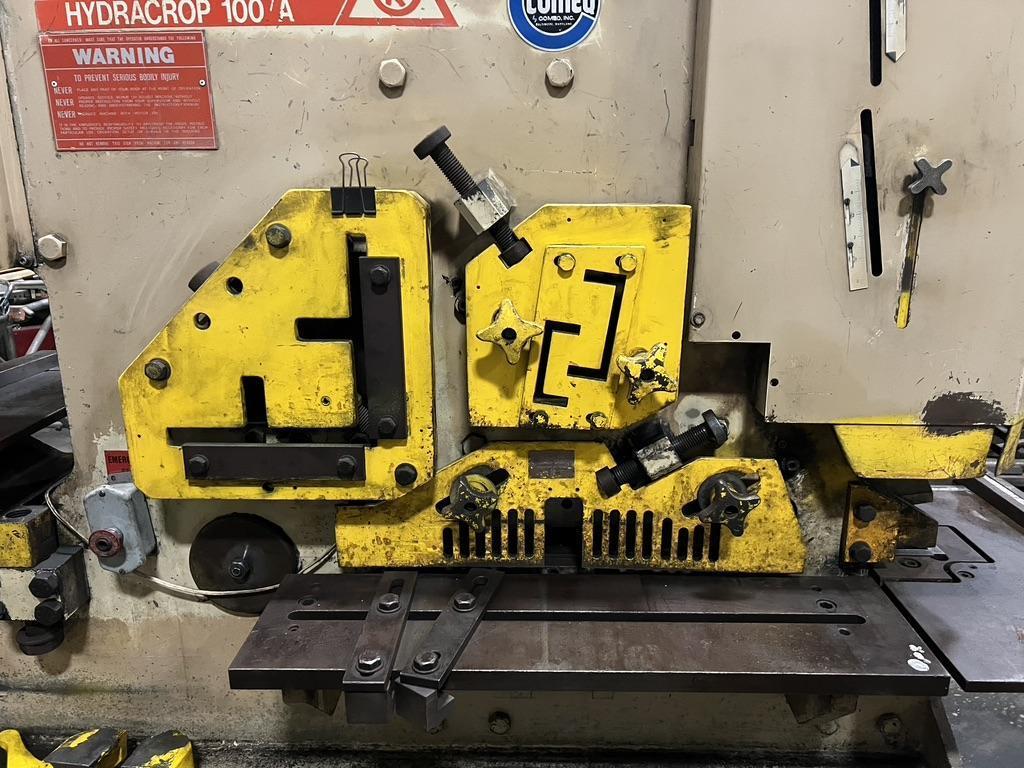

NOTCHER:
COPER-NOTCHER WITH RECTANGULAR COPER
WIDTH 2"
DEPTH 3-1/2"
PLATES, THICKNESS 1/2"
ANGLES, THICKNESS 1/2"
COPER-NOTCHER WITH OPTIONAL V-NOTCHER 3-1/2"
WORKING HEIGHT FROM FLOOR 39"
ANGLE SHEAR:
ANGLES, SQUARE-90 DEGREE CUT 6" X 6" X 1/2"
6" X 6" X 5/8"
ANGLES UP TO 45 DEGREE CUT (LEG IN) 3" X 3" X 5/16"
WITH SPECIAL BLADES (SLIGHT DISTORTION) 6" X 6" X 5/8"
BAR SHEAR:
ROUND BAR 2"
SQUARE BAR 2"
CHANNELS 6"
I BEAM 6"
PLATE SHEAR:
FLAT BAR 24" X 5/8"
16" X 3/4"
12" X 1"
USEABLE CUTTING LENGTH 23-3/4"
WORKING HEIGHT FROM FLOOR 38"
CHANNEL SHEAR:
4.5" x 1.25"
3.5" x 1.25"
OTHER DETAILS:
33 STROKES PER MINUTE WITH 3/4" TRAVEL
MOTOR HORSEPOWER 12
LENGTH OF MACHINE 84"
WIDTH OF MACHINE 60"
HEIGHT OF MACHINE 84"
NET WEIGHT 7,000 LBS.
