Specifications
Equipped With
GENERAL SPECIFICATIONS:

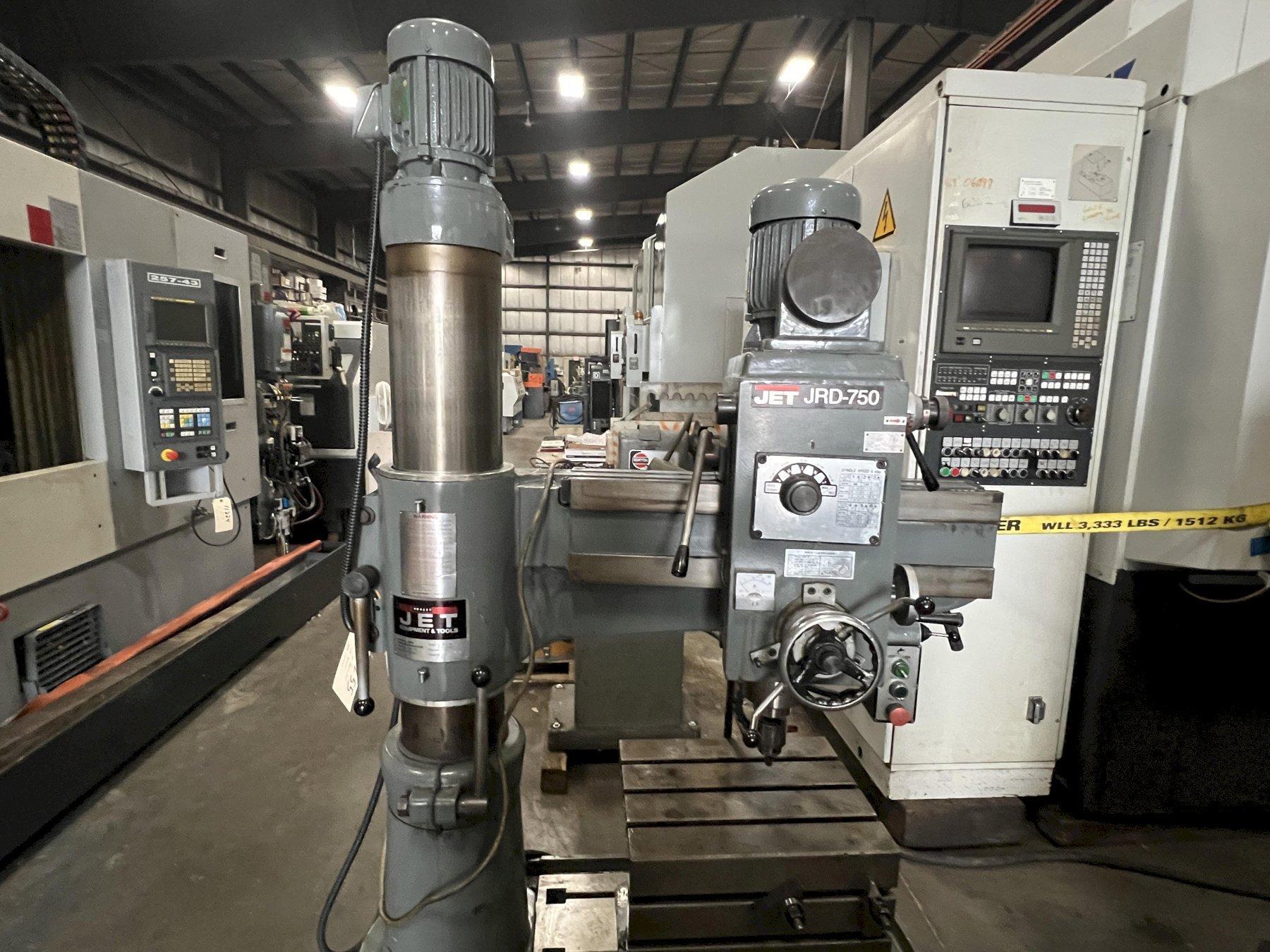

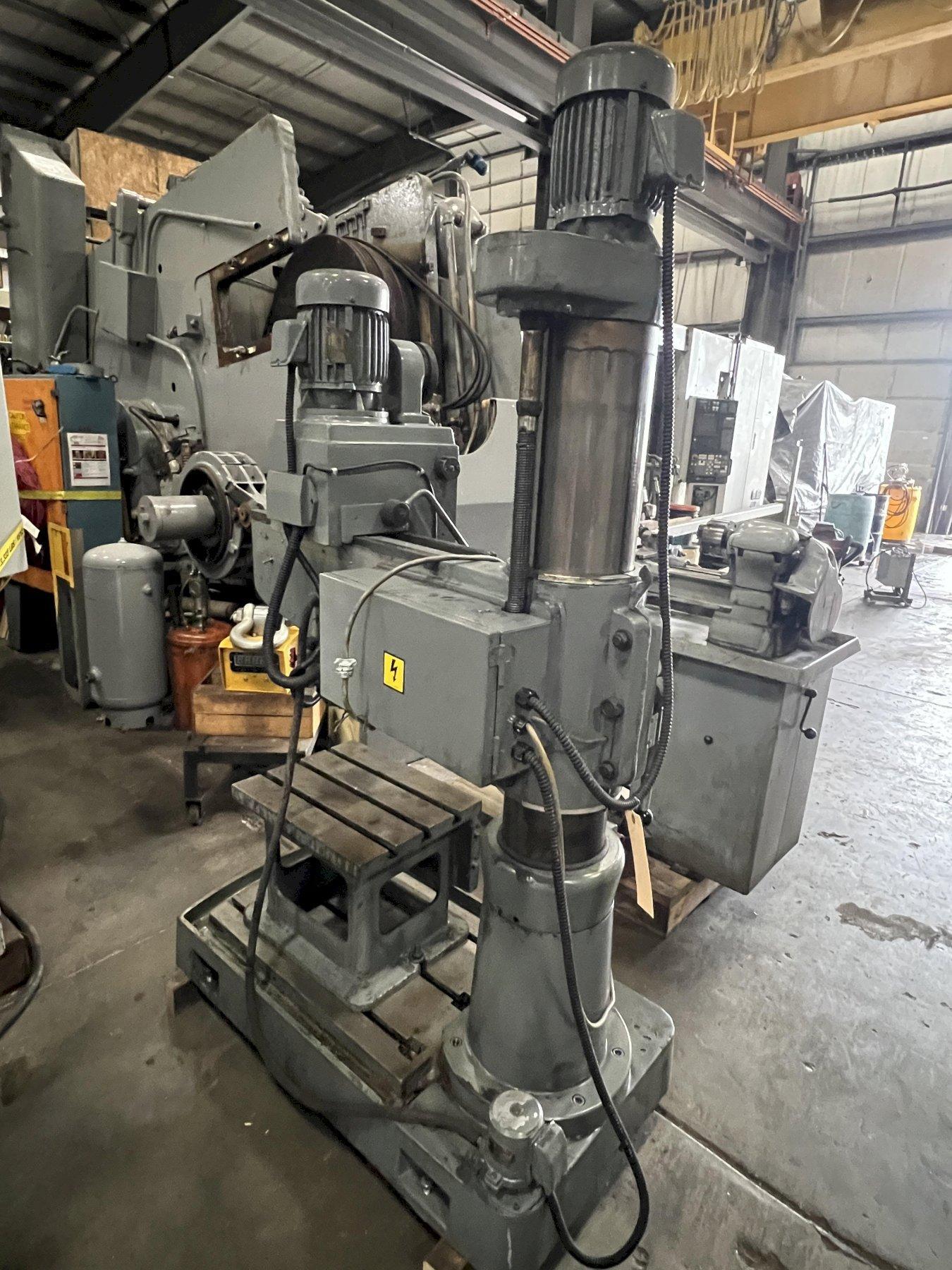

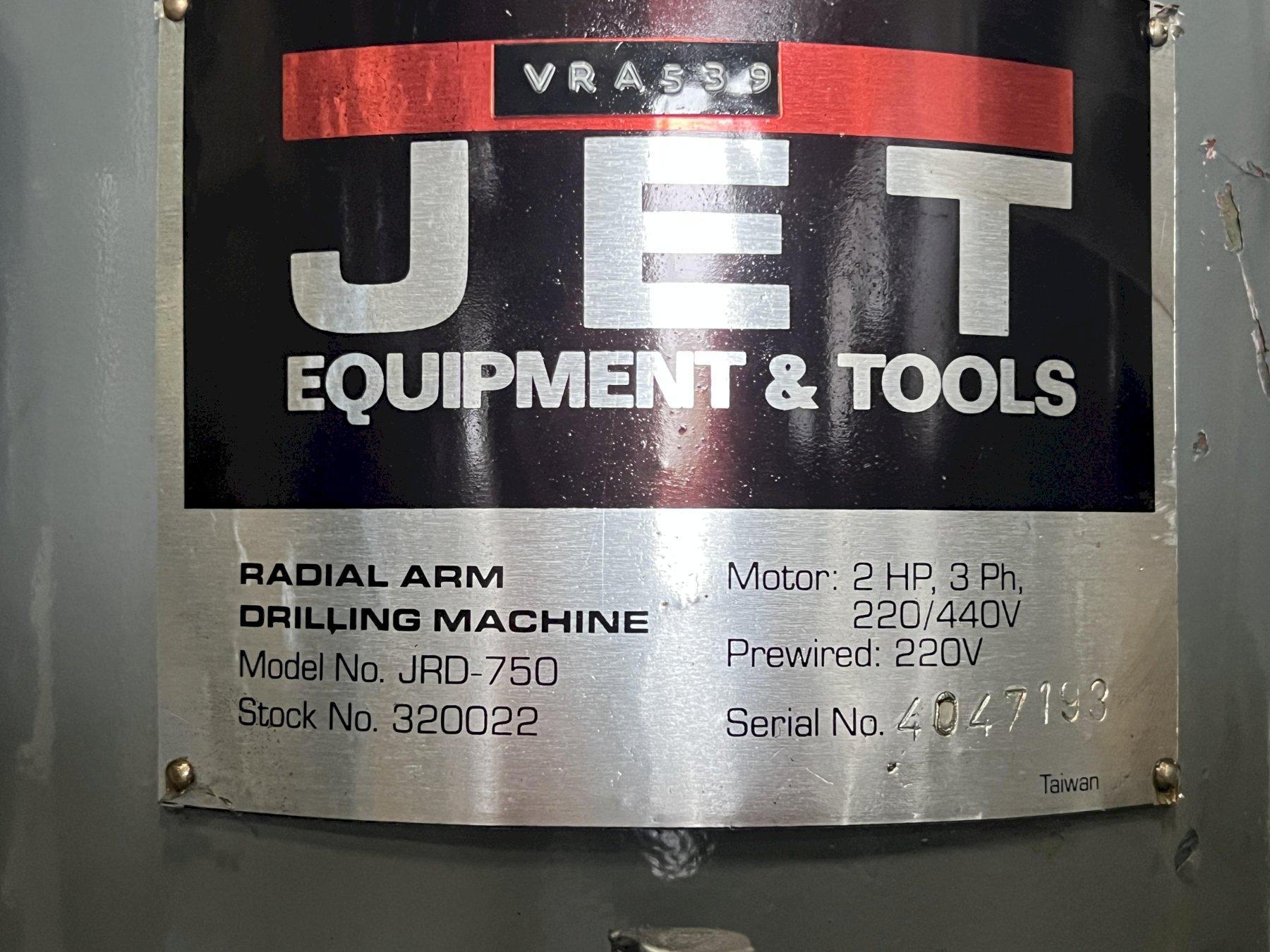

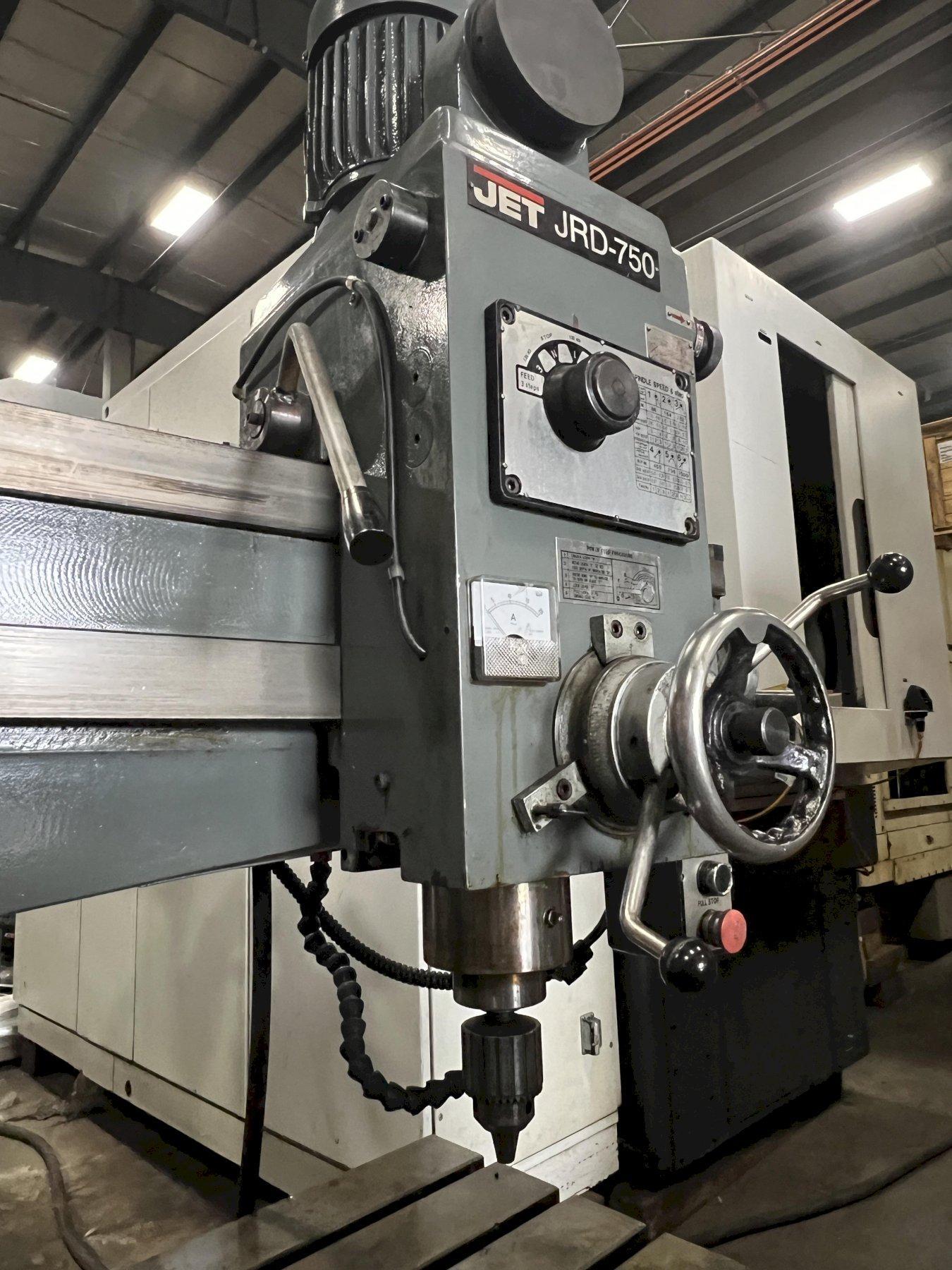

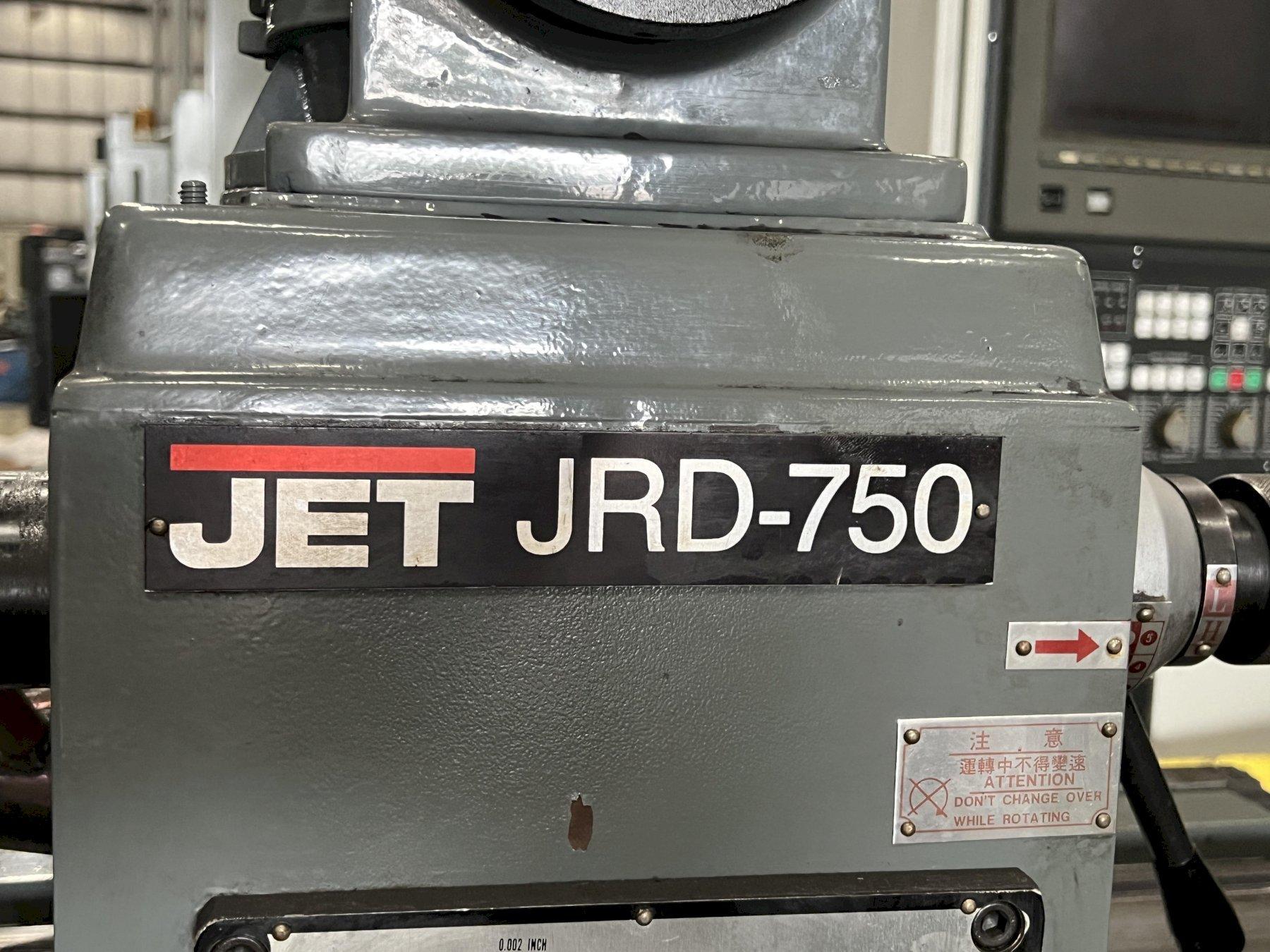

MAKE................ JET
MODEL............... JRD-750
SERIAL NUMBER....... 4047193
AGE (YEAR).......... 1994

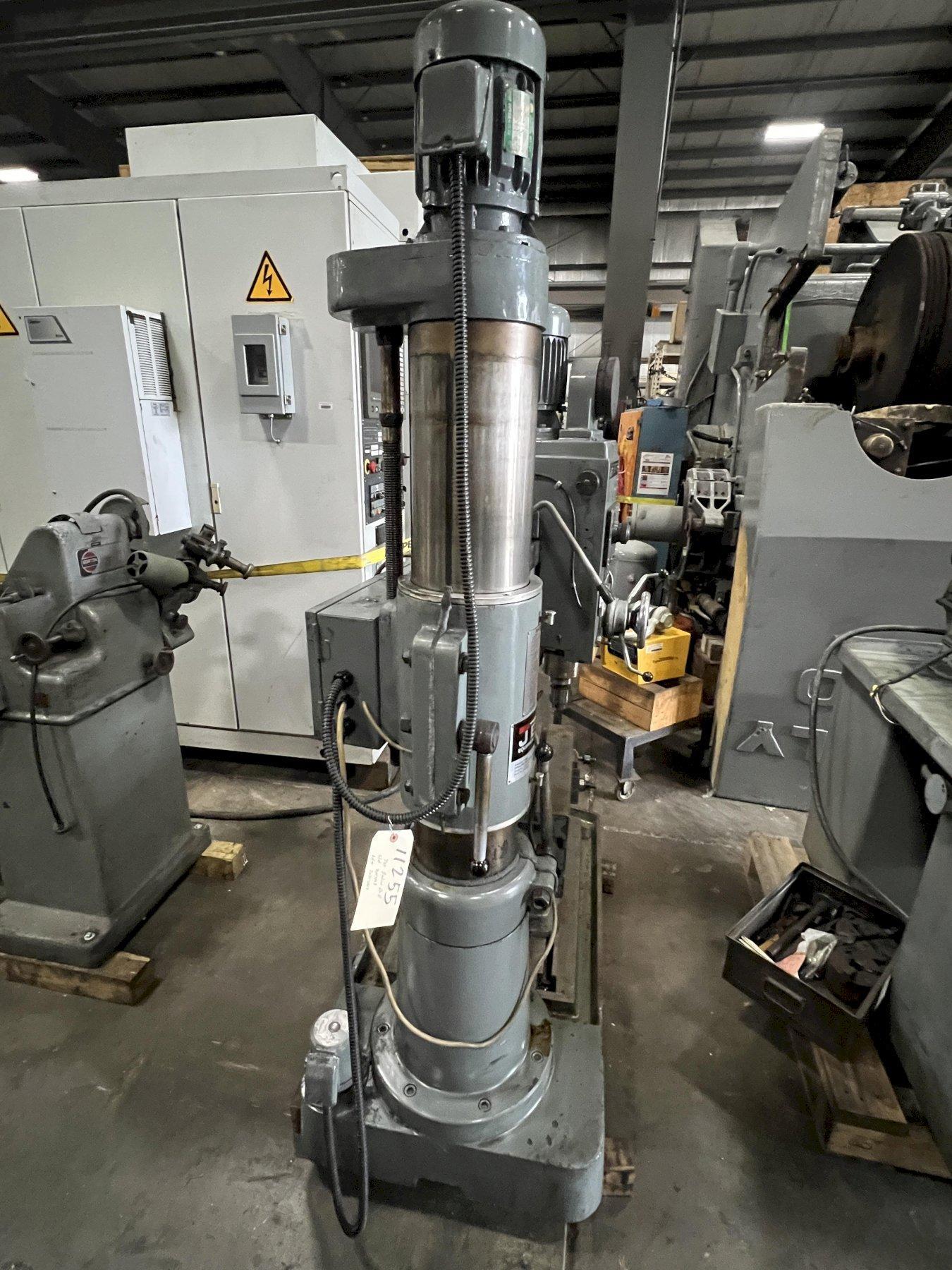

COLUMN WIDTH........ 8"
ARM LENGTH.......... 30"
DRILLING CAPACITY... 2" CAST IRON
DRILLING CAPACITY... 1 3/8" MILD STEEL

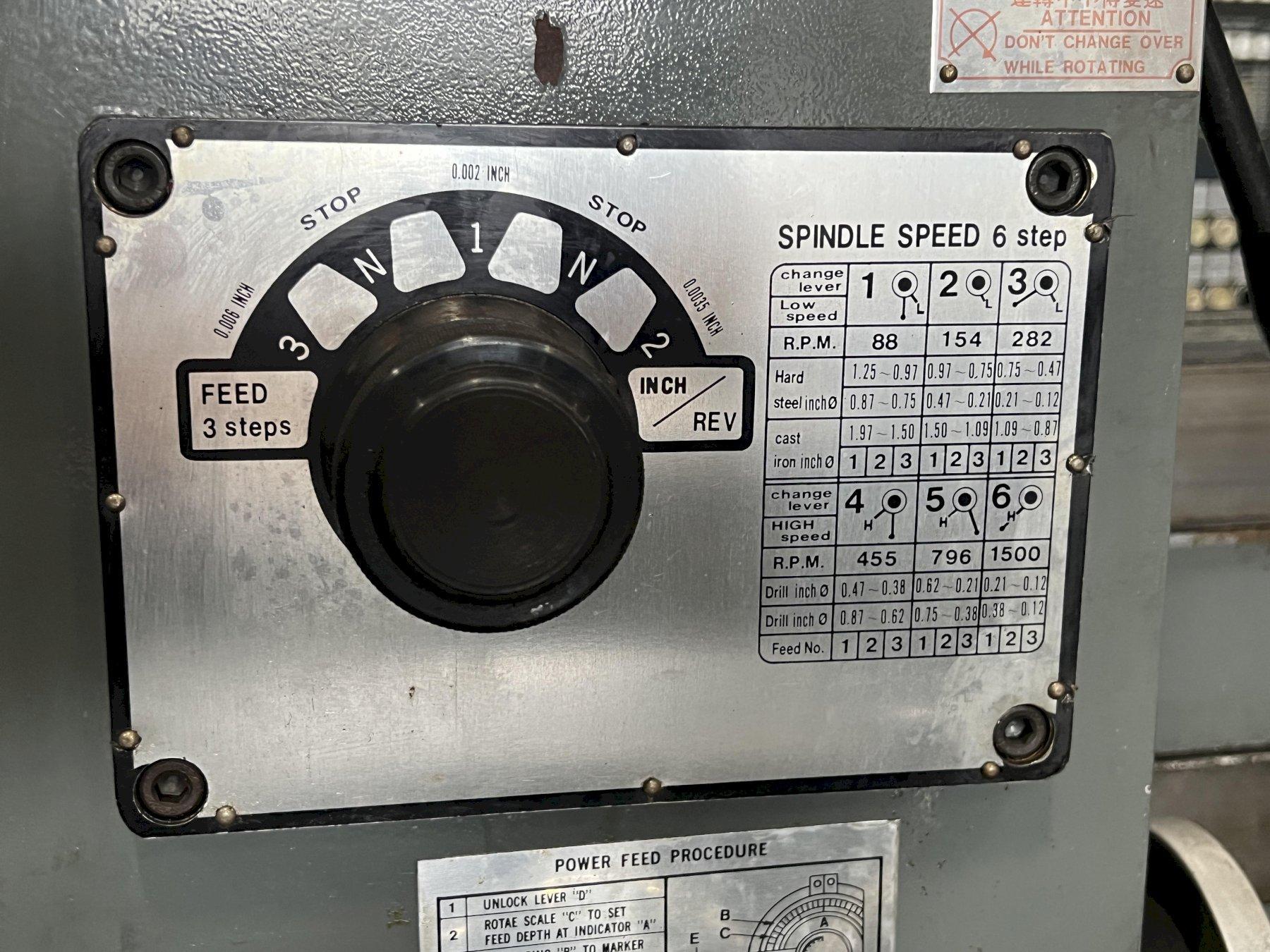

SPINDLE SPEEDS...... 88 TO 1500 RPM
SPINDLE TRAVEL...... 8"
SPINDLE TAPER....... #4 MT
SPINDLE FEEDS....... .002 TO .006
SPINDLE TO COLUMN... 8" TO 29 1/8" MIN/MAX
SPINDLE TO BASE..... 14" TO 41" MIN/MAX
TRAVEL ON COLUMN.... 21"
TRAVEL ON ARM....... 25"

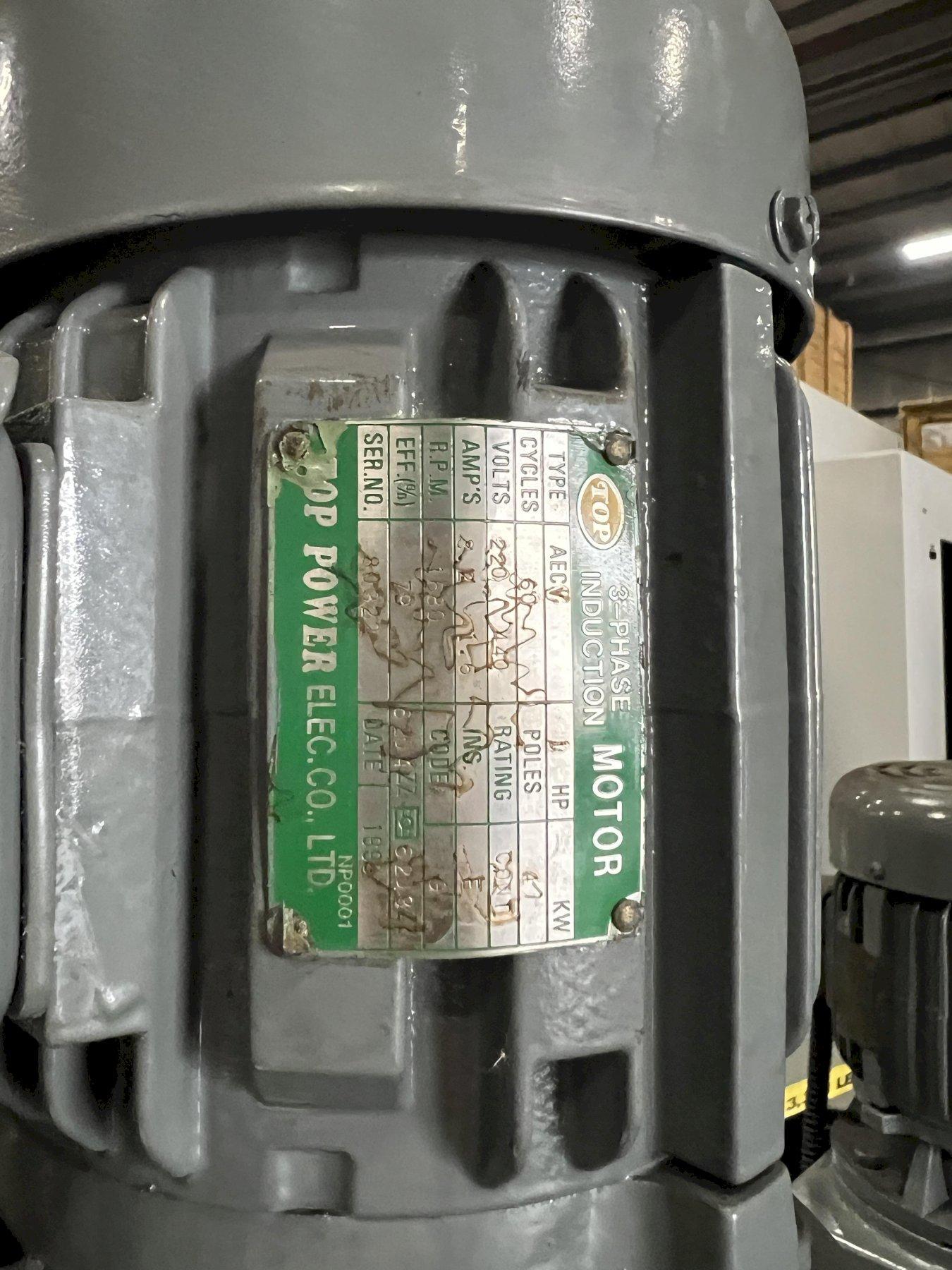

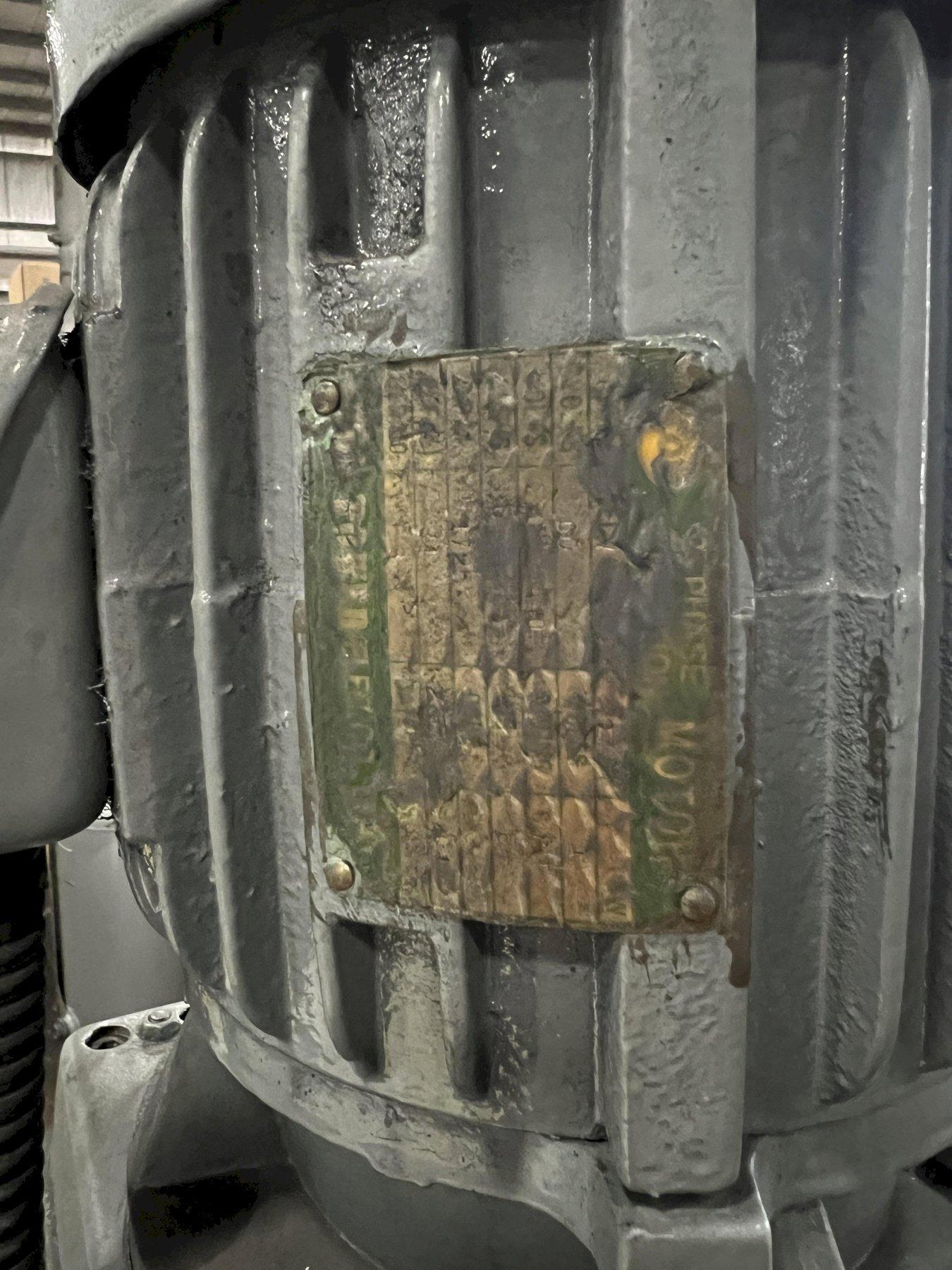

MOTOR............... 2 HP
EQUIPPED WITH:

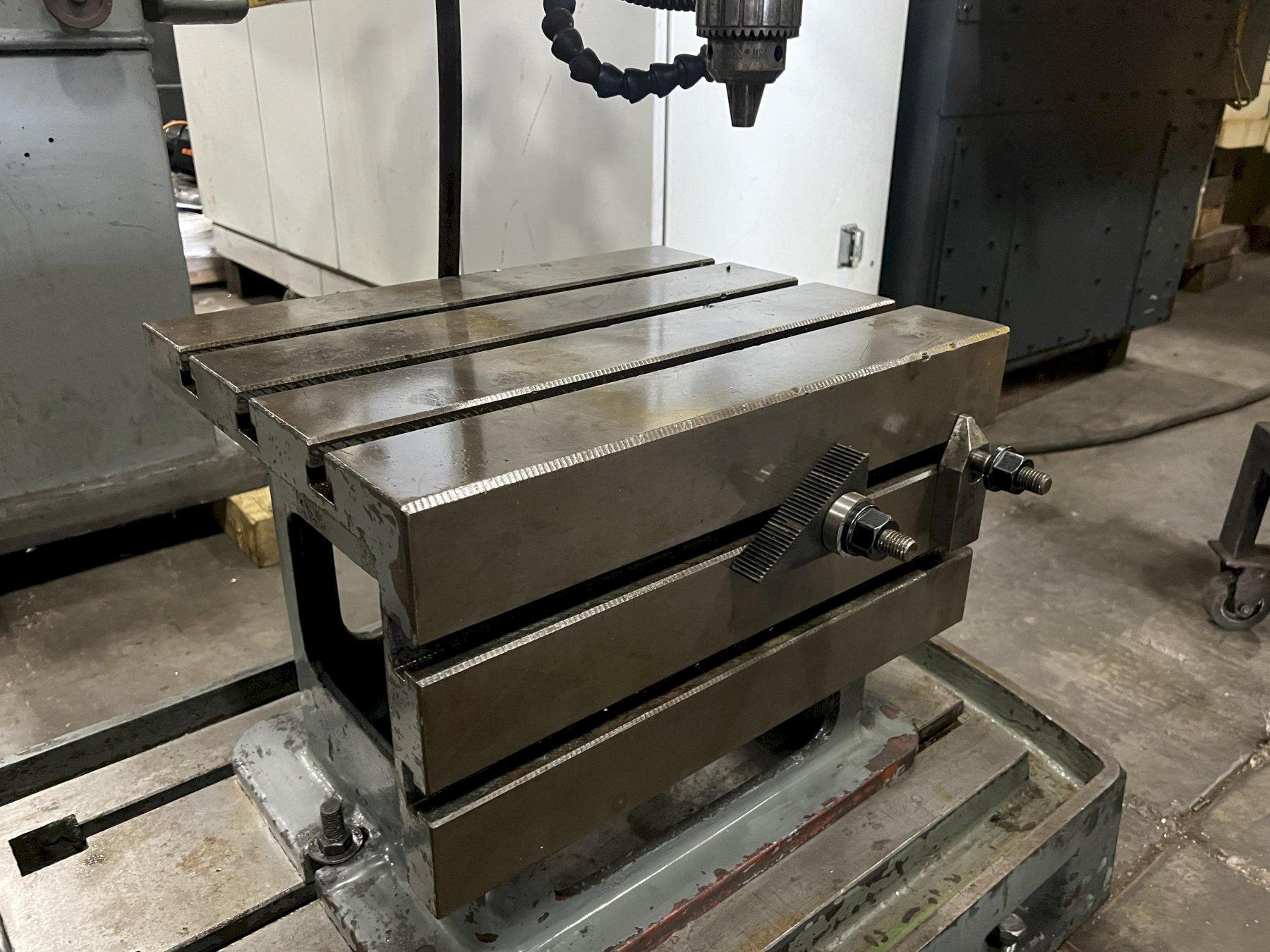

BOX TABLE 16" X 20" X 15" H
SPECIFICATIONS SUBJECT TO VERIFICATION
