Specifications
Equipped With
Manufacturer . . . . . . . . . . Liebherr
Model . . . . . . . . . . . . . L1200
Year . . . . . . . . . . . . . . 1970
Specifications:
Maximum Workpiece Diameter . . . 47.244" (1200 mm)
Horiz/Vert . . . . . . . . . . . Vertical
Maximum Diametral Pitch . . . . 2
Module . . . . . . . . . . . . . 12
Axial Travel . . . . . . . . . . 20.669" (525 mm)
Maximum Hob Diameter . . . . . . 9.4488" (240 mm)
Hob Arbor Size . . . . . . . . . 2"
Hob Speeds . . . . . . . . . . . 174 RPM
Table Diameter . . . . . . . . . 41.339" (1050 mm)
Control Manufacturer . . . . . . Conventional
Equipped With:
42" T-Slotted Table
Single Index
Differential
Hob Arbor
Double Cut

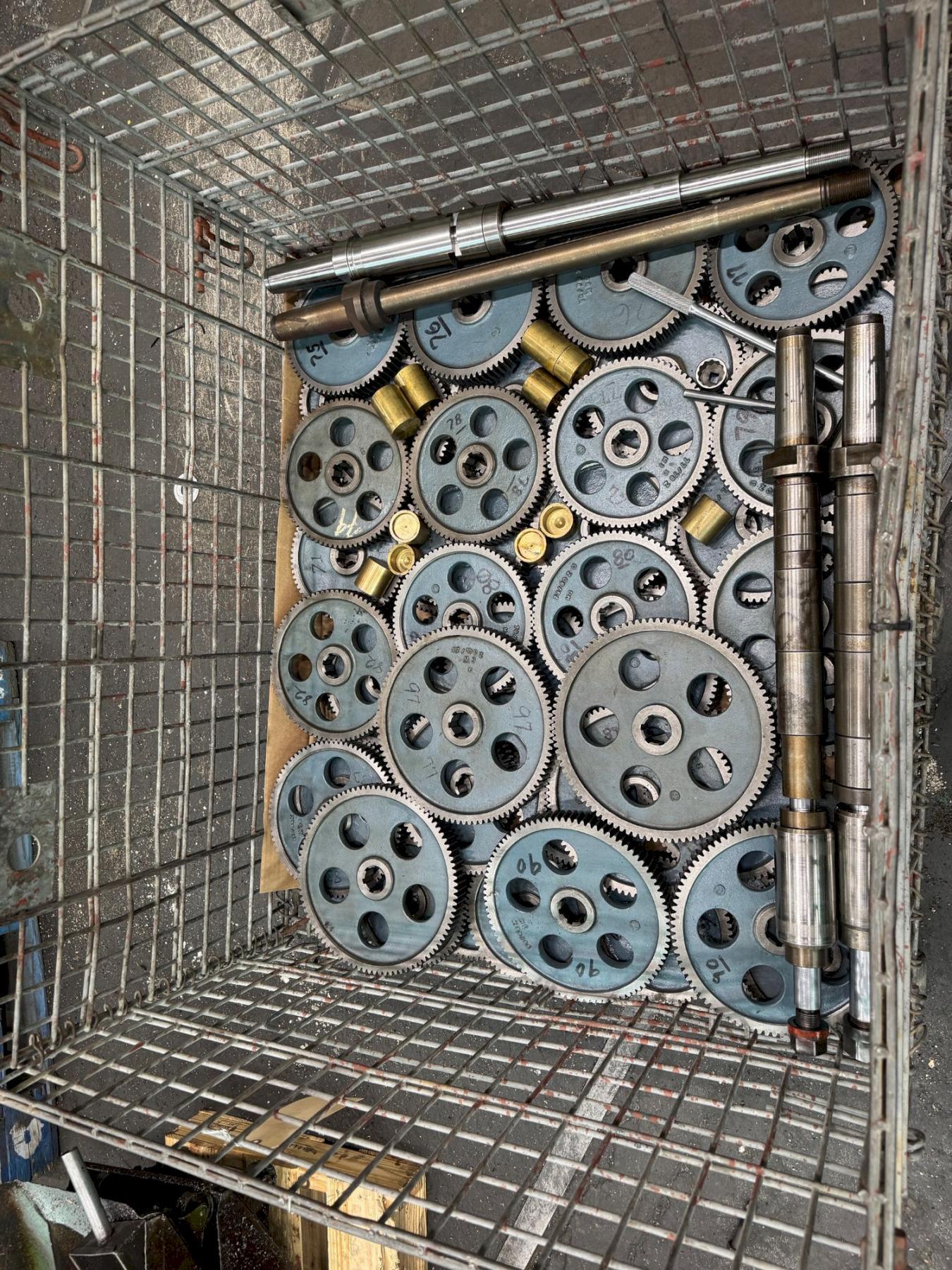

Change Gears
Swing Away Tailstock
Risers
Coolant
