Specifications
Equipped With

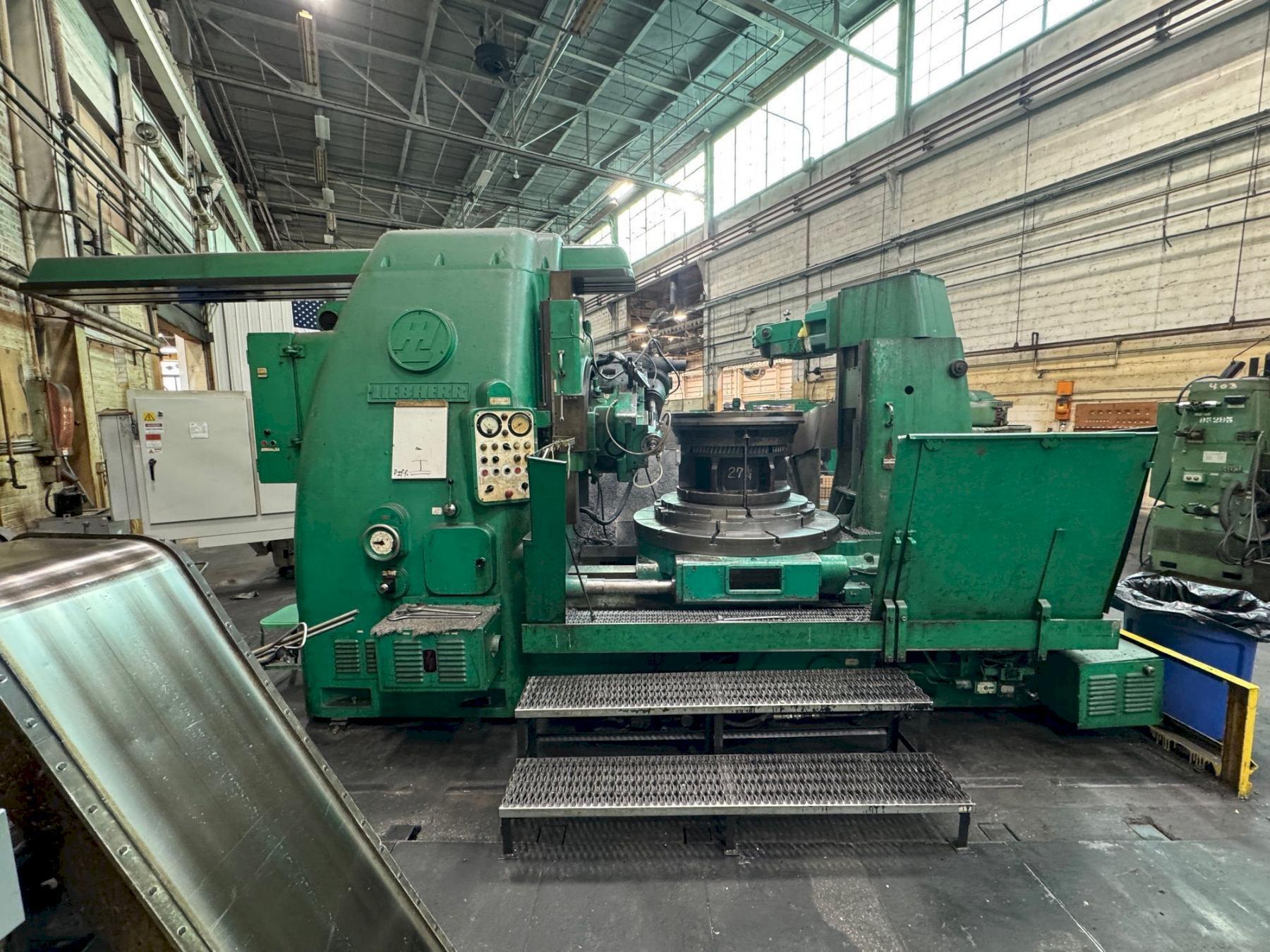

Manufacturer . . . . . . . . . . Liebherr

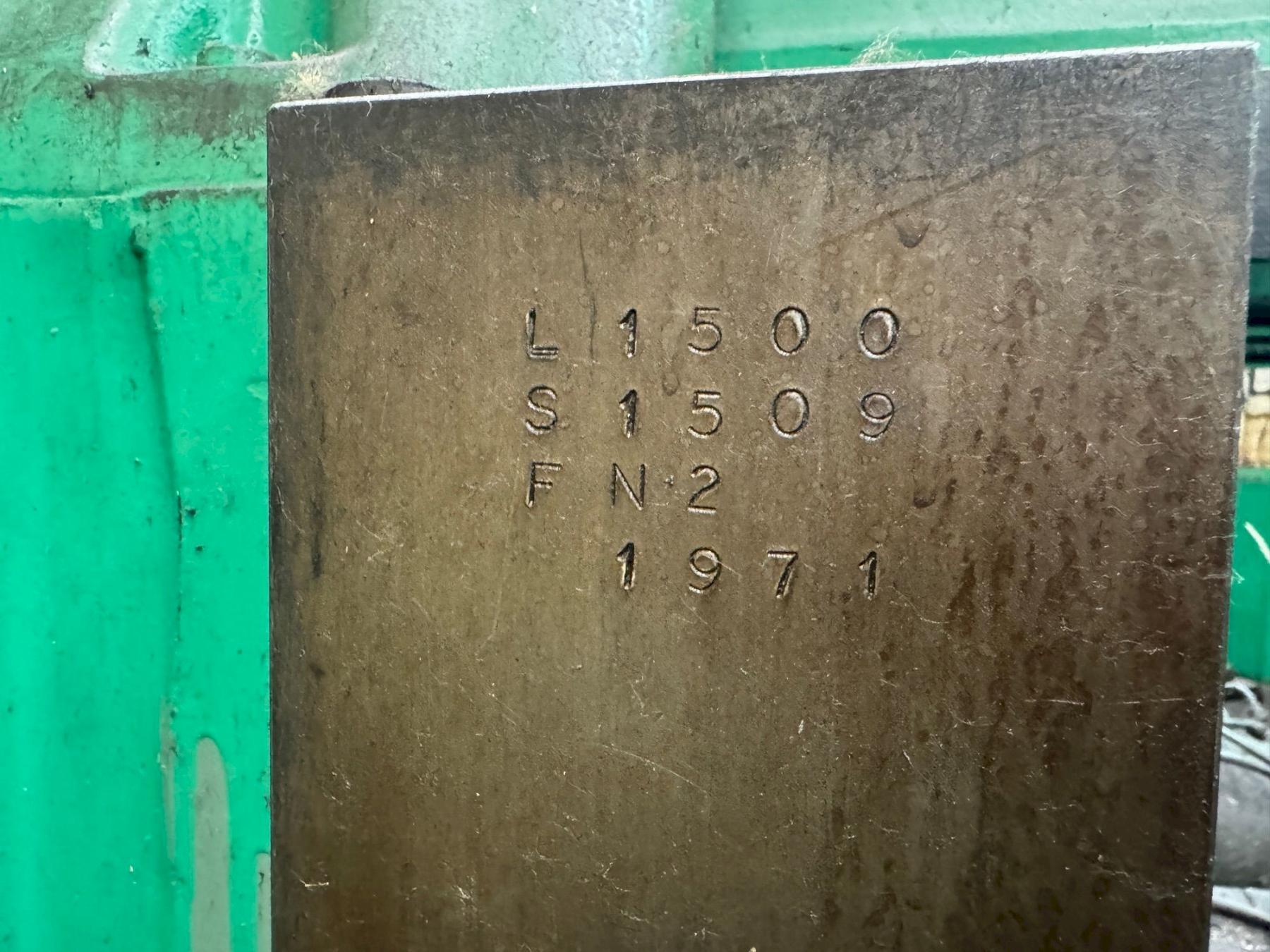

Model . . . . . . . . . . . . . L1500
Year . . . . . . . . . . . . . . 1971
Specifications:
Maximum Workpiece Diameter . . . 59.055" (1500 mm)
Horiz/Vert . . . . . . . . . . . Vertical
Maximum Diametral Pitch . . . . 2 dp
Module . . . . . . . . . . . . . 12
Axial Travel . . . . . . . . . . 22.638" (575 mm)
Maximum Hob Diameter . . . . . . 9.8425" (245 mm)
Hob Arbor Size . . . . . . . . . 2"
Hob Speeds . . . . . . . . . . . 29 - 174 RPM
Table Diameter . . . . . . . . . 53.937" (1370 mm)
Centre Distance of Spindles . . 95/885 mm Min/Max
Table Bore Diameter . . . . . . 200 H6, MK6 mm
Feed range:
- Axial . . . . . . . . . . . 0,6-9 mm/U
- Radial . . . . . . . . . . 0,2-12 mm/min
- Tangential . . . . . . . . 0,31-4,5 mm/U

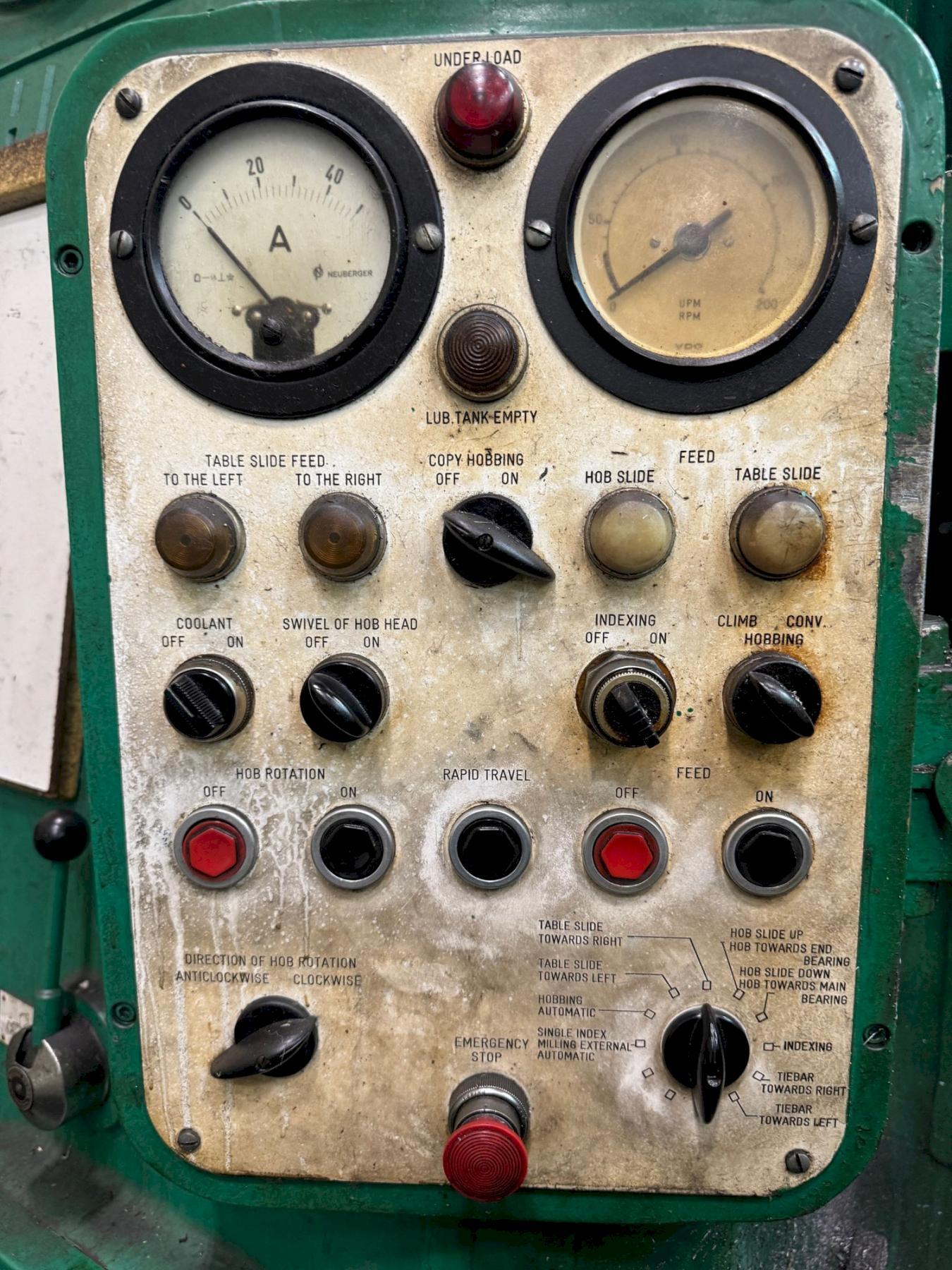

Control Manufacturer . . . . . . Conventional
Equipped With:

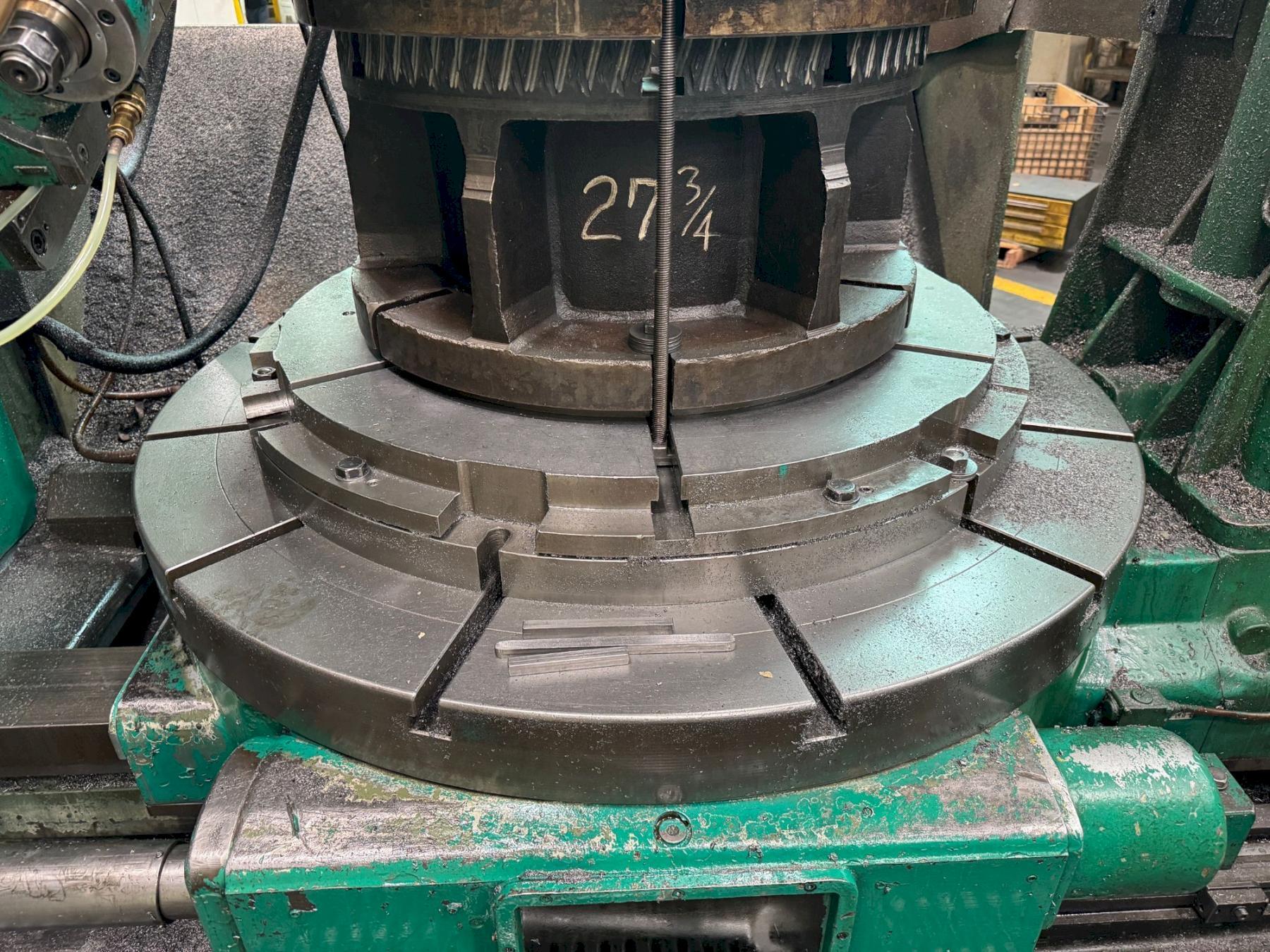

54" T-Slotted Table
Single Index
Differential
Hob Arbor
Risers
Change Gears
Swing Away Tailstock w/ Center
Overarm
Copy Hobbing
Hydraulic System
Coolant System
Levelling Pads
460-3-60 Electrics
