Specifications
Equipped With
GENERAL SPECIFICATIONS:

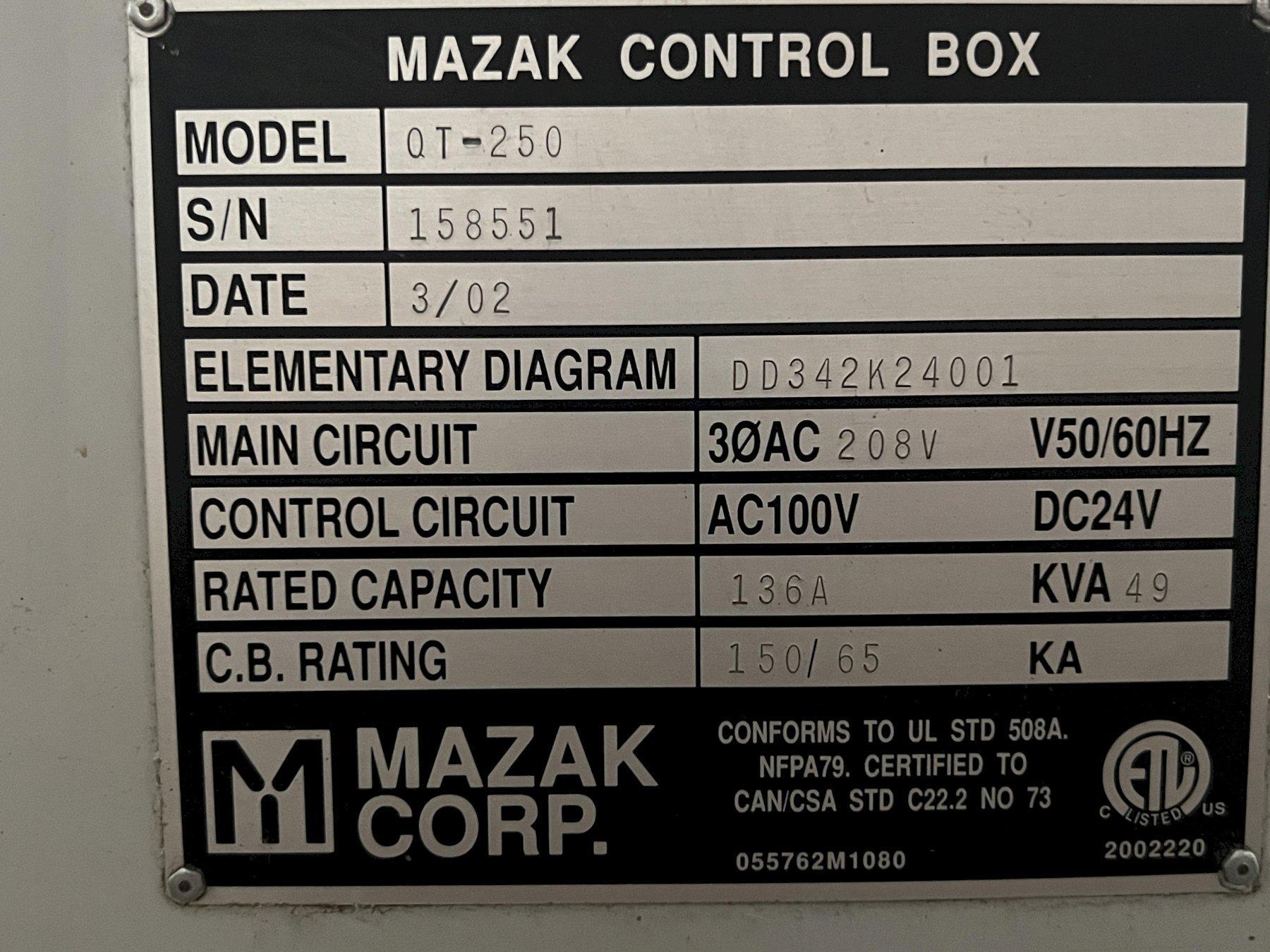

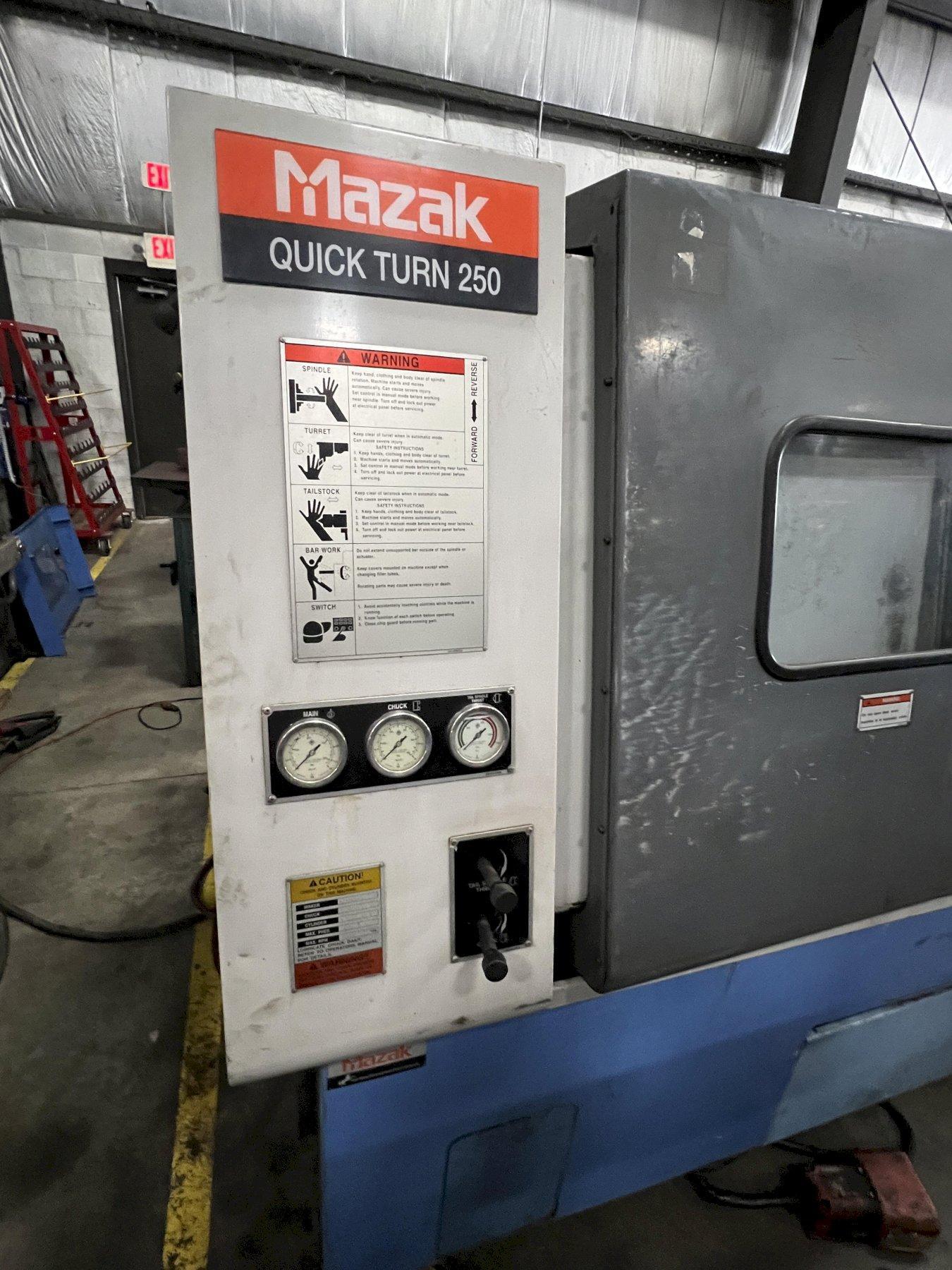

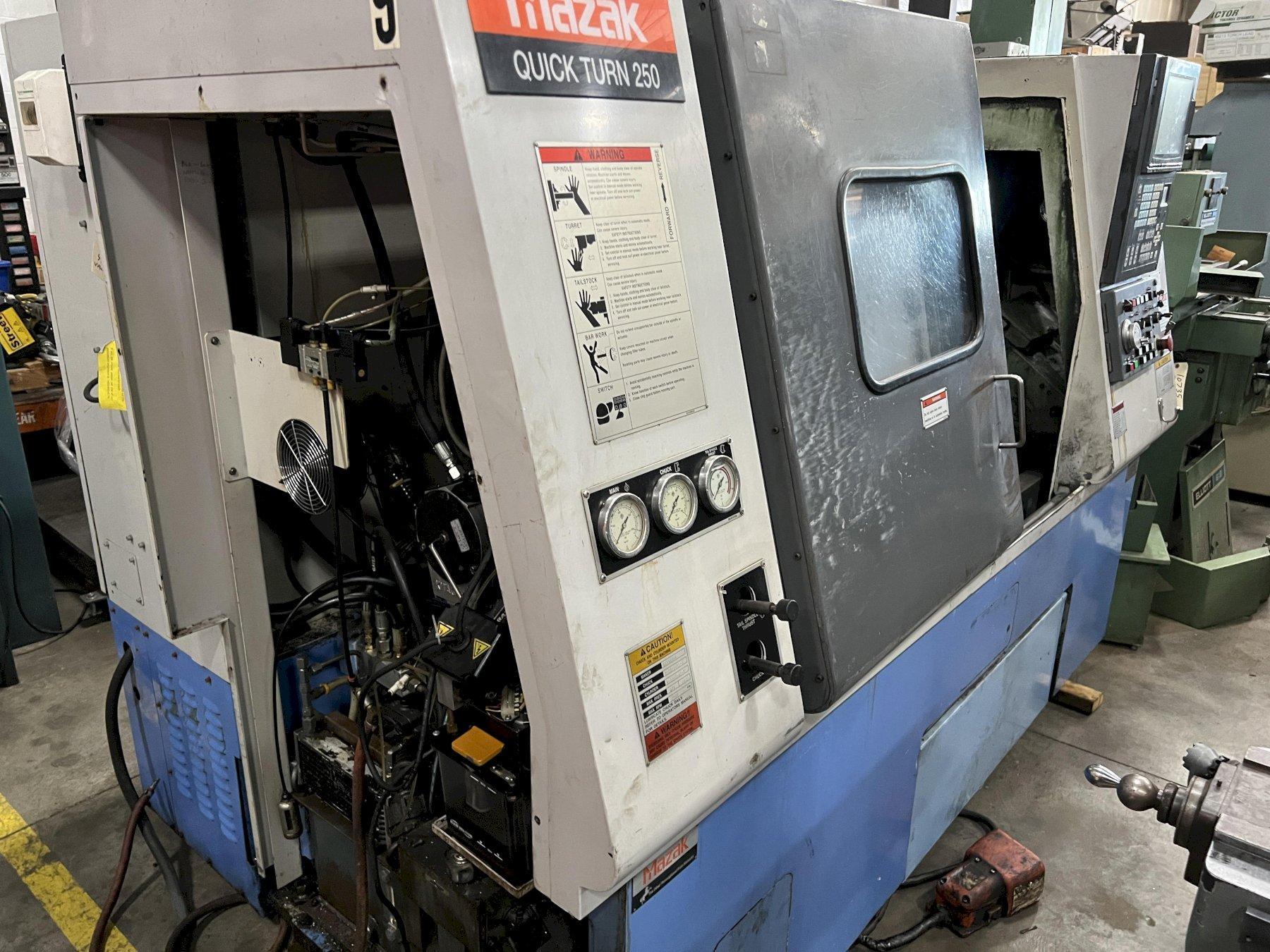

MAKE.................. MAZAK
MODEL................. QT-250
SERIAL NUMBER......... 158551
AGE (YEAR)............ 2002
SWING................. 23.6" (600 MM)
MAX. CUTTING DIA...... 15.7" (400 MM)
MAX. MACHINING LENGTH. 18.7" (500 MM)
SPINDLE NOSE.......... A2-6
SPINDLE SPEED......... 50-5000 RPM
SPINDLE BORE.......... 2.44" (62 MM)
X AXIS TRAVEL......... 8.46" (215 MM)
Z AXIS TRAVEL......... 20.1" (511 MM)

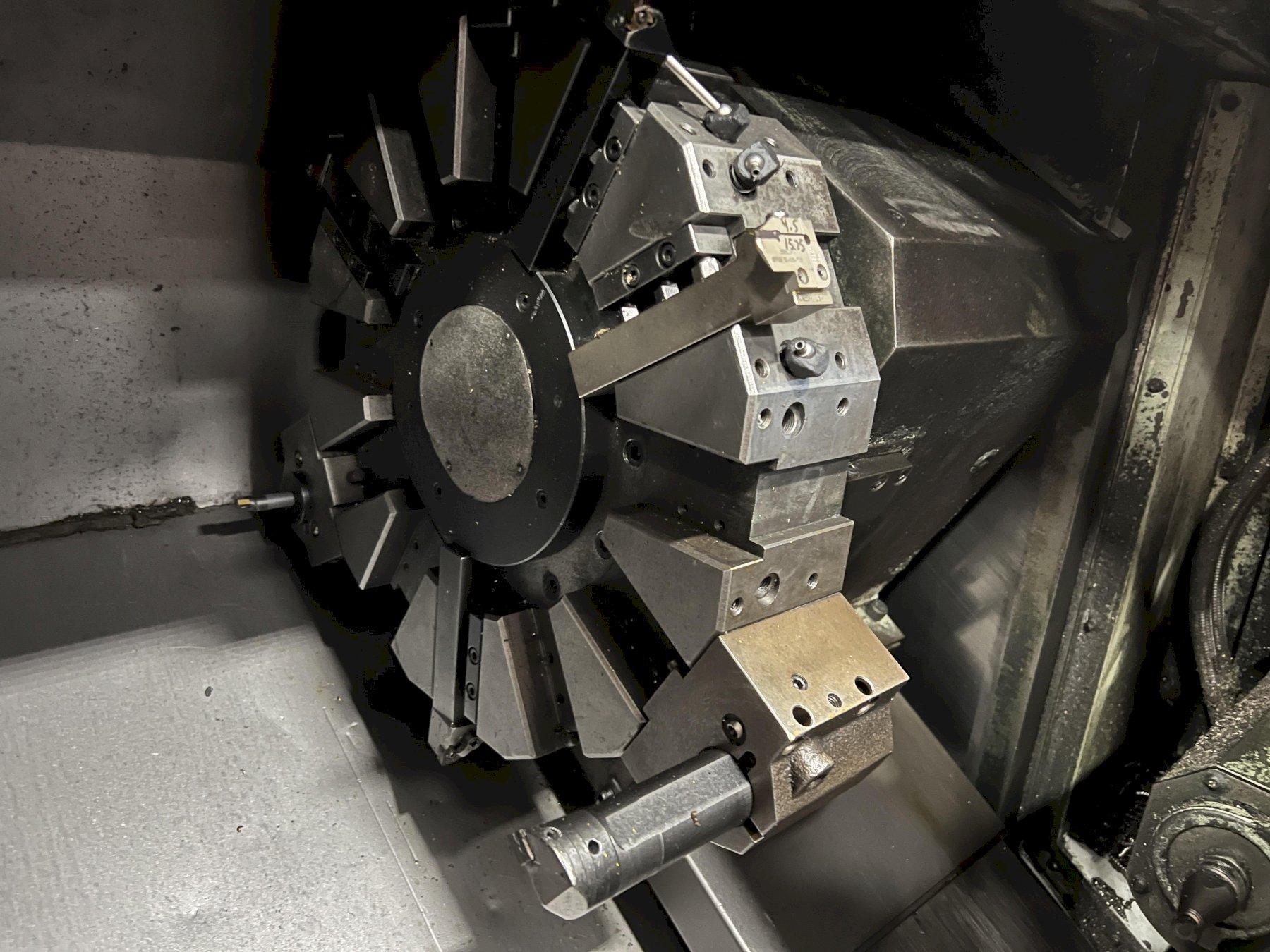

ATC................... 12 POSITION
ELECTRICS.............
WEIGHT................ 10,000 LBS
DIMENSIONS............ 107" X 65" X 67" H
EQUIPPED WITH:

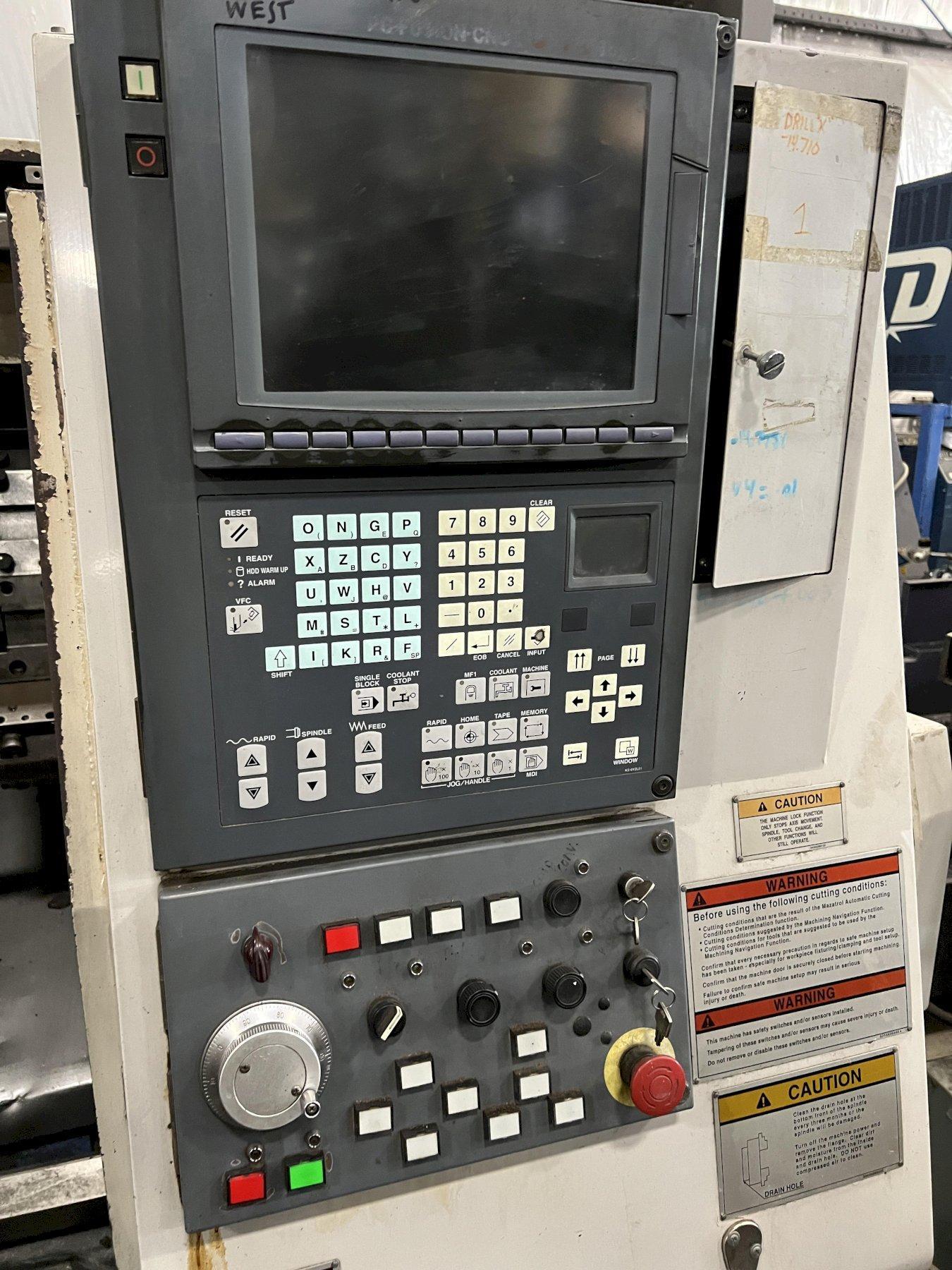

MAZATROL 640 CNC CONTROL

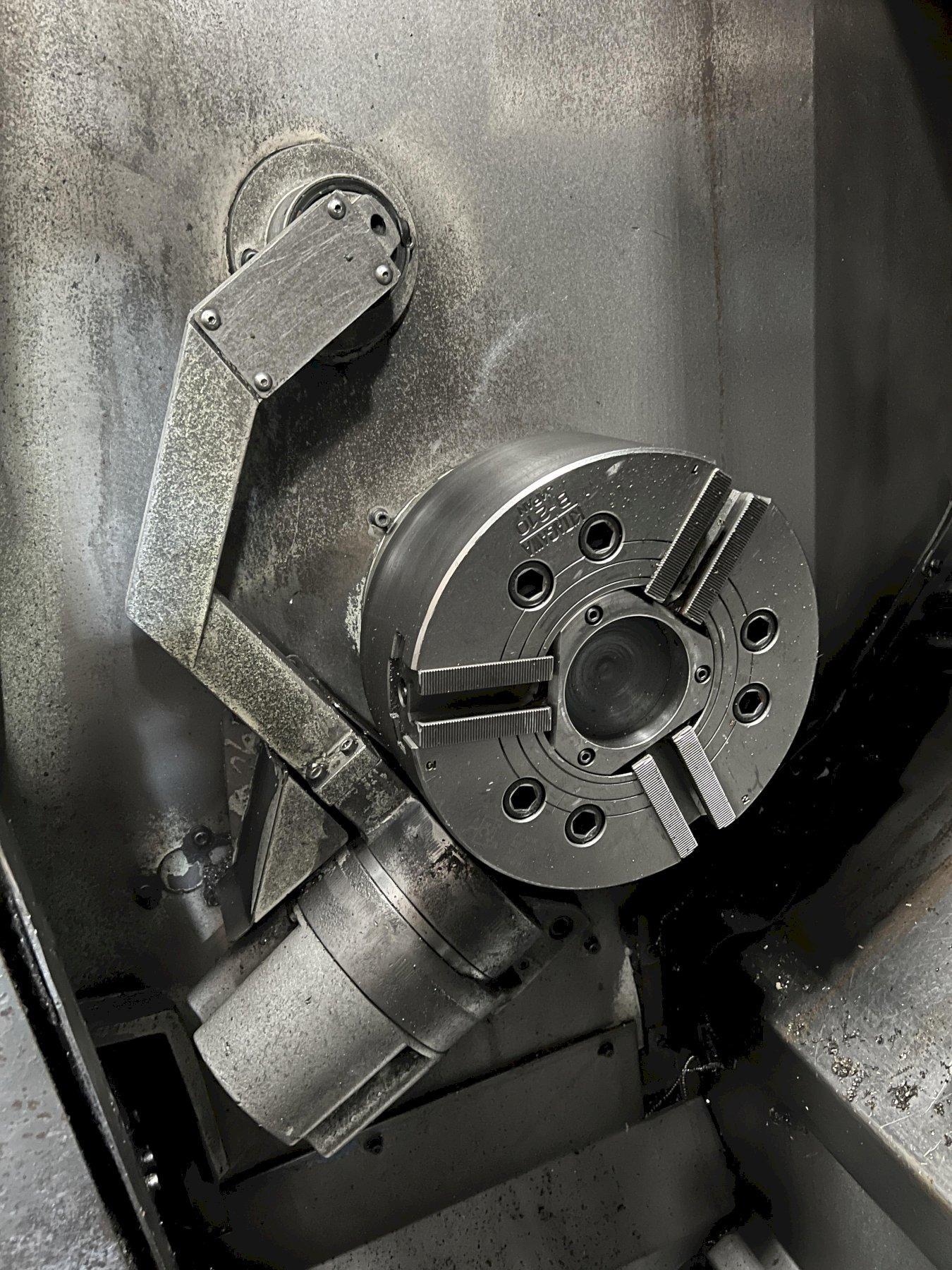

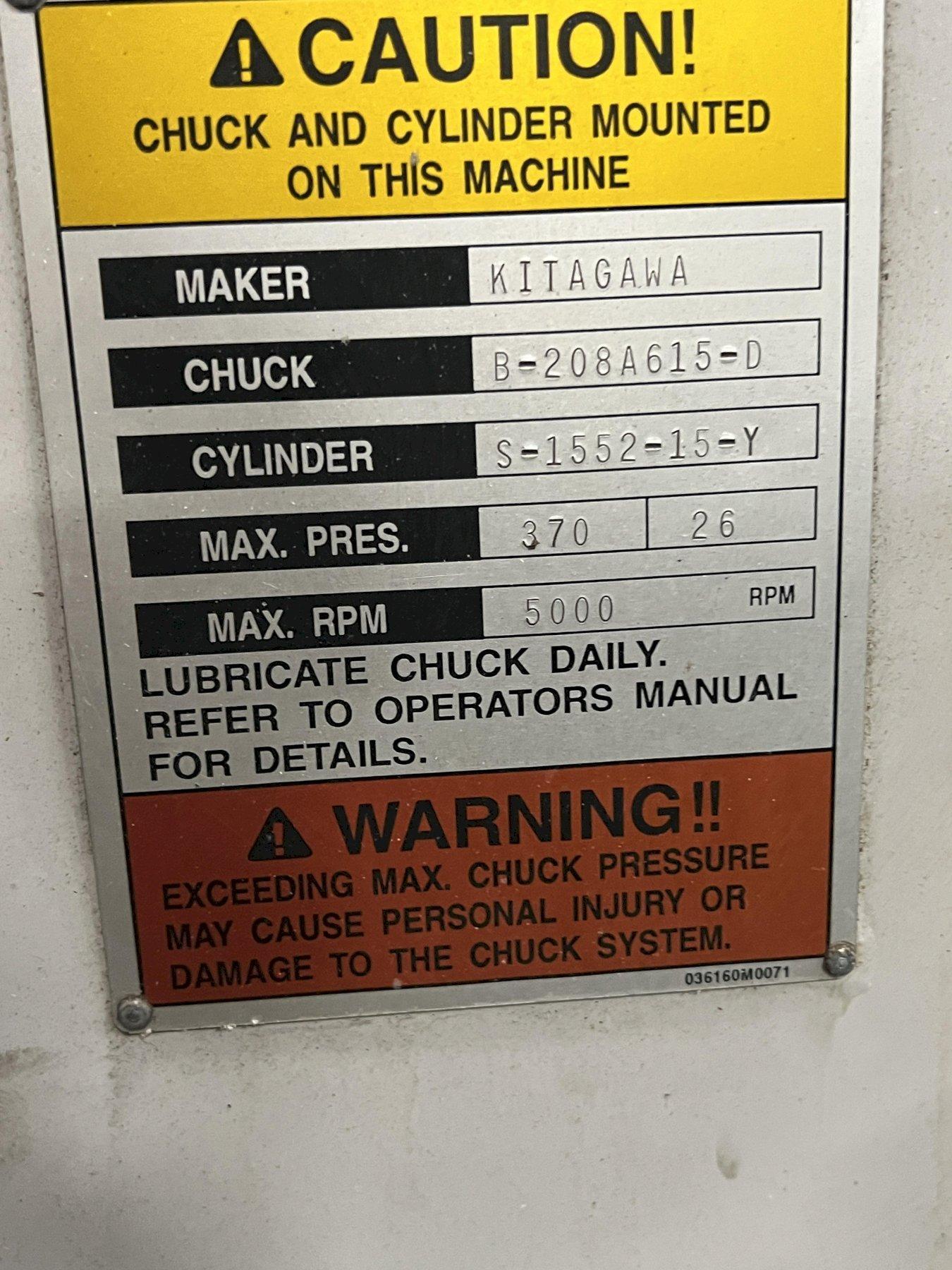

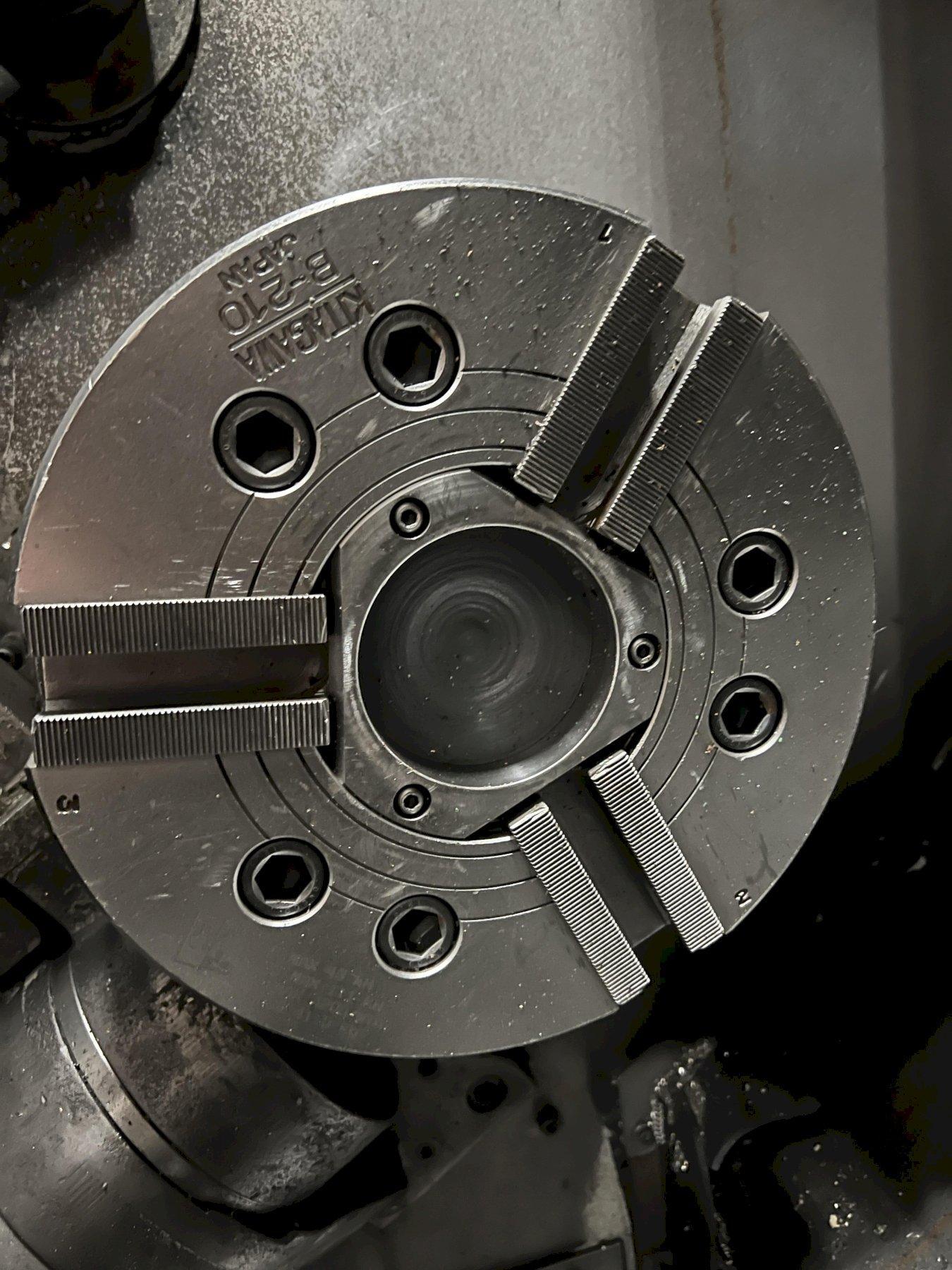

KITAGAWA B-210 3-JAW CHUCK

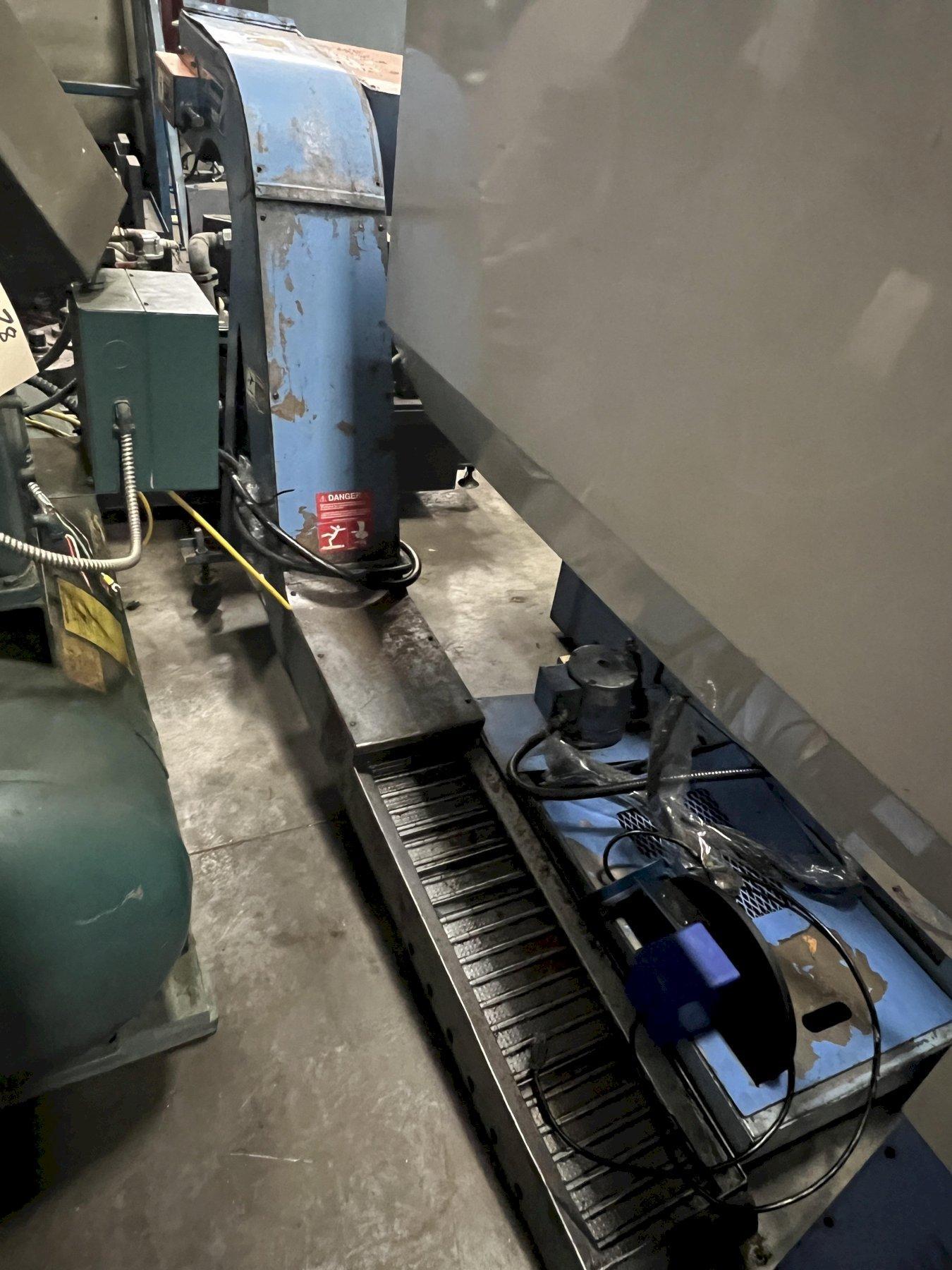

CHIP CONVEYOR / COOLANT
MISC TOOL HOLDERS
SPECIFICATION SUBJECT TO VERIFICATION
