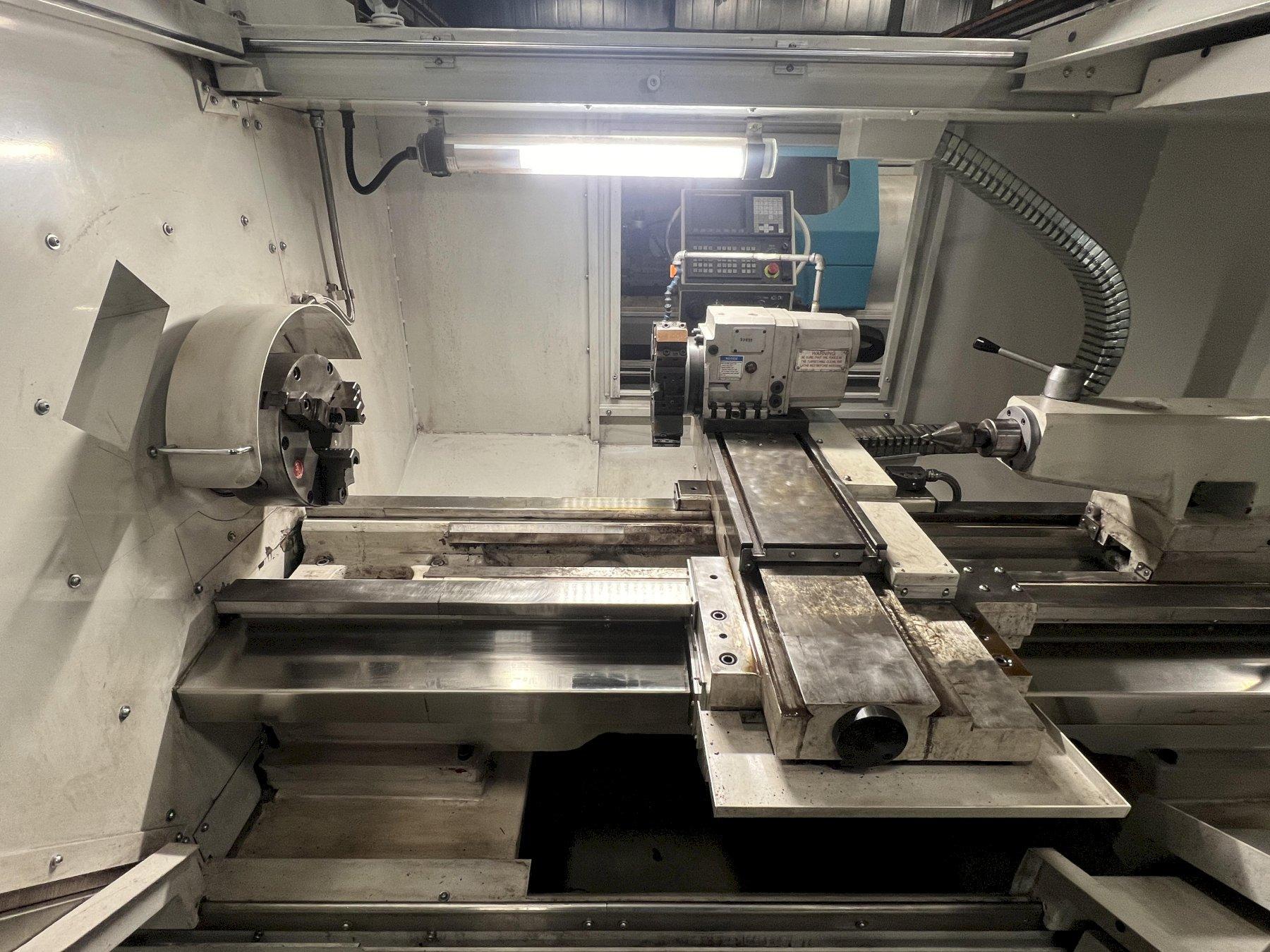

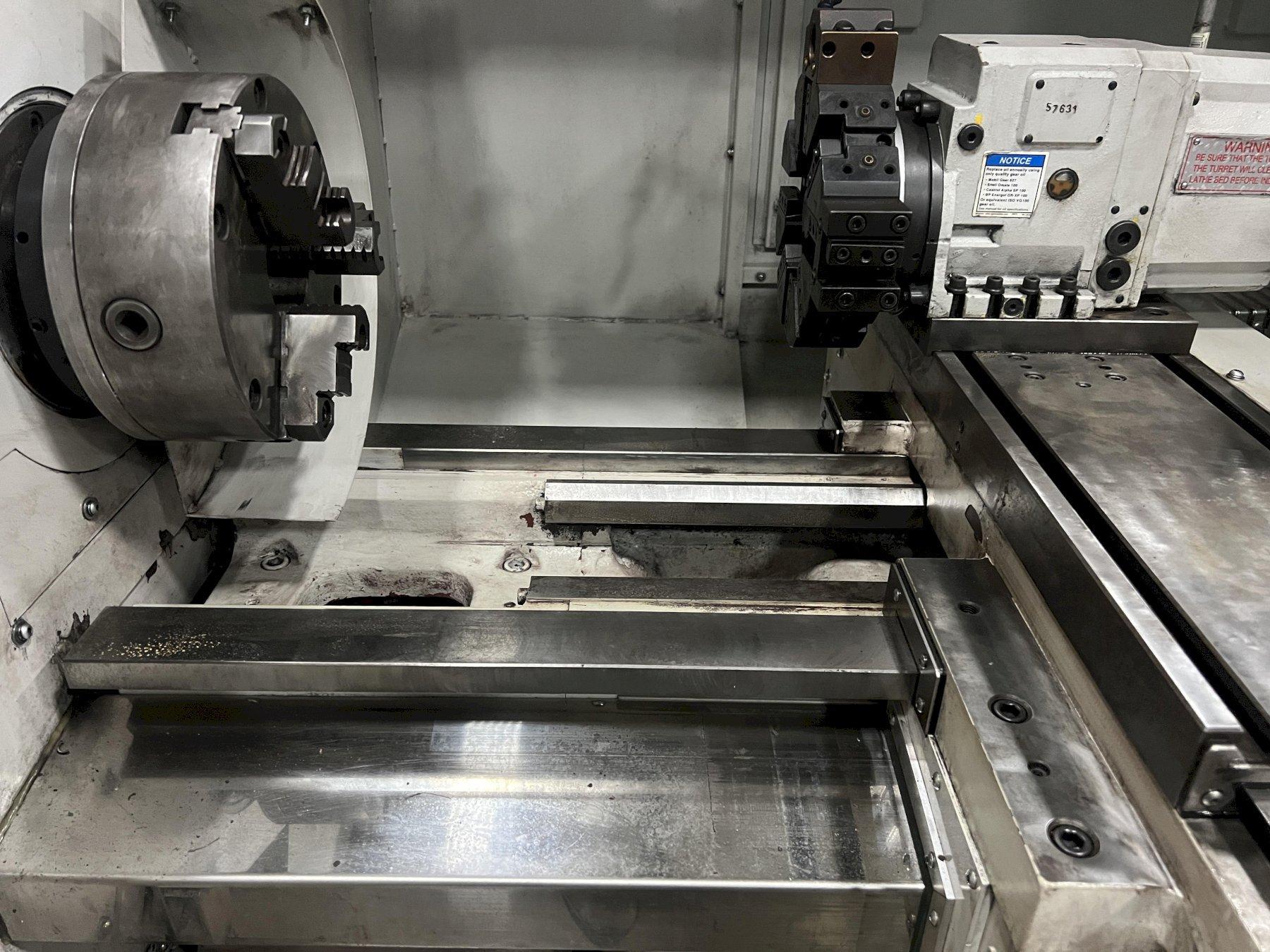

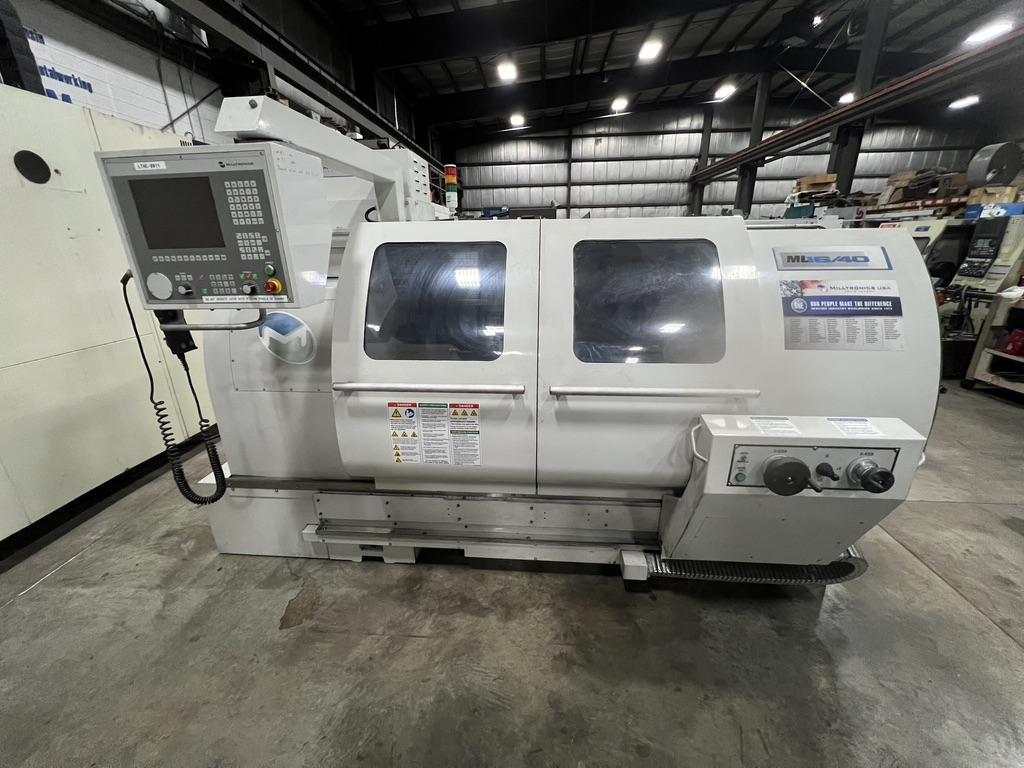

MILLTRONICS ML16/40 CNC LATHE WITH 8 POSITION TURRET, 8" CHUCK, TOOL POST GRINDER, 8200-B CONTROL, 2018
MILLTRONICS ML16/40 CNC LATHE WITH 8 POSITION TURRET, 8" CHUCK, TOOL POST GRINDER, 8200-B CONTROL, 2018
MILLTRONICS ML16/40 CNC LATHE WITH 8 POSITION TURRET, 8" CHUCK, TOOL POST GRINDER, 8200-B CONTROL, 2018
MILLTRONICS ML16/40 CNC LATHE WITH 8 POSITION TURRET, 8" CHUCK, TOOL POST GRINDER, 8200-B CONTROL, 2018
MILLTRONICS ML16/40 CNC LATHE WITH 8 POSITION TURRET, 8" CHUCK, TOOL POST GRINDER, 8200-B CONTROL, 2018
MILLTRONICS ML16/40 CNC LATHE WITH 8 POSITION TURRET, 8" CHUCK, TOOL POST GRINDER, 8200-B CONTROL, 2018
MILLTRONICS ML16/40 CNC LATHE WITH 8 POSITION TURRET, 8" CHUCK, TOOL POST GRINDER, 8200-B CONTROL, 2018
MILLTRONICS ML16/40 CNC LATHE WITH 8 POSITION TURRET, 8" CHUCK, TOOL POST GRINDER, 8200-B CONTROL, 2018
MILLTRONICS ML16/40 CNC LATHE WITH 8 POSITION TURRET, 8" CHUCK, TOOL POST GRINDER, 8200-B CONTROL, 2018
MILLTRONICS ML16/40 CNC LATHE WITH 8 POSITION TURRET, 8" CHUCK, TOOL POST GRINDER, 8200-B CONTROL, 2018
MILLTRONICS ML16/40 CNC LATHE WITH 8 POSITION TURRET, 8" CHUCK, TOOL POST GRINDER, 8200-B CONTROL, 2018
  • MILLTRONICS ML16/40 CNC LATHE WITH 8 POSITION TURRET, 8" CHUCK, TOOL POST GRINDER, 8200-B CONTROL, 2018
  • MILLTRONICS ML16/40 CNC LATHE WITH 8 POSITION TURRET, 8" CHUCK, TOOL POST GRINDER, 8200-B CONTROL, 2018
  • MILLTRONICS ML16/40 CNC LATHE WITH 8 POSITION TURRET, 8" CHUCK, TOOL POST GRINDER, 8200-B CONTROL, 2018
  • MILLTRONICS ML16/40 CNC LATHE WITH 8 POSITION TURRET, 8" CHUCK, TOOL POST GRINDER, 8200-B CONTROL, 2018
  • MILLTRONICS ML16/40 CNC LATHE WITH 8 POSITION TURRET, 8" CHUCK, TOOL POST GRINDER, 8200-B CONTROL, 2018
  • MILLTRONICS ML16/40 CNC LATHE WITH 8 POSITION TURRET, 8" CHUCK, TOOL POST GRINDER, 8200-B CONTROL, 2018
  • MILLTRONICS ML16/40 CNC LATHE WITH 8 POSITION TURRET, 8" CHUCK, TOOL POST GRINDER, 8200-B CONTROL, 2018
  • MILLTRONICS ML16/40 CNC LATHE WITH 8 POSITION TURRET, 8" CHUCK, TOOL POST GRINDER, 8200-B CONTROL, 2018
  • MILLTRONICS ML16/40 CNC LATHE WITH 8 POSITION TURRET, 8" CHUCK, TOOL POST GRINDER, 8200-B CONTROL, 2018
  • MILLTRONICS ML16/40 CNC LATHE WITH 8 POSITION TURRET, 8" CHUCK, TOOL POST GRINDER, 8200-B CONTROL, 2018
  • MILLTRONICS ML16/40 CNC LATHE WITH 8 POSITION TURRET, 8" CHUCK, TOOL POST GRINDER, 8200-B CONTROL, 2018

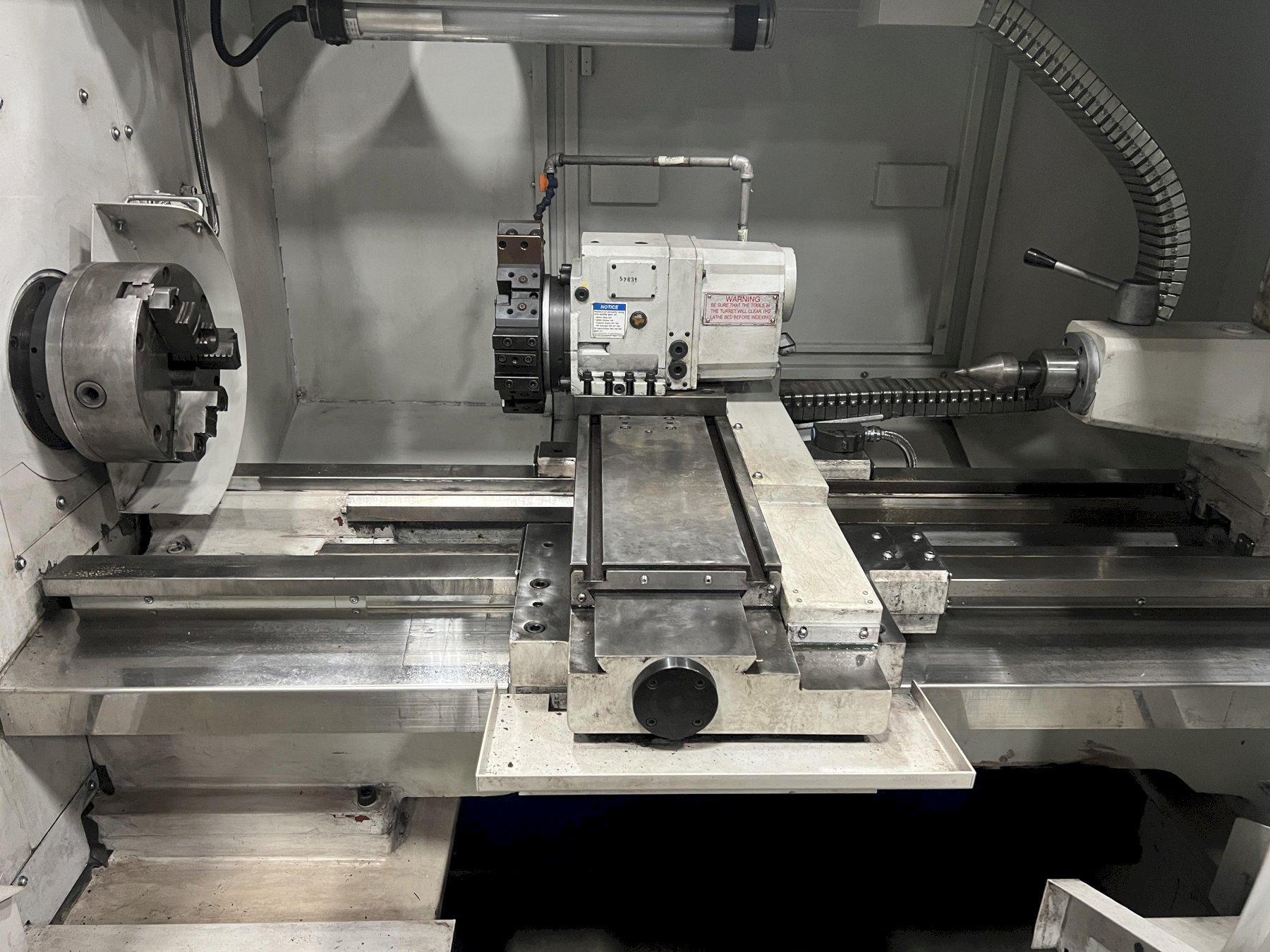

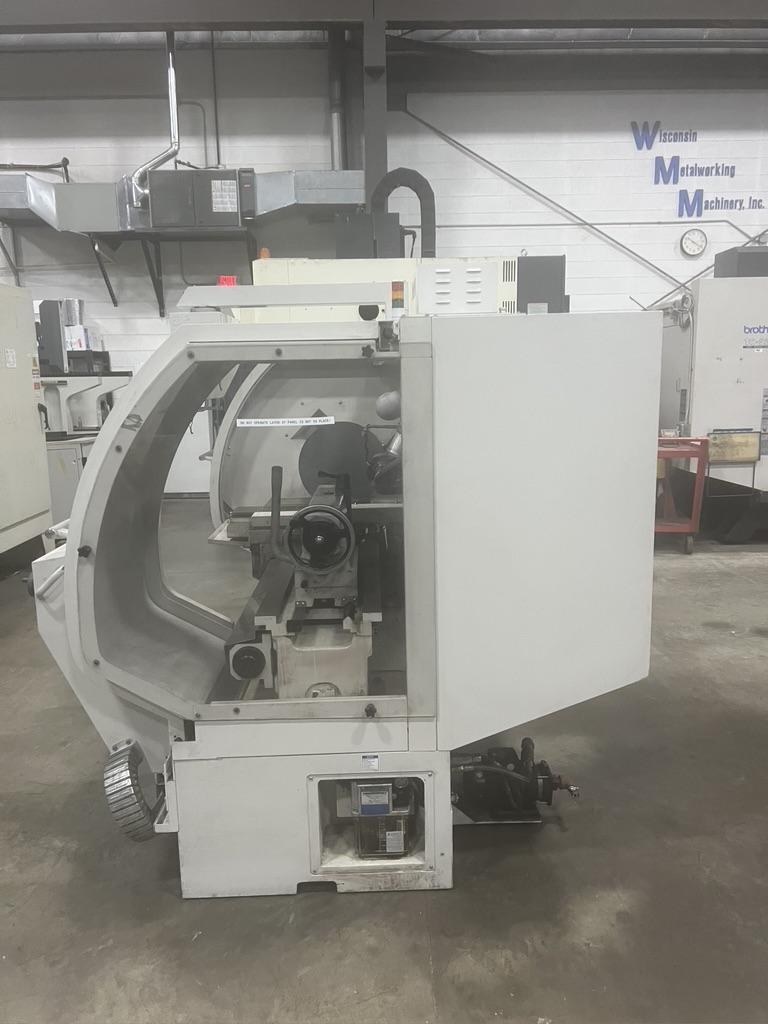

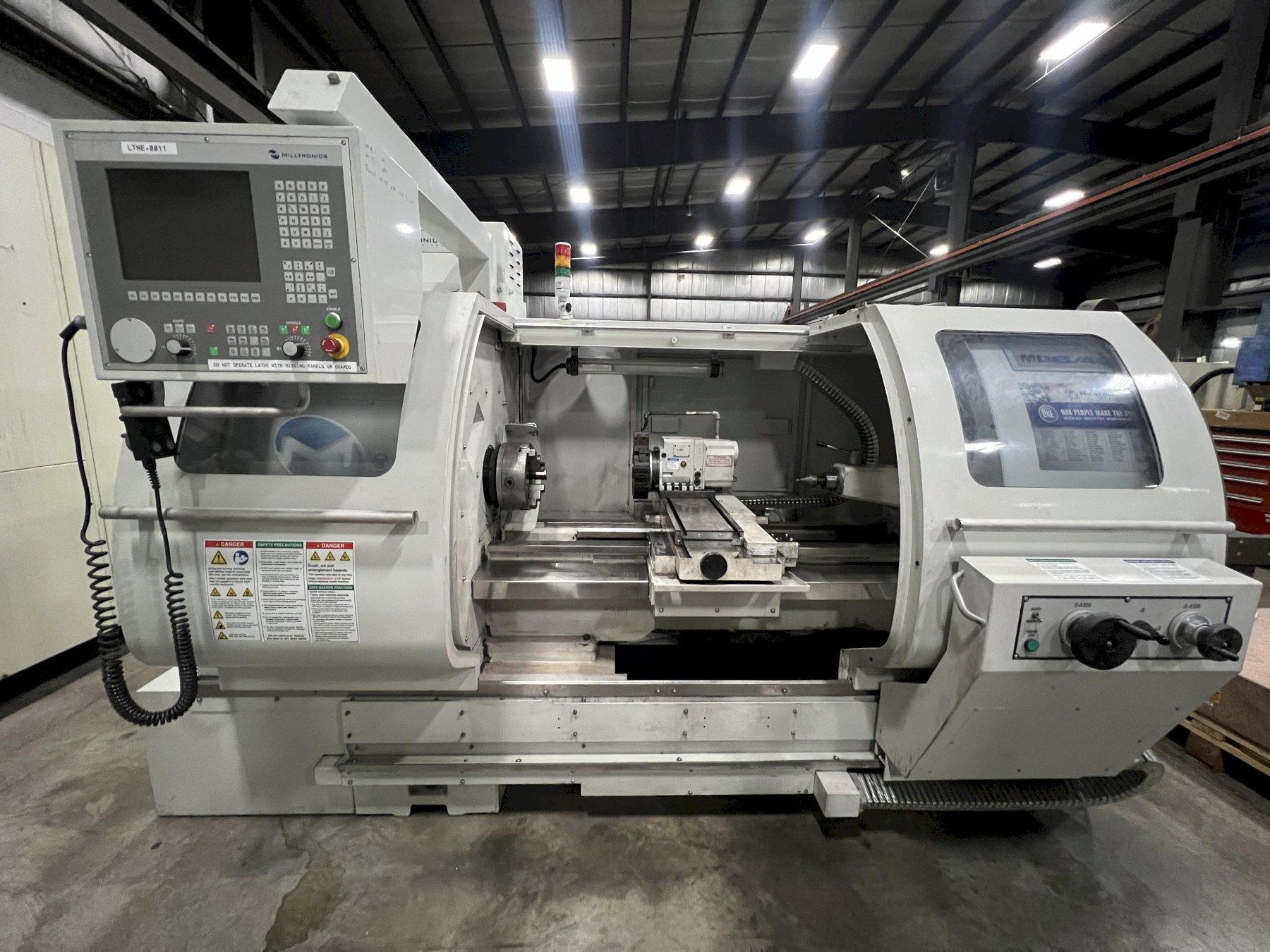

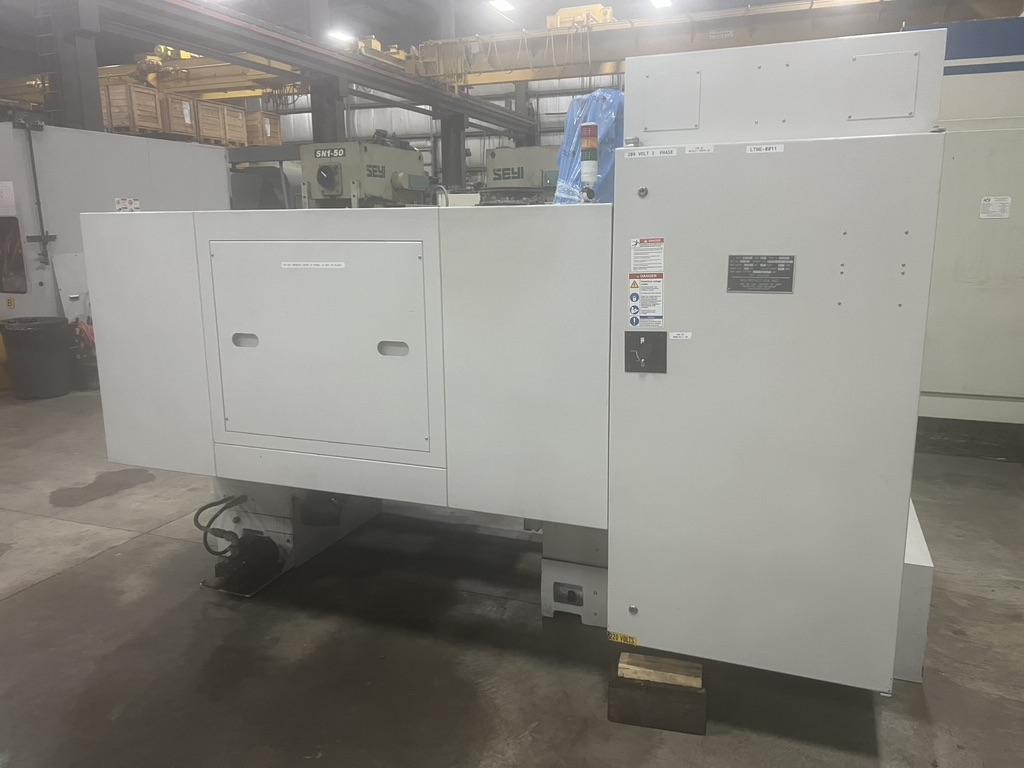

MILLTRONICS ML16/40 CNC LATHE WITH 8 POSITION TURRET, 8" CHUCK, TOOL POST GRINDER, 8200-B CONTROL, 2018

Brand
MILLTRONICS

Model
ML16/40

Type
Lathes, CNC

Stock #
11057

Condition
Used

Year
2018

Request a Quote

Specifications

CNC Control yes
Type of CNC Control MILLTRONICS 8200-B
Chuck Size 8 inches
Swing 16 inches
Center Distance 40 inches
Spindle Bore 2.04 inches
X Axis Travel 11 inches
Z Axis Travel 44.5 inches
Spindle Speed (RPM) 4000
Main Motor 18 HP
Turret Capacity 8 STATION 3/4"
Dimensions 120"L x 74"W x 81"H
Weight 6000 pounds

Equipped With

EQUIPPED WITH:
8" 3 JAW CHUCK
8 POSITION TURRET
REMOTE HAND WHEEL

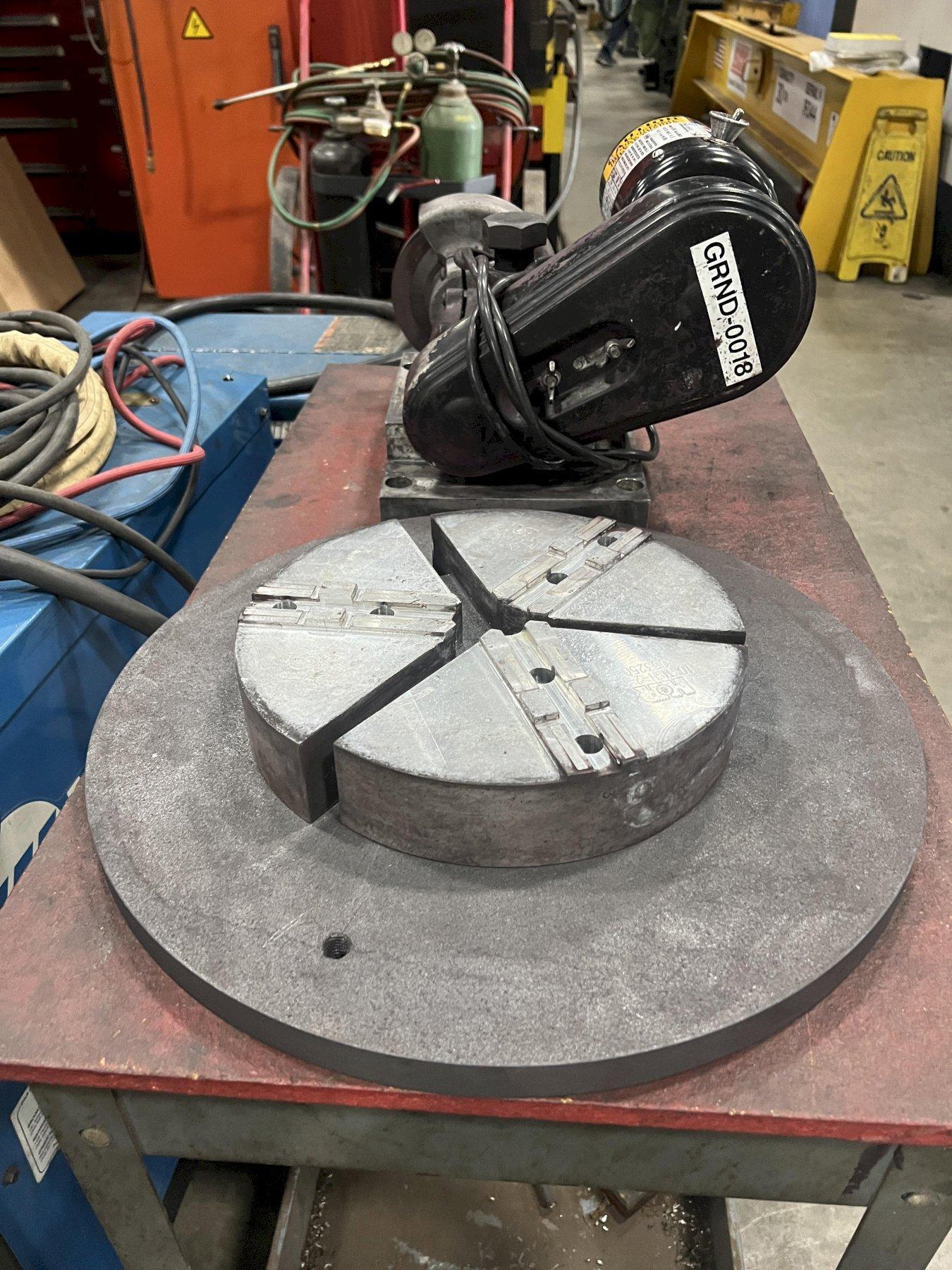

BELT GRINDER
DIAMOND PLATE

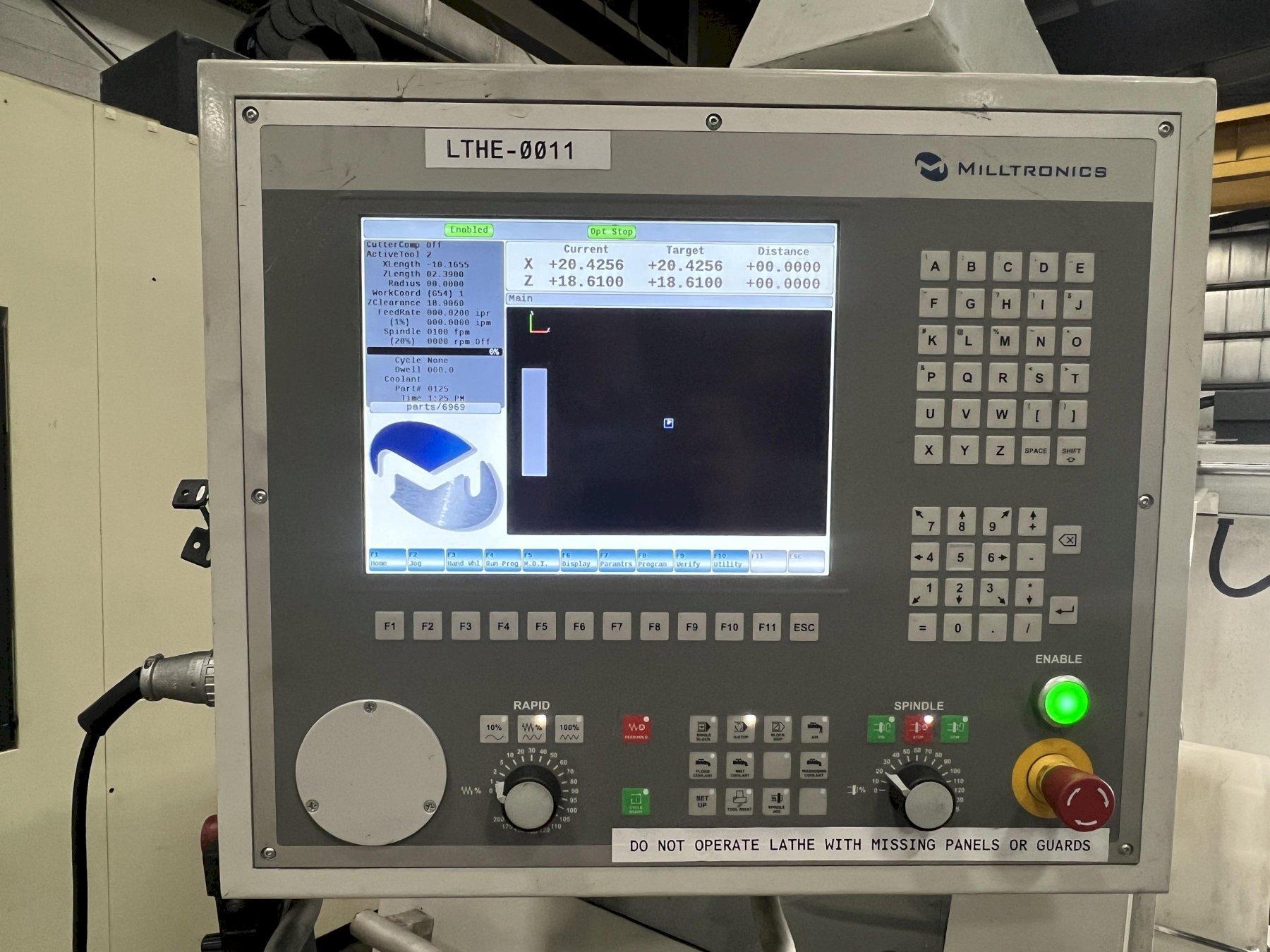

12" LCD COLOR DISPLAY

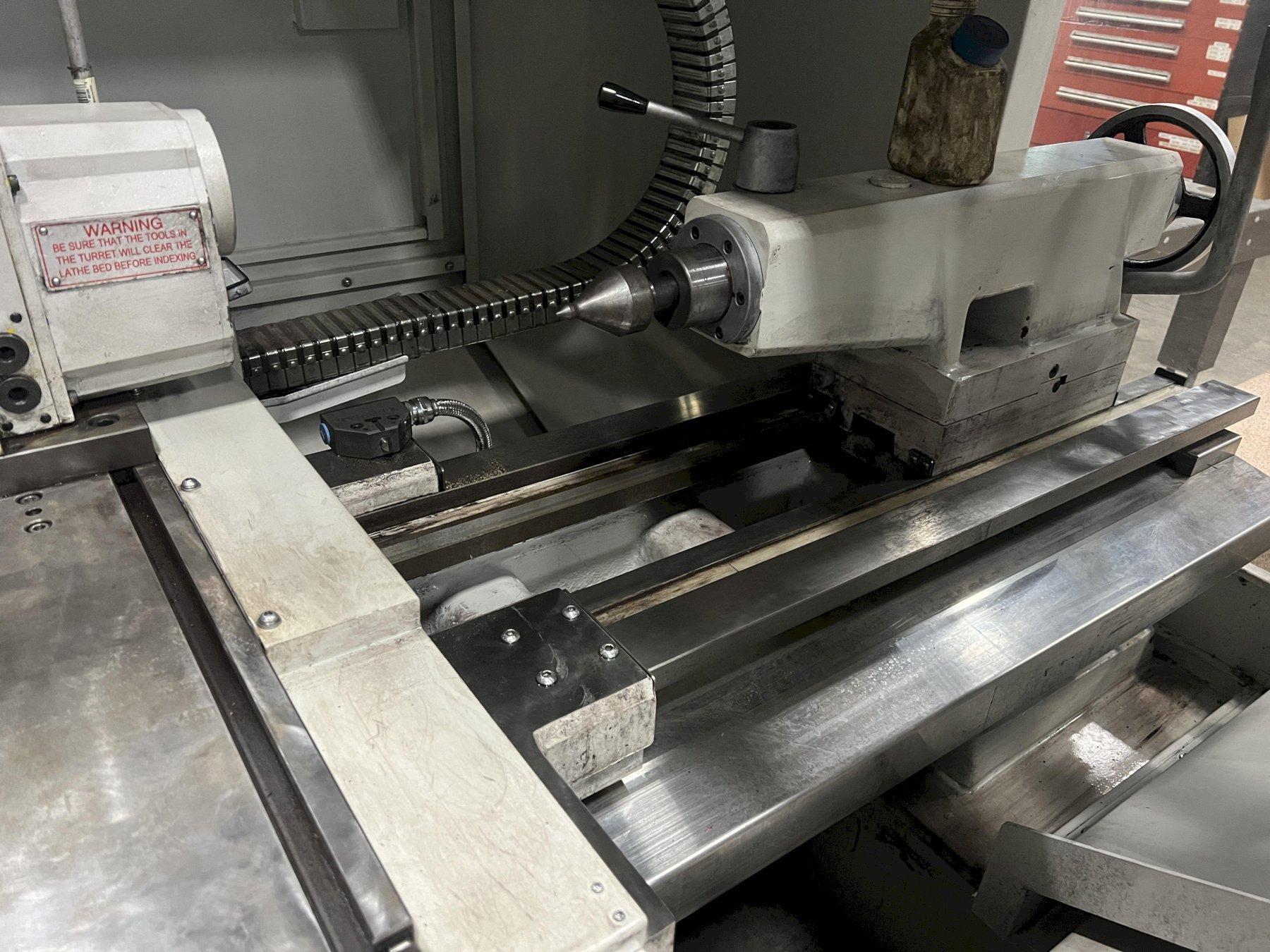

TAILSTOCK
FULL ENCLOSURE WITH SLIDING DOORS
A2-5 SPINDLE NOSE
AUTO LUBRICATION
FLOOD COOLANT
SOLID MODEL GRAPHIC DISPLAY
USB PORT
GAP BED DESIGN
CONSTANT SURFACE SPEED
