GENERAL SPECIFICATIONS
MANUFACTURER..................... MORI SEIKI
SERIAL NUMBER.................... NH501CB0221
AGE.............................. 2003
MODEL............................ NH5000
X-Axis Travel ................... 24.8"
Y-Axis Travel ................... 23.6"
Z-Axis Travel ................... 26.4"

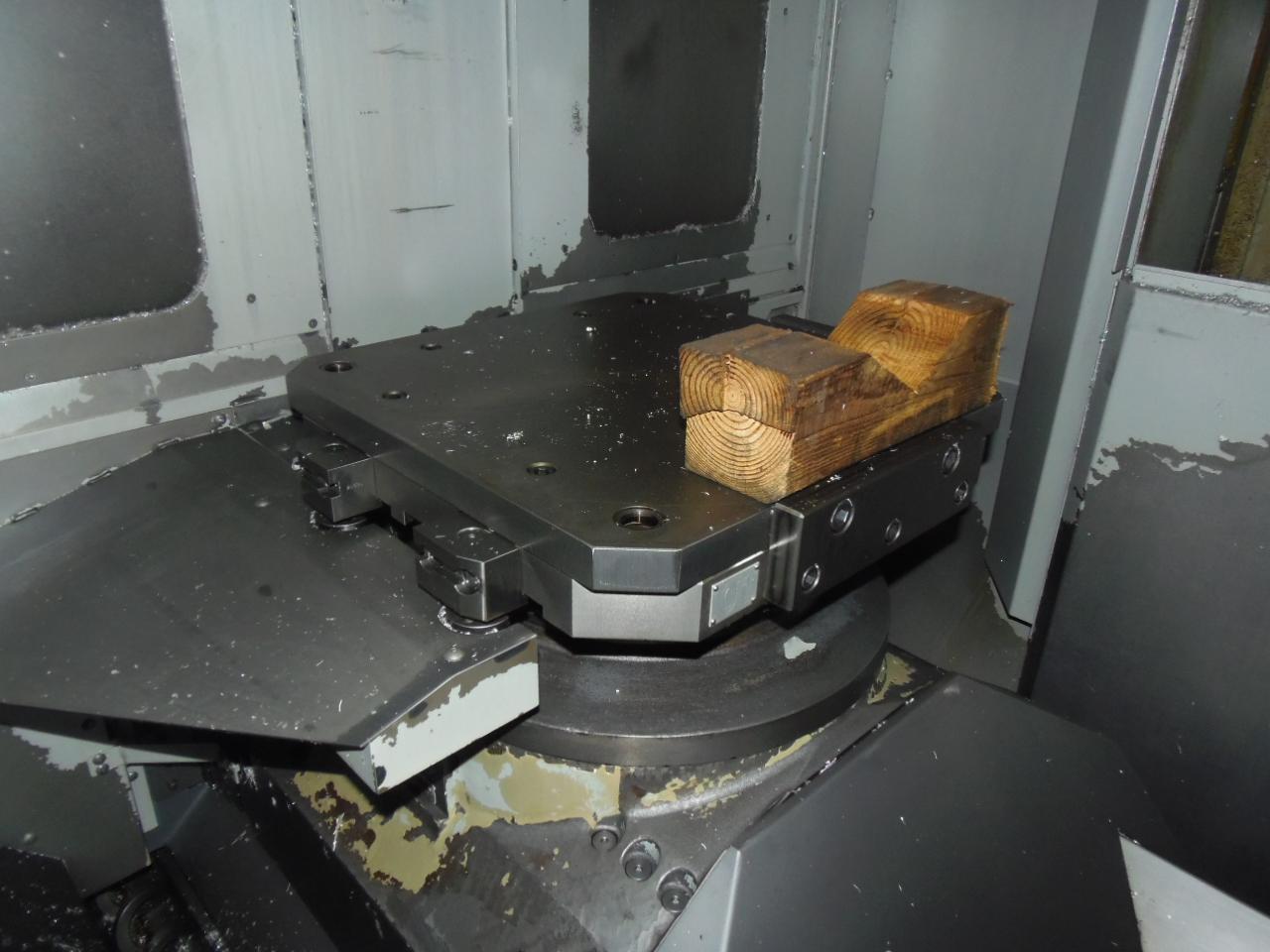

Number of Pallets ............... 2
Pallet Size ..................... 19.7" x 19.7"
Pallet Indexing ................. 1 DEGREE

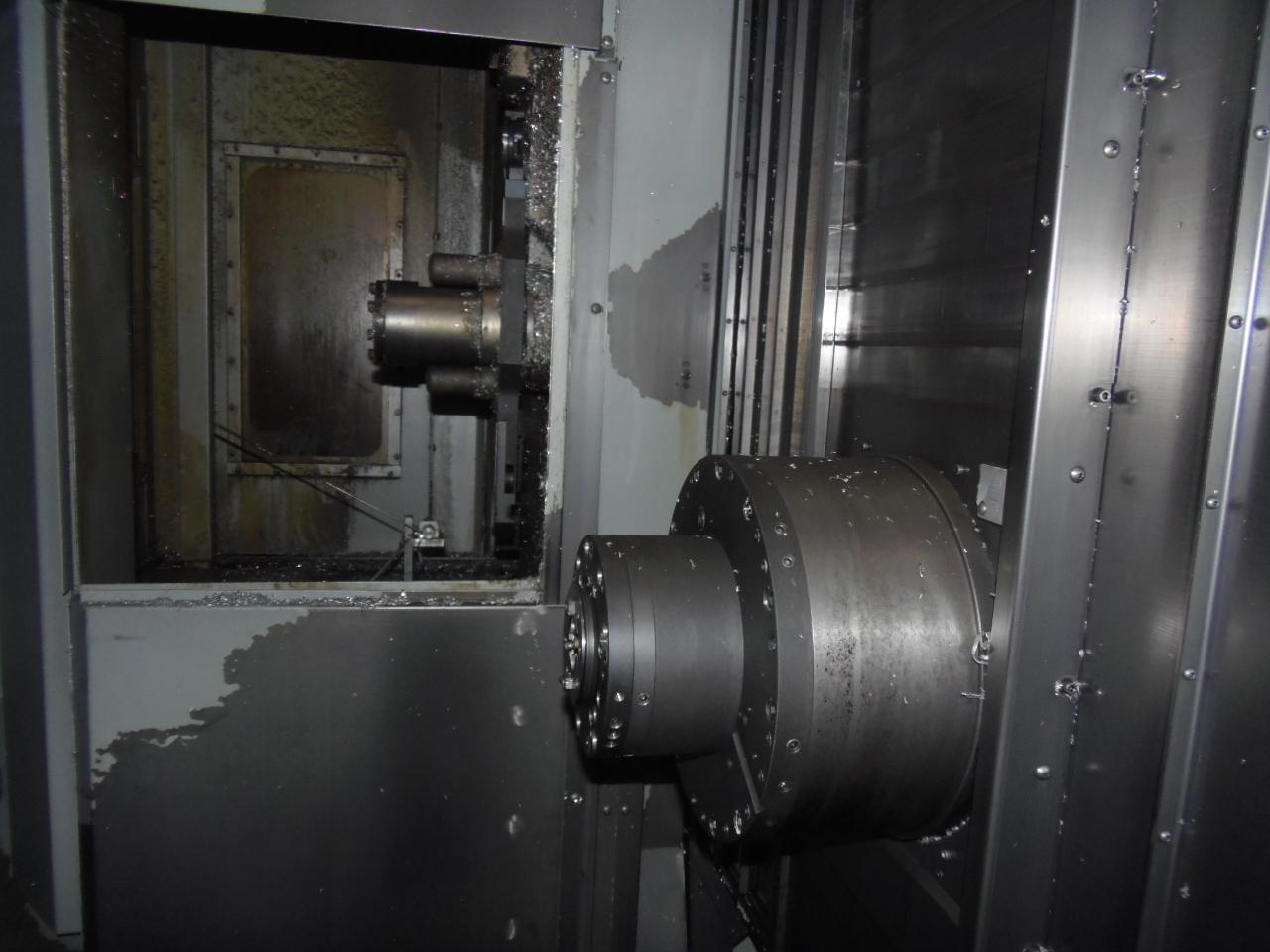

Spindle Speed ................... 14,000 RPM
Tool Changer Capacity............ 60 ATC
Spindle Taper ................... BT 40
Spindle Drive Motor ............. 40 HP AC
Rapid Traverse (X,Y,Z) .......... 1200 IPM
Tool Change Time ................ 2.6 Seconds
Dimensions....................... 190" x 94" x 110" H
Weight (approx).................. 23,000 lbs.
Equipped with:

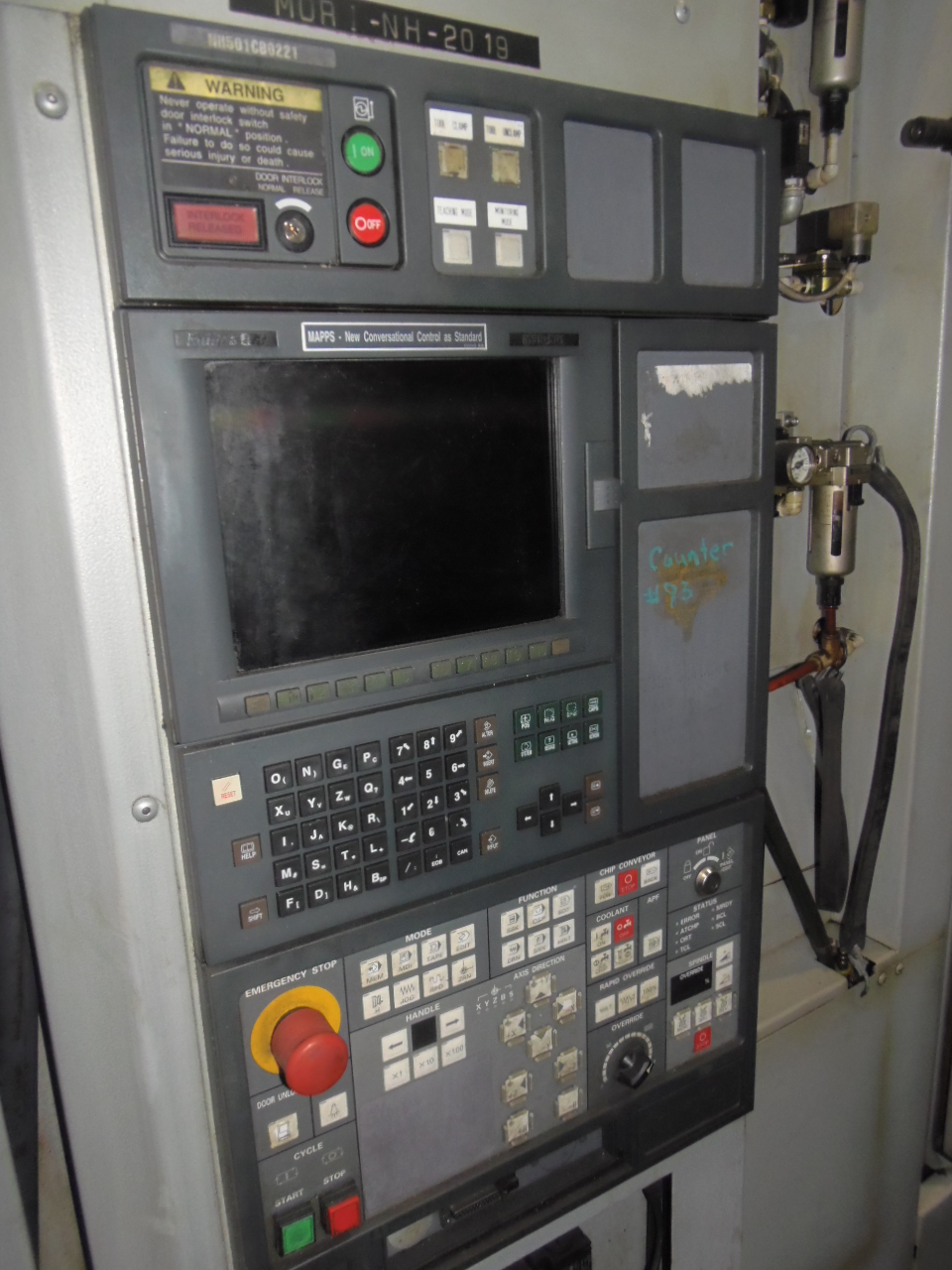

MSC-501 control
SPECIFICATIONS SUBJECT TO VERIFICATION
