Specifications
Equipped With

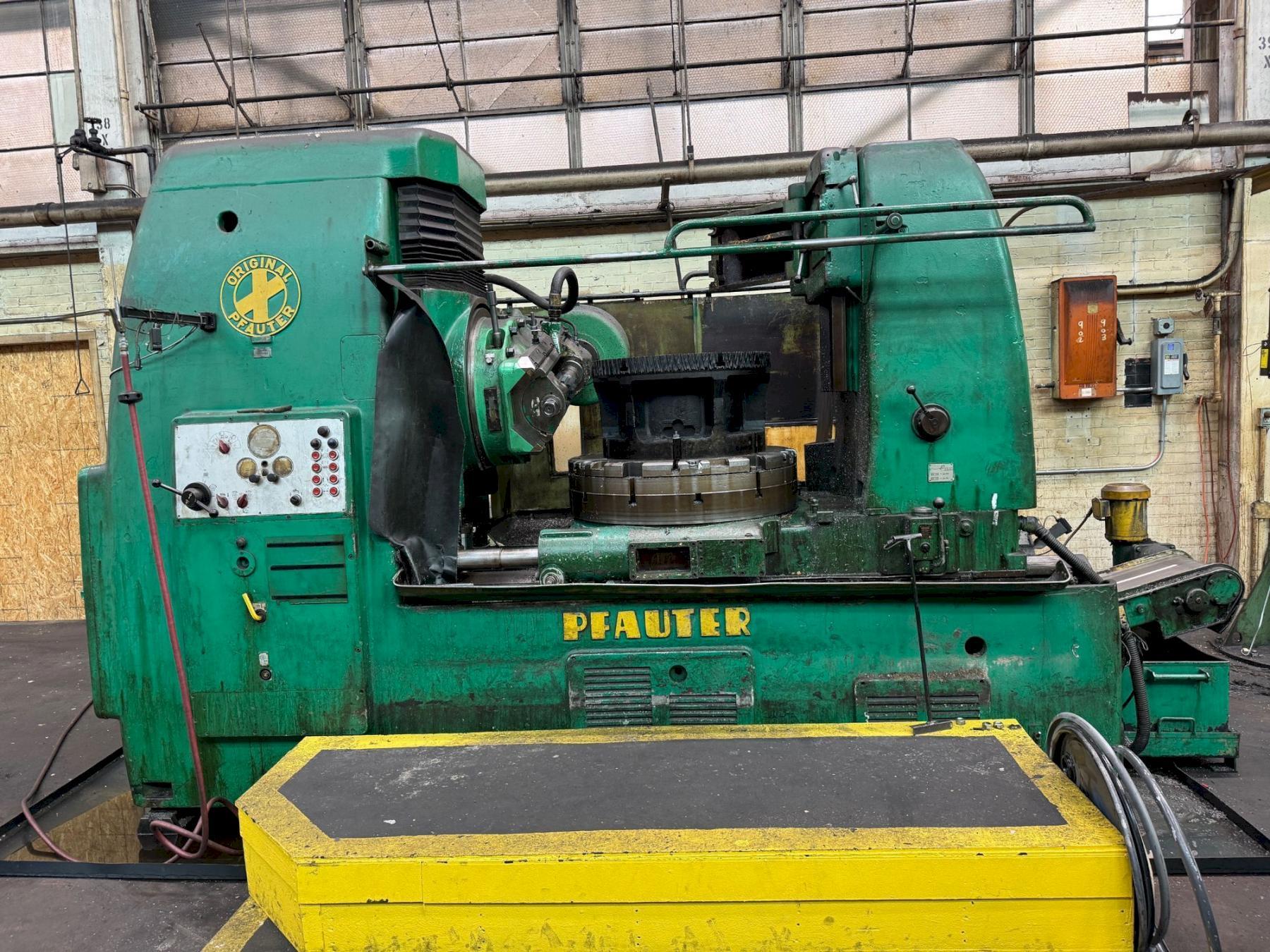

Manufacturer . . . . . . . . . . Pfauter
Model . . . . . . . . . . . . . P1250
Specifications:
Maximum Workpiece Diameter . . . 49.213" (1250 mm)
Horiz/Vert . . . . . . . . . . . Vertical
Maximum Diametral Pitch . . . . 2
Module . . . . . . . . . . . . . 12
Axial Travel . . . . . . . . . . 23.032" (585 mm)
Maximum Hob Diameter . . . . . . 8.6614" (220 mm)
Hob Arbor Size . . . . . . . . . 2"
Hob Speeds . . . . . . . . . . . 32 - 200 RPM
Table Diameter . . . . . . . . . 37.402"
Feed range:
- Axial . . . . . . . . . . . 0,30 - 6 mm/min
- Radial . . . . . . . . . . 0.09 - 1.8 mm/min
- Tangential . . . . . . . . 0.126 - 2.53 mm/min
Minimum No of Milling Teeth . . 12
Weight . . . . . . . . . . . . . 14,000 kg
Control Manufacturer . . . . . . Conventional
Equipped With:
40" Table
Hob Arbor
Differential
Change Gears
Risers
Swing Away Tailstock
Chip Conveyor
Coolant
440-3-60 Electrics
Diag. - S1250 - 4 - 4 AM
