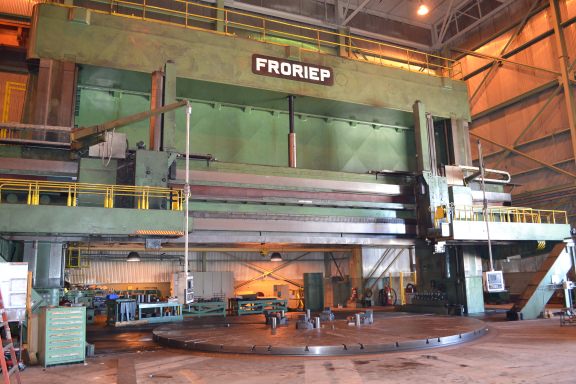

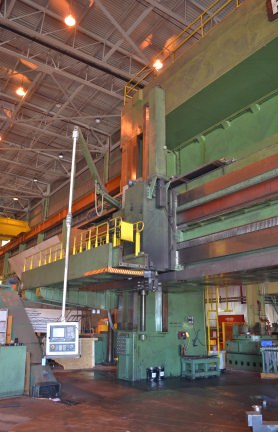

SCHIESS FRORIEP 590.55" VTL, CNC VERTICAL BORING MILL, SIEMENS 840D CNC CONTROL, 1999

Brand
FRORIEP

Model
SCHIESS

Stock #
9705

Condition
Used

Year
1999

Specifications

Equipped With

GENERAL SPECIFICATIONS:

MANUFACTURER............................ FRORIEP
MODEL................................... SCHIESS
AGE (YEAR).............................. 1999
TABLE DIAMETER.......................... 393.37" 9899mm
TURNING DIAMETER WITH VERTICAL RAMS..... 590.55" 15,000mm
MAXIMUM TURNING HEIGHT.................. 196.85" 2460mm
RAM VERTICAL TRAVEL..................... 78.74"  2,000mm
RAM SWIVEL.............................. +/-30/15 DEG
MAX. CUTTING FORCE RIGHT RAIL HEAD...... 27,558 LBS
TABLE LOAD CAPACITY..................... 440,925 LBS
TABLE SPEED RANGES, INF VARIABLE........ 4
TABLE SPEEDS............................ 0.13 TO 13 RPM
RAPID TRANSVERSE, X&Z AXES.............. 64.17" IPM
CREEP FEED MOTION, X&Z AXES............. 0.118 IPM
CROSS RAIL ELEVATION MOTOR.............. 40.23 HP
NUMBER OF FEEDS, VERTICAL & HORIZONTAL.. 30
VERTICAL RAM FEEDS...................... .00196-1.574 IPR
HORIZONTAL RAM FEEDS.................... .00196-1.574 IPR
CROSS RAIL ADJUSTMENT MOTOR............. 86 HP
RAPID TRANSVERSE MOTORS................. 15.5 HP
MAIN MOTOR.............................. 250 HP

EQUIPPED WITH:
SIEMENS 840D CNC CONTROL NEW 1999
DUAL PENDANT OPERATED CONTROLS

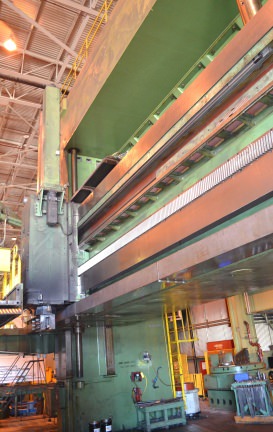

2-VERTICAL CNC CONTROLLED RAMS

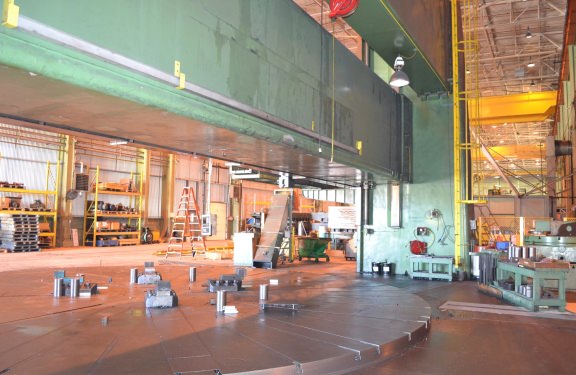

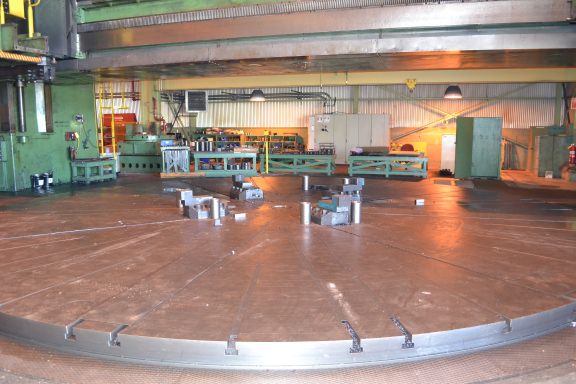

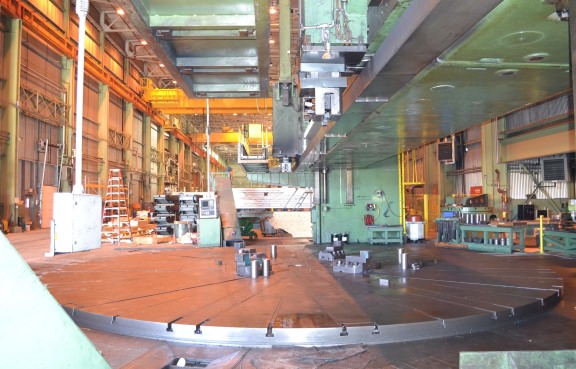

393.37" DIAMETER T-SLOTTED TABLE

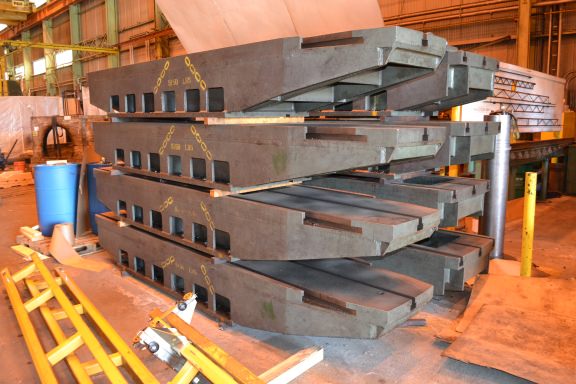

4-HEAVY DUTY FACE PLATE TYPE JAWS
HYDROSTATIC BEARING SYSTEM FOR TABLE
DUAL OPERATORS PLATFORMS

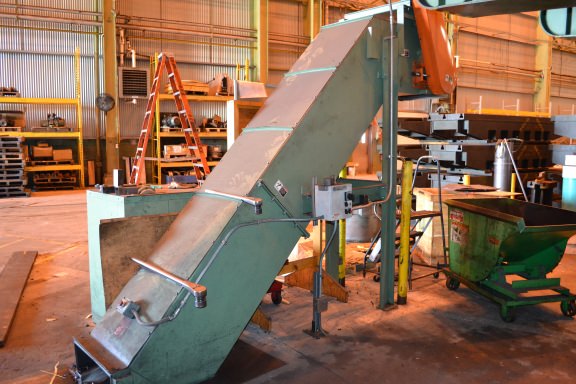

DUAL JORGENSEN CONVEYORS
250 HP TABLE MOTOR

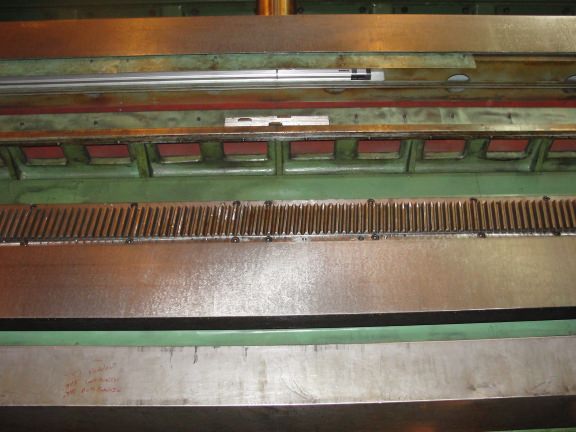

REBUILT & CNC RETROFIT IN 1999, NEW BALL SCREWS, REFITTED COLUMN, SADDLE AND RAMS, NEW DRIVES, NEW CLUTCH SYSTEM, ELECTRICS

SPECIFICATIONS SUBJECT TO VERIFICATION
