Specifications
Equipped With

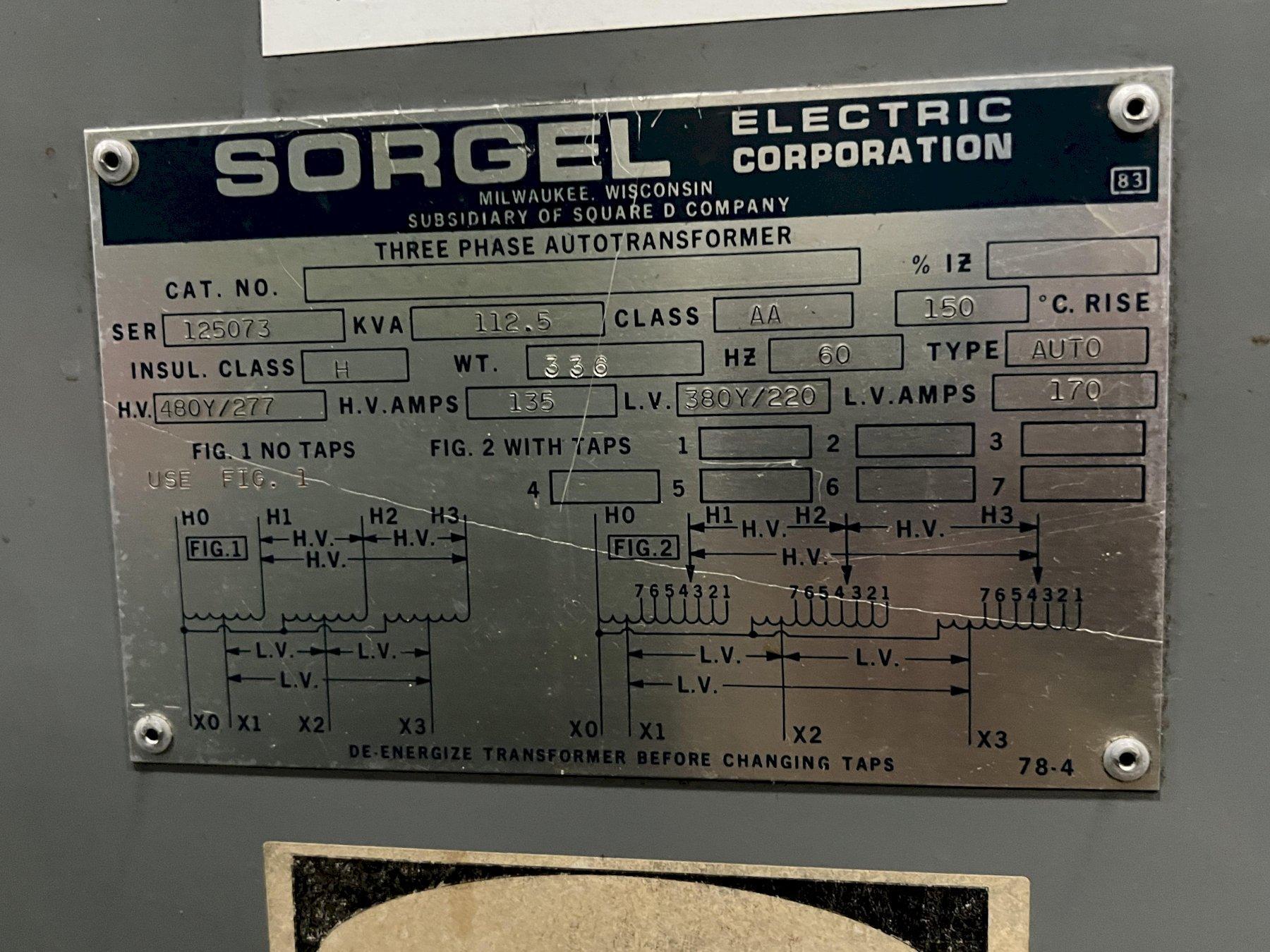

GENERAL SPECIFICATIONS
MANUFACTURER..................SORGEL ELECTRIC CORPORATION
TYPE..........................THREE PHASE AUTOTRANSFORMER
SERIAL NO.....................125073
CAPACITY......................112.5 KVA
PHASE.........................3 PHASE
FREQUENCY.....................60 HZ
HIGH VOLTAGE..................480Y/277V
HIGH VOLTAGE AMPS.............135 AMPS
LOW VOLTAGE...................380Y/220V
LOW VOLTAGE AMPS..............170 AMPS
CLASS.........................AA
TEMPERATURE RISE..............150°C
INSULATION CLASS..............CLASS H
TRANSFORMER TYPE..............AUTO
WEIGHT........................336 LBS.
SPECIFICATIONS SUBJECT TO VERIFICATION
