Specifications
Equipped With
GENERAL SPECIFICATIONS:
MAKE.................... TRAK
MODEL................... TMC7

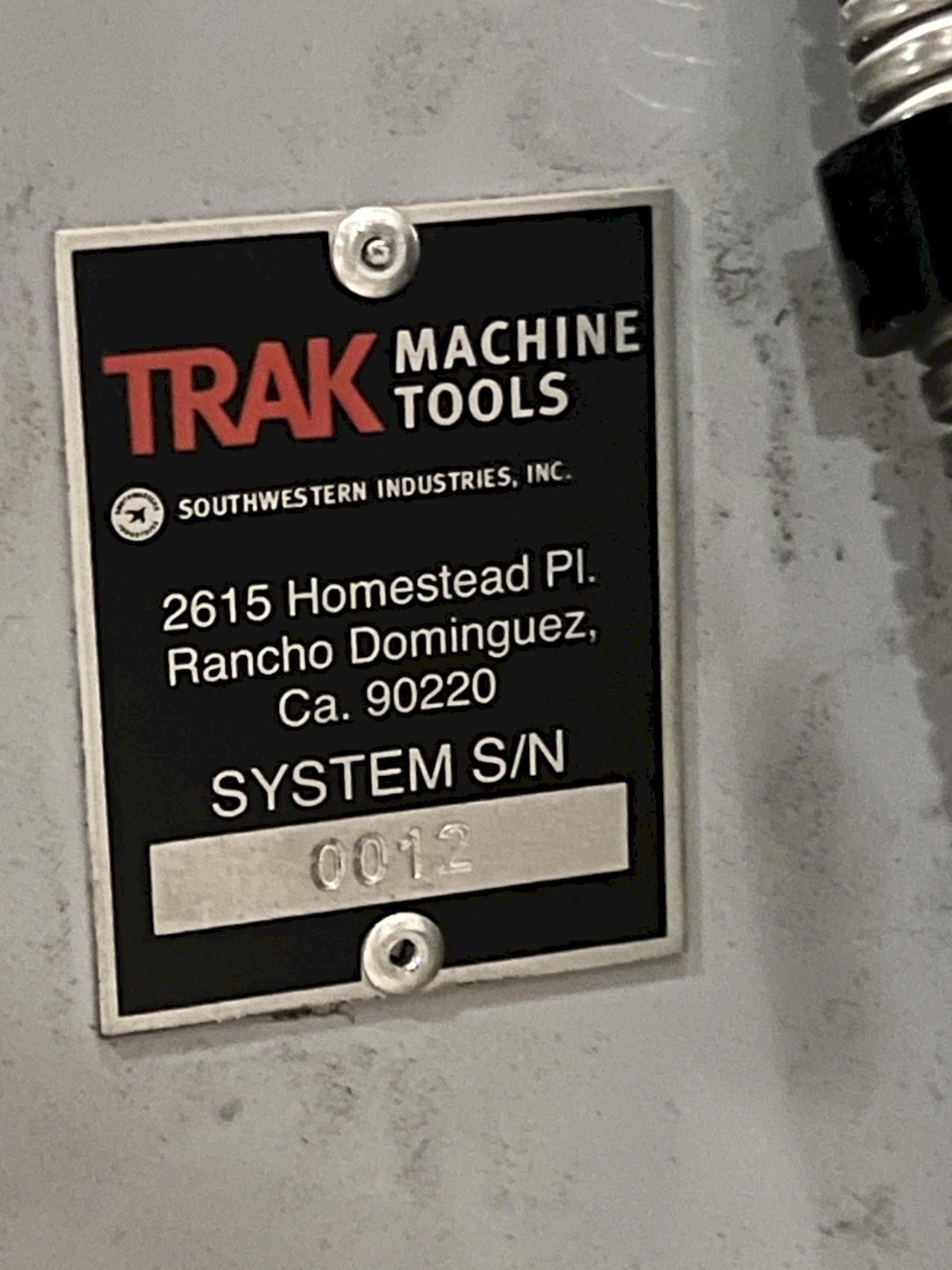

SERIAL NUMBER........... 202EN503
AGE (YEAR).............. 2021
TABLE SIZE.............. 35.4" X 19.6" (900 X 500 MM)
MAX. WORKPIECE WEIGHT... 1,320 LBS
TRAVELS X............... 30" (762 MM)
TRAVELS Y............... 20" (508 MM)
TRAVELS Z............... 20" (508 MM)
RAPID TRAVERSE.......... 1,000 IPM
SPINDLE SPEED........... 8,000 RPM
SPINDLE TAPER........... CAT 40

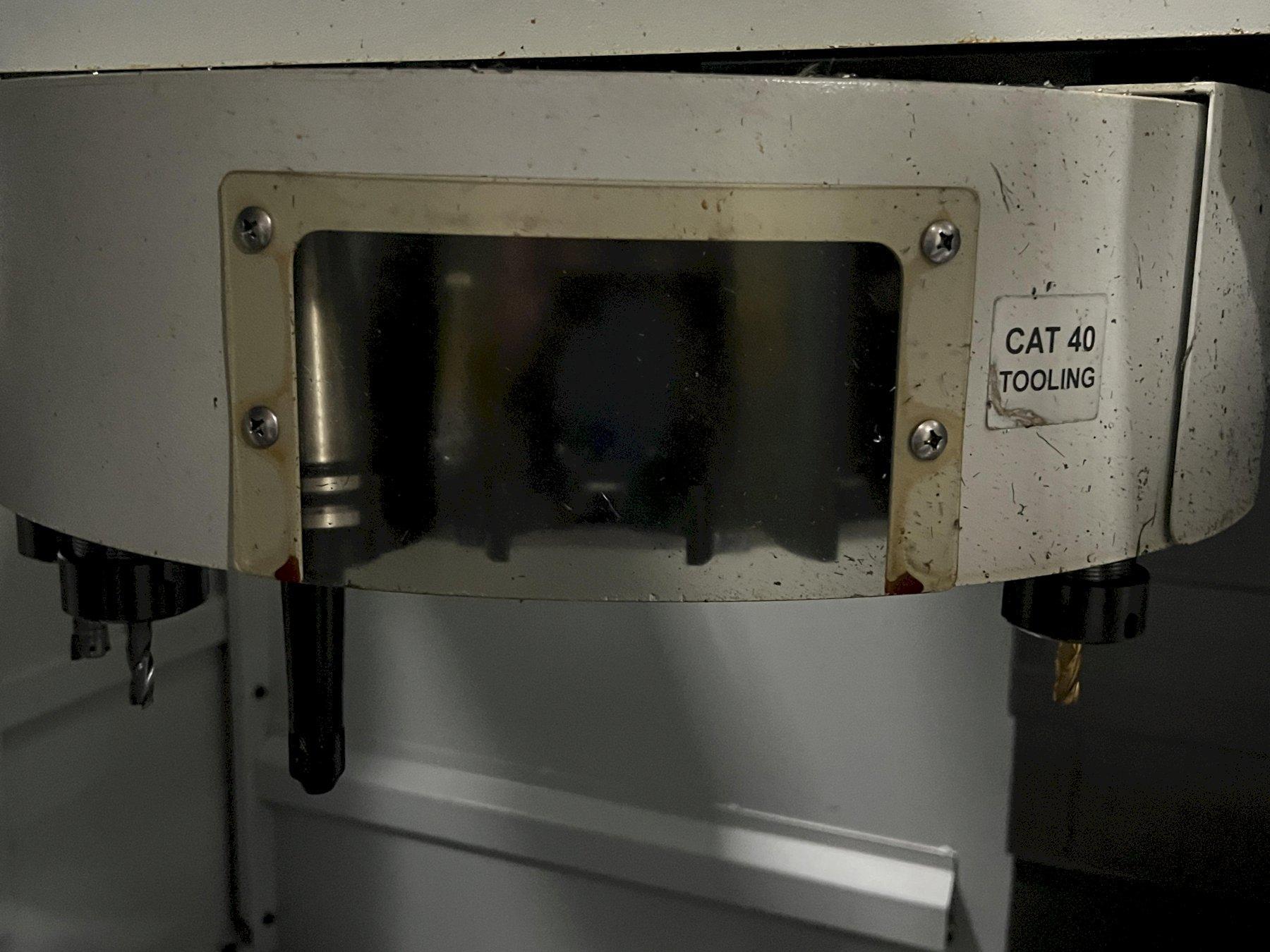

TOOL CHANGER............ 16 ATC
TOOL CHANGE TIME........ .8 STATION TO STATION
FOOTPRINT............... 135" X 97"
WEIGHT.................. 8700 LBS
ELECTRICS.................. 208 V / 3 PH / 67.3 AMPS
EQUIPPED WITH:

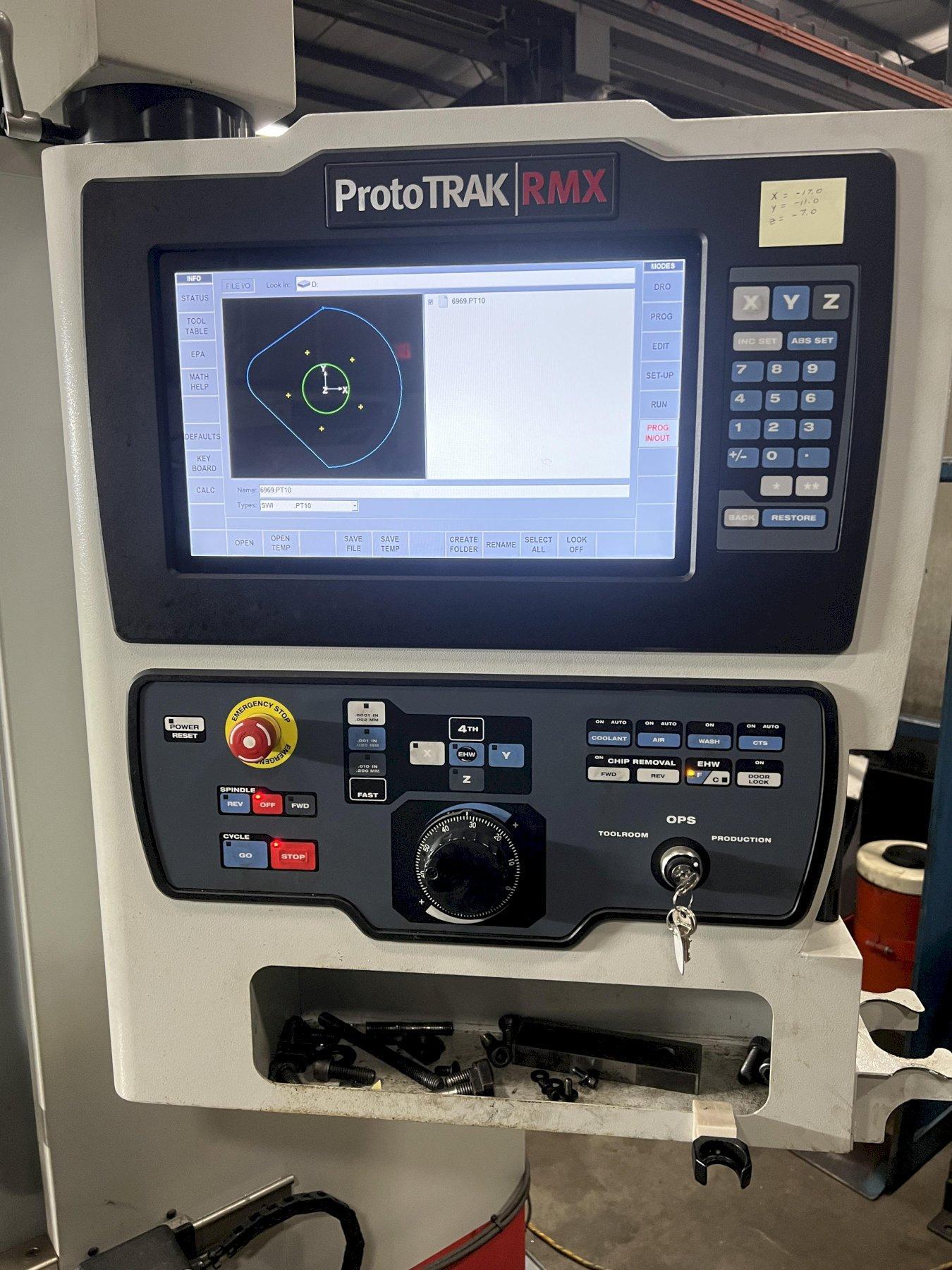

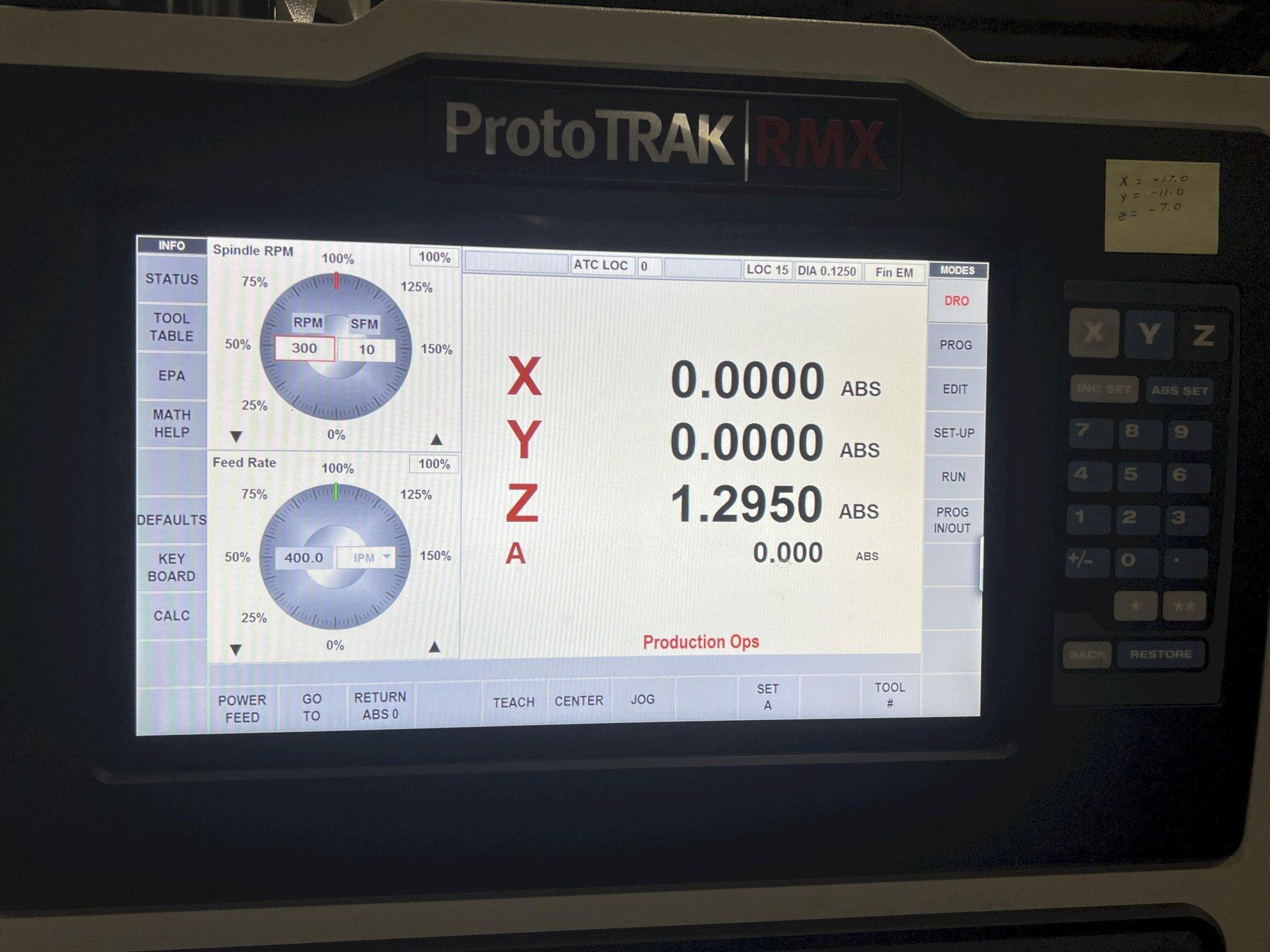

PROTOTRAK RMX CONTROL
CONVERSATIONAL PROGRAMMING, ABLE TO UPLOAD
CAD/CAM/DXF/PARASOLID FILES
SPECIFICATIONS SUBJECT TO VERIFICATION
