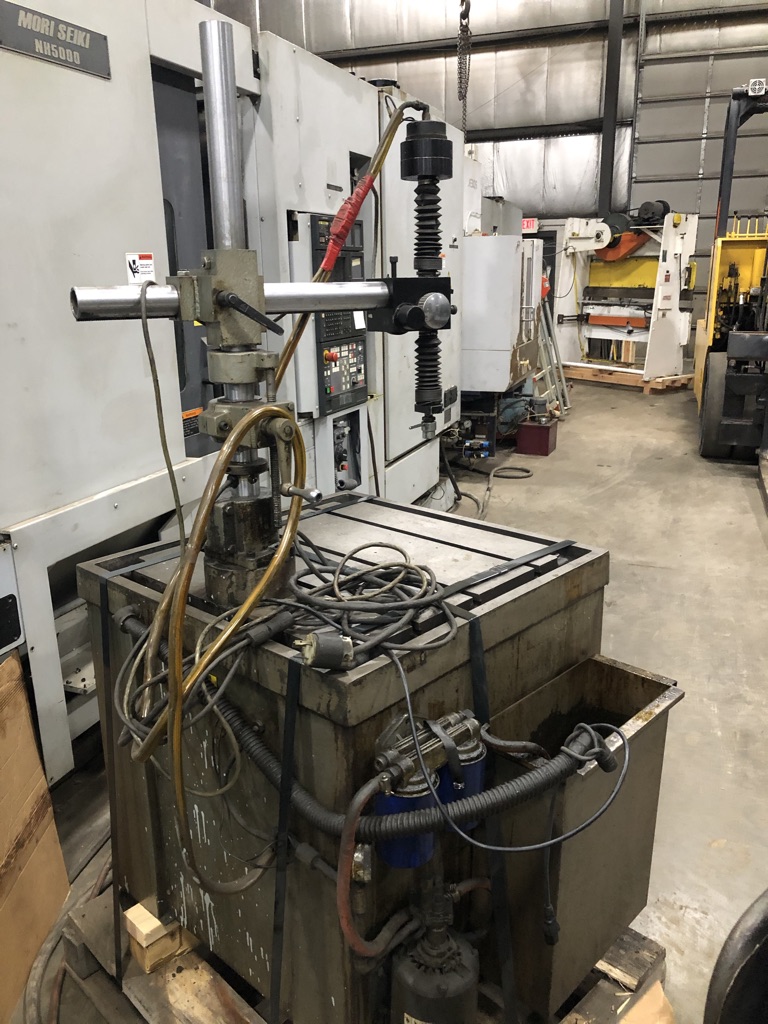

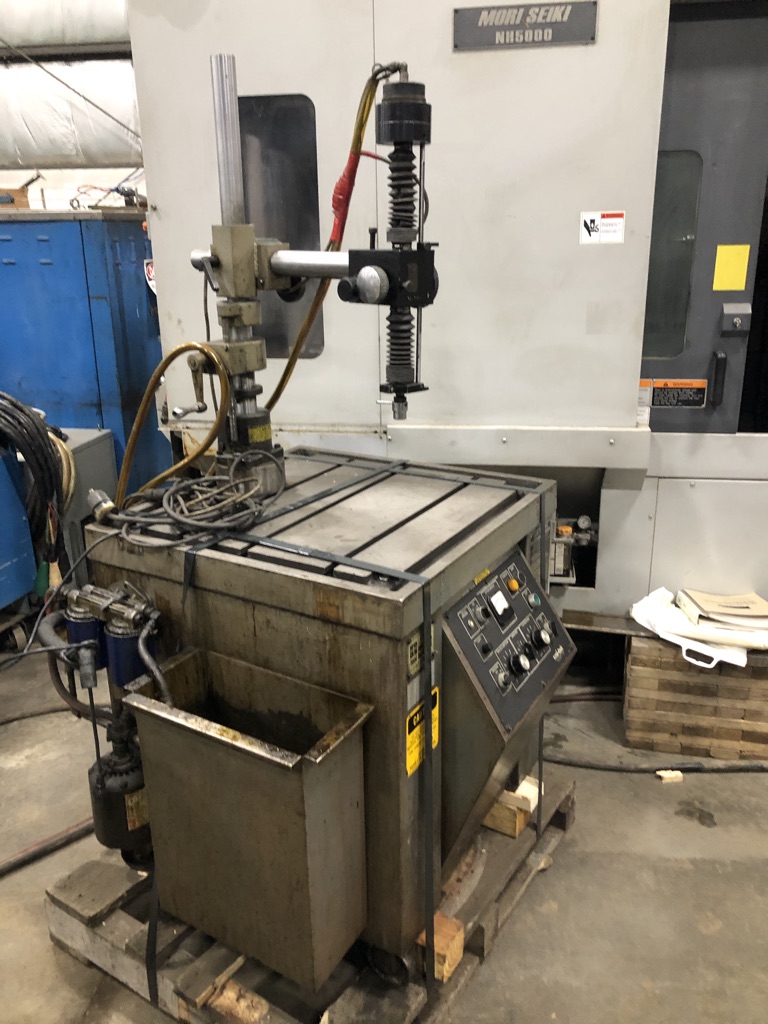

UNI-TEK (ELECTRO ARC) MODEL 300-S1, TAP DISINTEGRATORS, SERVO FEED, SWIVEL HEAD, .02 TO 3", DC SINGLE PHASE POWER SOURCE, MOLY OR GRAPHITE TOOLING,

Brand
UNI-TEK

Model
300-S1

Stock #
10391

Condition
Used

Year
1995

Location
WAUKESHA, Wisconsin
United States

Specifications

Equipped With

GENERAL SPECIFICATIONS:
MANUFACTURER...................... UNI-TEK (ELECTRO ARC)
MODEL............................. 300-S1
SERIAL #.......................... 81289
TABLE SIZE........................ 30"LR x 30"FB
# OF T-SLOTS IN TABLE............. 3
SINGLE CUT CAPACITY............... .020-3/4" TAP SIZE
QUILL STROKE (SERVO).............. 12"
VERTICAL HEAD ADJUSTMENT.......... 10"
MAX. TABLE TO QUILL............... 26"
HORIZONTAL ADJUSTMENT OF HEAD..... 15"
MAX. AMPERAGE..................... 60
VOLTAGE........................... 125 VOLTS SINGLE PHASE
APPROXIMATE WEIGHT................ 600 LBS.

EQUIPPED WITH:

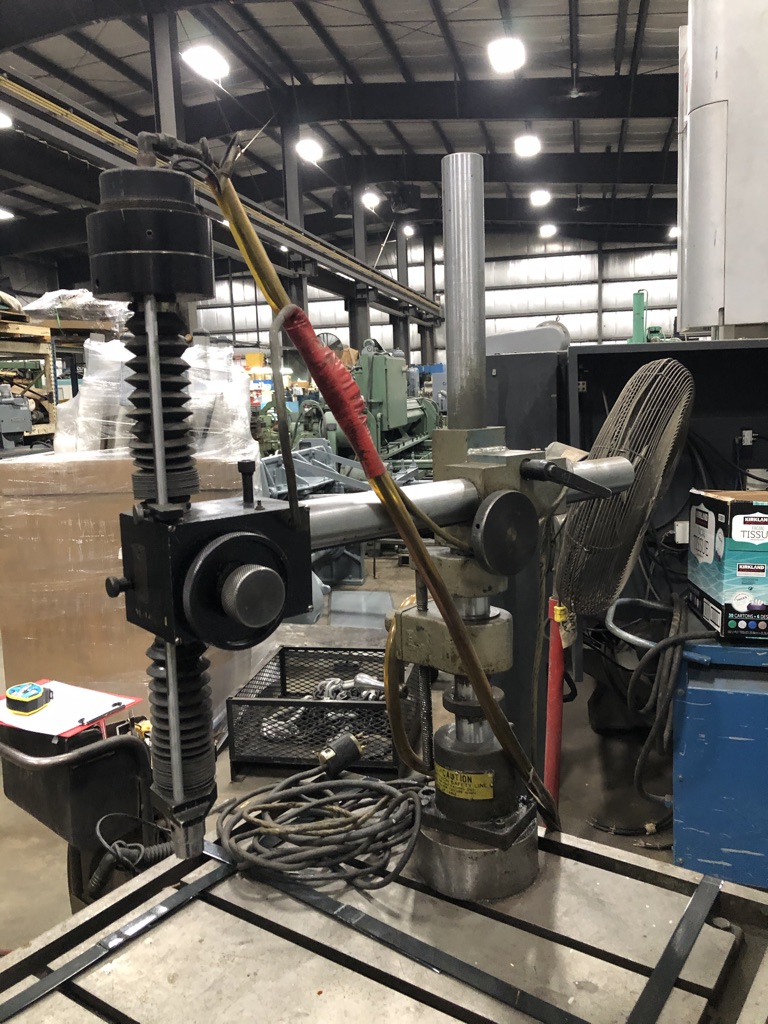

360 SWIVEL HEAD AND ARM
MOUNTED ON CASTERS
VIBRATION AMPLIFIER CONTROL
ALL ANGLE SERVO FEED CONTROL WILL ADJUST TO GAP FLUCTUATIONS
CUTTING POWER CONTROL
WILL CUT CARBIDE, HIGH SPEED STEEL, OR SOFT METALS
50 PSI THRU ELECTRODE COOLANT
CAN USE MOLYBDENUM (MOLY) OR GRAPHITE ELECTRODES
OPERATION, MAINTENANCE, AND PARTS MANUALS

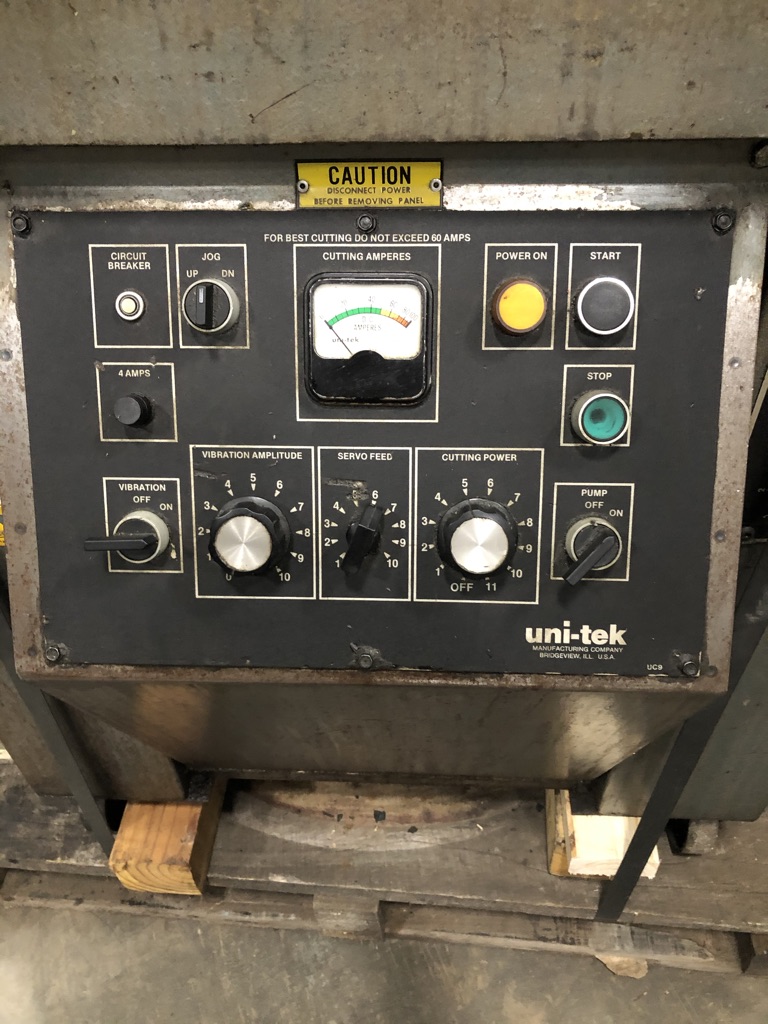

CONTROLS
JOG UP/DOWN, VIBRATION ON, VIBRATION AMPLITUDE, SERVO FEED ADJUSTMENT, CUTTING POWER ADJUSTMENT, POWER ON, COOLANT PUMP ON, LOW RANGE CUTTING POWER ADJUSTMENT
