Specifications
Equipped With

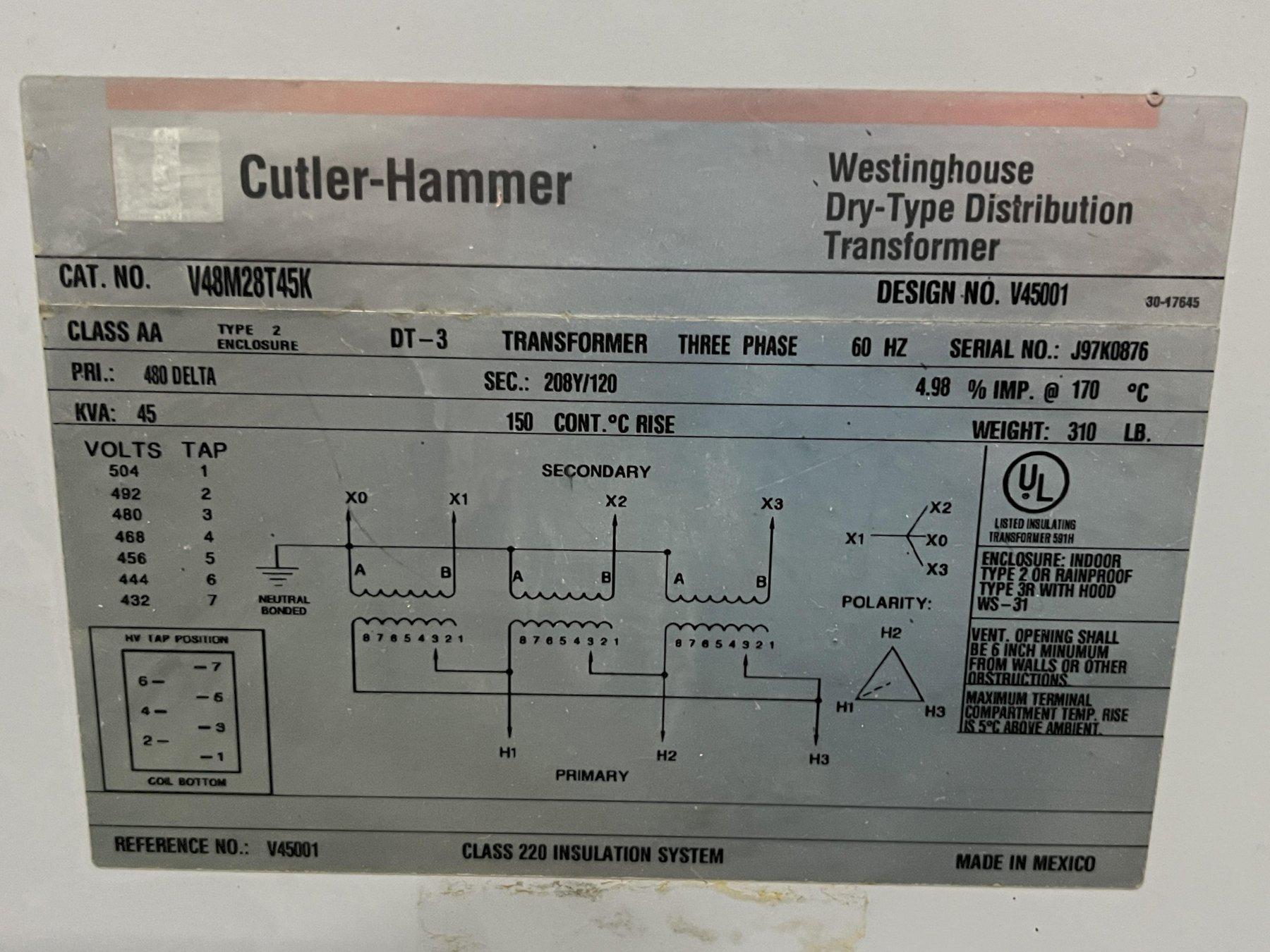

MANUFACTURER.................. WESTINGHOUSE / CUTLER-HAMMER

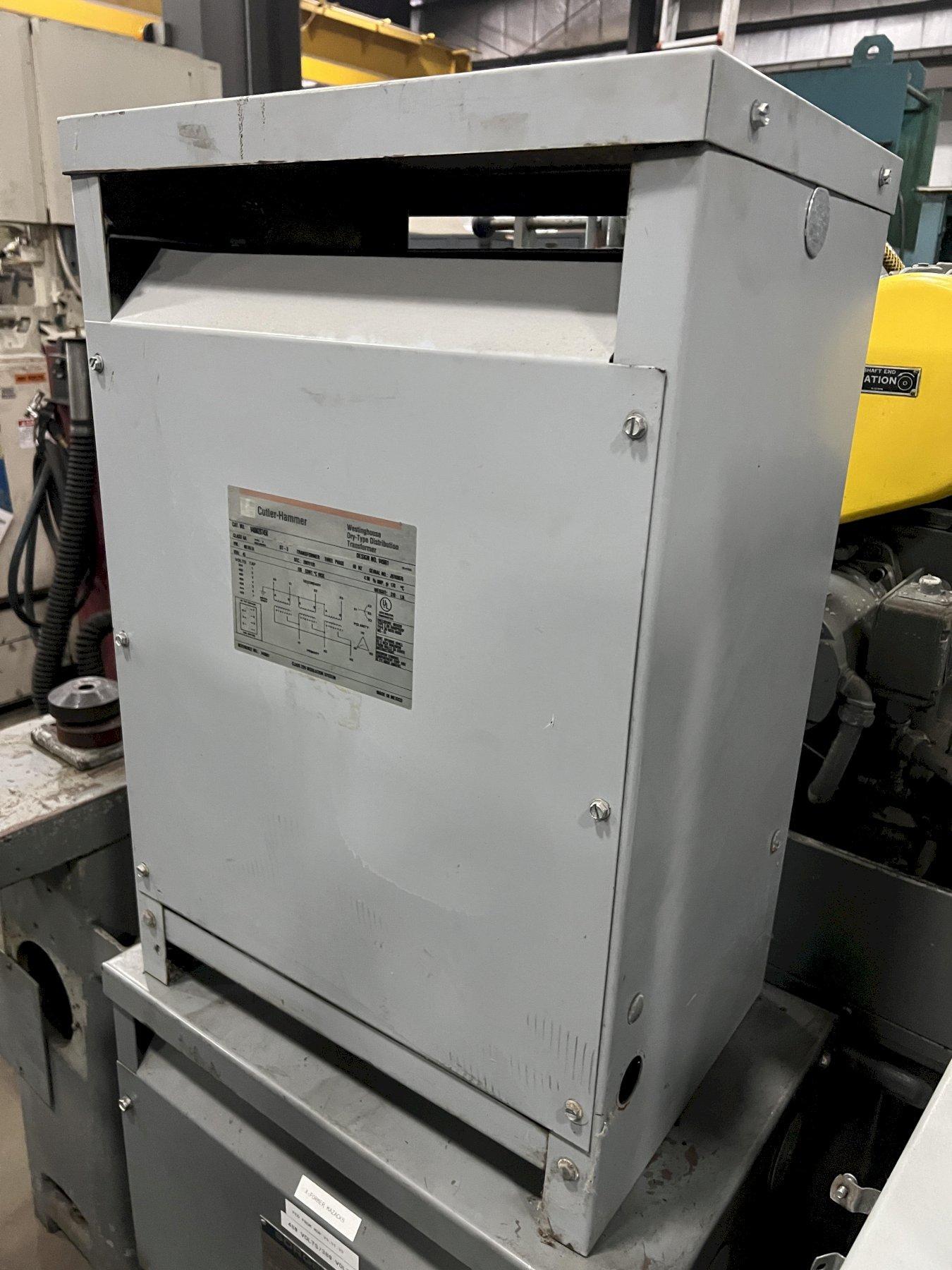

TYPE.......................... DRY-TYPE DISTRIBUTION TRANSFORMER
CATALOG NO.................... V48M28T45K
DESIGN NO..................... V45001
SERIAL NO..................... J97K0876
CAPACITY...................... 45
KVA PHASE..................... 3
PHASE FREQUENCY............... 60 HZ
PRIMARY VOLTAGE............... 480V
DELTA SECONDARY VOLTAGE....... 208Y/120V
PRIMARY TAPS.................. 504 / 492 / 480 / 468 / 456 / 444 / 432V
IMPEDANCE..................... 4.98% @ 170°C
TEMPERATURE RISE.............. 150°C CONTINUOUS
INSULATION CLASS.............. CLASS 220
COOLING CLASS................. AA
ENCLOSURE..................... TYPE 2
INDOOR ENCLOSURE STYLE........ RAINPROOF TYPE 3R W/ HOOD (WS-31)
WEIGHT........................ 310 LBS.
SERIAL NO..................... J97K0876
REFERENCE NO.................. V45001
CERTIFICATION................. UL LISTED
