Specifications
Equipped With
GENERAL SPECIFICATIONS:
MAKE..................... CINCINNATI
MODEL.................... 1812G
SERIAL NUMBER............ 49483
AGE (YEAR)............... 1996
CAPACITY................. 1/4" MILD STEEL
SHEAR LENGTH............. 12'
STROKES PER MIN.......... 32 TO 70 SPM
MOTOR.................... 10 HP
HOLD DOWN TO KNIFE EDGE.. 5/8"
DIS. UNDER HOLD DOWNS.... 1/2"
TOTAL # HOLD DOWNS....... 9
BLADE SIZE............... 1" X 3" X 12' 6"
FLYWHEEL RPM............. 1200 RPM
ELECTRICS................ 460V / 3PH
SHIPPING WEIGHT.......... 24,000 LBS
EQUIPPED WITH:

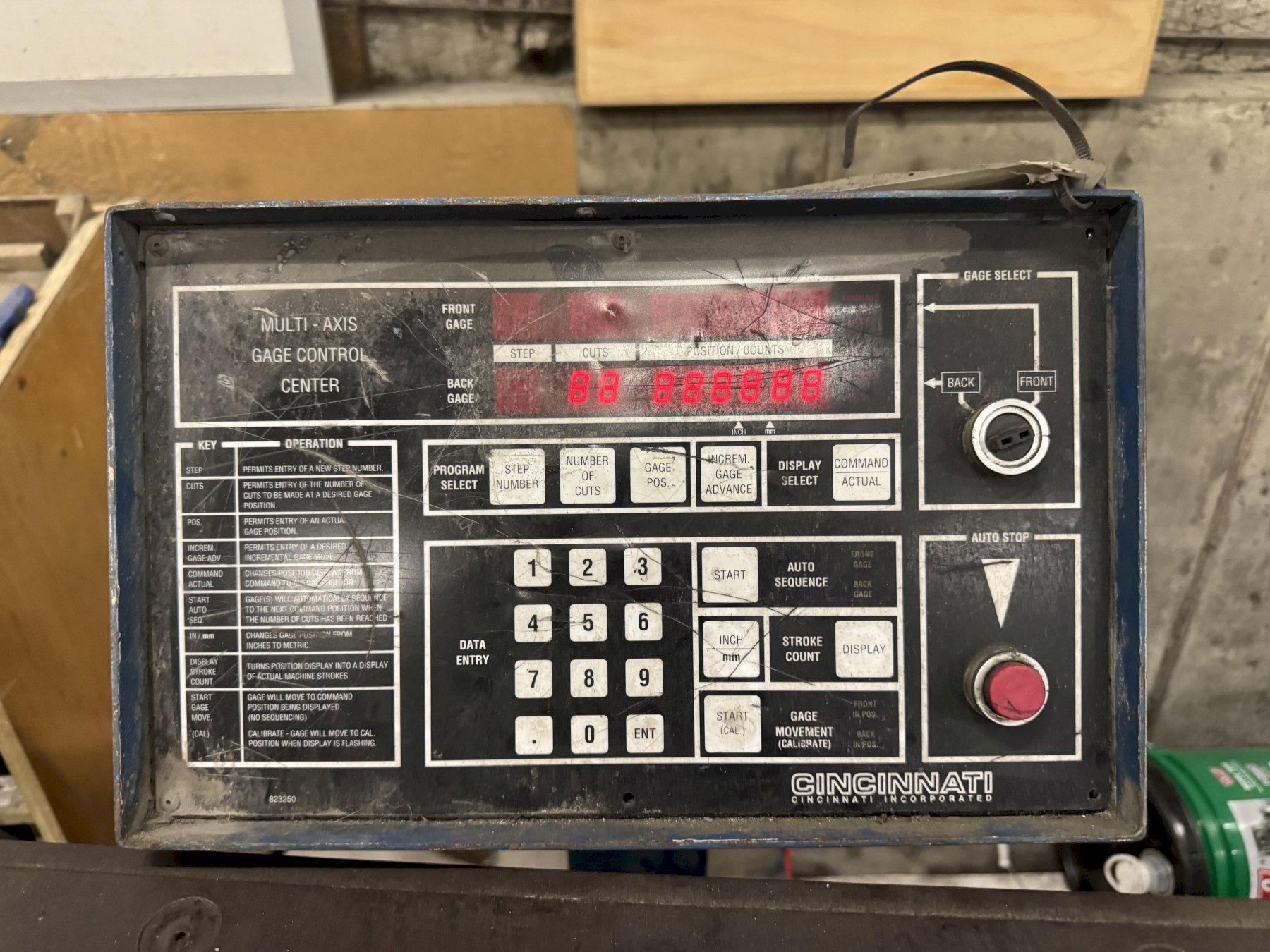

FRONT OPERATED POWER BACK GAUGE
BACK GAUGE RANGE 36"
FRONT OPERATED POWER FRONT GAUGING
FRONT SUPPORT ARMS
