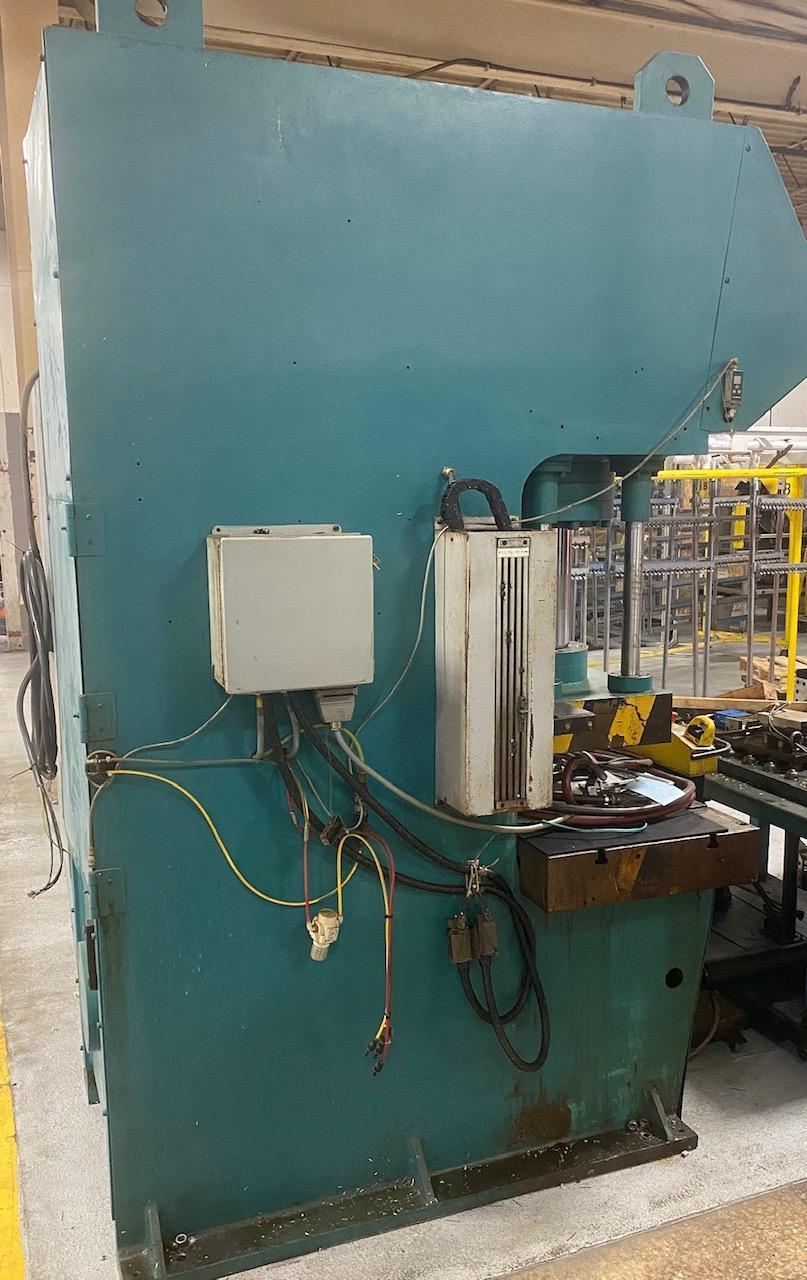

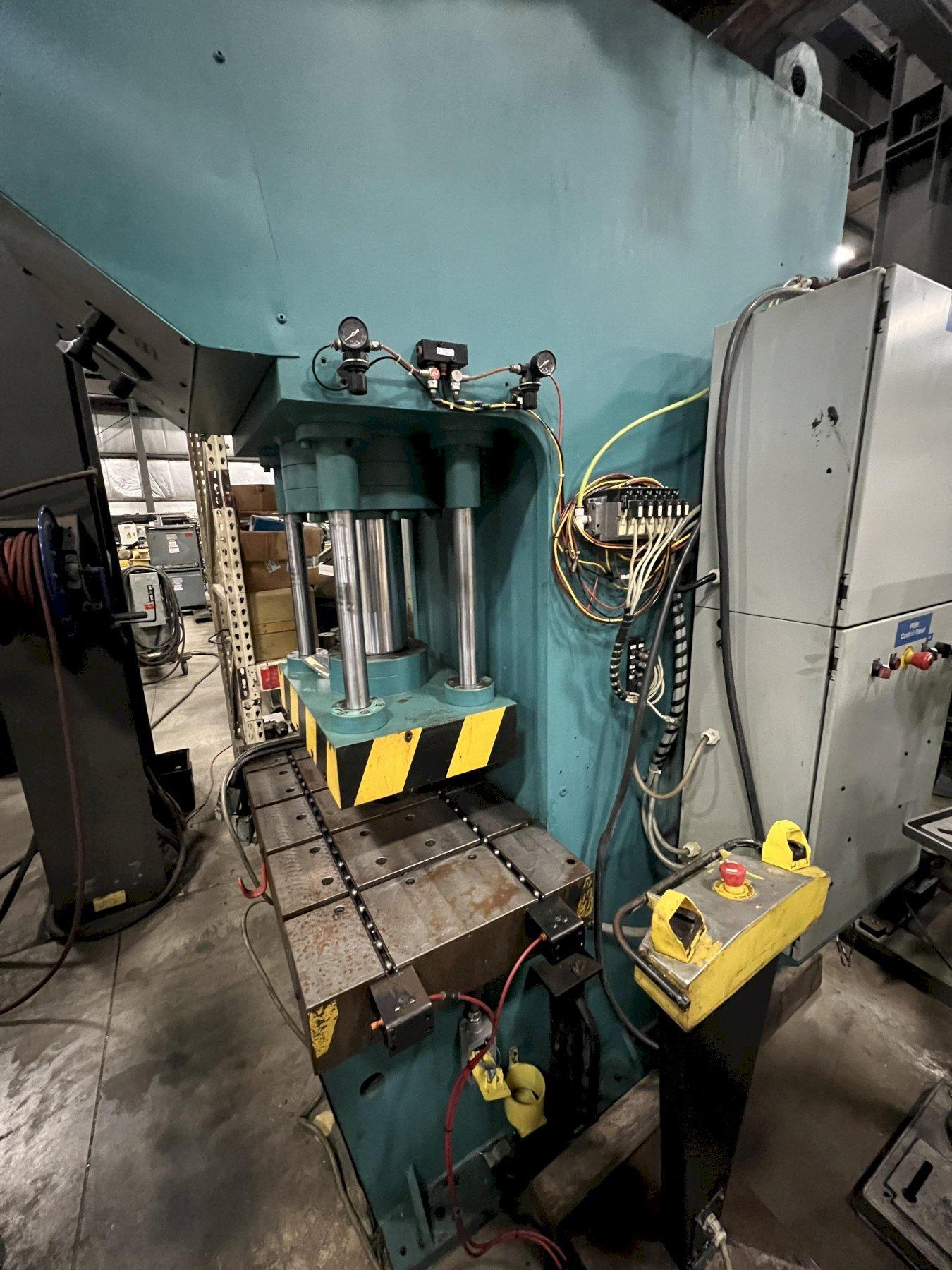

110 TON COLE-TUVE C-FRAME HYDRAULIC PRESS, DUAL PALMS, VARY SPEED

Brand
COLE-TUVE

Model
CF-110

Stock #
10593

Condition
Used

Year
2003

Specifications

Equipped With

GENERAL SPECIFICATIONS:
MANUFACTURER................... COLE-TUVE
MODEL.......................... CF-110

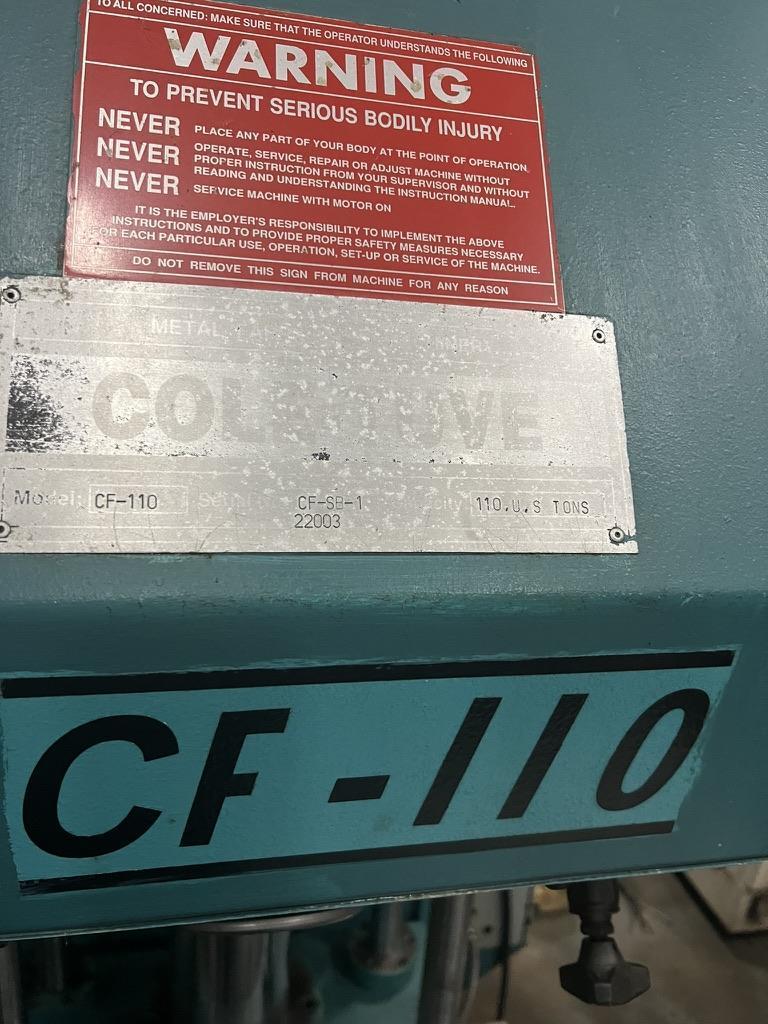

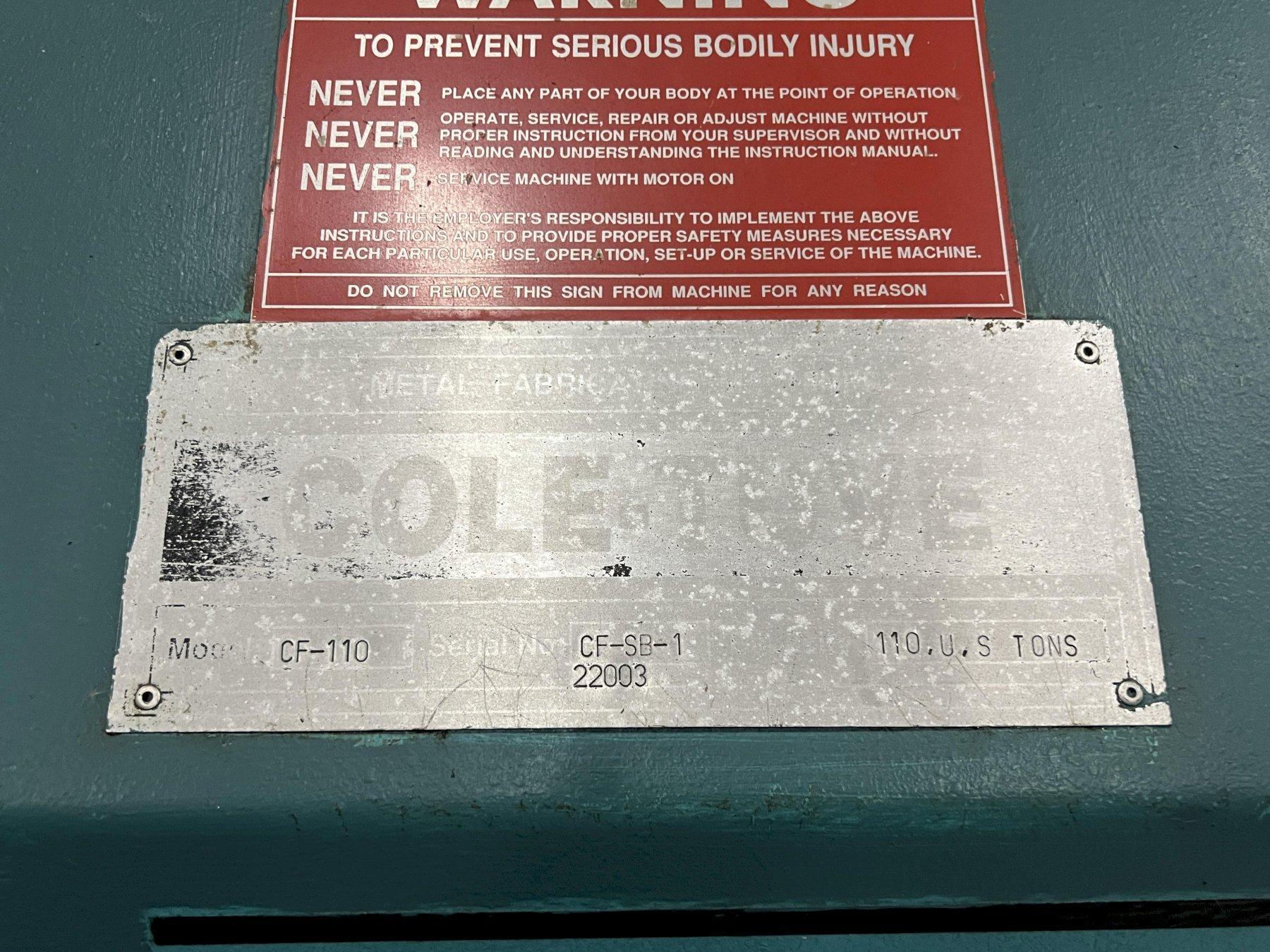

SERIAL NUMBER.................. CF/SB-1-22003
AGE............................ 2003
TONNAGE........................ 110 TONS
STROKE (ADJ.).................. .25" TO 11.8"
SPEEDS
   ADVANCE..................... 50 IPM
   PRESS....................... 23 IPM
   RETURN...................... 137 IPM
MAX. SHUT HEIGHT............... 7.88"
DAYLIGHT (MAX OPENING)......... 19.6"
THROAT DEPTH................... 10.2"

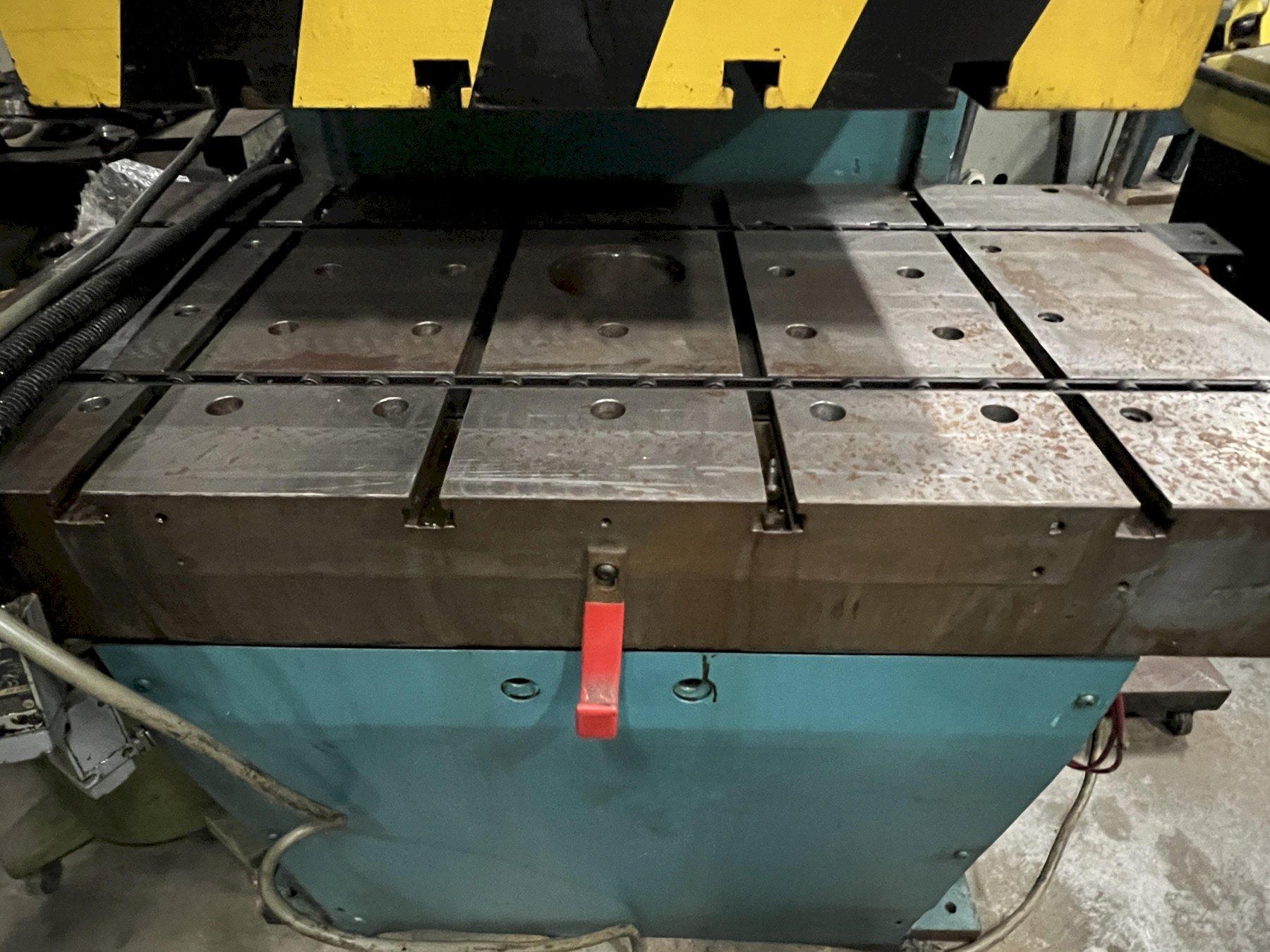

TABLE.......................... 23.5" X 43.5"

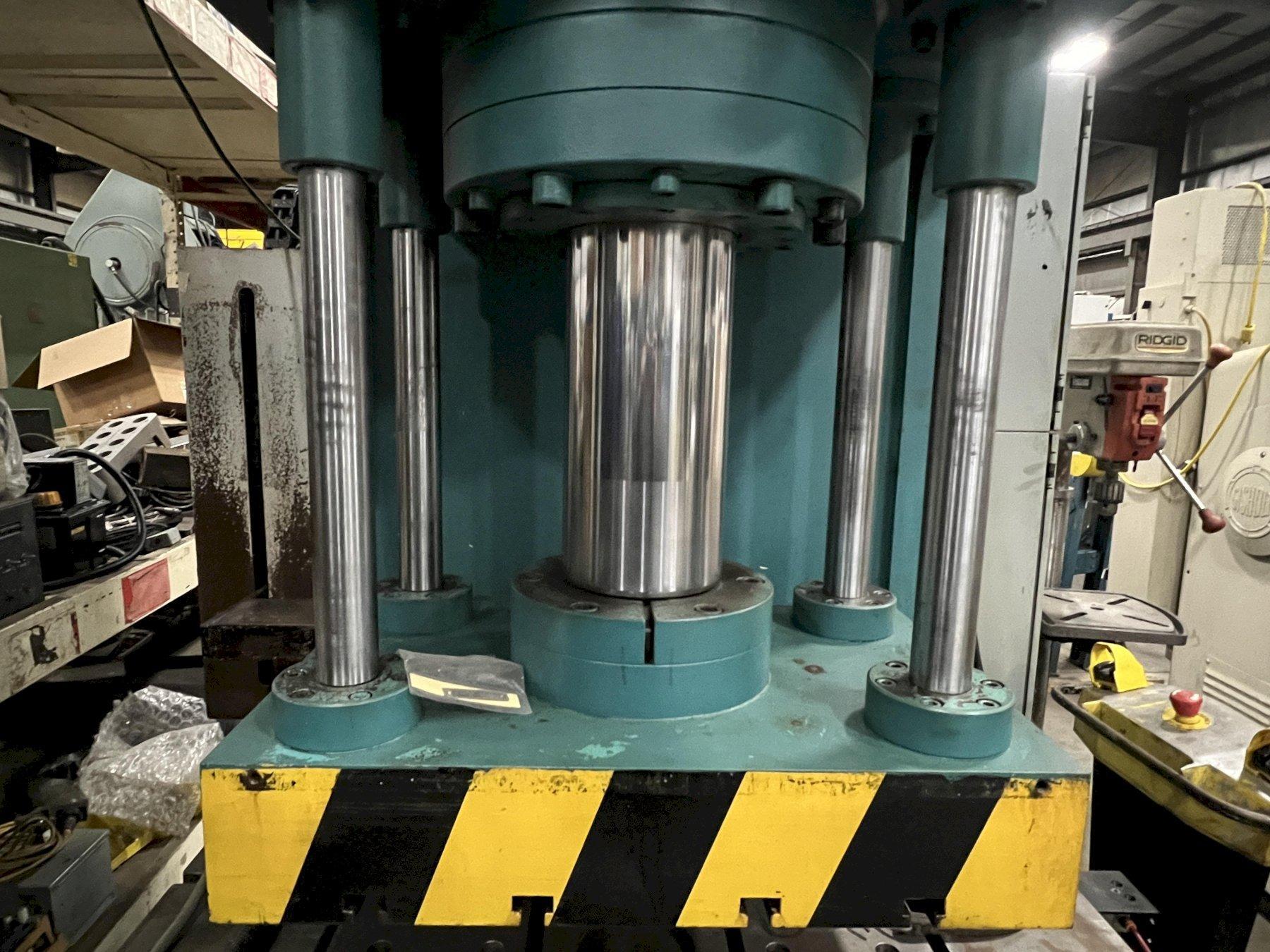

RAM ........................... 16.5" X 26.8"
VOLTAGE........................ 440 VOLTS
MOTOR.......................... 10 HP

APPROXIMATE WEIGHT............. 11,000 LBS
DIMENSIONS..................... 76" X 51" X 108"H

EQUIPPED WITH:

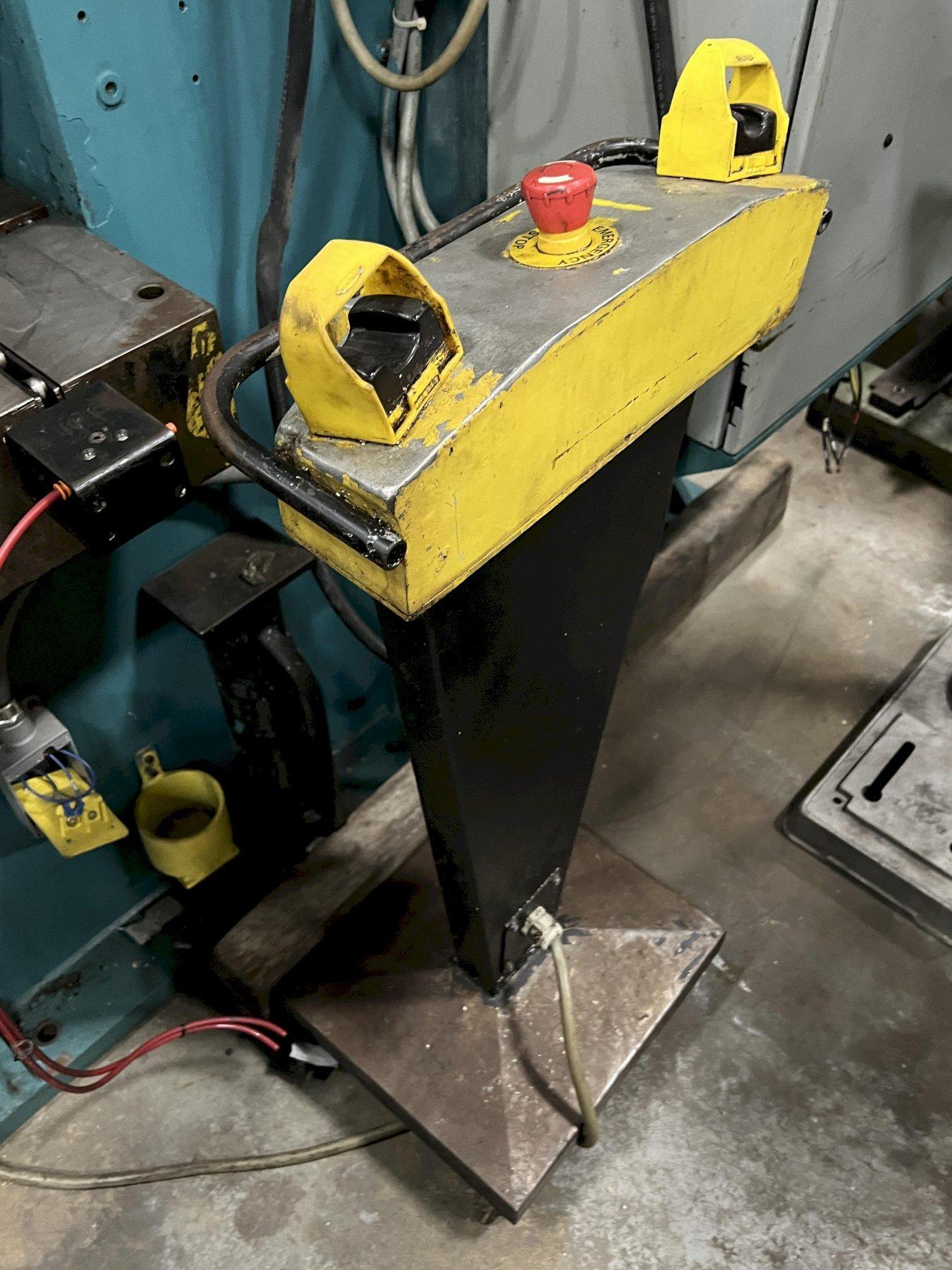

DUAL PALM BUTTONS
RAM REBUILT 2019
