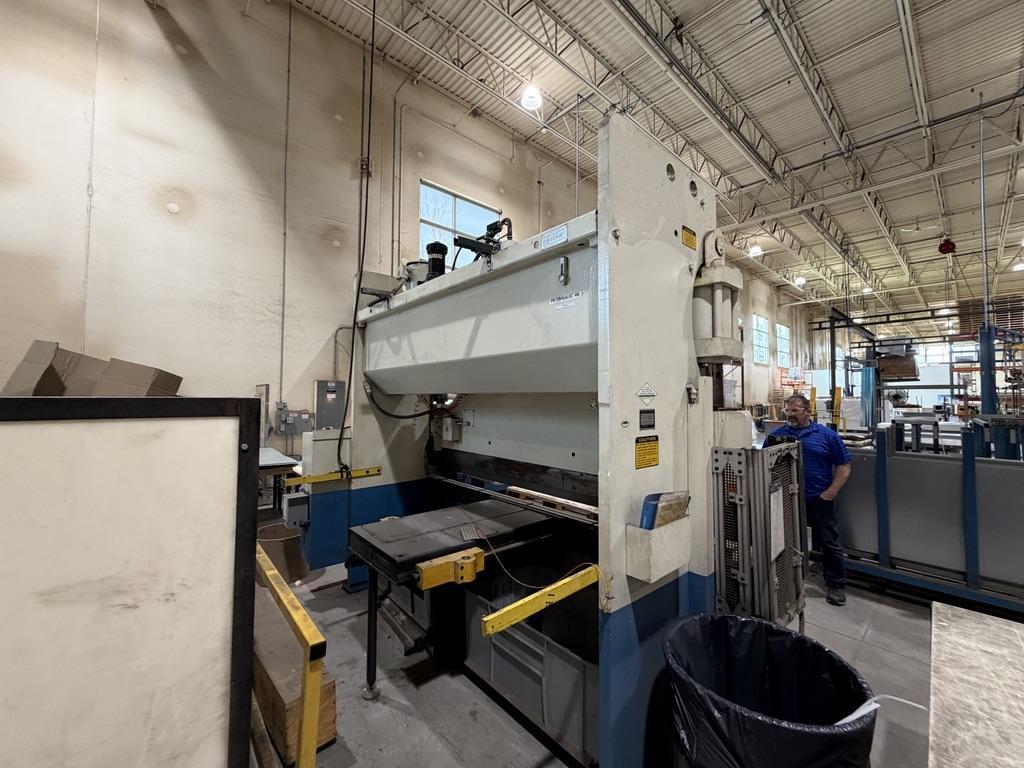

135 TON x 10'/8'6" HYDRAULIC PRESS BRAKE MODEL 135 CBII X 8 WITH FORCEMASTER CONTROL, NO PIT OR SLOT REQUIRED, 1996

135 TON x 10'/8'6" HYDRAULIC PRESS BRAKE MODEL 135 CBII X 8 WITH FORCEMASTER CONTROL, NO PIT OR SLOT REQUIRED, 1996

Brand
CINCINNATI INC

Model
135CBII X 8 FT.

Type
Brakes, Hydraulic

Stock #
11378

Condition
Used

Year
1996

Request a Quote

Specifications

Equipped With

General Specifications:

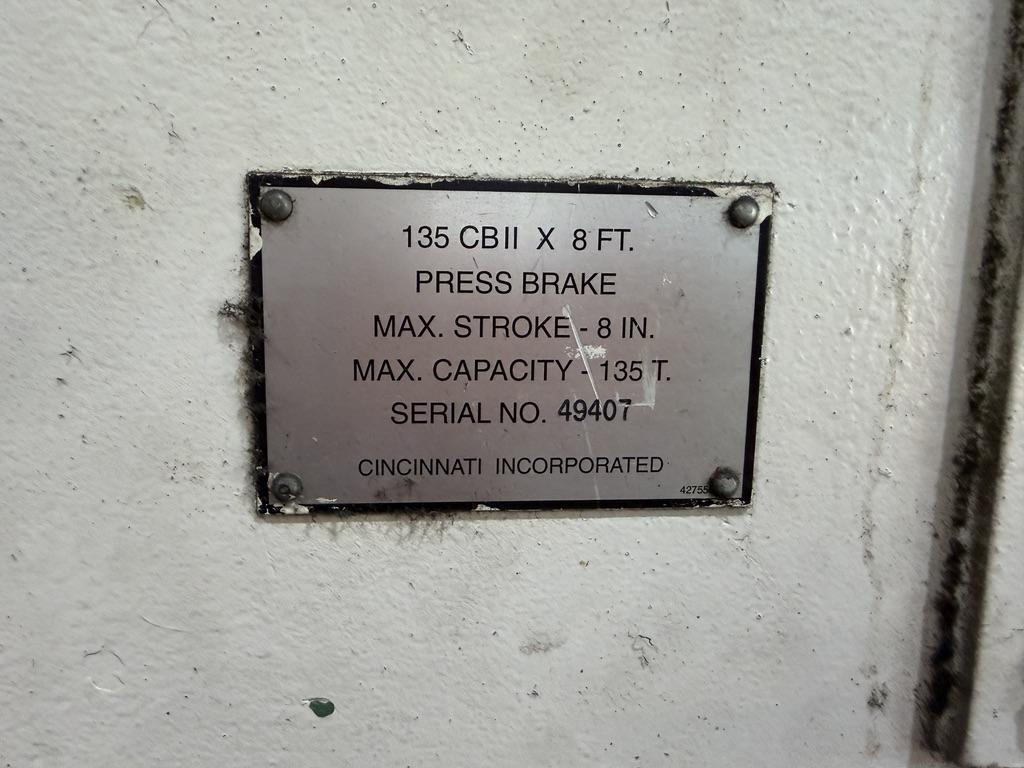

Manufacturer............. CINCINNATI
Model.................... 135 CBII X 8
Serial#.................. 049407
Age approximately........ 1996
Tonnage.................. 135
Capacity (Air Bend)...... 1/4" x 7'6" Mild Steel
Length of Bed and Ram.... 120"
Distance Between......... 102"
Ram Stroke............... 0"- 8"
Open Height.............. 15"
Closed Height............ 7"
Ram Speeds: (Approach)... 200 IPM
(Bend)....... 10/20/55 IPM
(Return)..... 185 IPM
Throat................... 7"
Horsepower............... 15
Wire..................... 460/3/60
Weight Approximately..... 19,000 lbs

Equipped With:
3 Position Electric Foot Switch

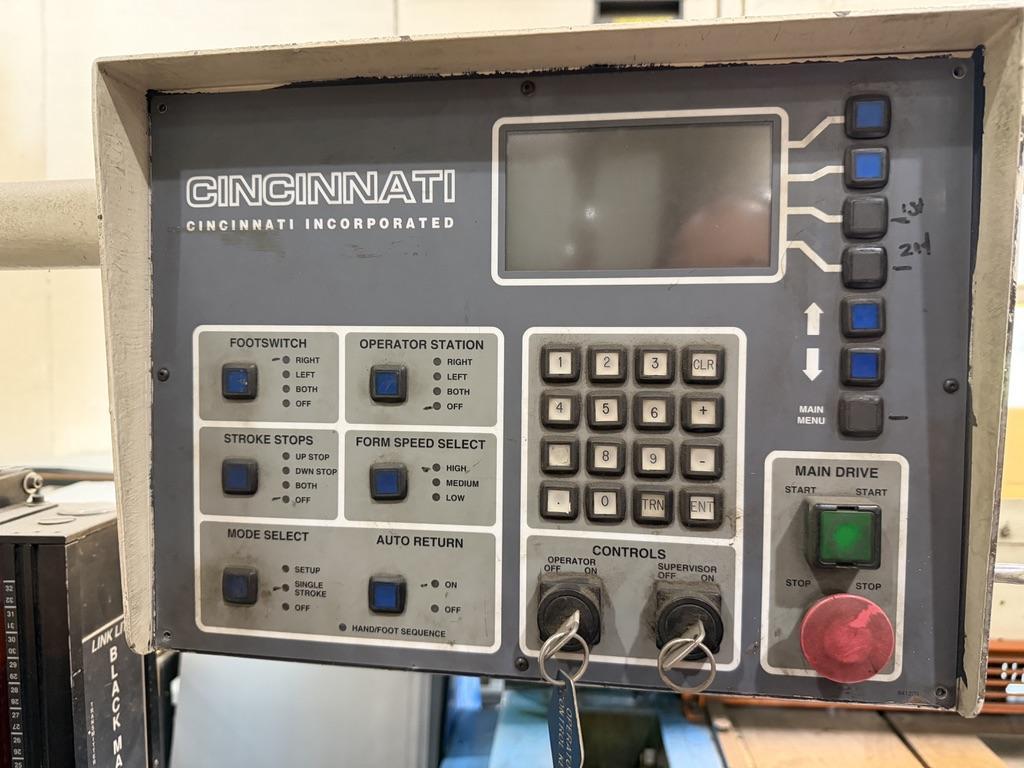

Cincinnati Force Master control
Micro crowned Bed
Cross C slots in bed
Control needs repair or replacement

135 TON x 10'/8'6" HYDRAULIC PRESS BRAKE MODEL 135 CBII X 8 WITH FORCEMASTER CONTROL, NO PIT OR SLOT REQUIRED, 1996
