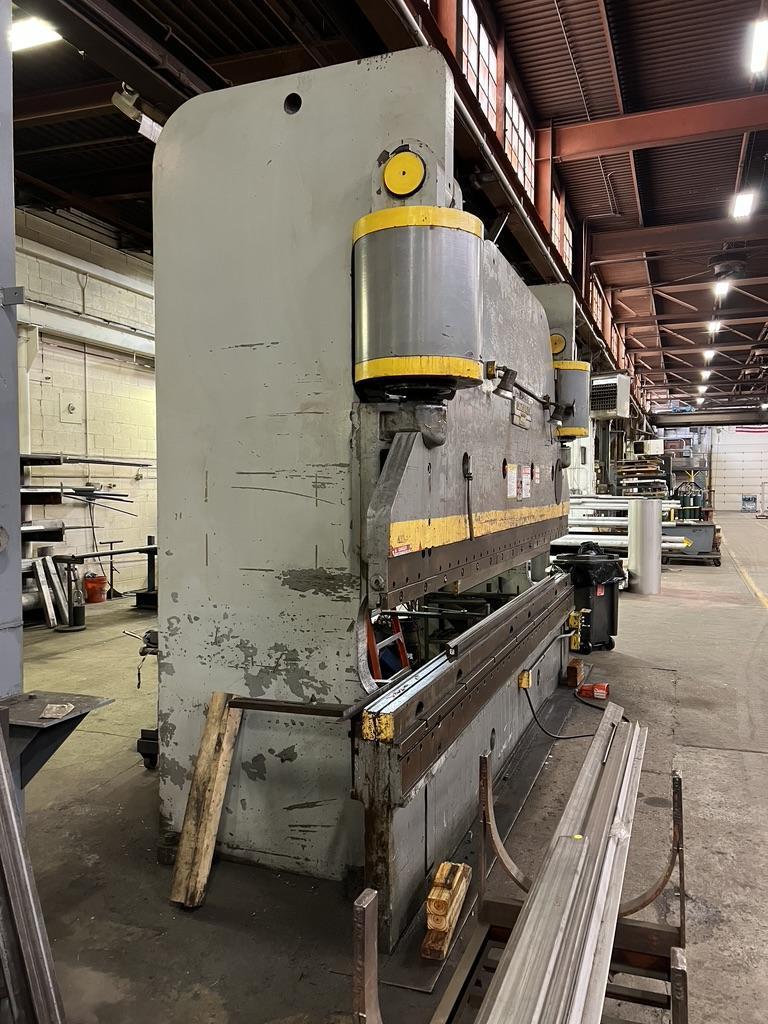

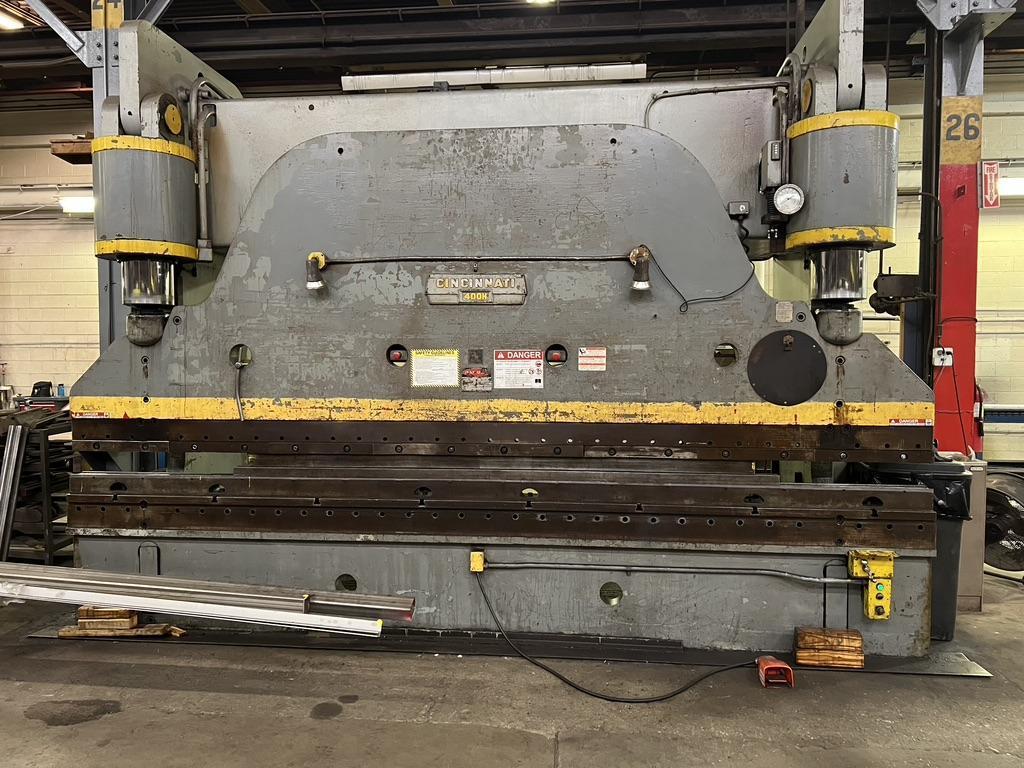

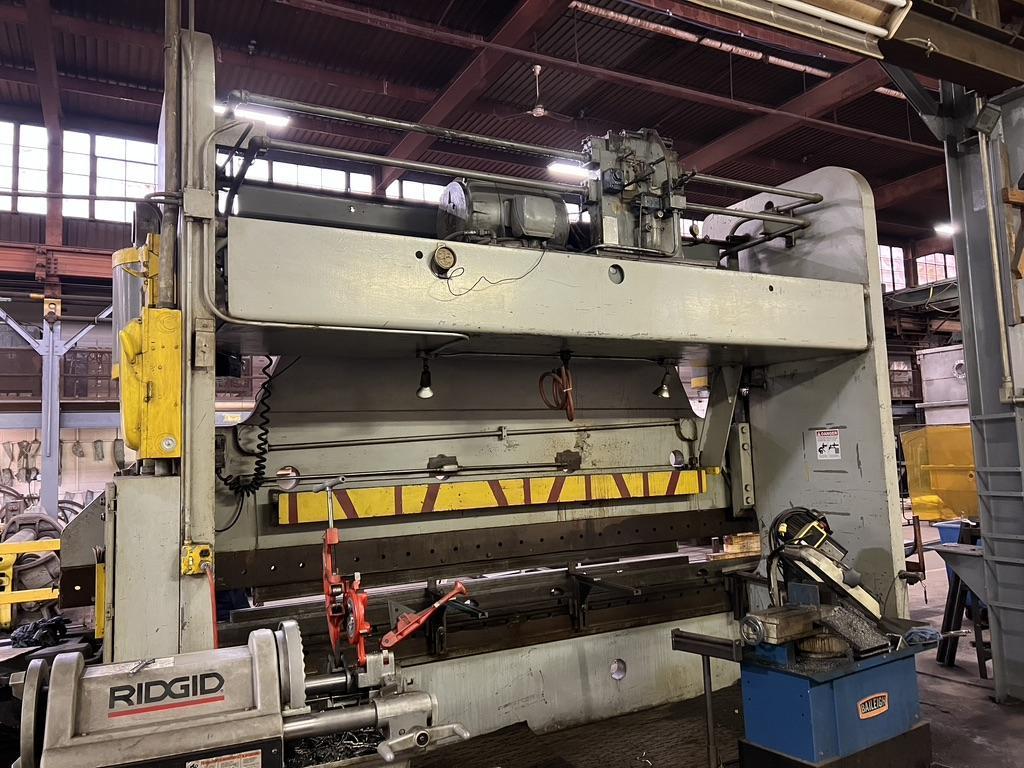

400 TON CINCINNATI PRESS BRAKE MODEL 400H X 14', 16' OVERALL, 12'6" BETWEEN, HYDRAULIC, VERY QUIET

Model
400H12

Stock #
10708

Condition
Used

Year
1964

Specifications

Equipped With

GENERAL SPECIFICATIONS:

MAKE..................... CINCINNATI
MODEL.................... 400H X 12
AGE (YEAR)............... 1964
OVERALL BED LENGTH....... 16'
DIST. BETWEEN HOUSINGS... 12' 6"
BENDING CAPACITY......... 400 TONS
CAPACITY................. 10' X 1/2"
STROKE................... 12"
RAM SPEED (FAST PRESS)... 64 IPM
RAM SPEED (FULL TONNAGE). 27 IPM
RAM SPEED (RETURN)....... 51 IPM
OPEN HEIGHT.............. 20"
CLOSED HEIGHT............ 8"
BED HEIGHT .............. 32"
MAIN MOTOR............... 40 HP
WEIGHT APPROX............ 58,500 LBS.
APPROXIMATE DIMENSIONS... 192"LR X 62"FB
HEIGHT ABOVE FLOOR....... 11'8" HIGH
DEPTH OF PIT............. 49"

EQUIPPED WITH:

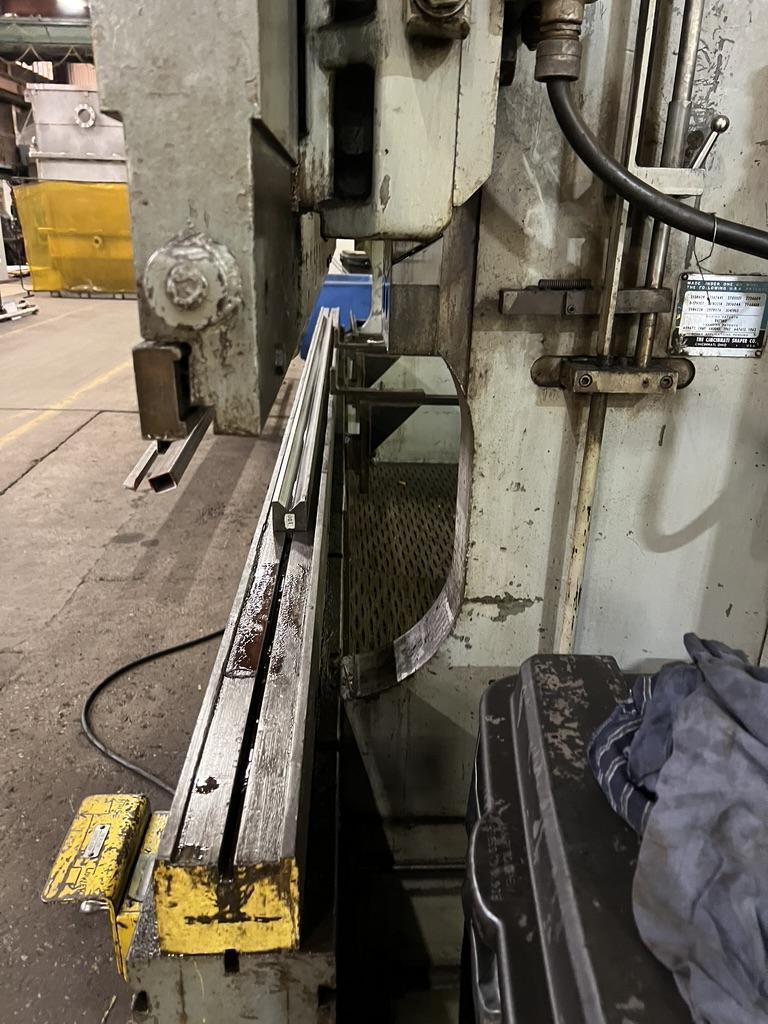

FULL LENGTH DIE RAIL
ADJUSTABLE DEPTH STOP

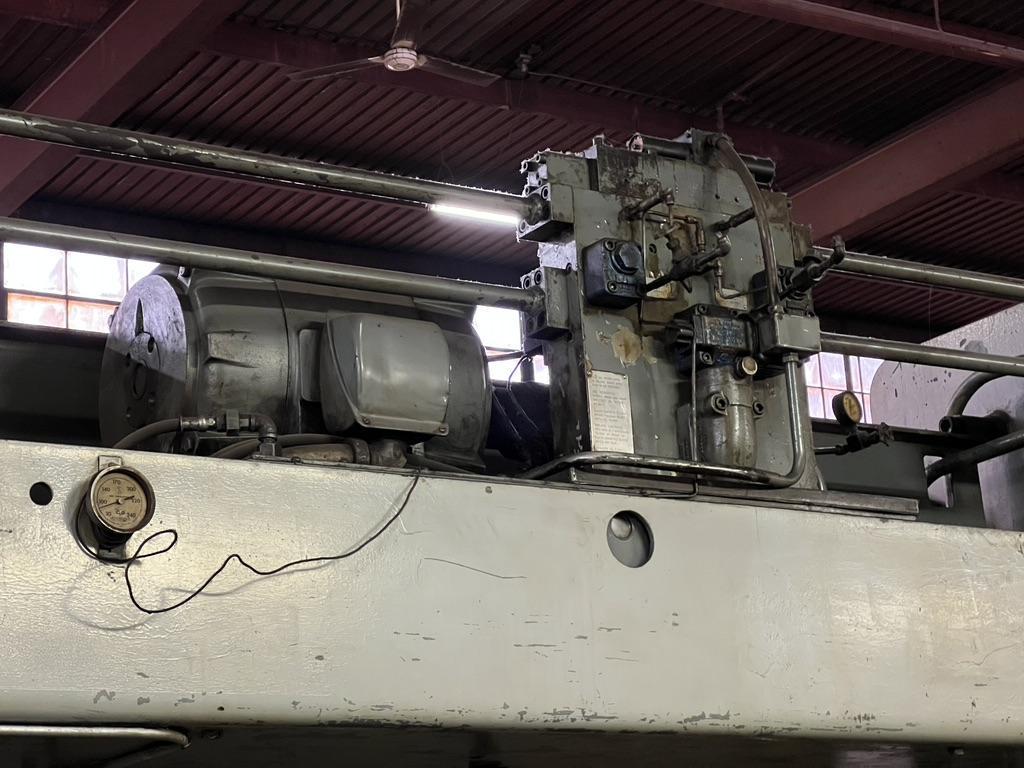

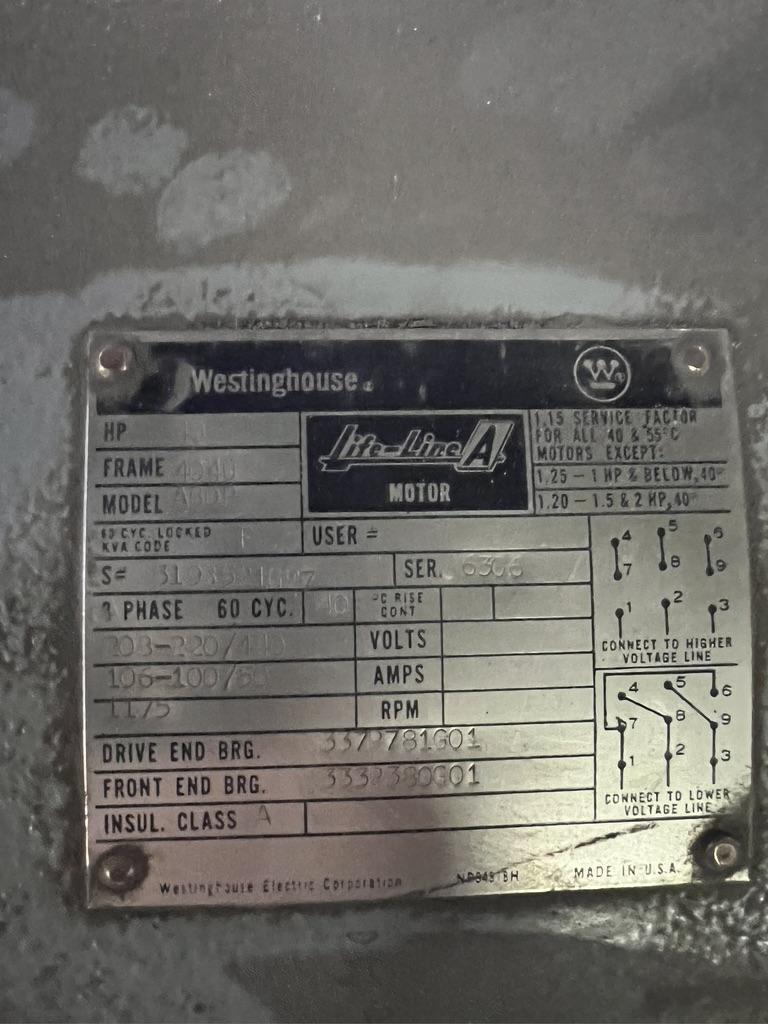

40 HP WESTINGHOUSE MOTOR CURRENTLY RUNNING 440V
TONNAGE INDICATOR
FRONT RAM LEVELING ADJUSTMENT
FRONT RAM DEPTH ADJUSTMENT
REAR ANGLE BRACKETS FOR PART STOPS
FOOT PEDAL

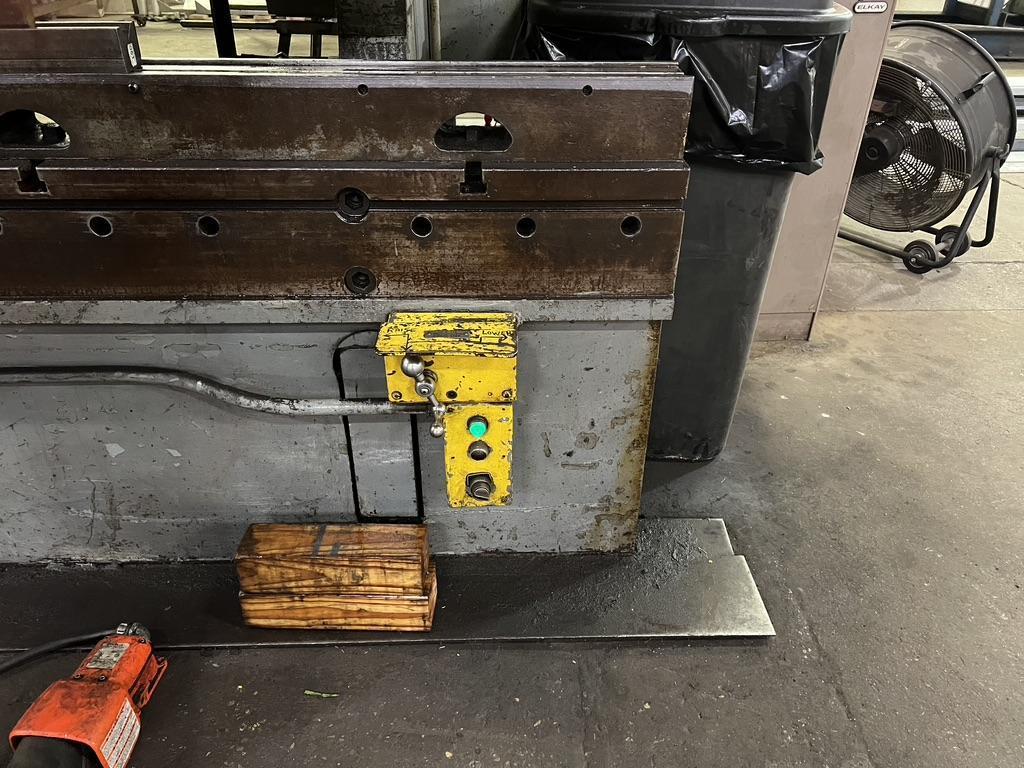

E-STOP
