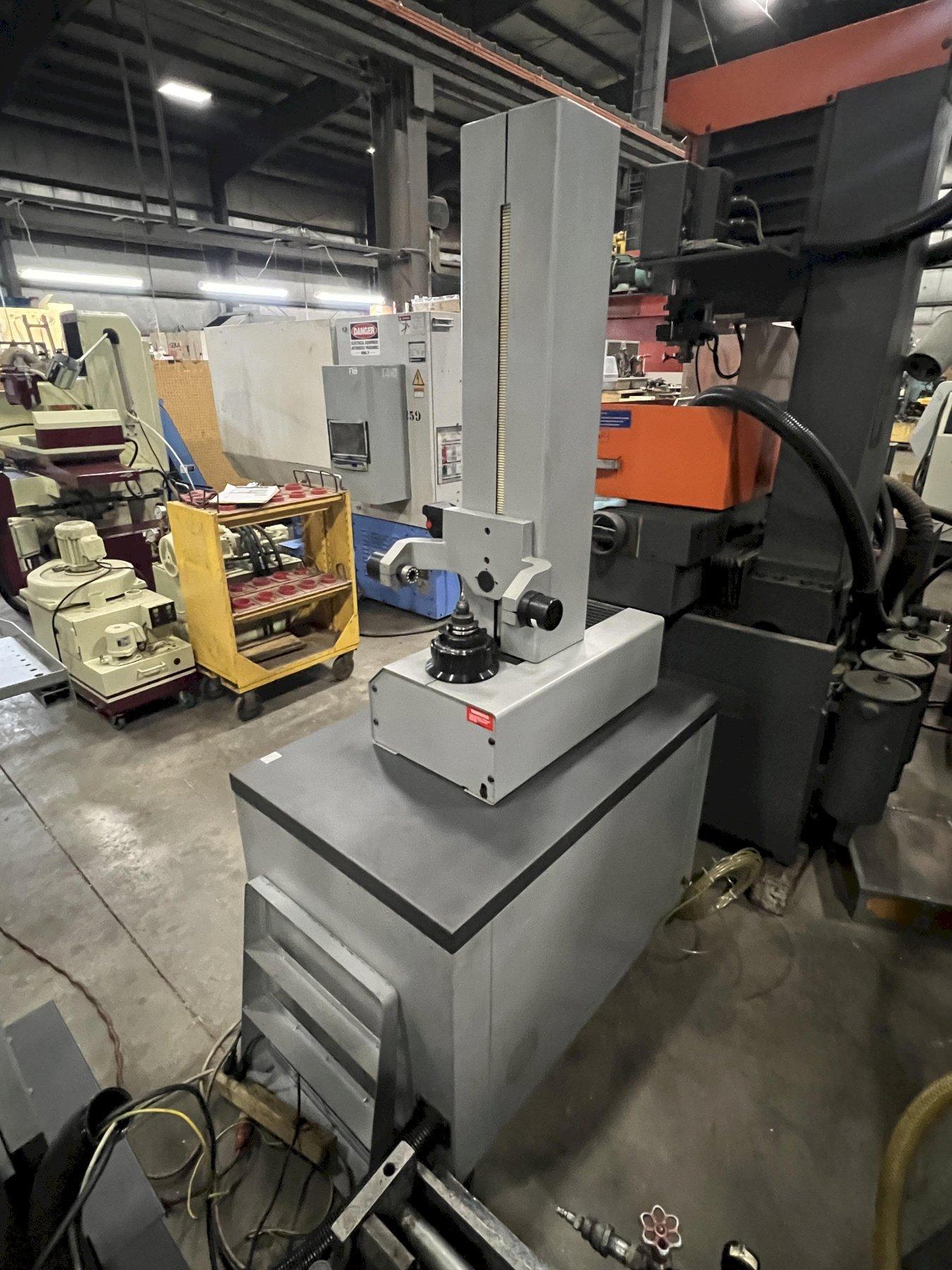

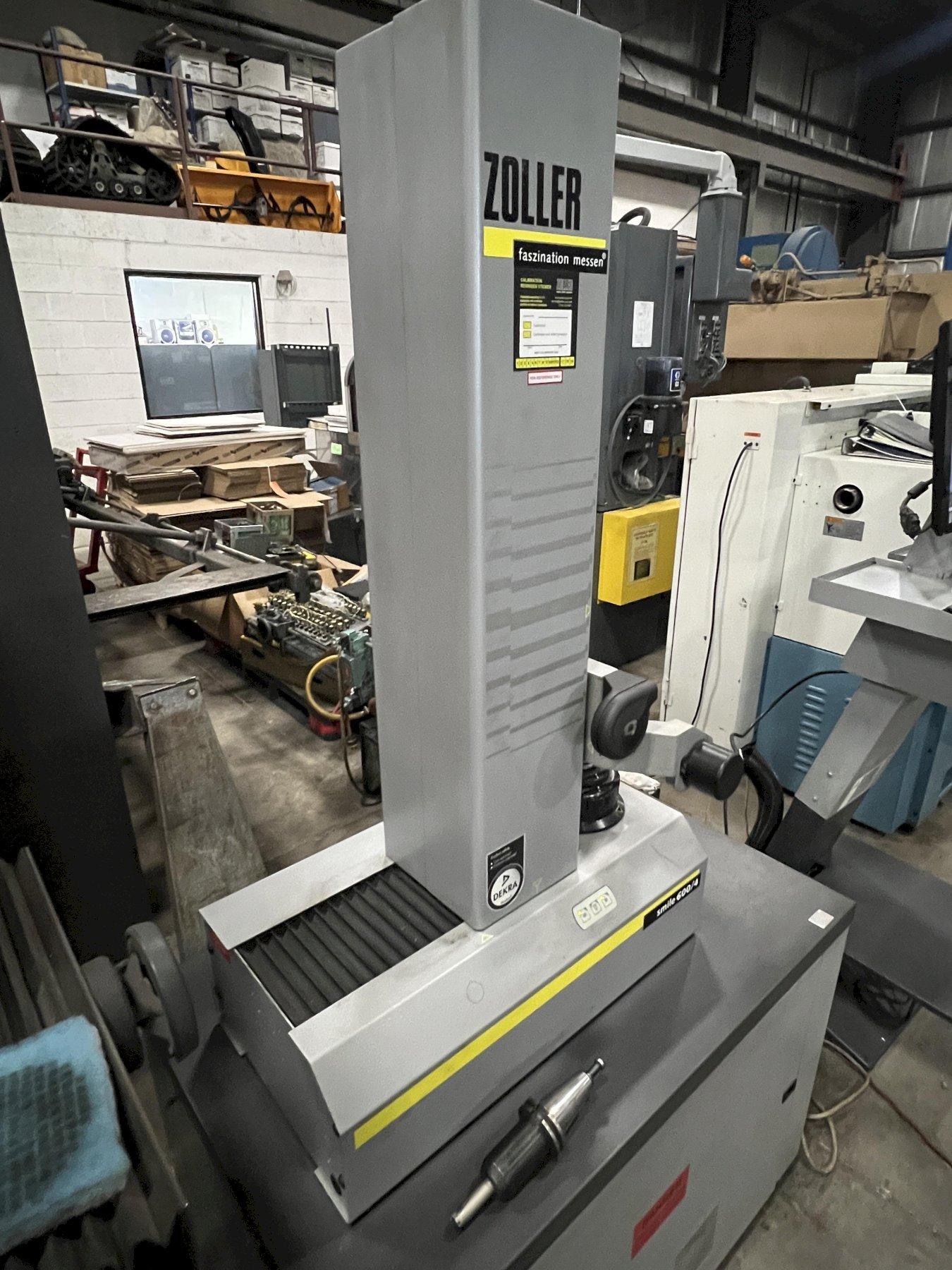

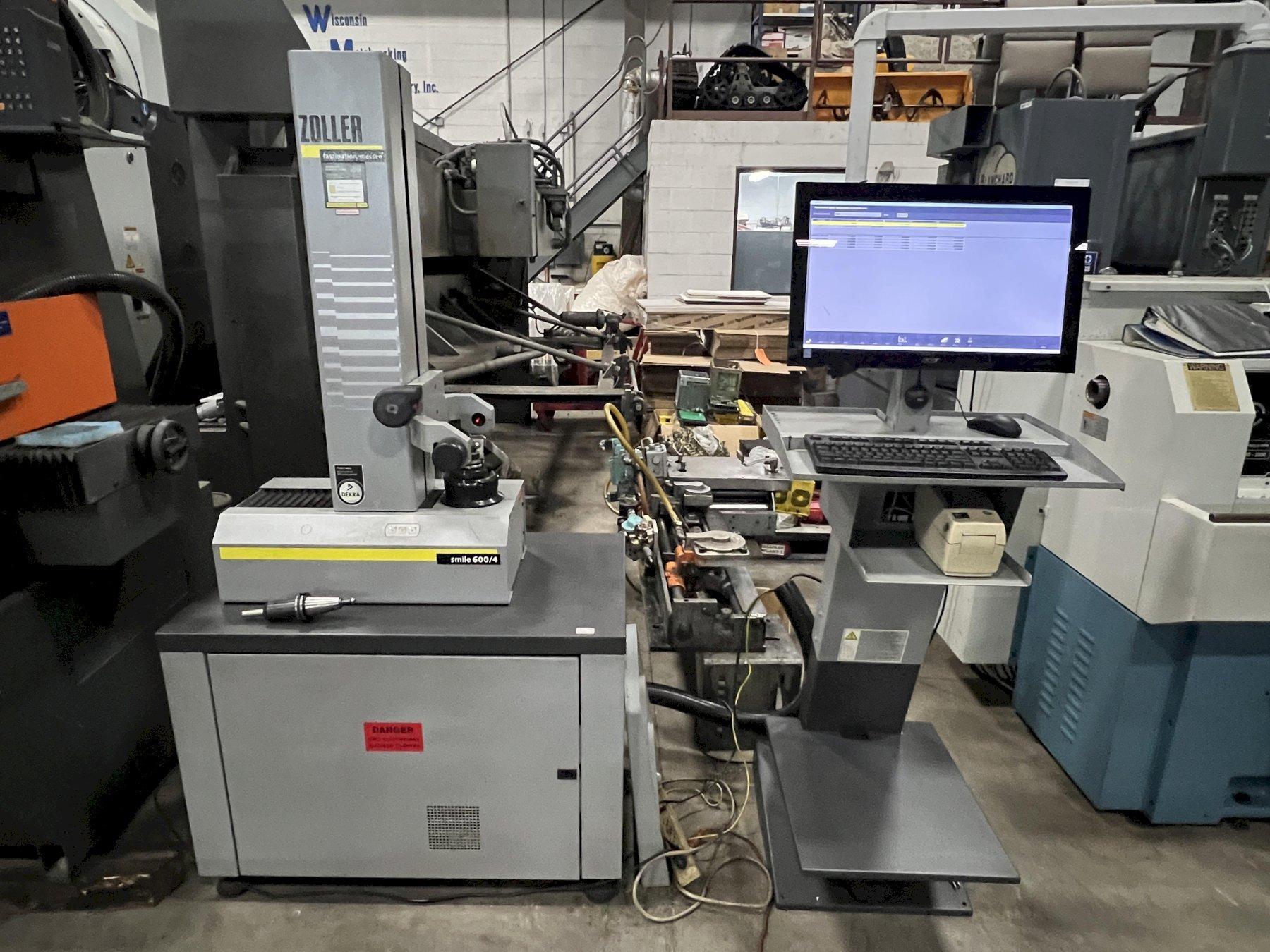

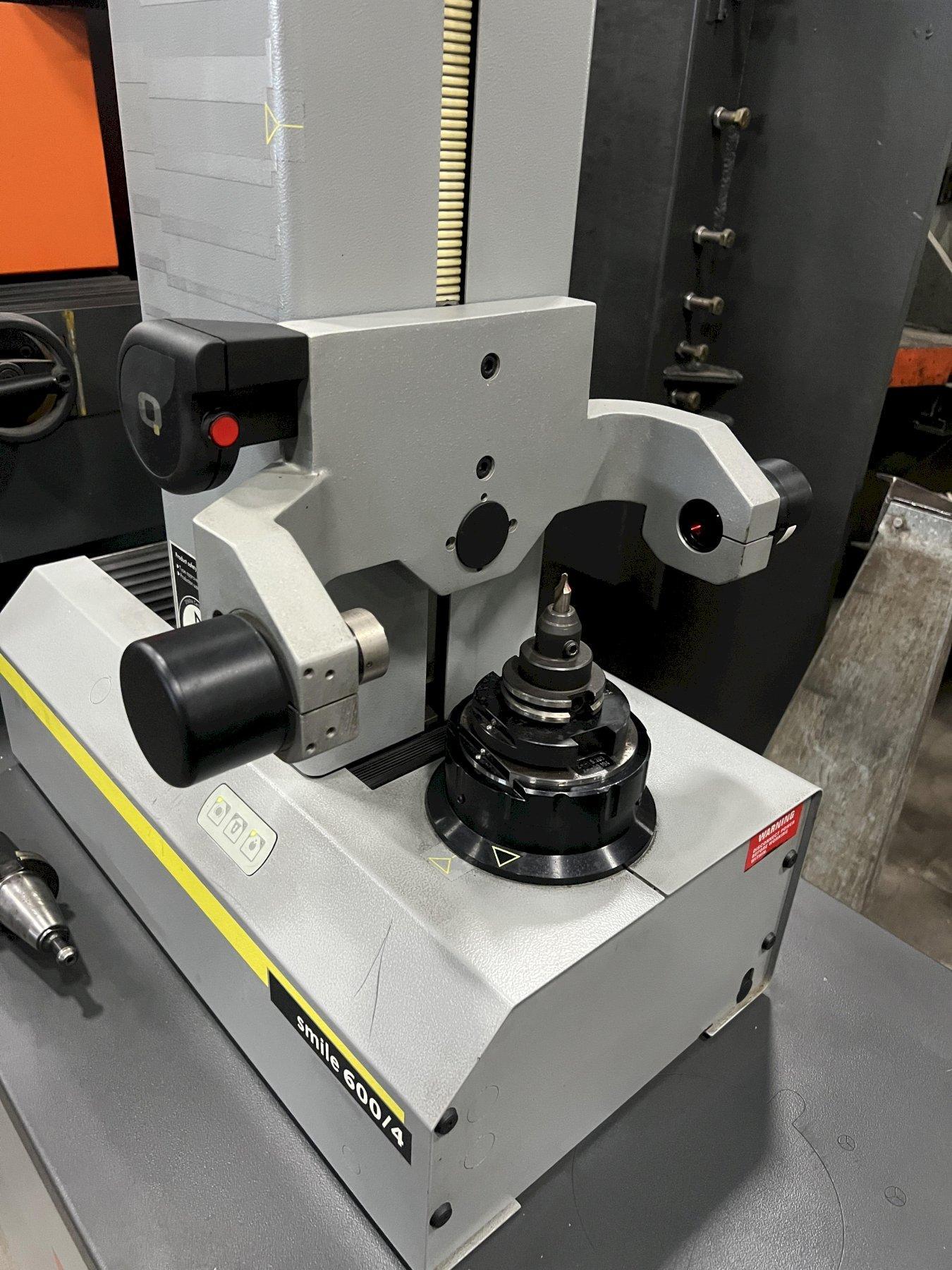

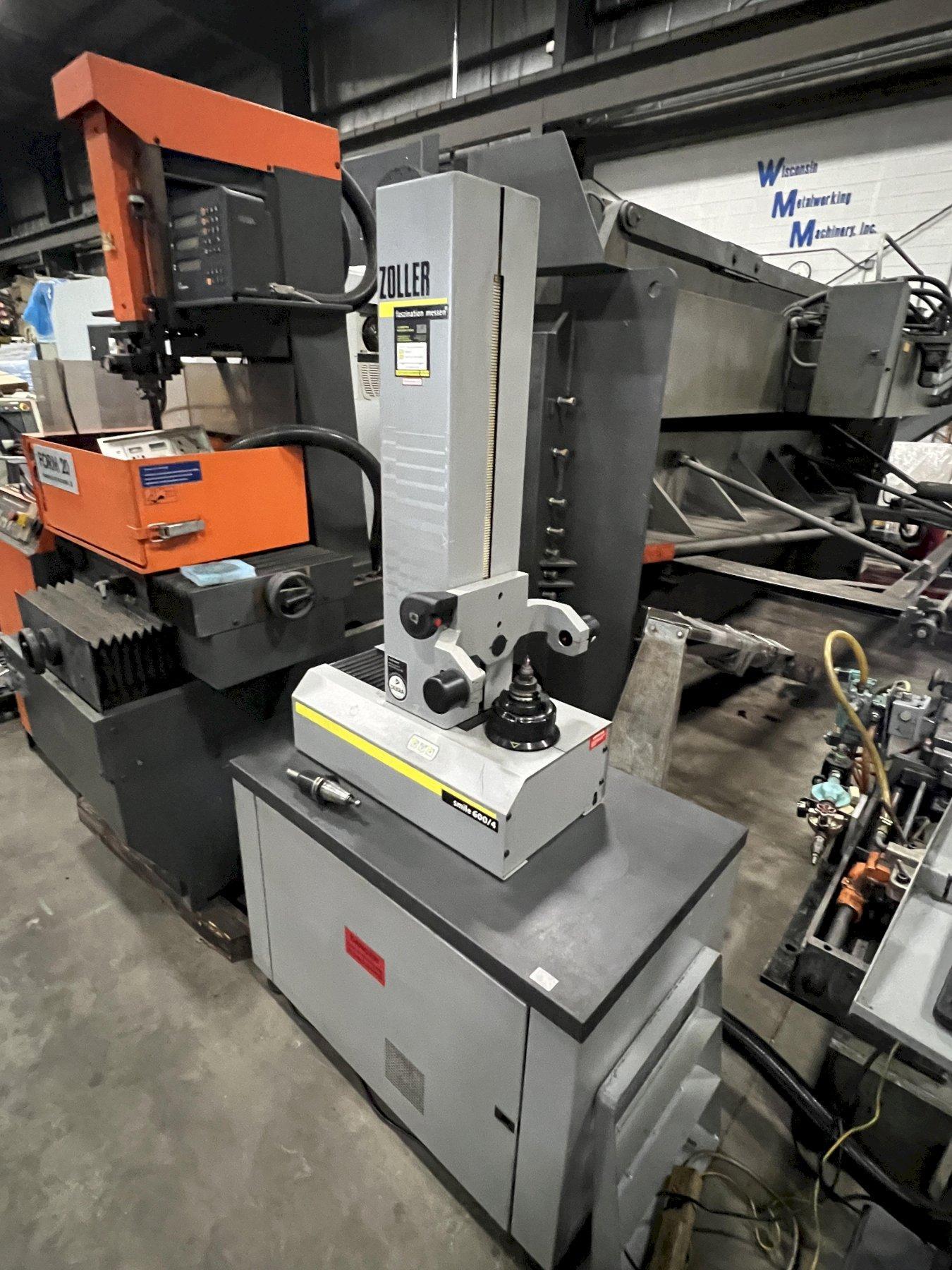

ZOLLER TOOL WEAR MEASUREMENT MACHINE, MODEL SMILE 600/4, PILOT 3.0 SOFTWARE

Brand
ZOLLER

Model
SMILE 600/4

Type
Tool Presetting Machines

Stock #
11267

Condition
Used

Year
2013

Request a Quote

Specifications

Measuring Range Z 600 millimeters
Measuring Range X 400 millimeters
Diameter 400 millimeters
CNC Control yes

Equipped With

GENERAL SPECIFICATIONS

MAKE.................. ZOLLER
MODEL................. SMILE 600/4
SERIAL NUMBER.........
AGE (YEAR)............ 2013

MEASURING CAPABILITIES:
Z AXIS TOOL LENGTH.... 600 MM
X AXIS................ 400 MM
DIAMETER MEASUREMENT.. 400 MM
SNAP GAUGE DIAMETER... 100 MM
PRECISION TOOL SPINDLE
WITH POWER OPERATED CLAMPING

EQUIPPED WITH:

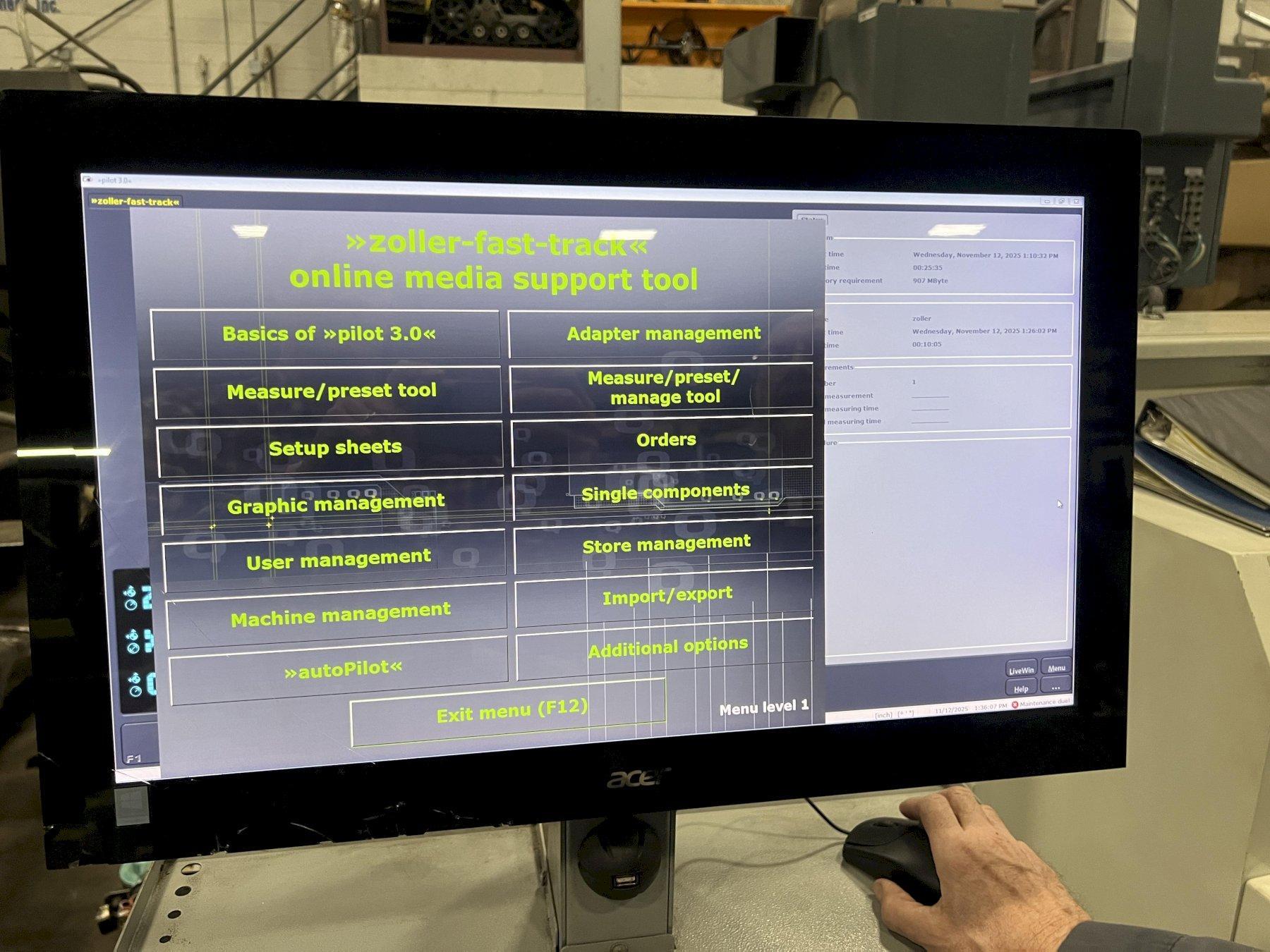

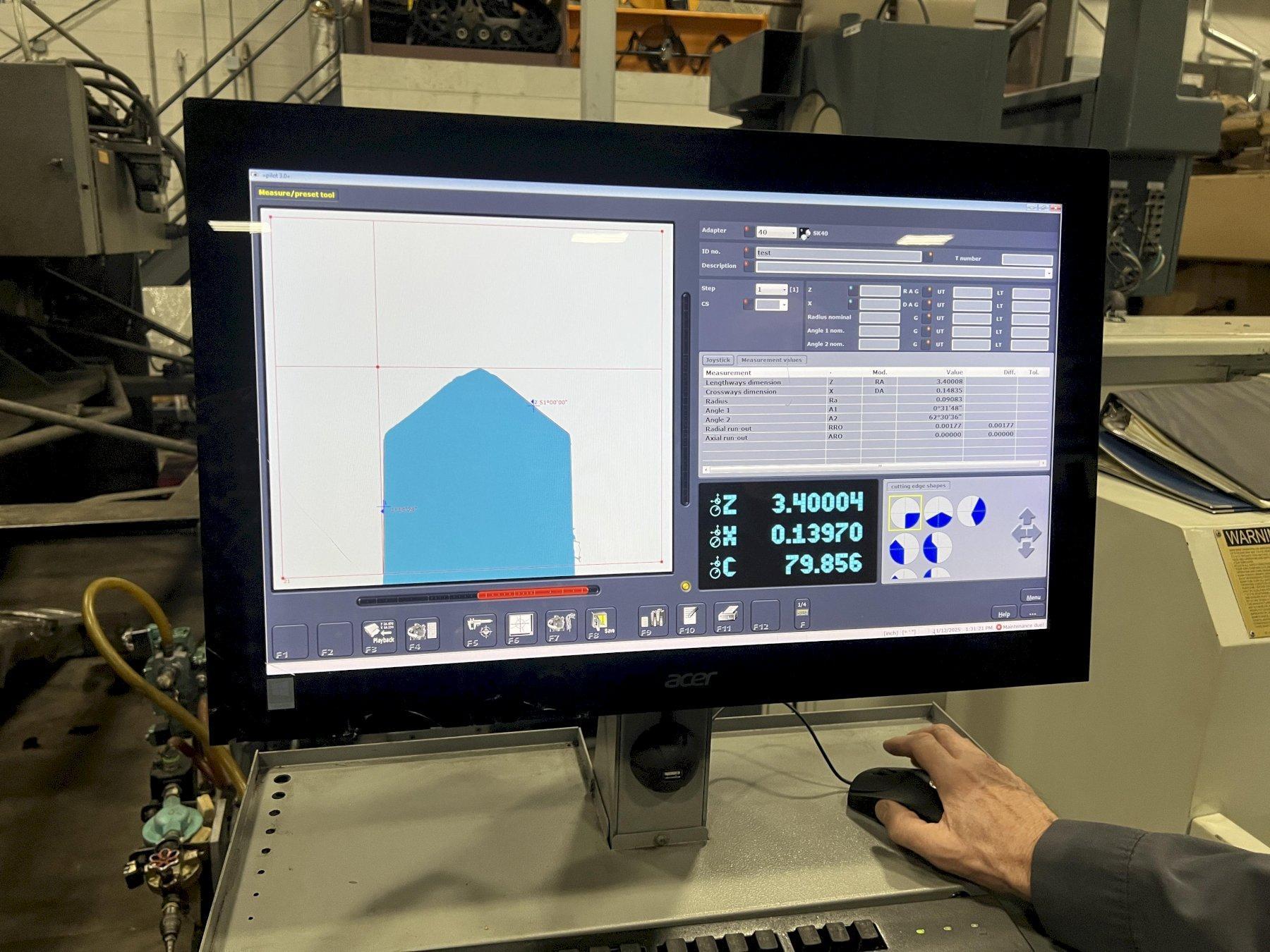

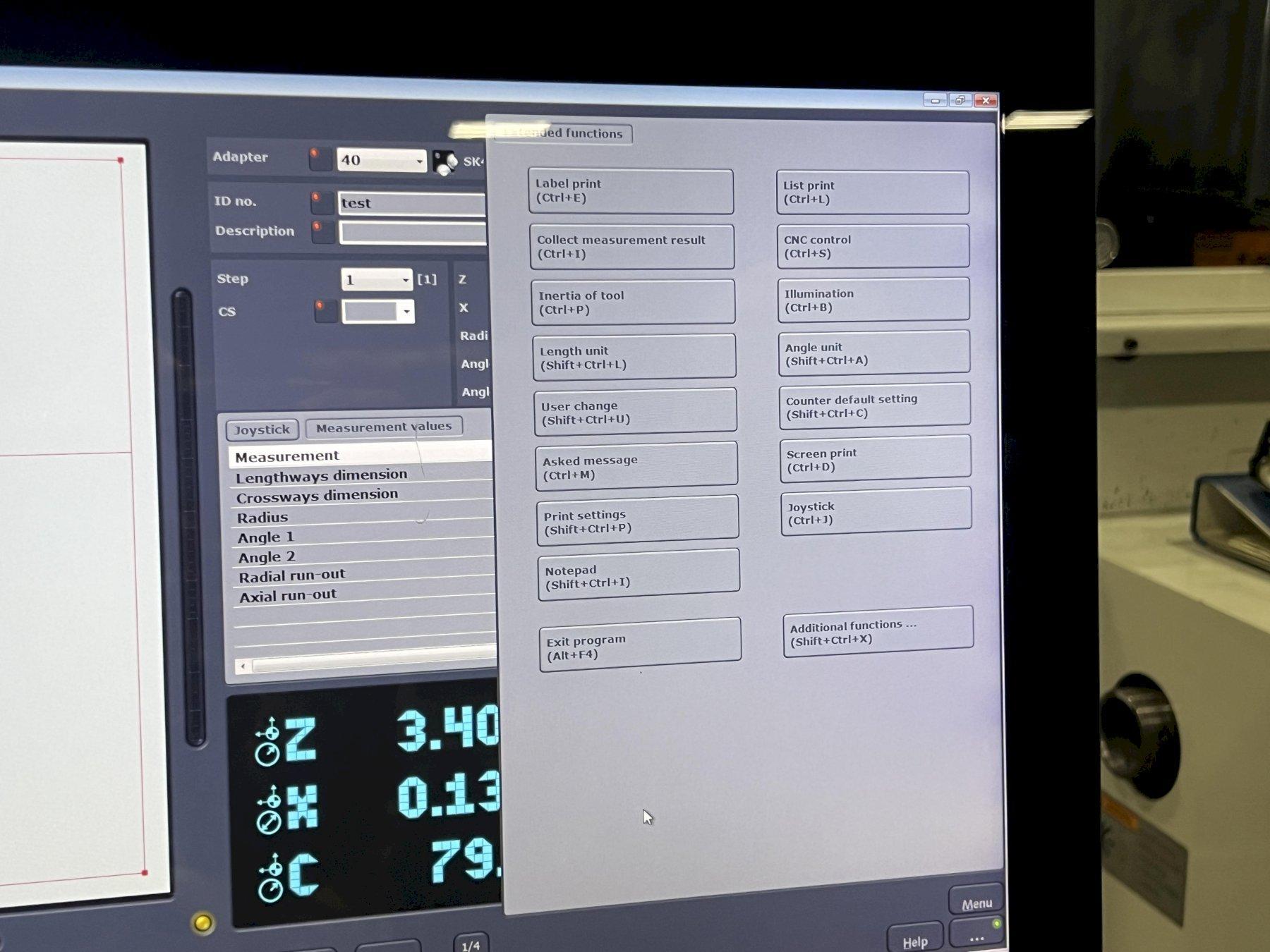

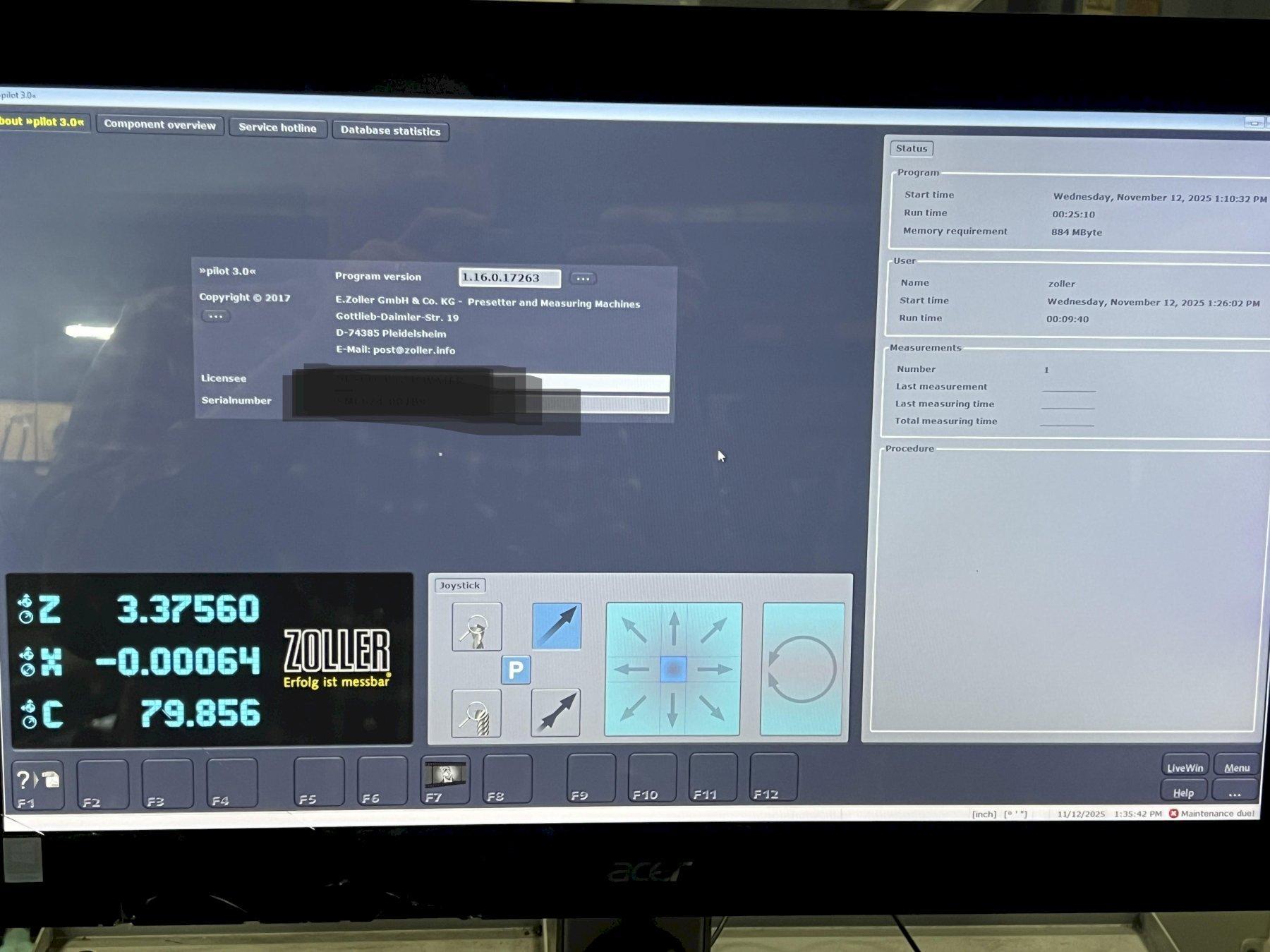

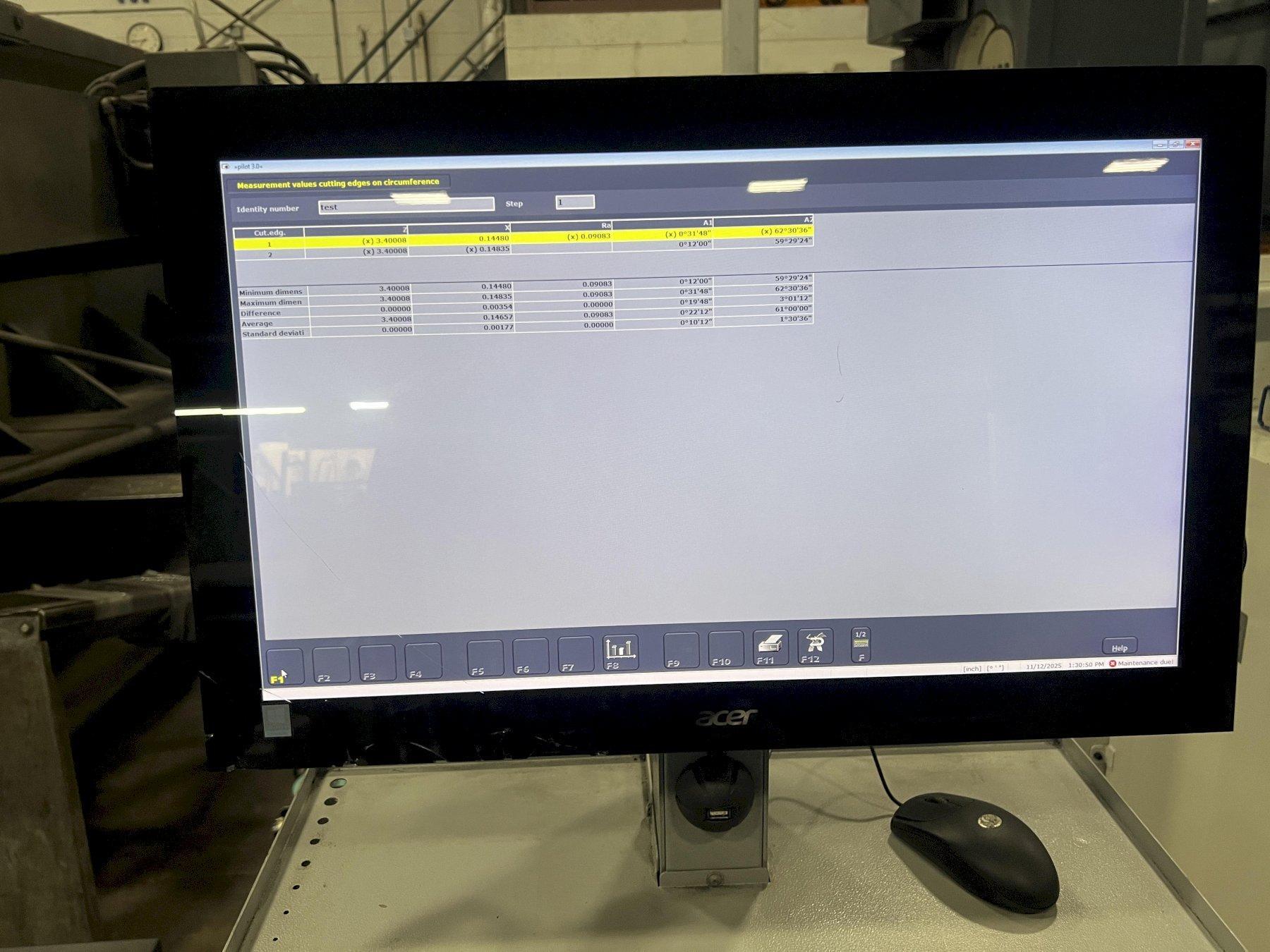

PILOT 3.0 IMAGE PROCESSING SOFTWARE
IMAGE PROCESSING FOR PRECISE MEASUREMENT AND
INSPECTION OF TOOL GEOMETRIES, CONTOURS, AND
CUTTING EDGES
HIGH QUALITY CCD CAMERA

SPECIFICATION SUBJECT TO VERIFICATION
